6AG2512-1SM03-1AB0 Siemens SIPLUS ET 200SP CPU 1512SP F-1 Original Brand New
$4,878.68
6AG2512-1SM03-1AB0

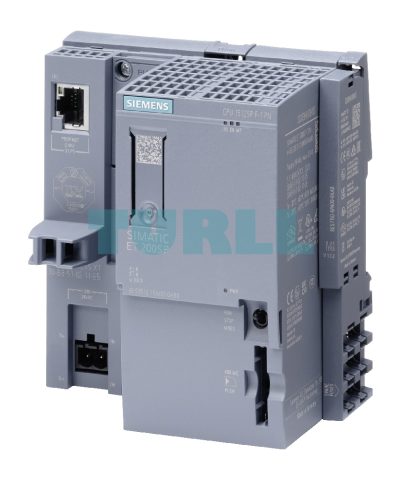

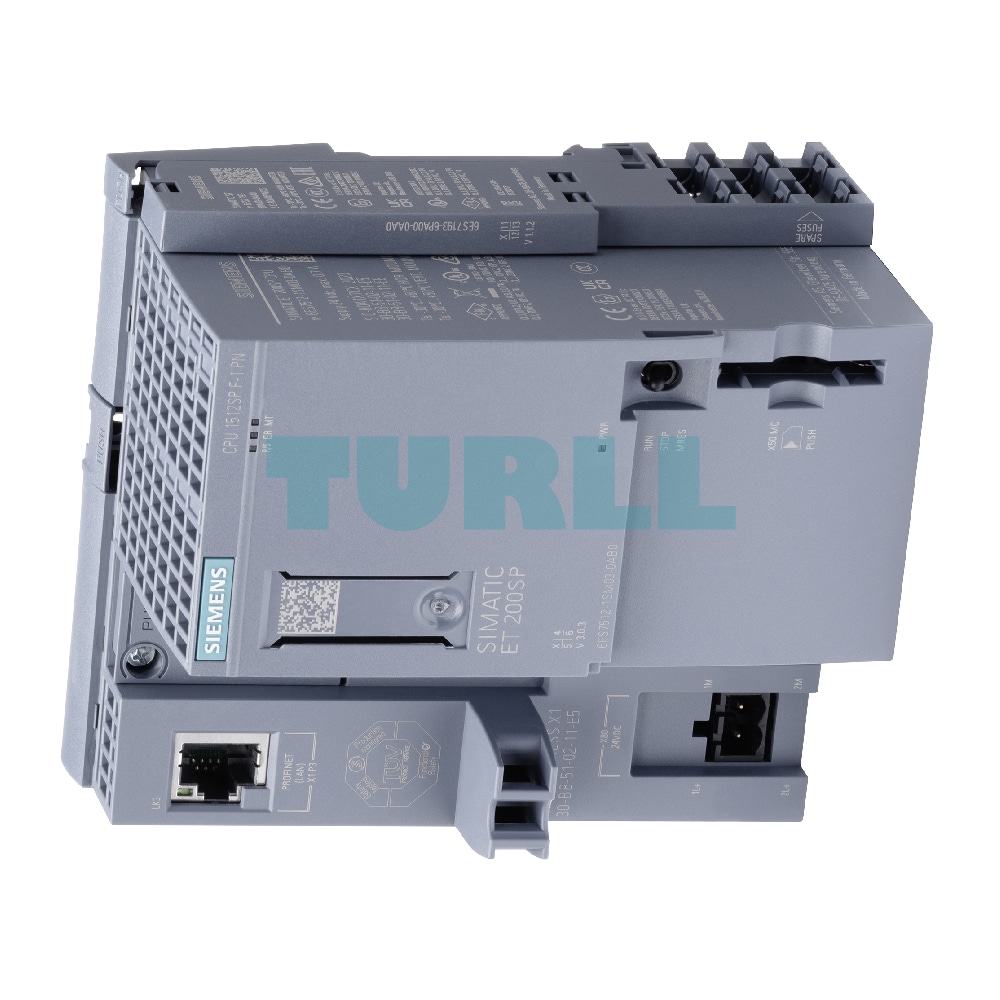

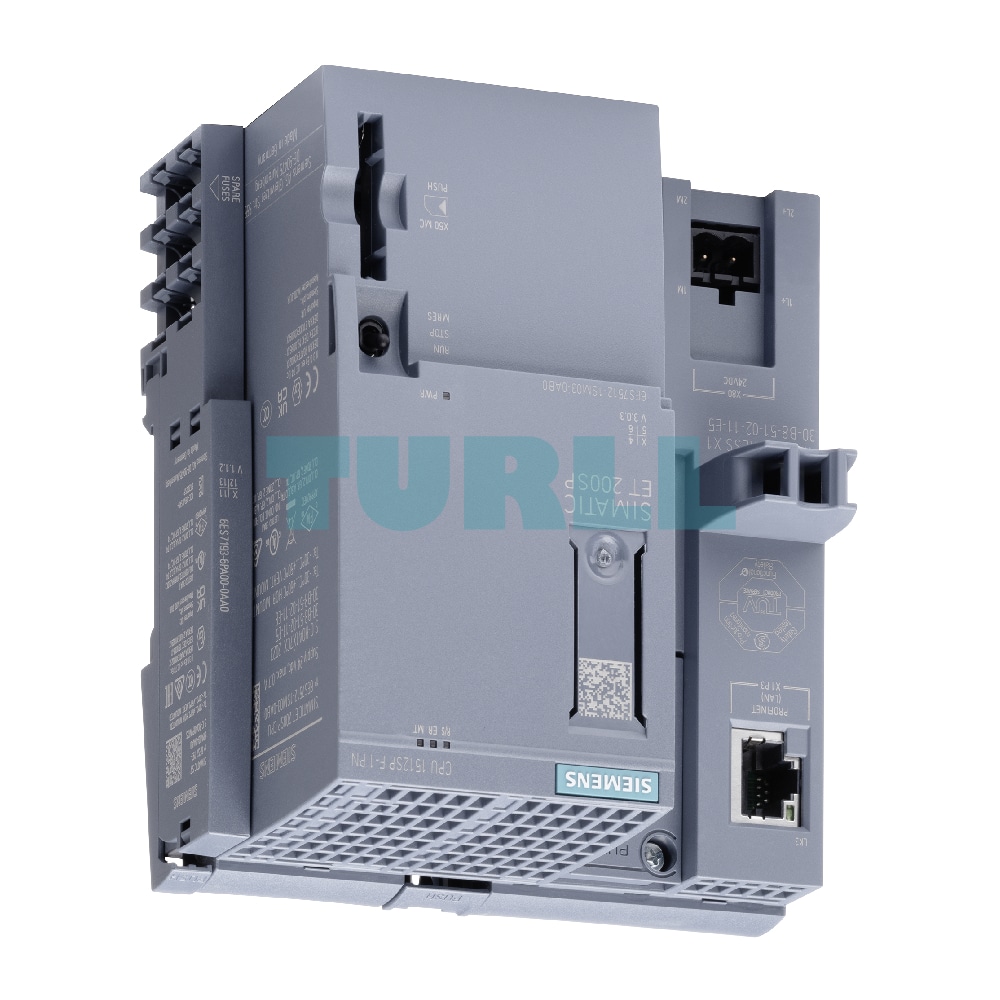

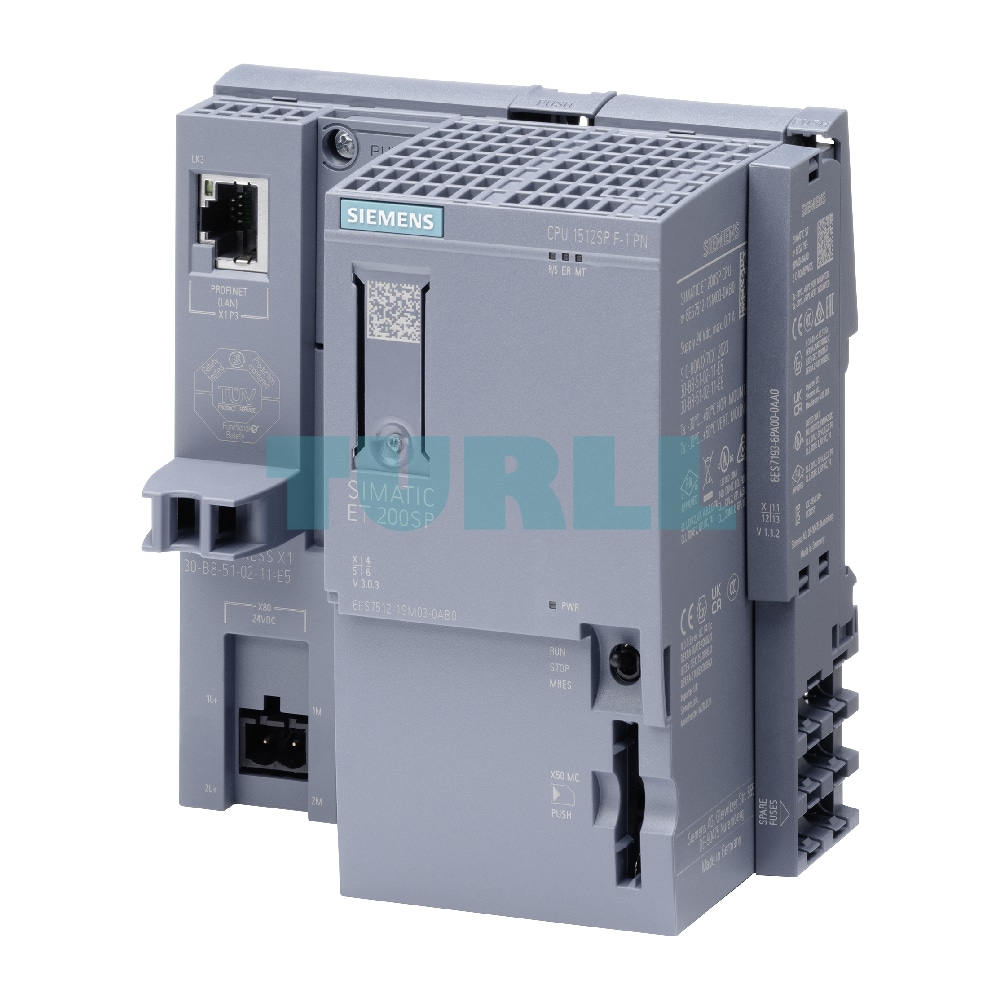

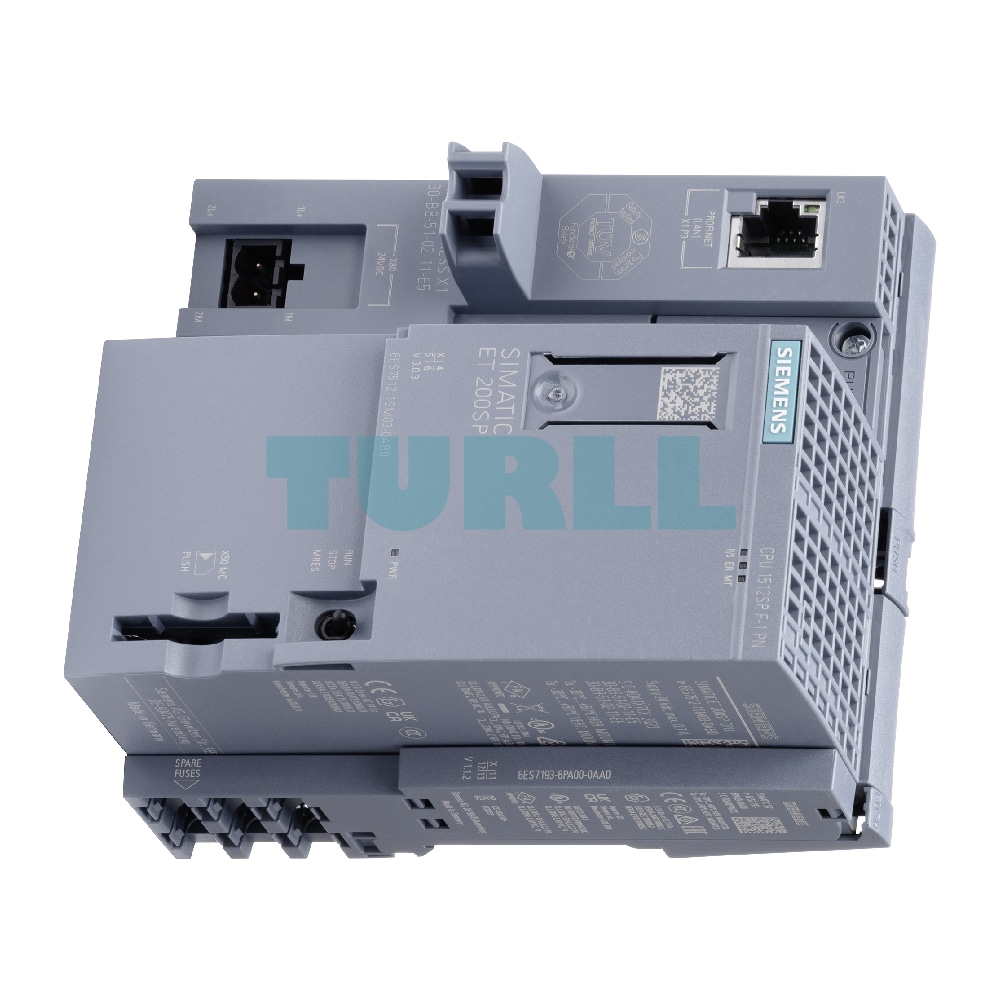

Siemens SIPLUS ET 200SP CPU 1512SP F-1 rail based on 6ES7512-1SM03-0AB0 with conformal coating OT2: -40…+55 °C ST1/2: 70 °C for 10 minutes . central processing unit with work memory 600 KB for program and 2 MB for data, 1st interface: PROFINET IRT with 3-port switch, 25 ns bit performance, SIMATIC Memory Card required, BusAdapter required for port 1 and 2
[ez-toc]
Overview
- SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL for SIPLUS extreme RAIL ET 200SP based on S7-1500 CPU 1513F-1 PN
- Approved in accordance with the EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic
- For applications with average requirements regarding the program scope and processing speed, for distributed setup via PROFINET IO or PROFIBUS DP
- Increase in availability of systems and machines
- Supports PROFIsafe in centralized and distributed configurations
- PROFINET IO controller for up to 128 IO devices
- PROFINET I-Device for connecting the CPU as an intelligent PROFINET device with a SIMATIC or third-party PROFINET IO controller
- PROFINET Shared I-Device for 4 controllers
- PROFINET IO IRT interface with integrated 3-port switch
- Isochronous mode on PROFINET
- With multiple communication options:
PG/OP communication, PROFINET IO, open IE communication (TCP, ISO-on-TCP and UDP), web server and S7 communication (with loadable FBs) - OPC UA server and client (data access) as runtime option for easy connection of the SIMATIC ET 200SP to third-party devices/systems
- Optional PROFIBUS master for 125 PROFIBUS DP devices (with CM DP module 6ES7545-5DA00-0AB0)
- Configuration control (option handling)
- Integrated Motion Control functionalities for controlling speed-controlled, positioning and synchronized axes (gearing), support for external encoders, output cams/cam tracks and probes
Note
SIMATIC Memory Card required for operation of the CPU.
BusAdapter is not included in scope of supply and is to be ordered separately.
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Application
SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL for standard and fail-safe applications with average requirements in terms of processing performance and response speed in discrete production technology. SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL can be used as a PROFINET IO controller or as distributed intelligence (PROFINET I-Device). The integrated PROFINET IO IRT interface is designed as a 3-port switch enabling configuration of a linear topology in the system via port 1 and 2, such that a PG/PC or HMI device can also be connected via port 3.
When used as an I-Device, the SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL enables distributed preprocessing of process data locally and only delivers the information actually required to the higher-level controller. This has the following advantages:
- Less load on central controller
- Short response times to critical signals on site
- Less load on the bus system due to smaller data volumes
- Faster commissioning due to pre-tested units and parallel commissioning
- Increased availability and flexibility due to autonomous machine units
- Easy-to-understand configuration
SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL operates fully independently of the central controller. If the controller fails, the CPU simply continues to operate.
The bit-modular design of the ET 200SP I/O system, together with SIPLUS ET 200SP CPU 1512SP F-1 PN T1 RAIL, enables functionally oriented station design.
In addition, the CPU offers comprehensive control functionalities via easy-to-configure blocks as well as the ability to connect drives via standardized PLC-open blocks.
Design
SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL is directly snapped onto the DIN rail and features:
- A high-performance processor;
the CPU achieves command execution times as low as 48 ns per binary instruction - Extensive work memory;
600 KB for program, 2 MB for data. - SIMATIC Memory Cards as load memory;
permitting additional functions such as firmware update, datalog and archiving - Bit-modular expandability for maximum flexibility;
Up to 64 I/O modules (I/O, technology, and communications modules) in any combination. Station width up to 1 m. - PROFINET IO IRT interface with 3 integrated switch ports:
- Port 1 and 2 via BusAdapter (SIPLUS ET 200SP CPU 1512SP F-1 PN T1 RAIL is supplied without the BusAdapter and can also be operated without it). The appropriate BusAdapter (BA 2xRJ45 or BA 2xFC) is to be ordered separately if needed.
- Port 3 via integrated RJ45 socket.
- Integrated communication functions:
- PG/OP communication
- PROFINET IO
- Open IE communication (TCP, ISO-on-TCP and UDP)
- Web server
- S7 communication
- S7 routing
- Data record routing
- Maintenance-free data backup without battery
- Diagnostics displays for errors (Error), operation (RUN/Stop), maintenance (MT), power supply (PWR) and one link LED per port
- Optional labeling using light gray or yellow labeling strips. There is a choice of 2 materials:
- Foil and roll with 500 strips, for thermal transfer roll printers
- Paper (280 g/m2), DIN A4 sheets with 100 strips each, for laser printer
- The ET 200SP CPU can be equipped with an equipment labeling plate.
- Different PROFINET connection types by means of BusAdapter:
- Under standard ambient conditions, BA 2xRJ45 for connection via RJ45 plug
- In the case of mechanical loading during operation and/or an increased EMC requirements BA 2xFC for direct connection of the PROFINET cable
- Dark BaseUnit as first BaseUnit behind the ET 200SP CPU when using an AC I/O module or an AI Energy Meter ST as the first I/O module
Scope of delivery
SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL including server module, 24 V DC connector and cover for BusAdapter port (BusAdapter must be ordered separately).
Function
- Performance
- High-speed command processing
- High-performance network connection:
CPU comes equipped with a PROFINET IO IRT interface (3-port switch) as standard.
- Integrated technology
- Connection of analog and PROFIdrive-capable drives via standardized blocks (PLCopen)
- Support of speed-controlled and positioning axes as well as external encoders
- Precise position gearing for synchronous operation between axes
- Trace functions for all CPU tags, both for diagnostics in real time and for sporadic error detection
- Comprehensive control functionalities, e.g. easily configurable blocks for automatic optimization of the control parameters for optimum control quality
- Isochronous mode
- Synchronous coupling of distributed signal acquisition, signal transmission, and program execution to the PROFINET cycle with constant bus cycle time
- Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card:
The block can only run if the configured Memory Card is inserted in the CPU. - 4-stage authorization concept:
Communication to operator panels can also be restricted. - Manipulation protection:
The controller recognizes changed or unauthorized transmissions of the engineering data.
- Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the TIA Portal, operator panels and web server, even for messages from the drives, and updated even if the CPU is in STOP mode.
- Integrated in the firmware of the CPU, no special configuration is required
- Configuration control (option handling) in central setup
- Various hardware configurations can be stored in the PLC:
Modification of the configuration in the user program (startup OB100),
Retrofitting of options at end of configuration;
Use of placeholder modules is possible.
- Various hardware configurations can be stored in the PLC:
- SIMATIC Memory Card (required for operation of the CPU)
- Used as plug-in load memory or for updating the firmware
- Also for storing additional documents or csv files (for recipes and archives)
- Creation of data blocks and storage/reading of data via SFCs of the user program
- Datalog (archives) and recipes
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
easy access to plant-relevant operating data using Office tools and via web server. - Easy access to configuration data of the machine by means of a web browser or SD card reader (two-way data exchange from and to the PLC)
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
- Programming of the standard program section
- Programming with STEP 7 Professional, V13 SP1 and higher
- Programming of the fail-safe program section
- Programming of the safety-related program section with the “STEP 7 Safety Advanced” option package.
6AG2512-1SM03-1AB0
Siemens SIPLUS ET 200SP CPU 1512SP F-1 rail based on 6ES7512-1SM03-0AB0 with conformal coating OT2: -40…+55 °C ST1/2: 70 °C for 10 minutes . central processing unit with work memory 600 KB for program and 2 MB for data, 1st interface: PROFINET IRT with 3-port switch, 25 ns bit performance, SIMATIC Memory Card required, BusAdapter required for port 1 and 2
Visit 6AG2512-1SM03-1AB0
For more our products visit turll.com
| Weight | 0.387 kg |
|---|---|
| Dimensions | 133 × 134 × 88 mm |
