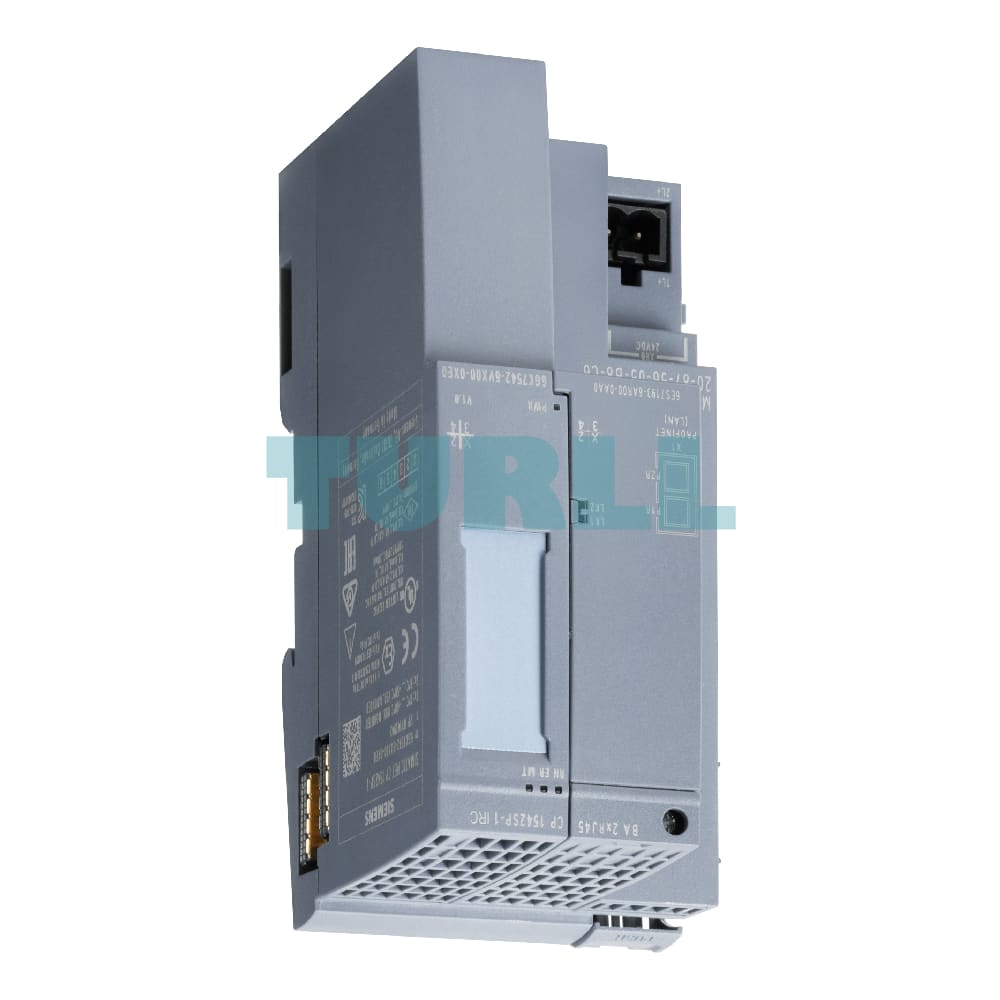

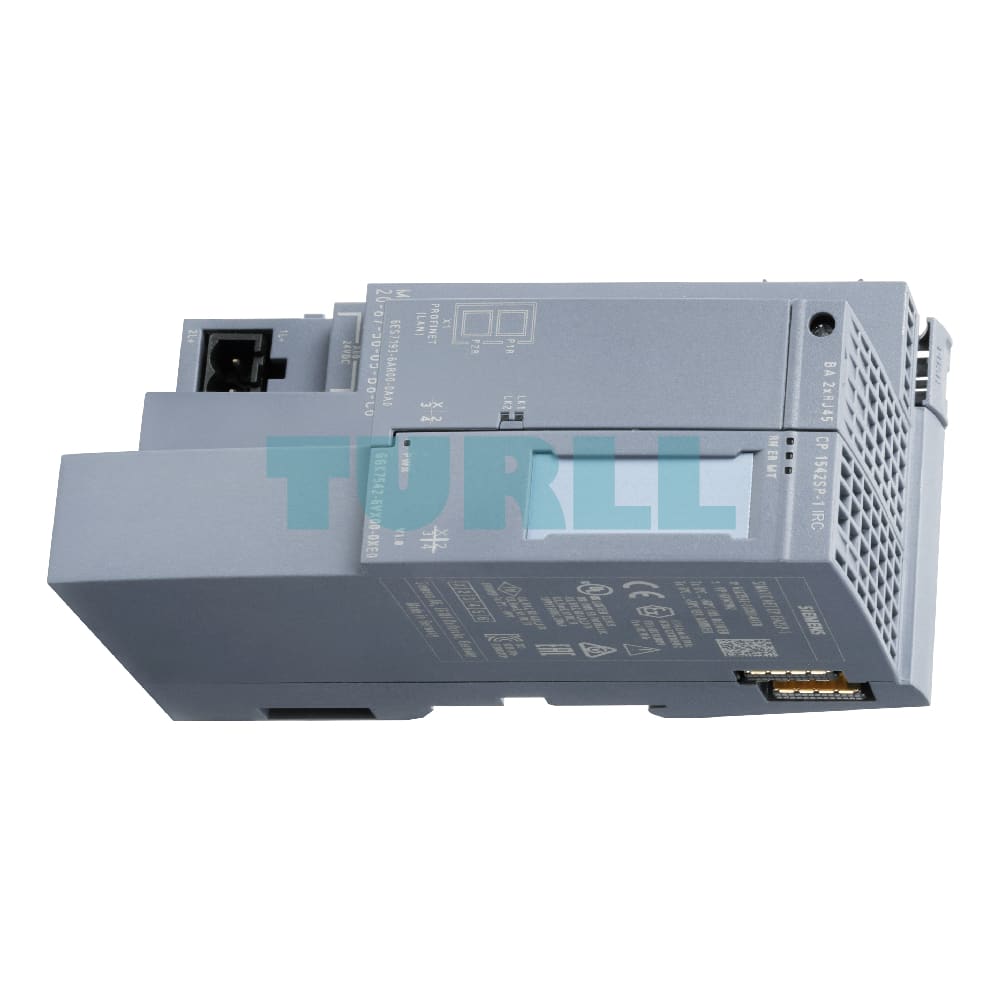

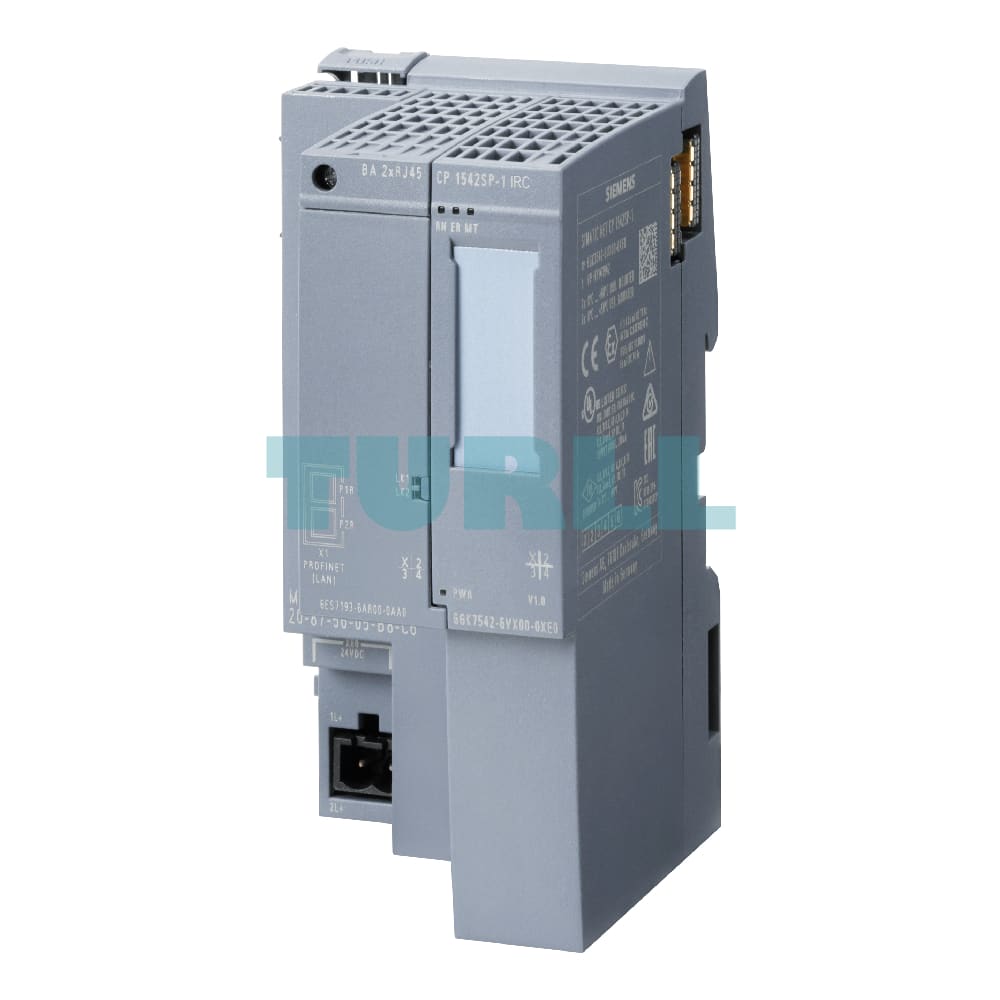

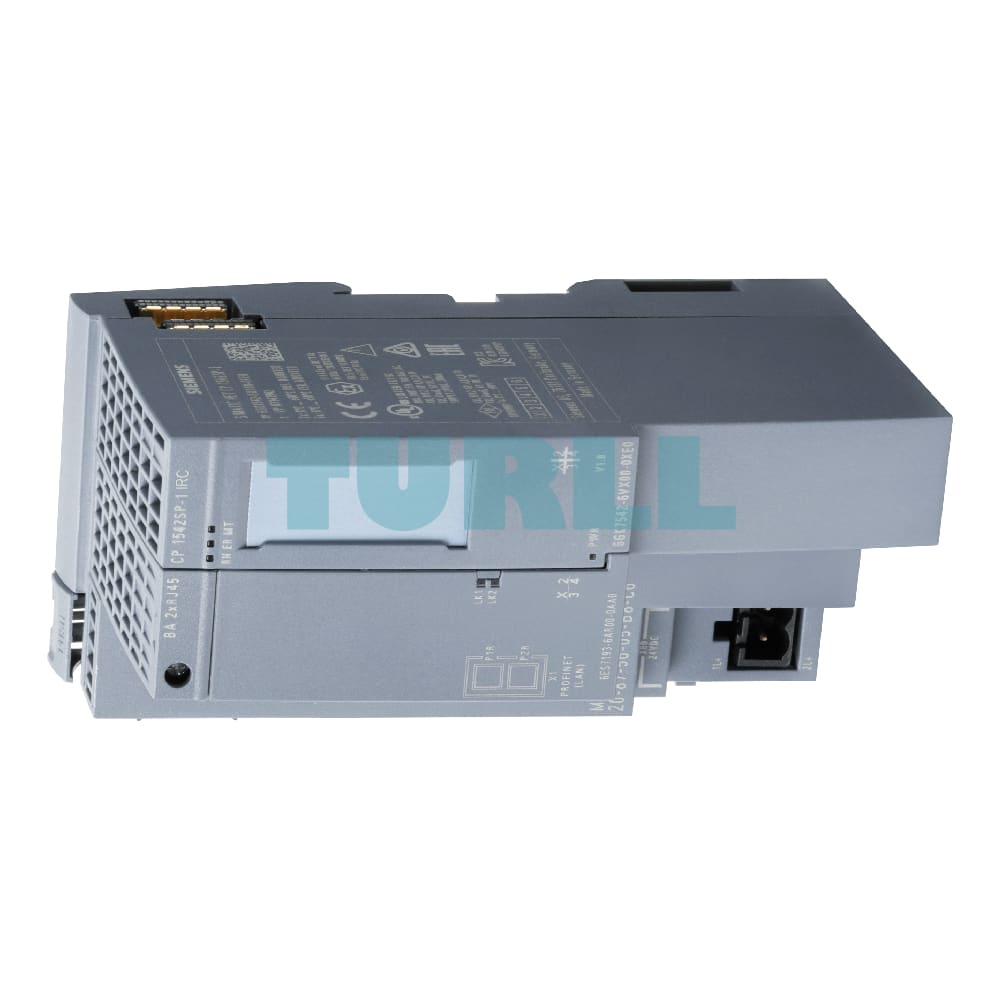

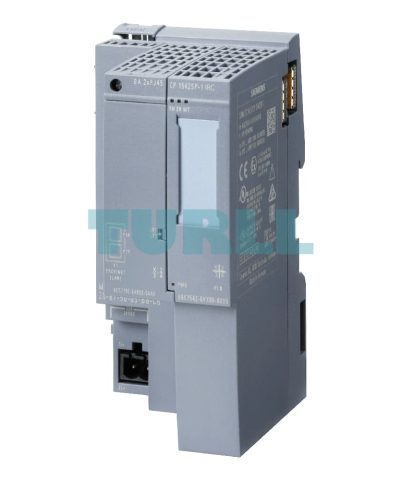

6AG2542-6VX00-4XE0 Siemens SIPLUS ET 200SP CP 1542SP-1 IRC TX Original Brand New
$5,042.86
6AG2542-6VX00-4XE0
Siemens SIPLUS ET 200SP CP 1542SP-1 IRC TX rail based on 6GK7542-6VX00-0XE0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), for connection of a SIMATIC S7-ET 200SP to Industrial Ethernet, SINAUT ST7, TeleControl Server Basic, IEC-60870-5-104 or DNP3 protocol to a control center; open IE communication (TCP/IP, ISO-on-TCP, UDP), IP broadcast/multicast, SNMPV1 DHCP, secure email, IPv4/IPv6, support of SINEMA Remote Connect
[ez-toc]
Overview
The SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL communications processor connects the SIPLUS extreme RAIL ET 200SP Distributed Controller with Industrial Ethernet networks.
The module can also be used for integrating the SIPLUS extreme RAIL ET 200SP Distributed Controller into an IPv6-based network. All functions are configured using STEP 7 Professional V14 (TIA Portal) or higher.
The SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL supports the following communication services:
- PG/OP communication
- S7 communication
- Open communication (Open User Communication)
- IT communication
- Sending emails via SMTP for authentication on an email server (also with IPv6)
- SNMPv1 for transfer of network analysis information
- Integration of the ET 200SP Distributed Controller into IPv6-based networks
The SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL is approved in accordance with EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic.
Benefits
- Network separation for setting up identical machines with the same IP addresses
- Optimum support of maintenance due to
- Simple diagnostics via the central web server
- Monitoring with IT network management tools (SNMP)
- Module replacement without a PG
- Securing the system against unauthorized access with
- Central access protection for any S7 station
- Access to the central web server
- Simple alerting by email
- Protection of investment thanks to simple integration of the SIPLUS extreme RAIL ET 200SP Distributed Controller in existing networks with SIMATIC S7-300 / S7-400 via Industrial Ethernet using the SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL
- Accessibility of the SIPLUS extreme RAIL ET 200SP Distributed Controller from an IPv6-based infrastructure
Application
The SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL is used for connecting the SIPLUS extreme RAIL ET 200SP Distributed Controller to Industrial Ethernet networks. With its own processor, it relieves the CPU of communication tasks.
The SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL offers communication possibilities with:
- PGs/PCs
- Master computers
- Operator control and monitoring systems
- SIMATIC S7 systems
The SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL is used in the SIPLUS extreme RAIL ET 200SP system to operate lower-level networks separately, or to implement a separation from the higher-level network.
Design
The SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL exhibits all the advantages of the ET 200SP design:
- Compact, space-saving design:
- Module powered via separate power supply
- Three LEDs for displaying the operating state and communication state of the module as well as LEDs on the BusAdapter.
- Can be operated simultaneously with BA Send module and CM DP module.
- Simple installation:
The SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL is mounted on the ET 200SP DIN rail and is connected to the adjacent modules via the backplane bus.- The BusAdapter (not included in scope of delivery) makes various connection methods possible
- For standard ambient conditions, BA 2xRJ45 for connection via RJ45 connector
- For mechanical loading during operation and/or increased EMC requirements
BA 2xFC, BA 2xSCRJ, BA SCRJ/RJ45, BA SCRJ/FC - The SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL can be operated without a fan; no back-up battery is necessary
- The module can be replaced without the need for a programming device
- The CP can be equipped with an equipment labeling plate.
- Optional labeling using light gray or yellow labeling strips. Choice of 2 materials:
- Film and roll with 500 strips, for thermal transfer roll printer
- Paper (280 g/m2), DIN A4 sheets with 100 strips each, for laser printer
Scope of delivery:
SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL, 24 V DC connector (BusAdapter must be ordered separately)
Function
- 2-port interface via BusAdapter with an RJ45 connection with 10/100 Mbps full/half duplex with autosensing functionality
- The SIPLUS ET 200SP CP 1542SP-1 IRC TX RAIL communications processor connects the SIPLUS extreme RAIL ET 200SP Distributed Controllers to additional Industrial Ethernet networks
- Communications services:
- Open communication (TCP/IP, UDP, ISO-on-TCP):
Multicast with UDP - PG/OP communication: Inter-network with S7 routing
- S7 communication (client, server)
- S7 routing
- IT communication:
HTTP communication allows access to the web server of the CPU. - The e-mail client function enables sending of emails direct from the user program.
IP address assignment via DHCP for IPv4 or via direct entry in the engineering software and via the T_CONFIG function block
STEP 7 Professional V14 (TIA Portal) or higher
- Open communication (TCP/IP, UDP, ISO-on-TCP):
- Diagnostics and network management:
- Extensive diagnostic functions of all modules in the ET 200SP system
- Integration in network management systems through the support of SNMP V1
- Configuration of all functions with STEP 7 Professional V14 (TIA Portal) or higher
- Module replacement without programming device: All information can be stored on the memory card of the CPU.
6AG2542-6VX00-4XE0
Siemens SIPLUS ET 200SP CP 1542SP-1 IRC TX rail based on 6GK7542-6VX00-0XE0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), for connection of a SIMATIC S7-ET 200SP to Industrial Ethernet, SINAUT ST7, TeleControl Server Basic, IEC-60870-5-104 or DNP3 protocol to a control center; open IE communication (TCP/IP, ISO-on-TCP, UDP), IP broadcast/multicast, SNMPV1 DHCP, secure email, IPv4/IPv6, support of SINEMA Remote Connect
Visit 6AG2542-6VX00-4XE0
For more our products visit turll.com
| Weight | 0.201 kg |
|---|---|
| Dimensions | 10 × 10 × 10 mm |
