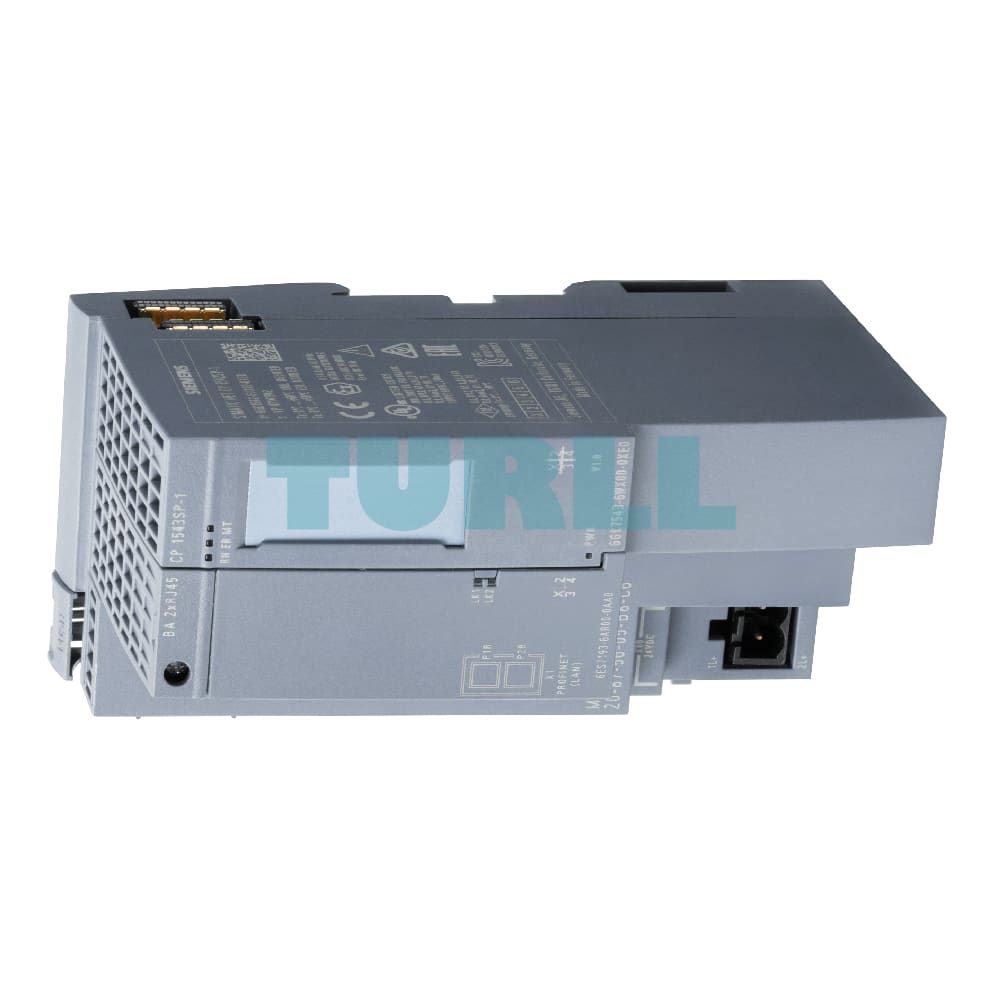

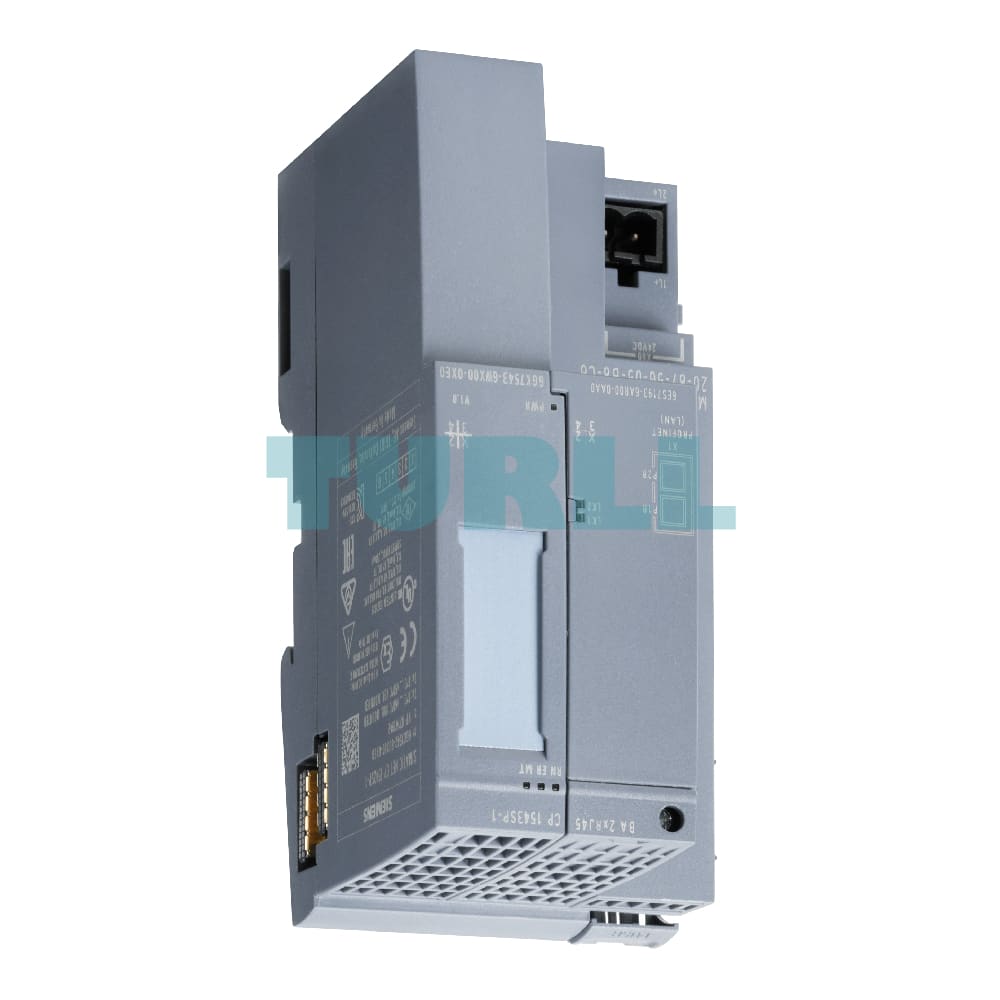

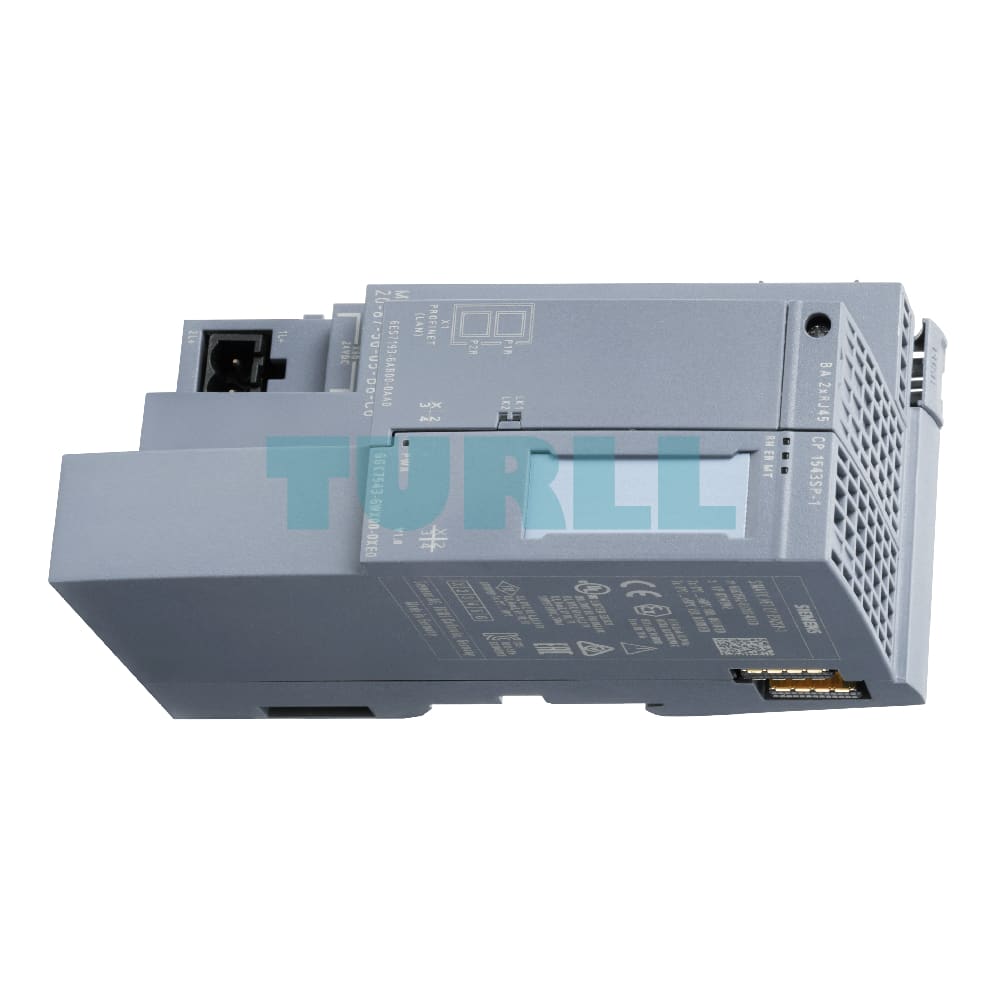

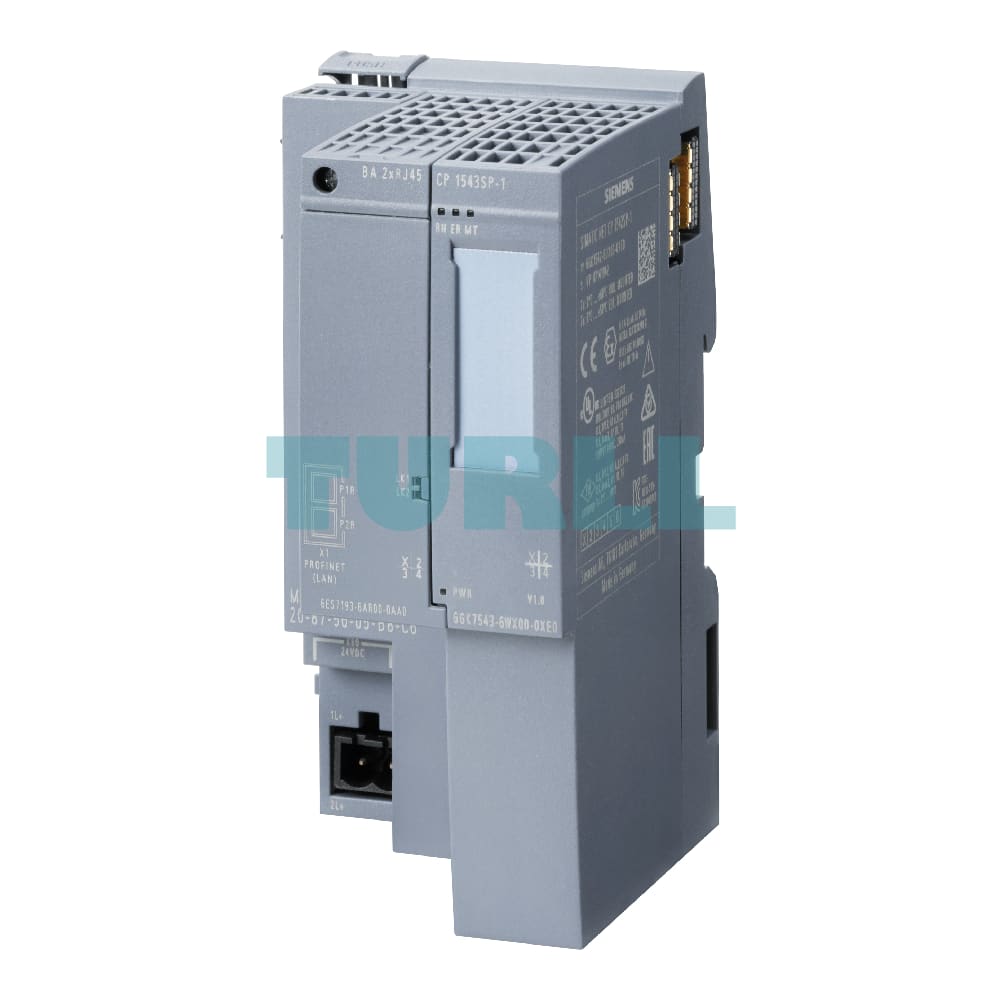

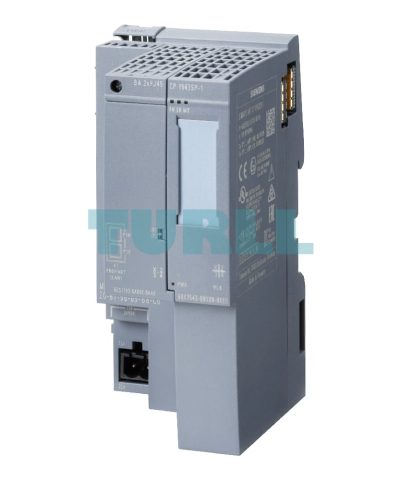

6AG2543-6WX00-4XE0 Siemens SIPLUS ET 200SP CP 1543SP-1 ISEC TX Original Brand New
$4,770.27
6AG2543-6WX00-4XE0
Siemens SIPLUS ET 200SP CP 1543SP-1 ISEC TX rail based on 6GK7543-6WX00-0XE0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), security (firewall and VPN) open IE communication (TCP/IP, ISO-on-TCP, UDP) PG/OP, S7 routing, IP broadcast/multicast, SNMPV1/V3, DHCP, secure email, IPv4/IPv6, support of SINEMA Remote Connect with autoconfiguration, time synchronization via NTP, access to web server of CPU, BusAdapter required
[ez-toc]
Overview
The SIPLUS ET 200SP CP 1543SP-1 ISEC TX RAIL communications processor connects the ET 200SP Distributed Controller with Industrial Ethernet networks. By combining a variety of security features such as an SPI (Stateful Packet Inspection) firewall, VPN and data encryption protocols (e.g. SNMPv3), the communications processor protects individual ET 200SP Distributed Controllers or even entire automation cells against unauthorized access.
The module can also be used for integrating the ET 200SP Distributed Controller into an IPv6-based network. All functions can be configured with STEP 7 Professional, V14 (TIA Portal) and higher.
The SIPLUS ET 200SP CP 1543SP-1 ISEC TX RAIL supports the following communication services:
- PG/OP communication
- S7 communication
- Open communication (Open User Communication)
- IT communication
- Sending emails via SMTP or ESMTP with “SMTP-Auth” for authentication on an email server (also with IPv6)
- Support of SINEMA Remote Connect with autoconfiguration
- Security Integrated
- Stateful Packet Inspection Firewall
- Secure communication via VPN (IPsec)
- Protocols for secure communication
- Secure access to the web server of the CPU via the HTTPS protocol
- Secure transfer of the time of day (NTP)
- SNMPv3 for tap-proof transfer of network analysis information
- Integration of the ET 200SP Distributed Controller into IPv6-based networks
The SIPLUS ET 200SP CP 1543SP-1 ISEC TX RAIL is approved in accordance with EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic.
Benefits
- Prevention of data loss, production disruptions or machine damage by protecting against unauthorized access to the SIPLUS extreme Rail ET 200SP Distributed Controller and lower-level networks
- Network segmentation and network separation for setting up identical machines with the same IP addresses
- Connection to SINEMA RC:
With the optional SINEMA Remote Connect, you can benefit from the user-friendly, secure SINEMA Remote Connect management platform for remote maintenance. - Optimum support of maintenance due to
- Simple diagnostics via the central web server
- Monitoring with IT network management tools (SNMP)
- Module replacement without a PG
- Securing the system against unauthorized access with
- Central access protection for any S7 station
- Secure access to the central web server
- Simple alerting by email
- Protection of investment thanks to simple integration of the SIPLUS extreme RAIL ET 200SP Distributed Controller in existing networks with SIMATIC S7-300 / S7-400 / via Industrial Ethernet using the SIPLUS ET 200SP CP 1543SP-1 ISEC TX RAIL
- Accessibility of the SIPLUS extreme RAIL ET 200SP Distributed Controller from an IPv6-based infrastructure
Application
The SIPLUS ET 200SP CP 1543P-1 ISEC TX RAIL is used for connecting the SIPLUS extreme RAIL ET 200SP Distributed Controller to Industrial Ethernet networks. With its own processor, it relieves the CPU of communication tasks.
The SIPLUS ET 200SP CP 1543P-1 ISEC TX RAIL offers communication possibilities with:
- PGs/PCs
- Master computers
- Operator control and monitoring systems
- SIMATIC S7 systems
It can be used to protect the SIPLUS extreme RAIL ET 200SP Distributed Controller automation system from unauthorized access from an Ethernet network. The SIPLUS ET 200SP CP 1543P-1 ISEC TX RAIL allows secure remote access via a LAN and enables the data transfer between devices or network segments to be protected from data manipulation/espionage.
Design
The SIPLUS ET 200SP CP 1543P-1 ISEC TX RAIL exhibits all the advantages of the ET 200SP design:
- Compact, space-saving design:
- Module powered via separate power supply
- Three LEDs for displaying the operating state and communication state of the module as well as LEDs on the BusAdapter.
- Simultaneously operable with BA Send module and CM DP module.
- Simple installation:
The SIPLUS ET 200SP CP 1543P-1 ISEC TX RAIL is mounted on the ET 200SP DIN rail and is connected to the adjacent modules via the backplane bus.- The BusAdapter (not included in scope of delivery) makes various connection methods possible;
- For standard ambient conditions, BA 2xRJ45 for connection via RJ45 connector
- For mechanical loading during operation and/or increased EMC requirements
BA 2xFC, BA 2xSCRJ, BA SCRJ/RJ45, BA SCRJ/FC - The SIPLUS ET 200SP CP 1543P-1 ISEC TX RAIL can be operated without a fan; no back-up battery is necessary
- The module can be replaced without the need for a programming device
- The CP can be equipped with an equipment labeling plate.
- Optional labeling using light gray or yellow labeling strips. There is a choice of two materials:
- Film and roll with 500 strips, for thermal transfer roll printer
- Paper (280 g/m2), DIN A4 sheets with 100 strips each, for laser printer
Scope of delivery:
SIPLUS ET 200SP CP 1543P-1 ISEC TX RAIL, 24 V DC connector (BusAdapter must be ordered separately)
Function
- 2-port interface via BusAdapter with an RJ45 connection with 10/100 Mbps full/half duplex with autosensing functionality
- The SIPLUS ET 200SP CP 1543P-1 ISEC TX RAIL communications processor connects the SIPLUS extreme RAIL ET 200SP Distributed Controller to additional Industrial Ethernet networks
- Communications services:
- Open communication (TCP/IP, UDP, ISO-on-TCP):
Multicast with UDP - PG/OP communication: Inter-network with S7 routing
- S7 communication (client, server)
- S7 routing
- IT communication:
HTTP communication allows access to the web server of the CPU. With the CP 1543SP-1, HTTPS communication is also possible.
The email client function allows e-mails to be sent directly from the user program.
IP address assignment via DHCP for IPv4 or via direct entry in the engineering software and via the T_CONFIG function block
STEP 7 Professional V14 (TIA Portal) or higher
- Open communication (TCP/IP, UDP, ISO-on-TCP):
- Support of SINEMA Remote Connect with autoconfiguration
- Diagnostics and network management:
- Extensive diagnostic functions of all modules in the ET 200SP system
- Integration in network management systems due to support of SNMP v1/v3
- Security mechanisms:
- Access protection with firewall for filtering connections on the basis of their IP and MAC addresses
- Secure communication via VPN (IPsec)
- Encrypted HTML pages using SSL (HTTPS)
- Secure transfer of the time of day (NTPS)
- Configuration of all functions with STEP 7 Professional V14 (TIA Portal) or higher
- Module replacement without programming device: All information can be stored on the memory card of the CPU.
6AG2543-6WX00-4XE0
Siemens SIPLUS ET 200SP CP 1543SP-1 ISEC TX rail based on 6GK7543-6WX00-0XE0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), security (firewall and VPN) open IE communication (TCP/IP, ISO-on-TCP, UDP) PG/OP, S7 routing, IP broadcast/multicast, SNMPV1/V3, DHCP, secure email, IPv4/IPv6, support of SINEMA Remote Connect with autoconfiguration, time synchronization via NTP, access to web server of CPU, BusAdapter required
Visit 6AG2543-6WX00-4XE0
For more our products visit turll.com
| Weight | 0.202 kg |
|---|---|
| Dimensions | 1 × 1 × 1 mm |
