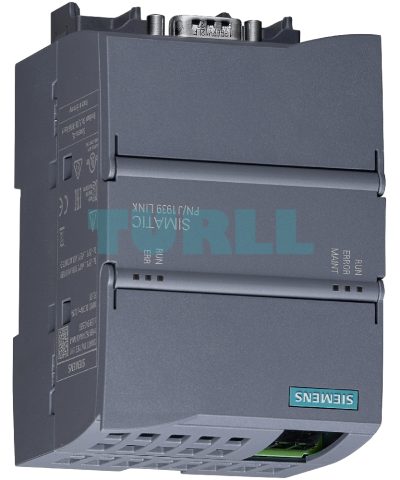

6AG2623-0AA00-4AA0 SIEMENS SIPLUS PN/J1939 link TX Rail
6AG2623-0AA00-4AA0 SIEMENS SIPLUS PN/J1939 link TX Rail
6AG2623-0AA00-4AA0 SIEMENS SIPLUS PN/J1939 link TX Rail
6AG2623-0AA00-4AA0 SIEMENS SIPLUS PN/J1939 link TX Rail

6AG2623-0AA00-4AA0 SIEMENS SIPLUS PN/J1939 link TX Rail Original Brand New

Model / SKU6AG2623-0AA00-4AA0

6AG2623-0AA00-4AA0

Siemens SIPLUS PN/J1939 link TX rail based on 6BK1623-0AA00-0AA0 with conformal coating, -40…+70 °C, ST1/2: +85 °C for 10 minutes, gateway from Profinet to J1939 networks, IP20

$2,591.53
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

Overview

  • For data exchange between PROFINET and SAE J1939 networks
  • Approved in accordance with EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic
  • J1939 functions:
    • Broadcast Announce Message (BAM)
    • Connection Mode Data Transfer (CMDT)
    • PDU 1 & 2
  • Integrated into Totally Integrated Automation via gsdml file in TIA Portal. No separate software required
  • Integrated PROFINET switch with 9-pin D-sub socket for J1939
  • Up to 253 logical nodes
  • Up to 30 addressable ECUs
  • Electrical isolation between the two networks
  • Diagnostic interrupts
  • Supported controllers: S7-1200, S7-1500, ET 200SP, Open Controller

Application

The SIMATIC PN/J1939 LINK integrates seamlessly into PROFINET networks and facilitates data exchange between the network and the SAE J1939 fieldbus. Communication with up to 253 logical nodes is possible.

Design

  • S7-1200-type enclosure, width 70 mm
  • Can be mounted on a DIN rail or a control panel
  • LEDs for visualizing the operating states for J1939, PROFINET and PROFINET ports
  • Internal PROFINET switch
  • Connection to PROFINET PN IO networks exclusively via PROFINET with RJ45 plug connectors
  • Connection to SAEJ1939 bus via D-sub (9-pin, socket)
  • 3-pin connection of the external 24 V DC supply voltage
  • Operation without fans or batteries
  • Maximum permissible cable length of the J1939 network up to 1 000 m (depending on data transmission rate, cable cross-section, number of participants). Baud rates of 100 kbaud, 250 kbaud and 500 kbaud are supported.

Function

  • PROFINET IO device
  • Supported controllers: S7-1200, S7-1500, ET 200SP, Open Controller
  • Easy engineering and extensive diagnostics options due to optimum TIA integration
  • Update mechanisms via TIA Portal and the Siemens Automation Tool (SAT)
  • J1939 functions:
    • Broadcast Announce Message (BAM)
    • Connection Mode Data Transfer (CMDT)
    • PDU 1 & 2

6AG2623-0AA00-4AA0

Siemens SIPLUS PN/J1939 link TX rail based on 6BK1623-0AA00-0AA0 with conformal coating, -40…+70 °C, ST1/2: +85 °C for 10 minutes, gateway from Profinet to J1939 networks, IP20

Visit 6AG2623-0AA00-4AA0

For more our products visit turll.com

Specifications

SKU / Model6AG2623-0AA00-4AA0
Weight0.272 kg
Dimensions80 × 120 × 90 mm
