SIMATIC IPC347G

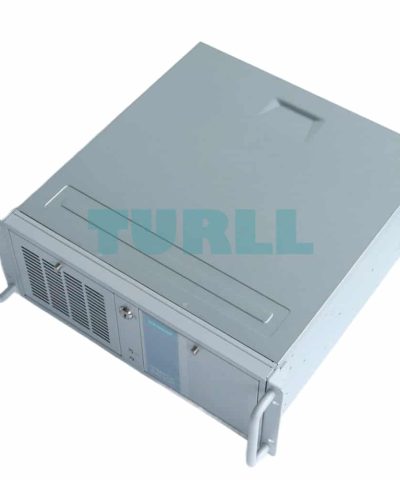

SIMATIC IPC347G is an industrial PC in 19″ rack design (4 U).

It offers:

• Optimized price
• High performance
• 6th generation Intel Core i technology

System performance and flexibility, e.g. for visualization tasks

• PC technology with 6th generation Intel Core i processors, for example
• Memory and graphics controller integrated into processor for high memory and graphics performance
• High performance (e.g. Intel H110 chipset, DDR4 2133 memory with support of dual channel technology)
• Flexibility and expandability thanks to integrated interfaces and 7 slots (PCI and PCI Express)
• Hard disks with 1 TB capacity or 256 GB or 512 GB SSD

Industrial compatibility

• Distinct product design
• Maximum processor performance up to an ambient temperature of 40 °C
• Dust protection through overpressure ventilation
• All-metal enclosure with electromagnetic compatibility for use in industrial environment

System availability and investment protection

• Certifications for worldwide marketing (e.g. CE, cULus)
• Support for legacy interfaces (PS/2, COM, VGA)
• Available for 3 years from start of delivery, spare part availability for approx. 3 years
• System-tested with SIMATIC components
• Worldwide service and support

SIMATIC IPC347G offers a low-cost 19″-rack PC platform for applications and IT applications for:

• Industrial workstation
• Visualization and SCADA applications
• Industrial image processing

SIMATIC IPC347G carries the CE certification mark for use in the industrial sector.

Basic design

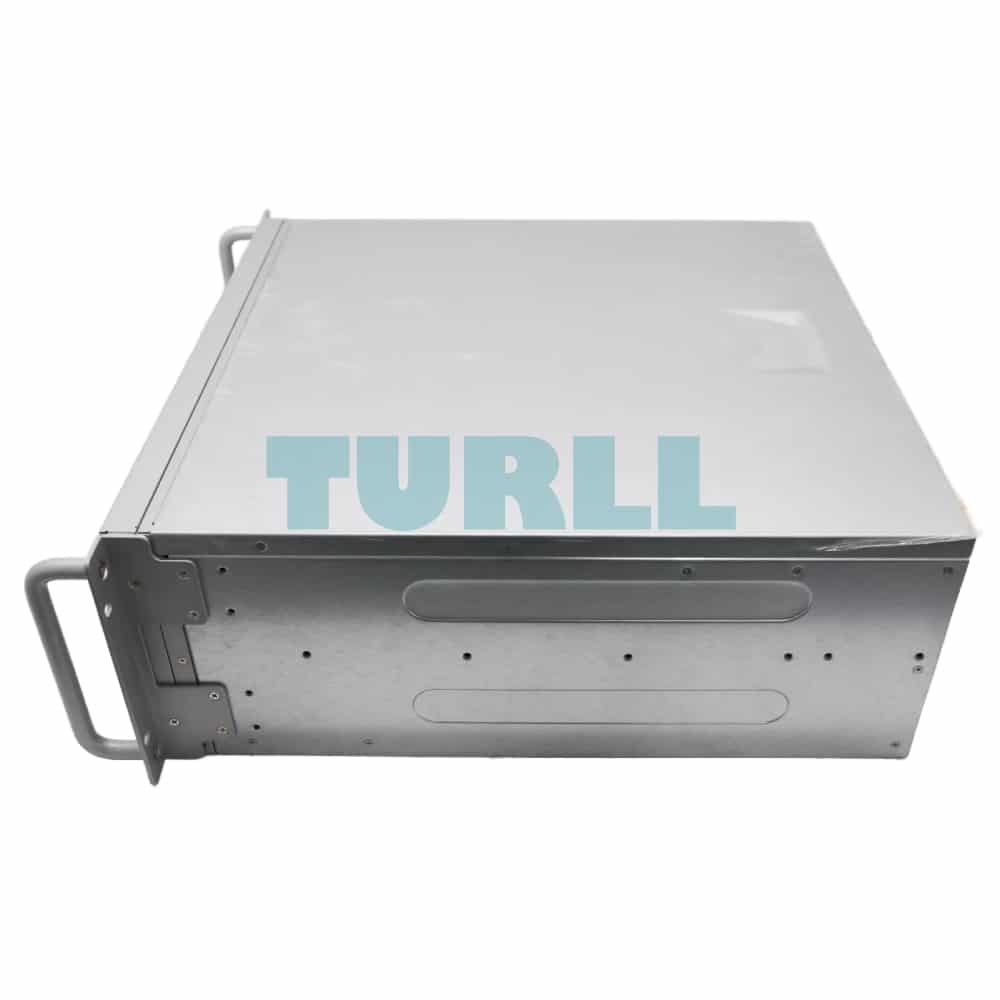

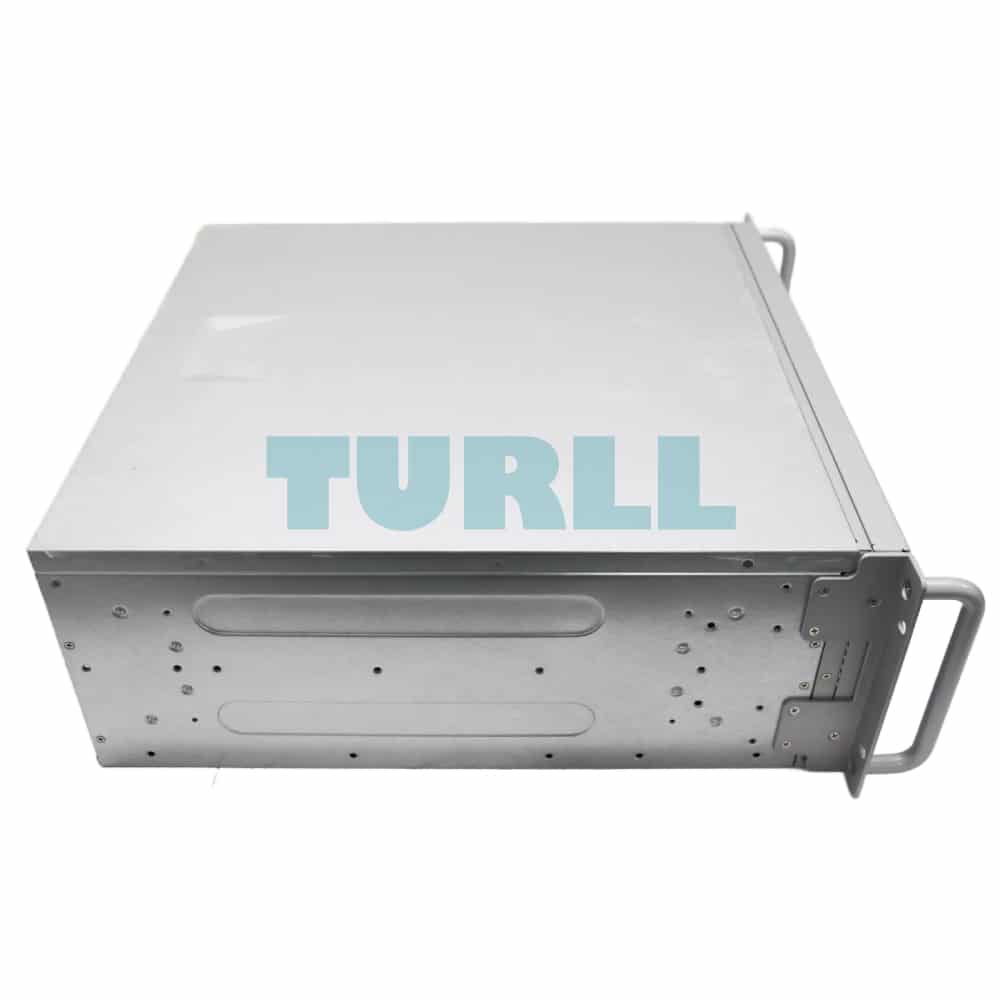

• All-metal 19″ enclosure for flush mounting (4U) for electromagnetic compatibility and mechanical ruggedness; painted on the front
• Can be mounted horizontally

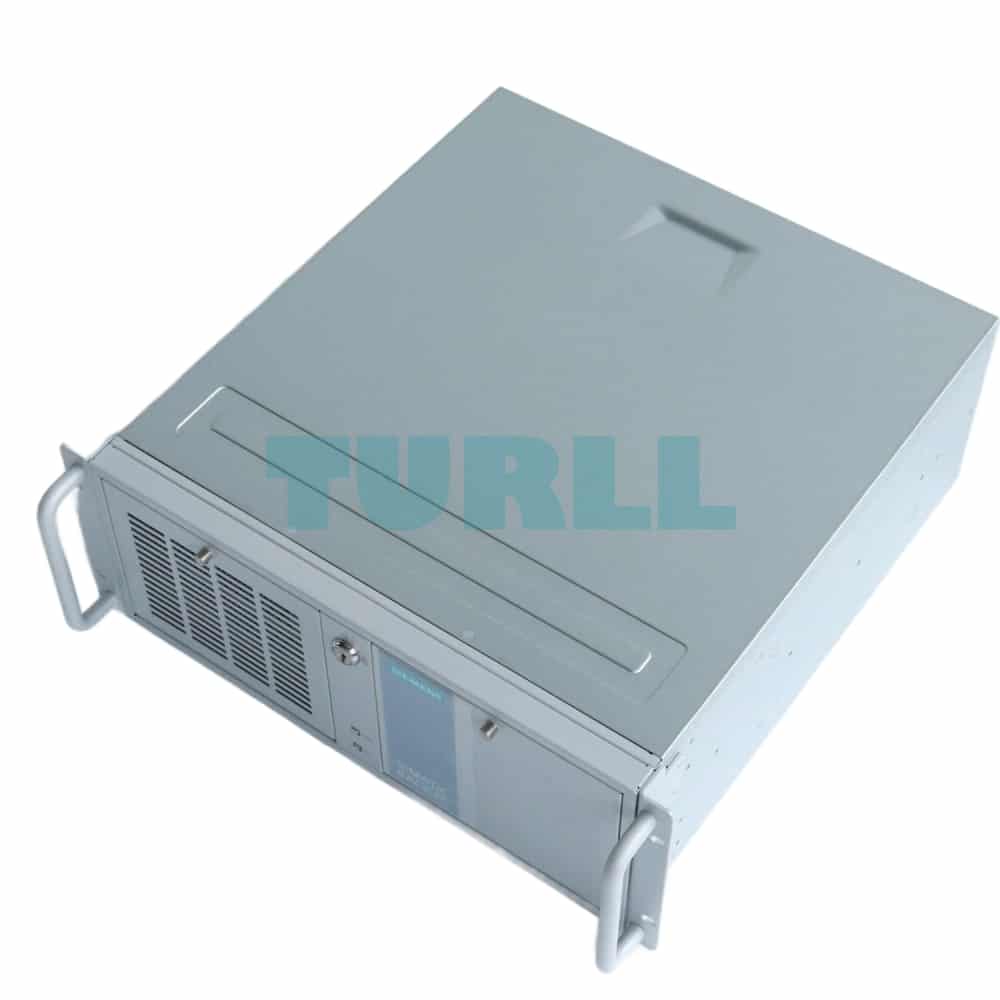

• Lockable front flap for authorized access to front removable data storage media, operator controls (Reset, Power), USB interfaces, dust filter and front fan
• Card retainer for PC modules for safe transport (vibration, shock)
• Dust protection through overpressure ventilation via filter
• Intel® HD graphics: 3D engine, Dynamic Video Memory technology (32 MB and 1.7 GB RAM for main memory), DisplayPort up to 4 096 × 2 304 pixels at 60 Hz, color depth up to 32-bit/pixel

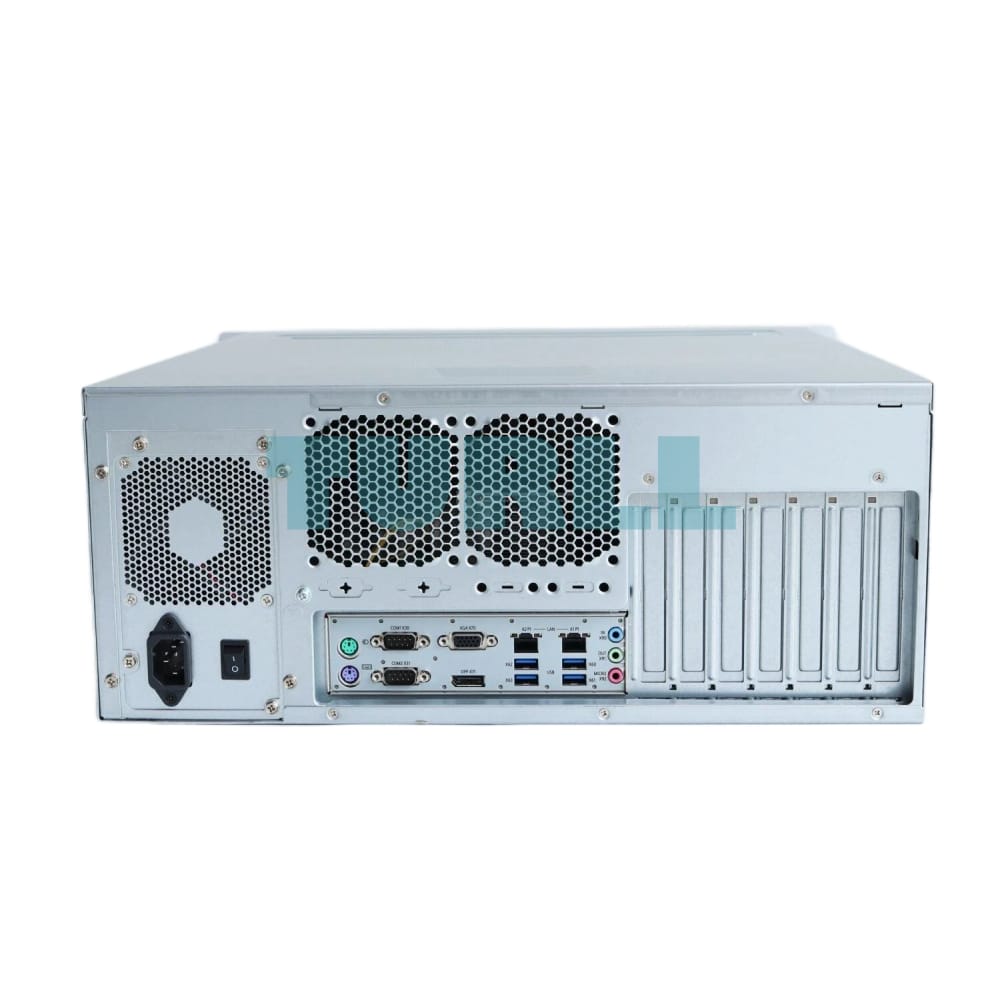

• Interfaces:
  • 2 x Gbps Ethernet (RJ45)
  • 6 x USB 2.0: 2 x on front, 2 x internal, 2 x male connector
  • 4 x USB 3.0: on rear
  • 1 x DVI-DP, 1 x VGA, 2 x COM, 2 x PS/2
  • Audio: line in/out, mic

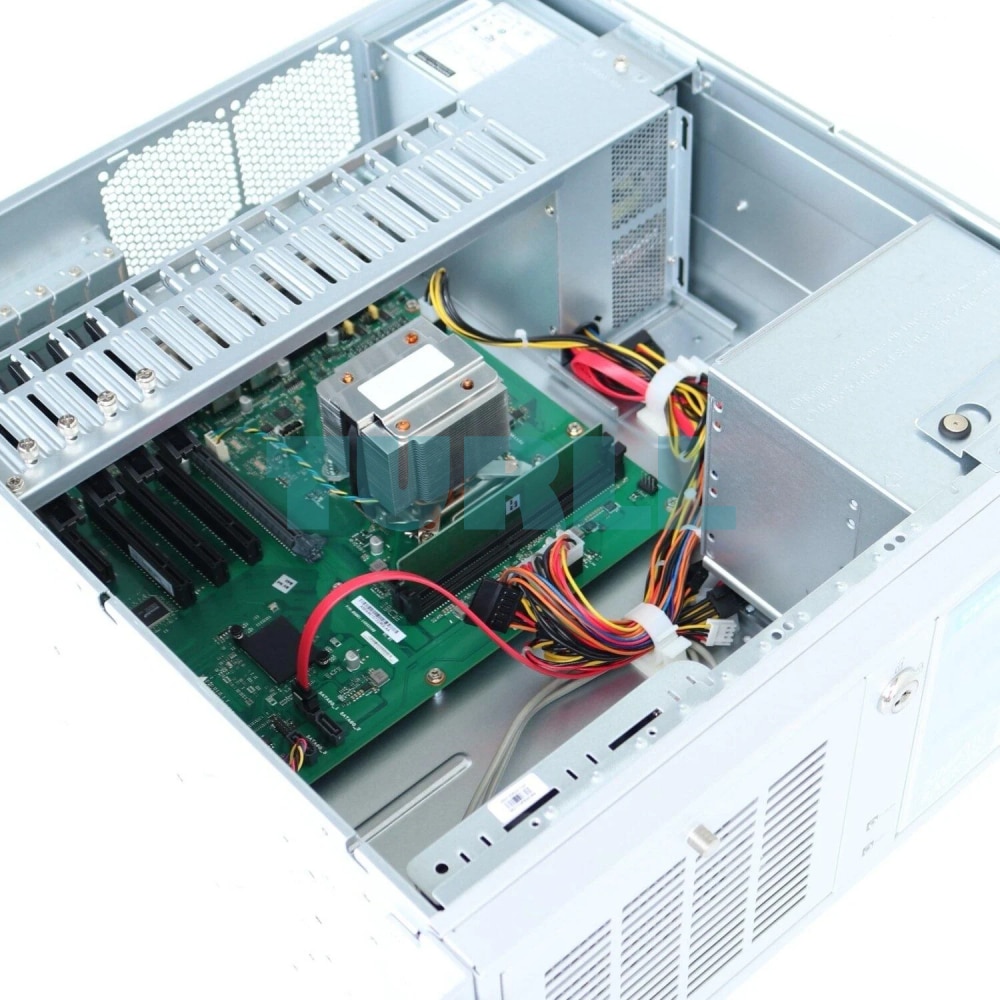

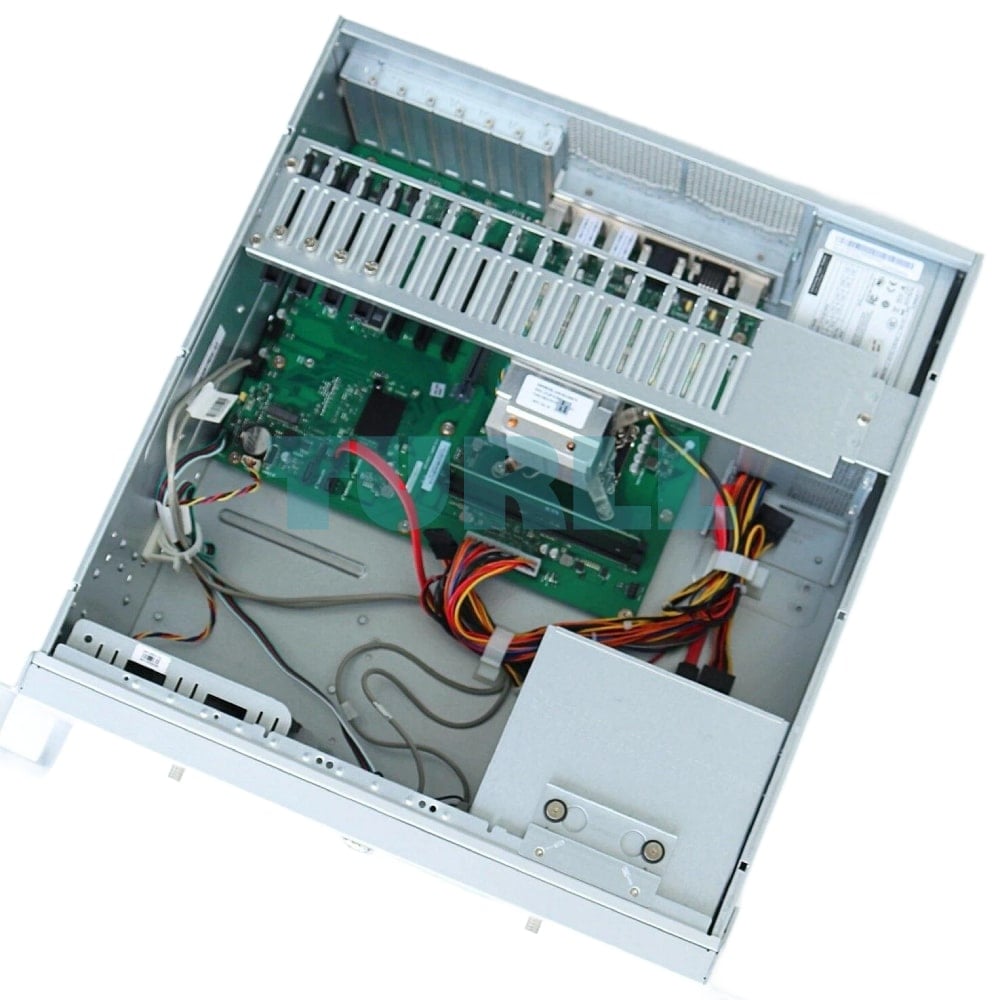

• 7 spare slots for expansions (all long):
  • 3 x PCI
  • 1 x PCI Express x16
  • 1 x PCI Express x4 (4 or 2 lanes)
  • 2 x PCI Express x4 (0 or 1 lanes)
• Power supply:
  • AC (100 … 240 V, 50 … 60 Hz)

Equipment variants

The planned configuration options are:

Processor:

• Intel Core i7-6700 (4C/8T), 3.4 (4.0) GHz, 8 MB cache
• Intel Core i5-6500 (4C/4T) 3.2 (3.6) GHz, 6 MB cache
• Intel Pentium G4400 (2C/2T) 3.3 GHz, 3 MB cache

Mass storage:

• 1 TB HDD
• 256 GB SSD
• 500 GB SSD

RAM (DDR4-2133):

• 4 GB
• 8 GB
• 16 GB
• 32 GB (2x 16 GB)

Operating system:

• None
• Microsoft Windows 10 Enterprise 2019 LTSC, 64-bit, multi-language (Pentium/i3/i5)
• Microsoft Windows 10 Enterprise 2019 LTSC, 64-bit, multi-language (i7)

Multi-core processor technology

Thanks to the use of two or four processor cores, the multi-core processors are ideally suited to multi-thread application programs and multitasking.

Multiple demanding applications – such as visualization applications with demanding graphics or programs executing extensive calculations – can be executed at the same time to enhance the response time of the system. Thanks to energy-optimized multi-core technology and outstanding energy-saving properties, the Core processors permit the execution of highly complex applications even at increased temperatures up to 40 °C without loss of performance.

The SIMATIC IPC347G is preconfigured for multi-core technology with Intel Core processors and Microsoft operating systems, and offers higher performance and better multitasking in the industrial environment.

Monitoring functions

Integrated monitoring functions: Temperature inside enclosure, fan speed (CPU, power supply, graphics card and front fan), program execution (watchdog), battery.

Integrated interfaces:

• Ethernet
  The integrated Ethernet interfaces (10/100/1 000 Mbps) can be used for IT communication and for data exchange with automation devices such as SIMATIC S7 (with the “SOFTNET S7” software package).
• Additional interfaces
  There are 3 free slots for PCI components, 4 free slots for PCI Express, as well as 4 x USB 3.0, 6 x USB 2.0 and serial interfaces available for connecting I/O devices.
