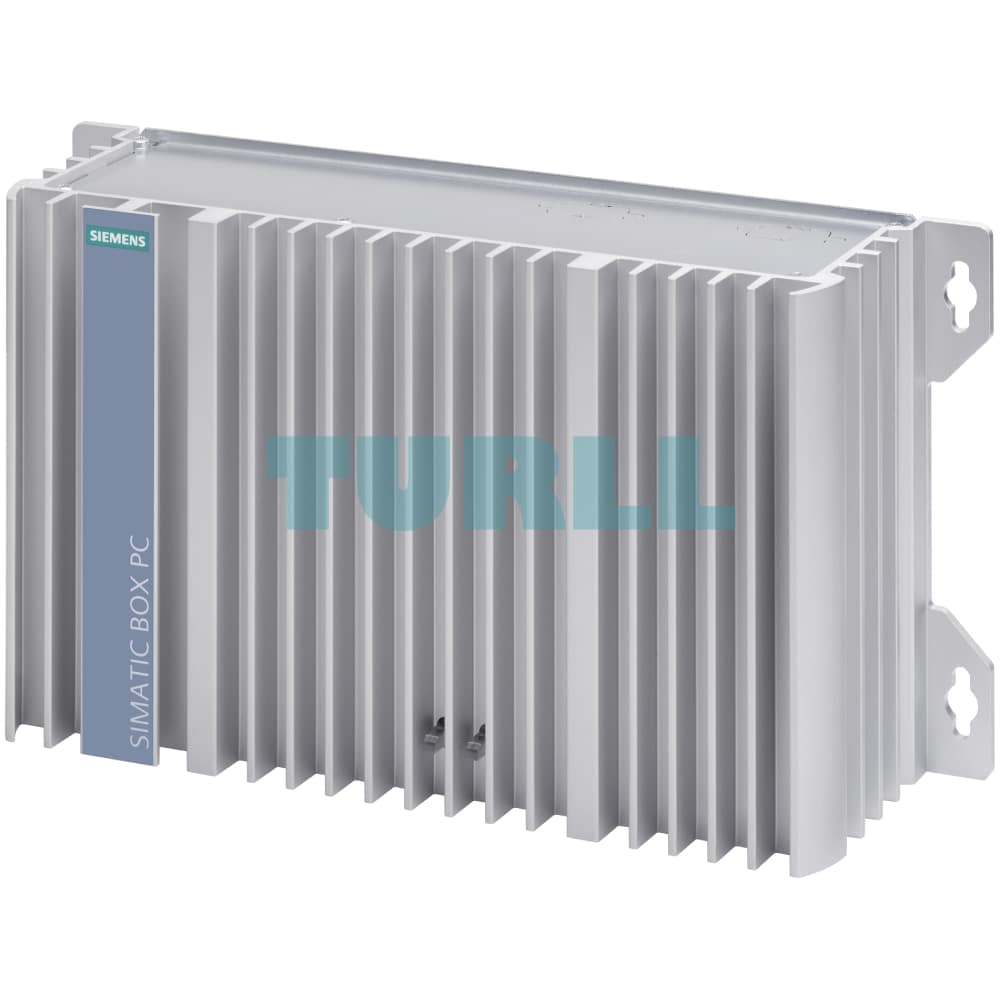

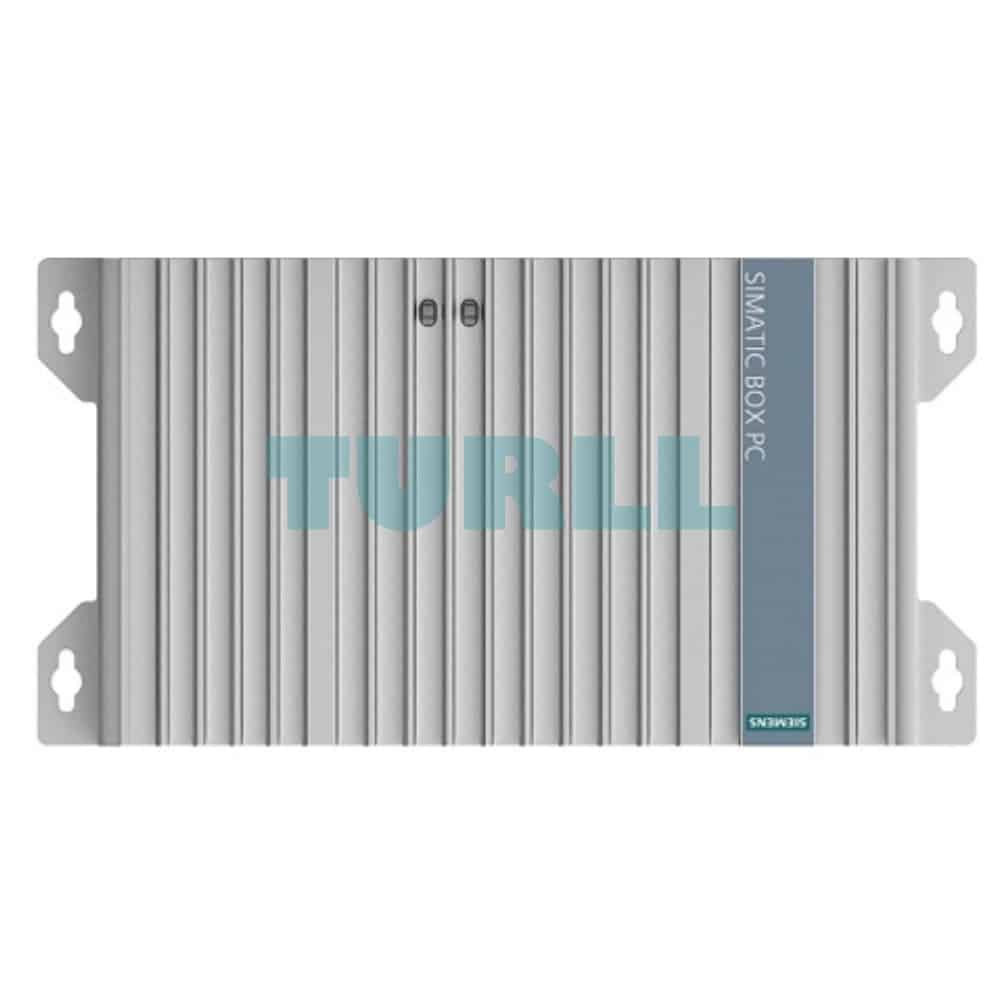

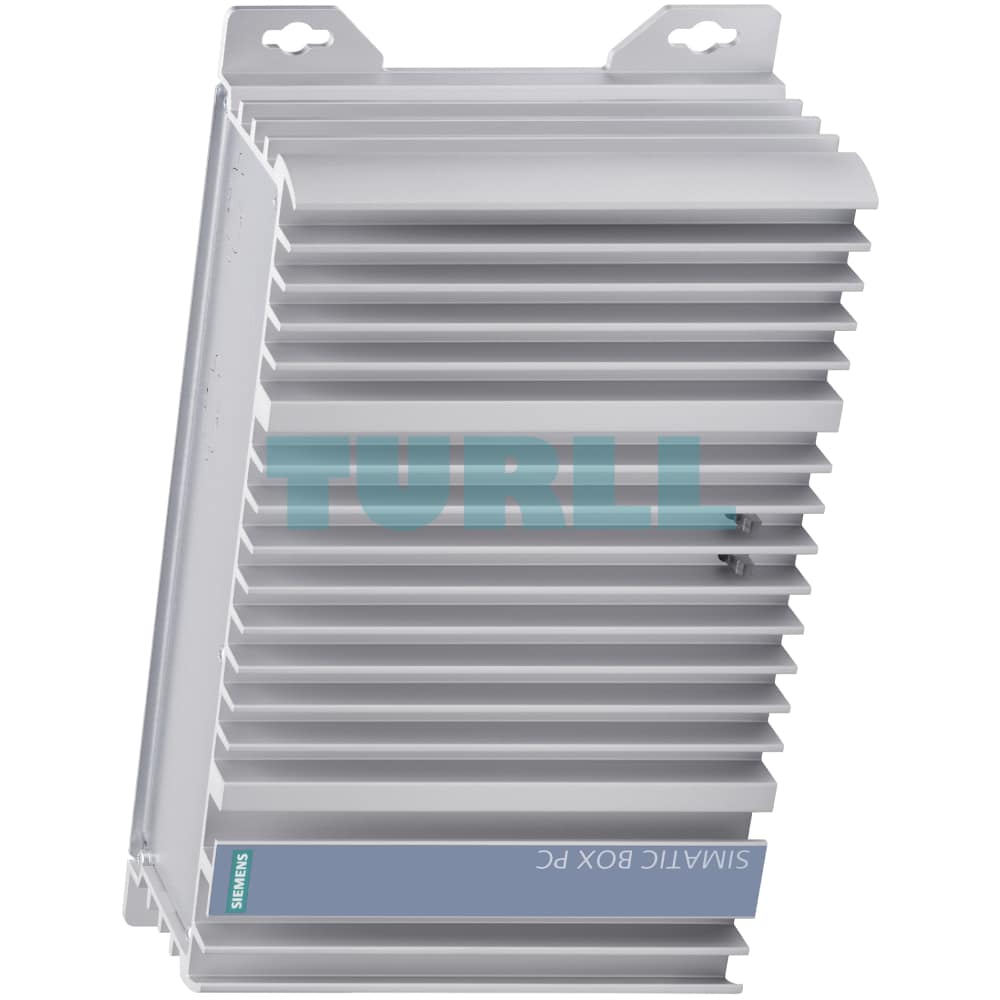

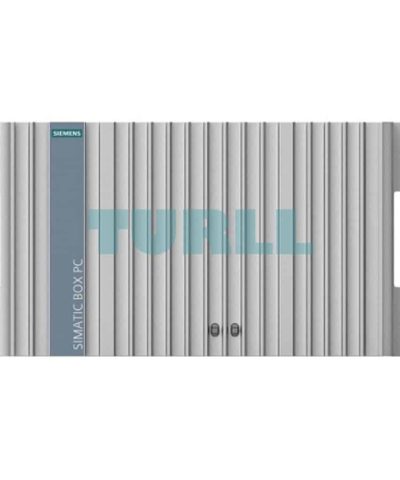

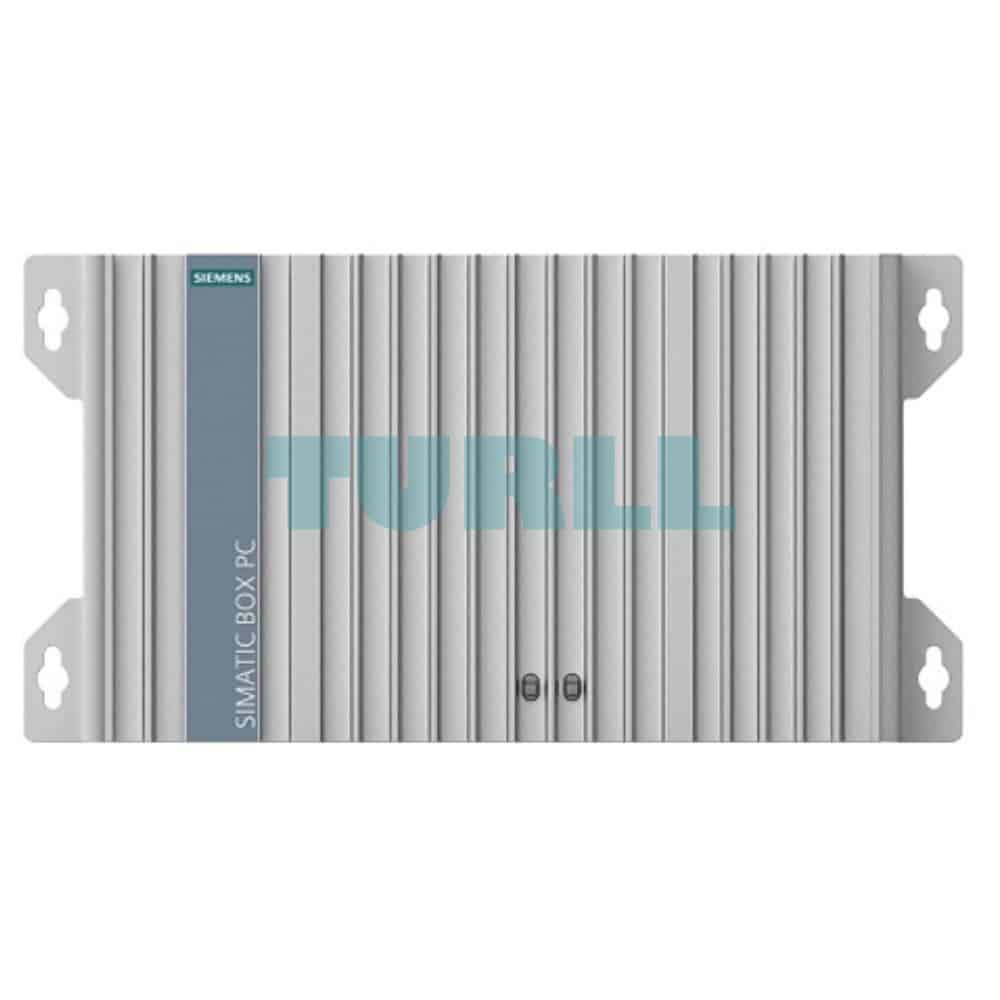

6AG4022-0BC21-0BA1 Siemens SIMATIC IPC327G Basicbox PC Original Brand New

SIMATIC IPC327G

The new SIMATIC IPC327G is a cost-optimized platform with the most up-to-date Intel® Atom processor technology. The design with multiple interfaces can be used for different applications, for example, logistics, electronics, etc.
It is characterized in particular by a large number of interfaces for easy connection to existing and new systems, fast availability from stock, as well as a fanless industrial design.

Future-proof thanks to the latest PC technology

• Intel Atom X6413E (4-core) – with maximum performance
• DDR4 up to 16 GB RAM work memory
• 2x M.2 for flexible expansions
• Windows 10 IoT Enterprise 2019 LTSC

Easy connection using a variety of interfaces

• 2 x RS232/RS485/RS422 (optional); 2x RS232 (optional)
• 7 x USB – 4 x USB 3.0, 1x USB 2.0(internal), 2x USB 2.0 pin header
• 2 x Gbit LAN
• 2 x DisplayPort

Proven reliability due to “Made for Industry” & SIMATIC quality

• Fanless, closed industrial design (IP40)
• Run-in tested for fast and trouble-free commissioning
• Certificates for worldwide use
• Up to 55 °C ambient temperature in operation
• Up to 1 g vibration / 15 g shock during operation
• Flexible mounting options without accessories (DIN rail, wall and desktop mounting)

Economic solutions and fast availability

• Ideal platform for cost-optimized PC and HMI applications in the industrial environment
• Attractive packages with SIMATIC HMI software
• Configurations available directly ex stock

SIMATIC IPC327G is versatile and can be used in factory automation, warehousing and logistics as well as in assembly workstations, for example.

Areas that can be covered by the applications include the following:

• HMI applications
• Easy image processing
• Simple control tasks
• Intelligent industrial operator stations
• Cost-optimized operation
• Distributed data collection

Basic design

• All-metal enclosure with IP40 degree of protection
• Integrated 24 V DC power supply
• Processor: Intel Atom x6413E, 1.5 GHz – burst frequency 3.0 GHz, Quad Core
• Interfaces:
  • 2 x Gbit Ethernet (RJ45)
  • 4 x USB 3.1 (up to 10 Gbps); 3 x USB 2.0
  • 4 x COM, of which 2 x in BIOS selectable between RS 232 / RS 485 / RS 422
  • Audio in/out
• Video interfaces:
  • 2 x DisplayPort
• Expansion options
  • 2 x M.2 module

Equipment variants

• Main memory configuration
  • 4 GB, 8 GB, or 16 GB RAM
• Mass storage
  • Without mass storage
  • 256 GB SSD
  • 512 GB SSD
• Preinstalled operating systems:
  • Without operating system
  • Windows 10 IoT Enterprise 2019 LTSC, 64-bit, MUI
