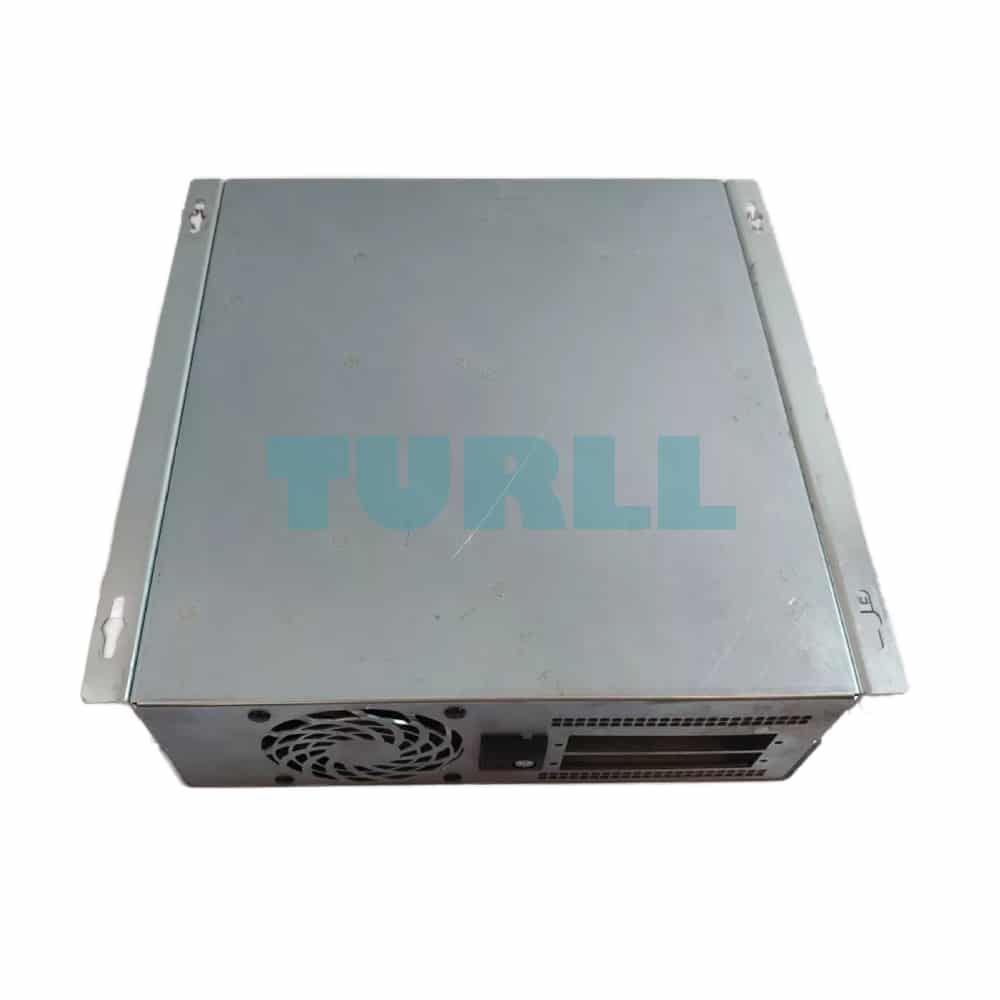

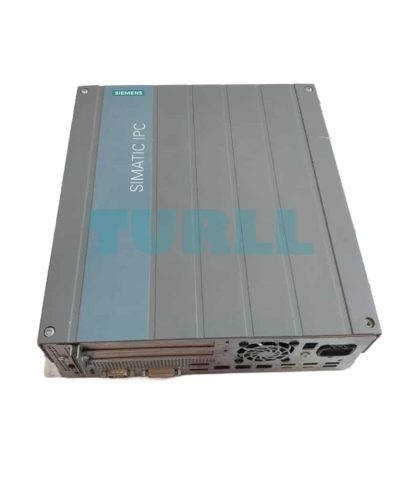

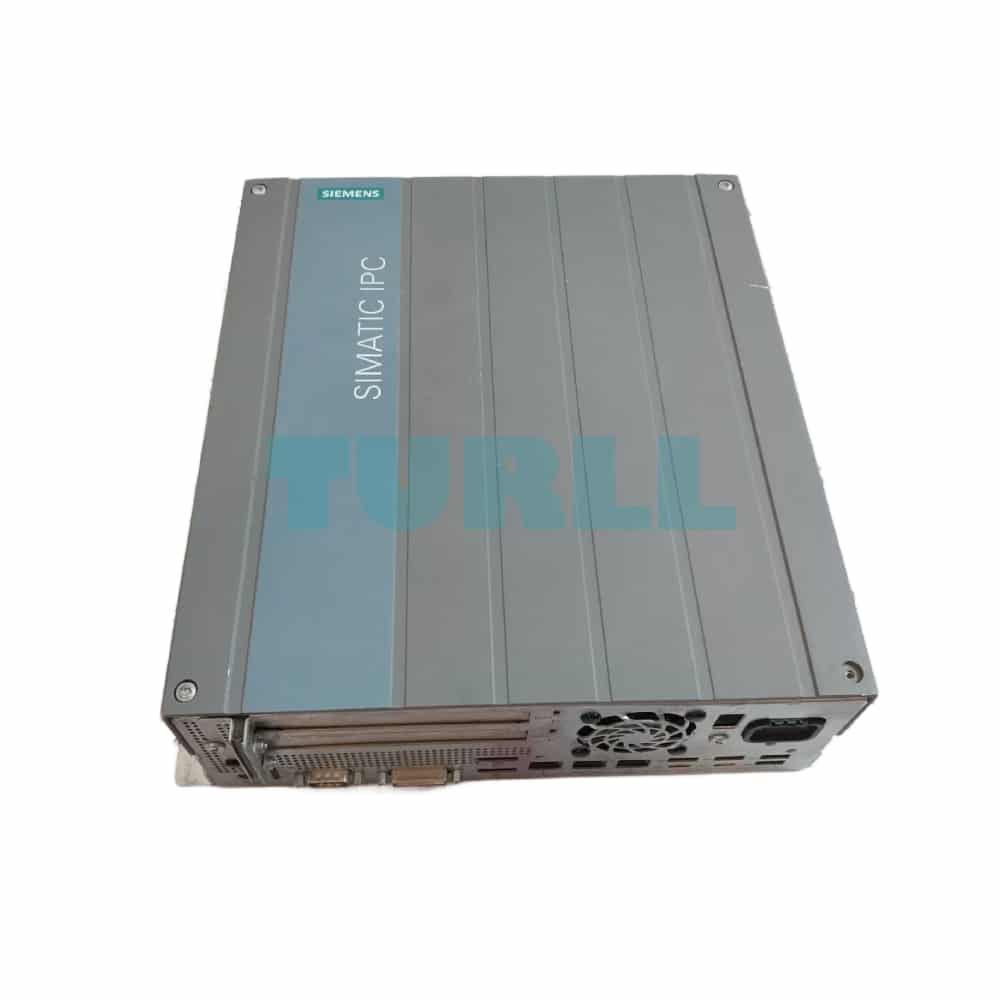

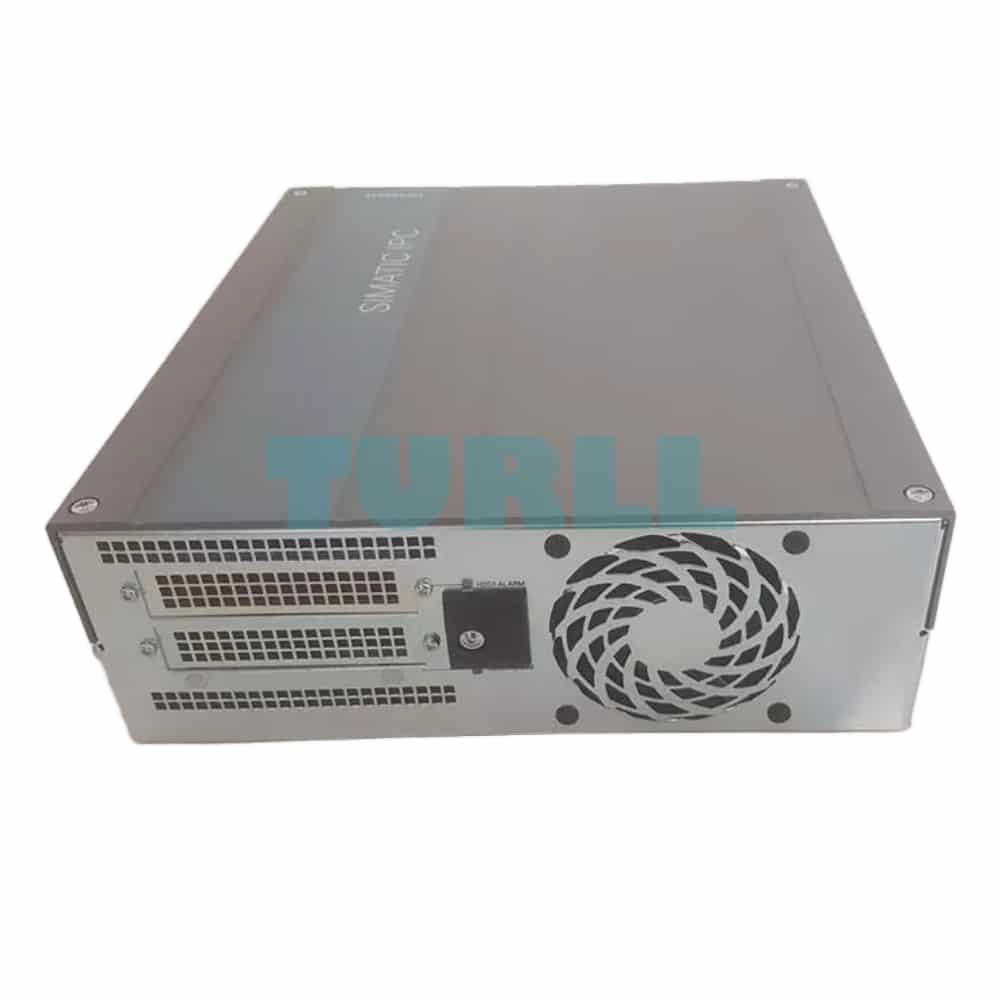

6AG4131-3GG13-1AA1 Siemens SIMATIC IPC627E Box PC Original Brand New

SIMATIC IPC627E (Box PC): The high-end IPC with maximum performance, functional scope, and expansion capability

It offers:

• Maximum performance in the smallest space
• Intel Core i technology
• Removable hard disks (RAID1)

They feature high system performance for demanding computing, open- and closed-loop control and visualization tasks

• Intel processors: Core i7, Core i3 or Celeron with up to 6 cores, with hyper-threading and turbo boost technology options
• Intel C246 PCH (Platform Controller Hub, previously chipset)
• Intel UHD Graphics 630/610 for high graphics performance (Core i / Celeron)
• DDR4-2666 memory technology up to 64 GB RAM
• USB 3.1 Gen2 SuperSpeedPlus (10 Gbps)
• PCI Express 3.0 for effective x16 graphics card support
• M.2 SSD NVMe for faster data processing

High degree of industrial compatibility

• Up to 55 °C ambient temperature during operation
• Up to 1 g vibration / 5 g shock during operation
• Card retainer for securing inserted PCI(e) cards
• Strain relief for all outgoing cables
• Stable, all-metal enclosure

High degree of industrial functionality and flexibility

• M.2 SSD NVMe and SSD SATA 2.5″ solid-state drives (option)
• 3x Gigabit Ethernet (IE/PN)
• 4x USB 3.1 Gen.2 SuperSpeedPlus
• 2x USB 3.1 type C SuperSpeedPlus
• 2x/5x PCI(e) slots for expansions
• 2 display port graphics interfaces (DP V1.2)
• DVI-I graphics interface (DVI-D monitor)
• Monitoring possible via three monitors (2xDP, 1xDVI-D)
• 2x USB via inserted slot cover (option)
• Space-saving portrait mounting of control cabinet with mounting kits

High system availability, service-friendly device design and fast commissioning

• SSD (solid-state drive) for maximum reliability and speed
• SSD-RAID1 option for maximum data availability
• NVRAM 512 KB – non-volatile memory
• CMOS buffer battery accessible from outside, can be replaced during operation Status can be scanned by software
• 2x LEDs for SoftPLC, 2x signaling LEDs (freely-programmable)
• Active Management Technology (Intel AMT) for Core i7 versions (remote access to device, even in shut-down state)
• New enclosure concept with removable cover for easy access to PC components
• Operating system pre-installed and ready-to-use
• Fast restoration of hard disk contents to delivery state in the event of system failure via restore USB flash drive included in delivery

Cost reductions through high investment security

• Platform with long-term stability and embedded Intel components
• Available for at least 4 years, then assured spare parts availability for further 5 years
• PC development and production (incl. motherboard and BIOS) by Siemens
• Part of the scalable Box PC range with identical performance features and footprint
• System-tested with SIMATIC components
• Certified for worldwide marketing (e.g.: cULus)
• Worldwide service and support

SIMATIC IPC627E provides machine manufacturers, plant constructors, and control cabinet builders with a high-performance, compact PC platform for machine-level industrial use, ideal for:

• Measuring and controlling of process and machine data (e.g. automated washing systems, robot controls)
• Operating and visualization tasks with separate display/monitor solutions (e.g. information terminals, large-scale displays in automotive production)
• Data acquisition and processing (e.g. production data acquisition, distributed process control)
• Motion control

SIMATIC IPC627E features the CE mark for use in industrial sectors, as well as in residential, business and commercial areas. In addition to industrial applications, it is therefore also suitable for use in building automation or public facilities.

It can also be integrated in confined spaces thanks to the low mounting depth of 90 mm.

SIMATIC Box PCs can be ordered in combination with WinCC as SIMATIC HMI packages at a reduced price.

Basic design

• Rugged metal installation housing, resistant to vibration and shock, with high electromagnetic compatibility
• Card retainer for PC modules for reliable operation in the event of vibrations and shocks
• Vibration and shock-absorbing hard disk holder
• Onboard graphics, up to 3 840 x 2 160 / 130 Hz / 30-bit colors

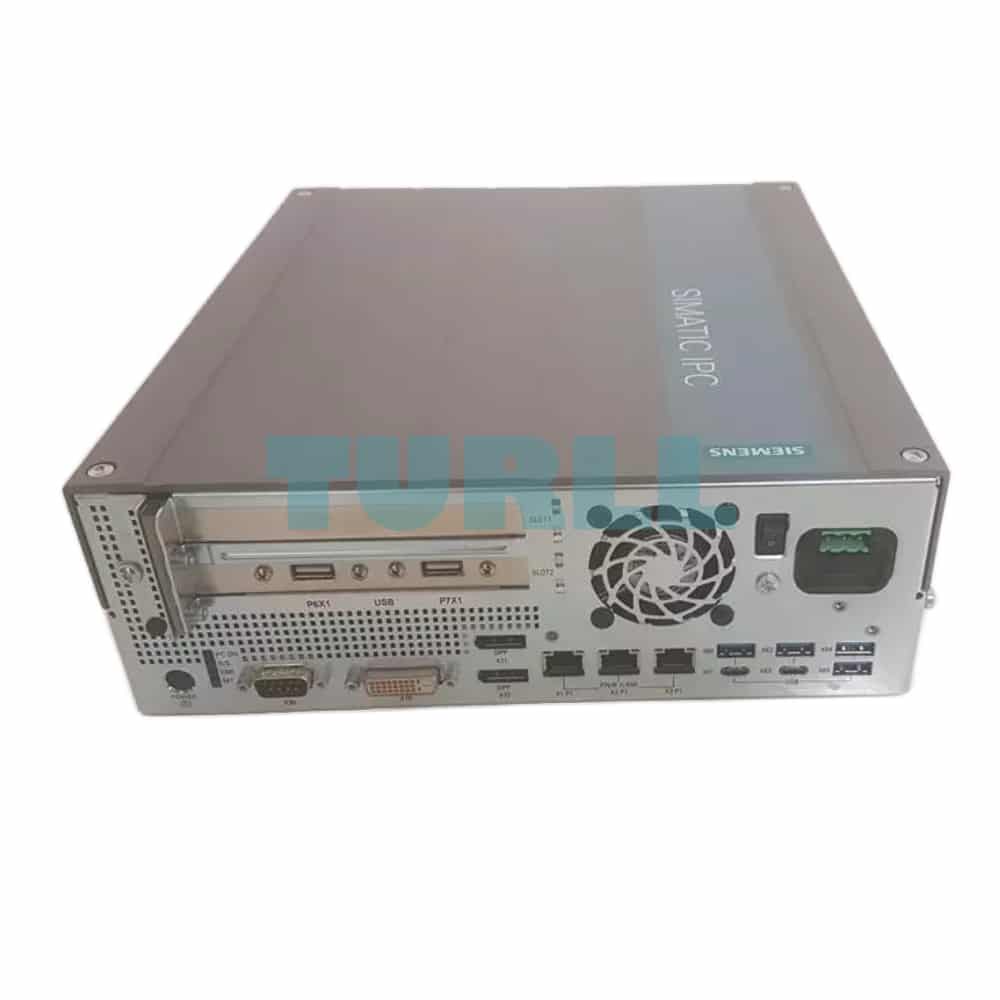

• Interfaces (accessible from one side):
  • 2 x Gigabit Ethernet interface (RJ45)
  • 2 x DisplayPort and DVI-I graphics interface
  • 6 x USB 3.1 Gen. 2
  • 1 x serial (COM1)
• 4 LEDs – 1 x for power and 3 x for applications

Design versions

• Processor:
  • Intel Core i7-8700, 6 cores, 12 threads, 3.2 (4.6) GHz, VT-d, AMT, 12 MB cache
  • Intel Core i3-8100, 4 cores, 4 threads, 3.6 GHz, VT-d, 6 MB cache
  • Intel Celeron G4900, 2 cores, 2 threads, 3.1 GHz, 2 MB cache VT-d
• Main memory:
  • 4 GB up to 64 GB, DDR4-2666
• Drives:
  • SATA hard disks: 320 GB, 2.5″
  • Solid-state drive (SSD) 2.5″ SATA > 480 GB
  • RAID1 2x SSD 2.5″ SATA internal or in removable drive bay
  • M.2 SSD NVMe 512 GB
• Free slots for expansions:
  • 2 x PCI (185/185 mm) or
  • 1 x PCI-Express x16 (185 mm) and 1 x PCI (185 mm)
  • 2 x PCI-Express (x16/x4, 185/185 mm)
  • 3 x PCI (185 mm, 2x 240 mm) and 2 x PCI-Express (x16/x4, 185/185 mm)
  • 5 x PCIe (x16, x4, x1, 185 mm and x1, 2x 240 mm)
• Power supply:
  • 100/240 V AC (wide range), 50/60 Hz
  • 24 V DC industrial power supply
• Pre-installed and activated operating systems:
  • Windows 10 Enterprise 2016 LTSB, Multi-language
  • Windows 10 IoT Enterprise 2019 LTSC, Multi-language
  • Windows 10 IoT Enterprise 2021 LTSC, multi-language
• SIMATIC IPC DiagMonitor ¹⁾
• SIMATIC IPC Image & Partition Creator ¹⁾
• Painted enclosure variants for IPC627E in 2-slot design

¹⁾ More information is available under “Expansion components“.

• Integrated, parameterizable monitoring functions (program execution (watchdog), internal enclosure temperature, external enclosure temperature, speed monitoring of fans, CMOS battery)
• Extended diagnostics/alarms via Ethernet, email, text message, and for direct infeed into the SIMATIC software via OPC and logging (optionally via SIMATIC PC DiagMonitor):
  • Operating hours counter
  • Hard disk status
  • Automatic logging of all alarms to a log file
  • Long-term recording and graphic display of measured values (temperature, fan)
  • Capability for central monitoring of networked SIMATIC PCs
• RAID1 for automatic data mirroring on two serial ATA hard disks
• Solid-state drive for especially robust data storage or systems without hard drives
• iAMT functionality (Intel Active Management Technology). This property permits remote access to the IPC (for servicing), even when the operating system is shut down, e.g.:
  • Starting/shutdown of the IPC
  • BIOS update
• CMOS batteries are externally accessible and therefore easy to replace
• Flash BIOS with the ability to store customer-specific CMOS settings in a non-volatile memory area
• After an unexpected power failure, up to 128 KB of important process data can be written into the NVRAM (non-volatile memory) battery-backed SRAM
• 4 LEDs – 1 x for power and 3 x for applications

Integrated interfaces:

• Ethernet
  Three integrated Ethernet interfaces (10/100/1 000 Mbps) for IT communication and exchanging data with automation devices such as SIMATIC S7 (with the “SOFTNET S7” software package).
• Further interfaces
  There are two or five free slots for PC modules, 6 USB (Universal Serial Bus) and a serial interface for connecting additional I/O devices.
