6AV2145-6GB06-0AA0 Siemens SIMATIC HMI KTP700F Mobile Arctic Original Brand New

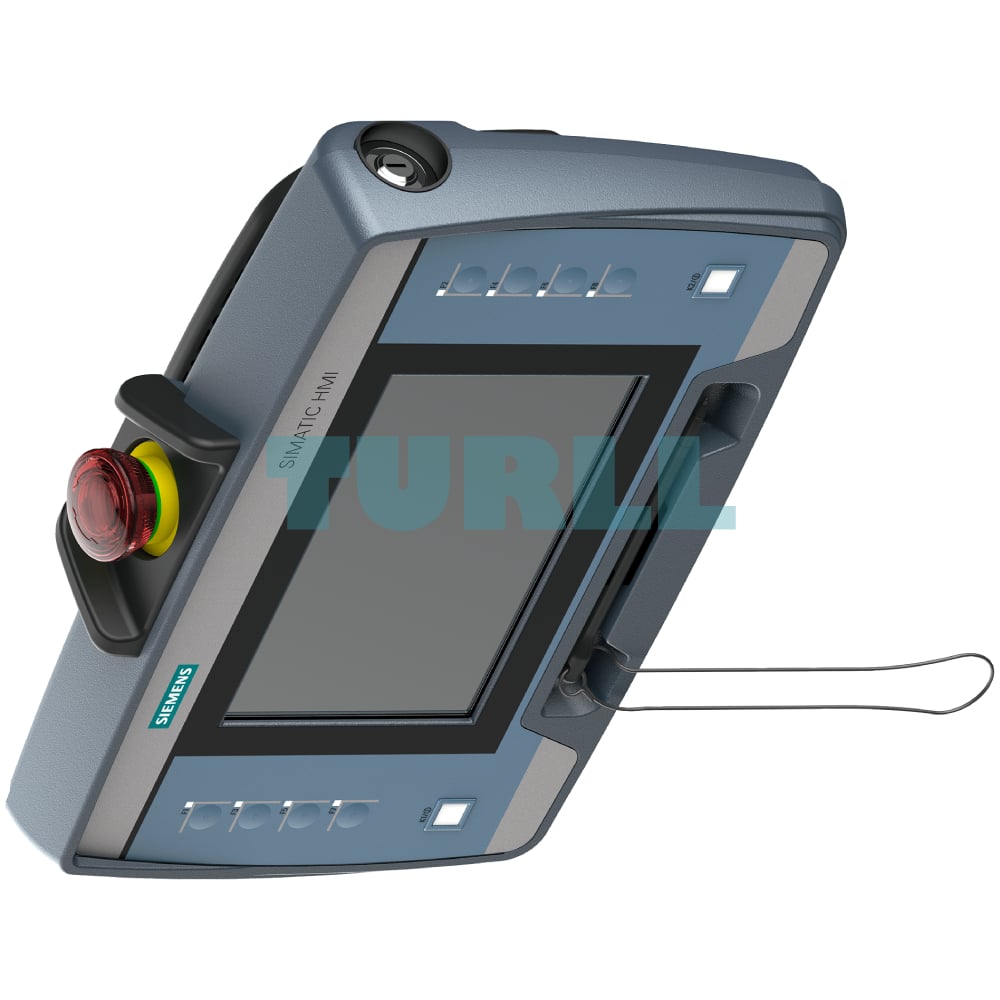

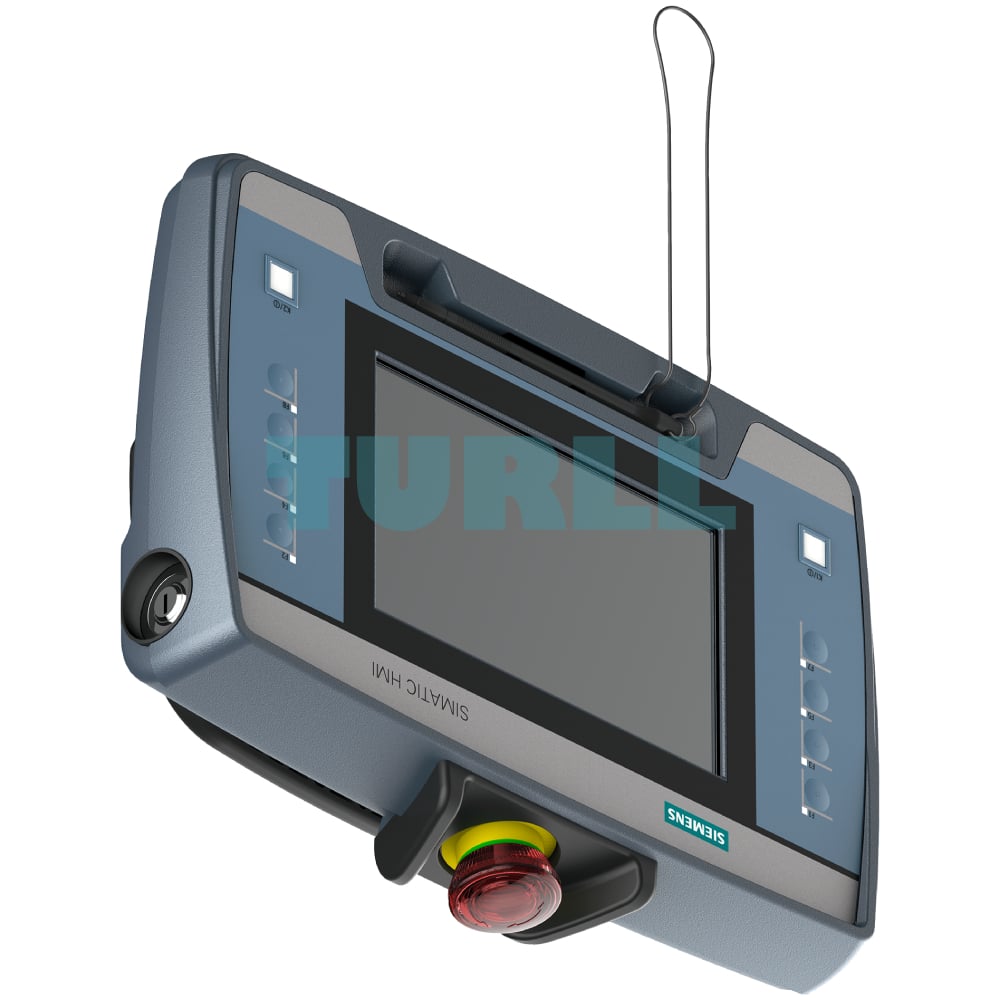

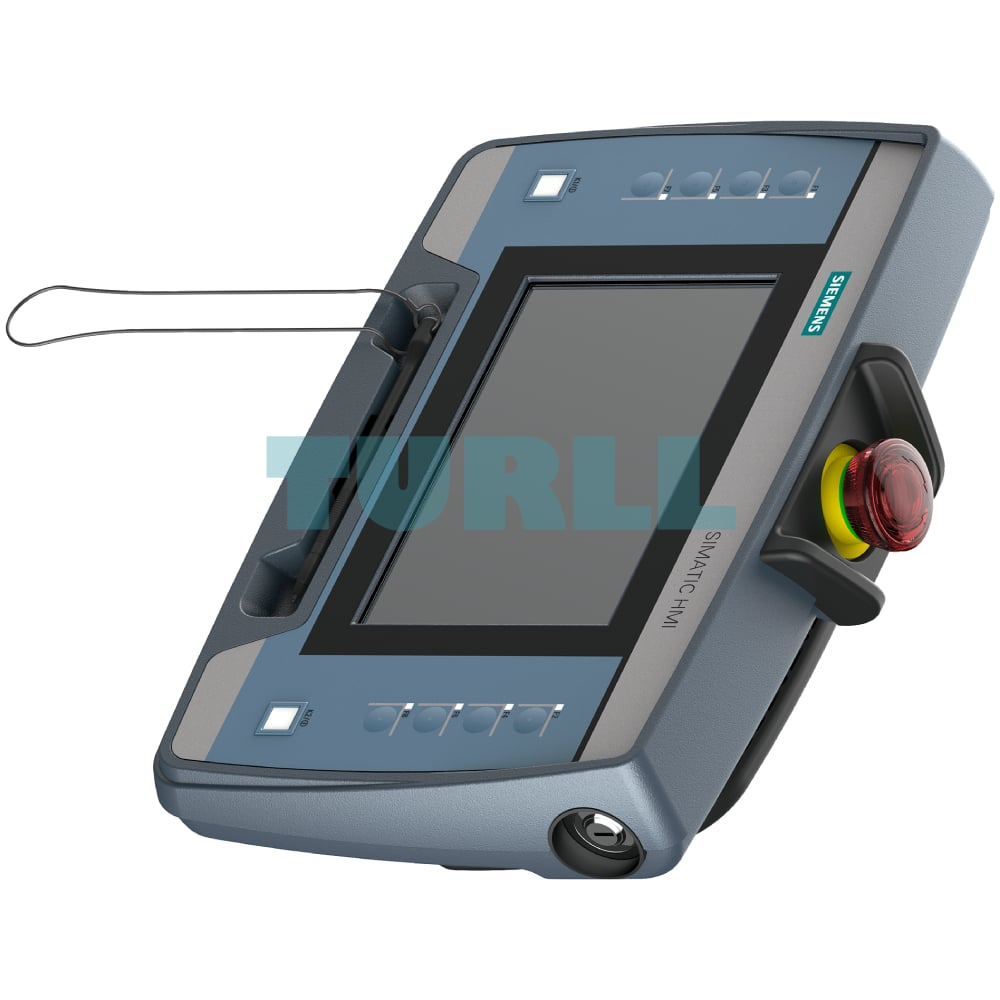

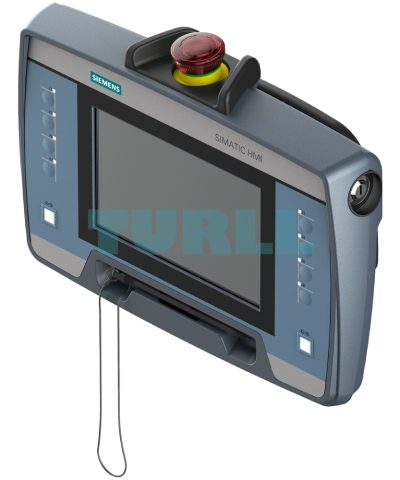

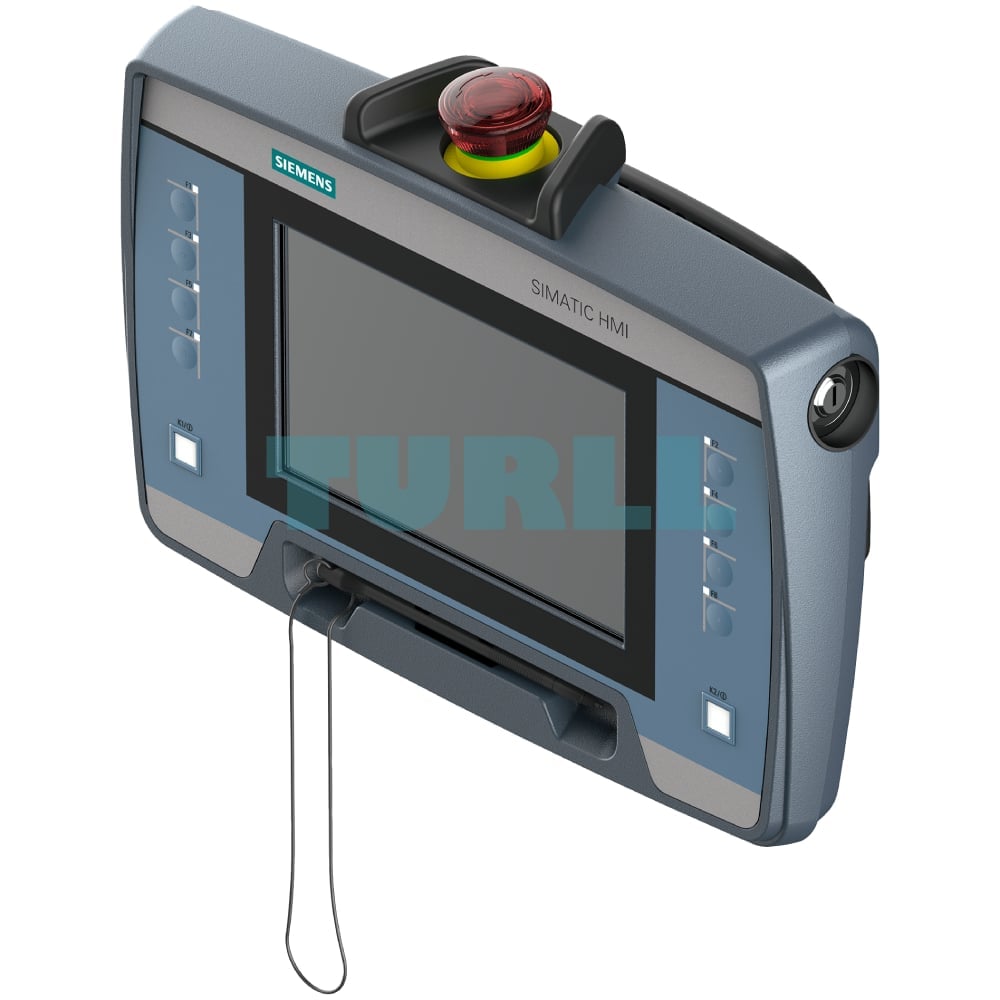

SIMATIC HMI KTP700F Mobile Arctic

The operator panel with glass touch screen is designed for use in weather-protected areas with low ambient temperatures, e.g. in cooling technology.

It has the same functionality as the SIMATIC HMI Mobile Panels 2nd Generation and is configured exclusively with the innovative HMI software WinCC.

The engineering software is integrated into the “Totally Integrated Automation Portal” engineering framework. WinCC (TIA Portal) as of V15.1 is required to configure the device.

• Extended operating temperature range “Arctic” between -28 and +45 °C
• For optimum operation even at low temperatures, a touch pen has been integrated in the front panel at the center underneath the display

• The external dimensions of the front correspond to the standard product SIMATIC HMI KTP900F Mobile
• GFG (Glass-Film-Glass) touch, analog-resistive
• Decorative membrane with printing
• High-resolution TFT display in widescreen format with 16 million colors
• Daylight-readable
• Anti-reflective and bonded for glare-free reading
• Resistive single-touch screen
• Suitable for operation with glove, pen and finger

SIMATIC HMI KTP700F Mobile Arctic is intended for use in weather-protected areas. The connection boxes Advanced and Compact are released for the extended operating temperature range “Arctic” in combination with the operator panel.

KTP700F Mobile Arctic

• Dimmable 7.0″ widescreen TFT display
• 800 x 480 resolution, 16 million colors
• 1 Ethernet interface (TCP/IP, PROFINET, PROFIsafe)
• 1 USB host interface (type A) with cover
• 1 SD card slot
• Touch screen and 8 tactile function keys, including LEDs
• 2 illuminated pushbuttons
• 1 key-operated switch
• 1 three-stage acknowledgment button
• 1 EMERGENCY STOP button

Temperature:

• Operator panel: -28 … +45 °C
• Connection boxes: -28 … +55 °C

Atmospheric pressure:

• 1 140 to 795 hPa (corresponds to an elevation of -1 000 to 2 000 m)

Relative humidity:

• 10 … 90%. No condensation inside the enclosure of the operator panel and connection box Advanced. No condensation on the rear of the connection box Compact.

Connecting cable

The following connecting cables are approved for the device:

• Connecting cable 2 m KTP Mobile
• Connecting cable 5 m KTP Mobile
• Connecting cable 8 m KTP Mobile
• Connecting cable 10 m KTP Mobile
• Connecting cable 15 m KTP Mobile
• Connecting cable 20 m KTP Mobile
• Connecting cable 25 m KTP Mobile

Connection boxes

The following versions of the connection boxes are approved for the device:

• Connection box Compact
• Connection box Advanced

The SIMATIC HMI KTP700F Mobile Arctic has the same functionality as the SIMATIC HMI Mobile Panels 2^nd Generation.
Connection concept with integrated connection point recognition, illuminated EMERGENCY STOP button and acknowledgment button functions are identical to the basic device.

The HMI device is configured in the same way as a fail-safe Mobile Panel 2^nd Generation, except for the operator control functions that are not available on the operator panel.
