6AV6371-1DV07-5BX4 Siemens WinCC/Audit RT Original Brand New
$82.13
6AV6371-1DV07-5BX4

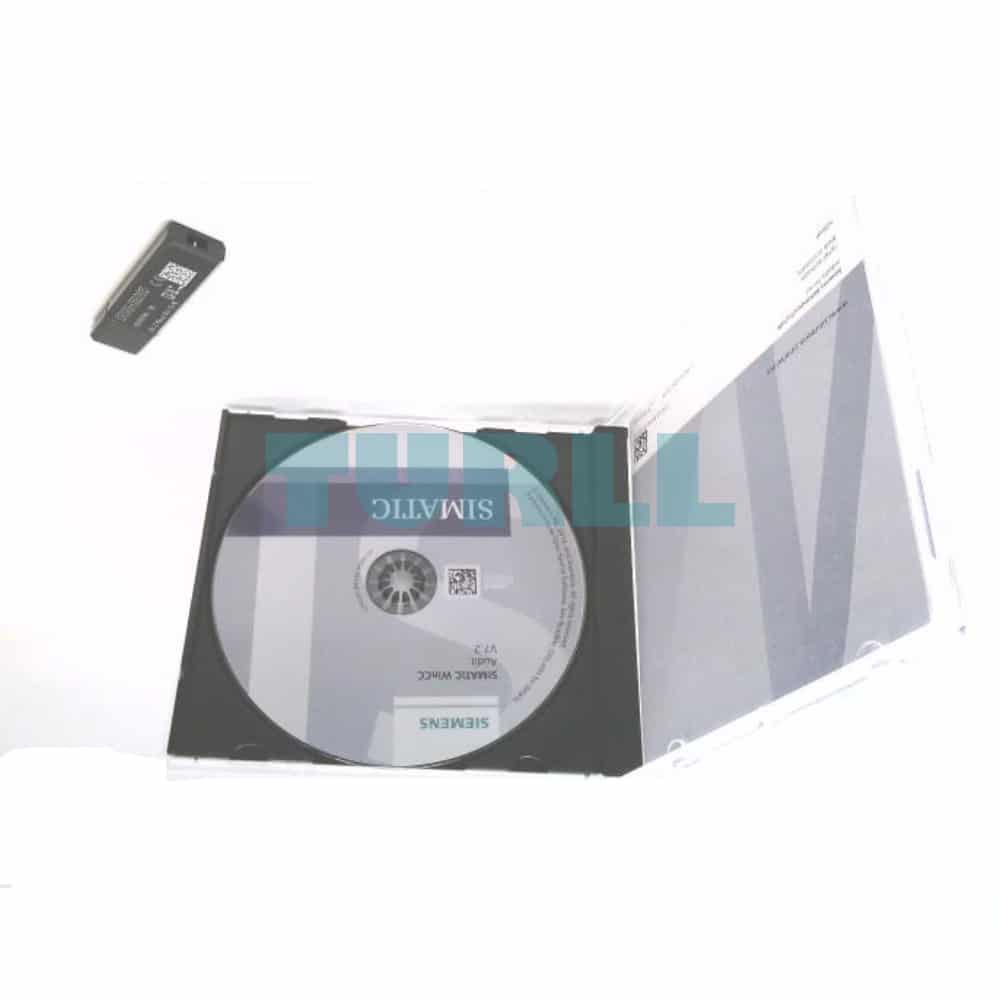

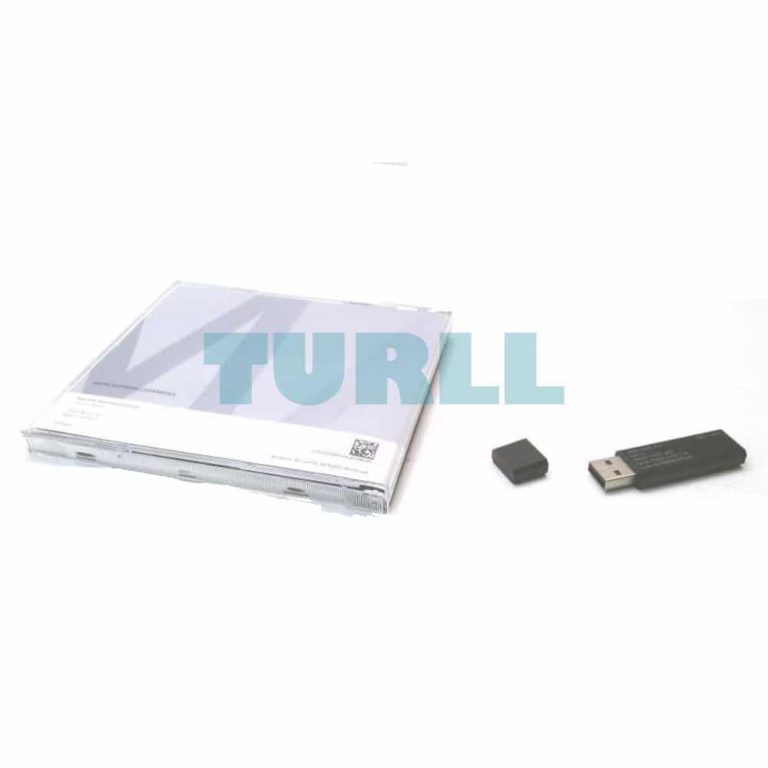

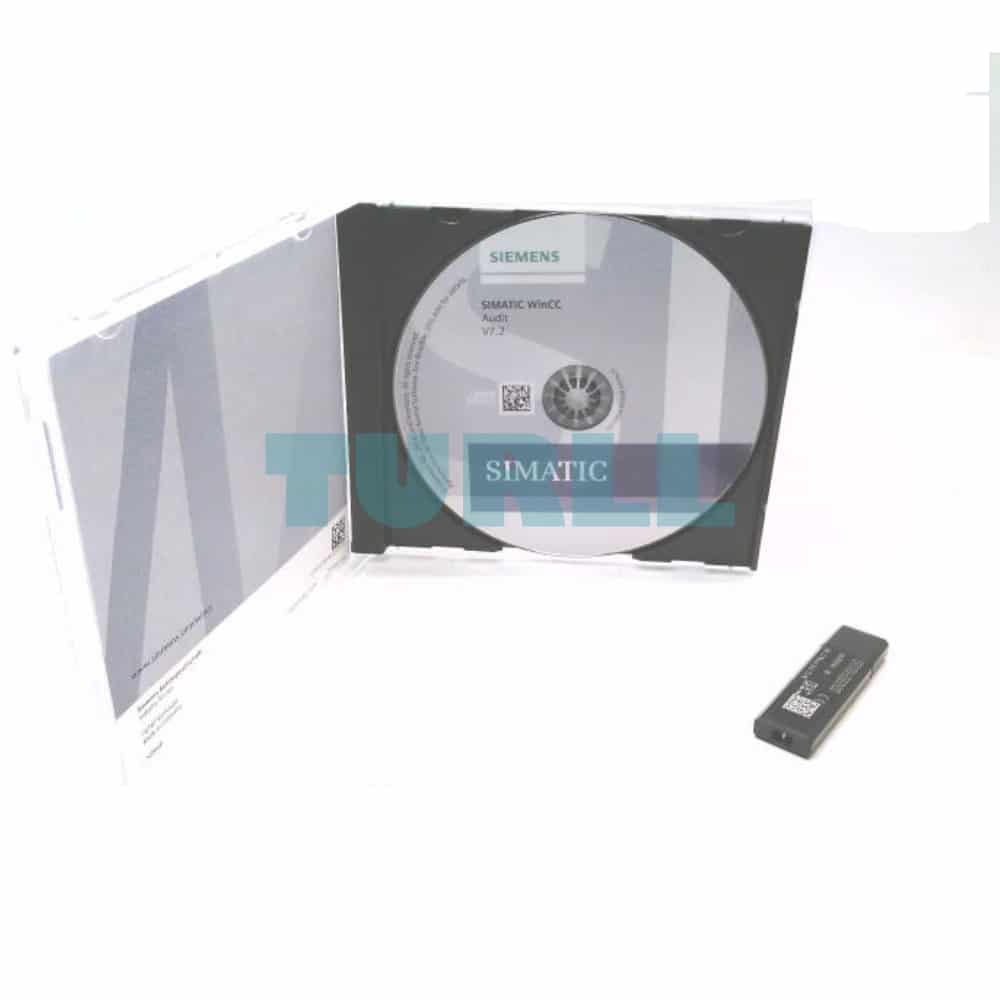

Siemens WinCC/Audit RT upgrade from V7.4 -> V7.5 SP2 for WinCC/Audit RT, runtime software, single license, software and documentation on CD, license key on USB flash drive – – content: set (1x DVD + 1x USB)
[ez-toc]
Overview
WinCC/Audit & WinCC/ChangeControl
- WinCC/ChangeControl is used to trace engineering changes in a tamper-proof long-term Audit Trail database, called the Audit Trail for short.
All engineering changes are automatically recorded in the Audit Trail. This provides a traceable record of every change that has been made, as well as enabling the causes to be deduced and the system downtimes to be minimized.
To begin tracing at defined project statuses, a project version definition is provided that contains all data and files of a WinCC project version. The project version definition naturally provides the ability to reactivate earlier project versions. Document management is also provided, which manages and archives intermediate statuses for system graphics, reports or user files and stores change information of the user. The audit viewer with helpful filter functions enables the Audit Trail to be quickly and easily evaluated, exported or even printed out. - WinCC/Audit is based on the same Audit Trail database and the same audit viewer as WinCC ChangeControl.
However, the focus of WinCC Audit is the traceability of all operator actions during production, i.e. during the runtime of WinCC. All operations are automatically recorded in the Audit Trail at RT. In addition, WinCC Audit offers additional functions for secure and traceable plant operation, such as electronic signature for certain operating actions. - The WinCC/Audit or WinCC/ChangeControl options and SIMATIC Logon support users in the validation of their plants and meet the requirements according to FDA CFR 21 Part 11.
Licenses (as of WinCC V8.0)
The complete license WinCC Audit RC includes the licenses for runtime and configuration of WinCC ChangeControl and WinCC Audit.
Licensing applies to one engineering station (configuration) and one operating station (runtime) for which an Audit Trail is to be generated.
An RC license also always includes a runtime (RT) license. Only one RT license is required for each additional operating station with Audit Trail.
In case of WinCC Server (for UNI or web clients), an Audit RT Server license must be used.
However, the clients on such a server do not require their own licensing.
The individual functional areas can also be purchased independently of each other via the WinCC ChangeControl or WinCC Audit RC Base single licenses.
Benefits
- Quick and easy traceability configuration
- Gap-free and automated recording of engineering changes and operator actions in an Audit Trail
- Reduction in plant downtimes thanks to fast analysis of the gap-free recorded Audit Trail information
- Logging of defined WinCC project status with all database information and files of the application
- Gap-free documentation of the project version definition procedures with version number, user and comments
- Complete tracing support by WinCC single and multi-station systems, single and multi-project solutions, Client/Server architecture
- Additional protection of selected operating actions by electronic signature
- Extensive reduction in engineering outlay in order to meet the requirements of FDA 21 CFR Part11 & EU 178/2002
- Compliance with the requirements of the Food and Drug Administration (FDA) for the food, beverages and tobacco industries
Design
WinCC/ChangeControl and WinCC/Audit consist of five components:
- The Audit Editor for configuration the Audit Trail content
- The project version definition for archiving WinCC projects
- Document management for automatic archiving and versioning of WinCC plant screens, scripts, reports, and project-specific documents, and the recording of the associated change information
- The Audit Viewer for visualizing, exporting and printing the WinCC Audit Trail. The viewer is available as an executable program under Windows, as well as OCX with WinCC Runtime.
- The Audit Trail, which tracks all changes in respect of both engineering and plant operation in a separate SQL database. The Audit Trail can be set up as a central Audit Trail for a number of projects or even just for a single project.
WinCC/ChangeControl and WinCC/Audit support both single-user and multi-user systems, client/server architectures and even the WinCC redundancy system. No redundant Audit Trail is created however.
Function
WinCC/ChangeControl
WinCC/ChangeControl is a functional subset of WinCC/Audit. WinCC/ChangeControl is for tracing engineering changes in the engineering phase or in online operation. All change data is recorded in an Audit Trail.
There are two types of engineering changes:
- those that change the WinCC database or are executed through the WinCC Explorer, such as e.g. changes to tag management or creating a user group,
and those
- limited to changing files, the so-called document management.
The document management manages plant screens, scripts and log layouts and customer-specific documents and stores respective intermediate versions as backups. All of these documents or files are subject to a change process, i.e. documents can be booked out for processing, booked in for finalization and intermediate versions can be retrieved from backup storage with a rollback function.
The project version definition as a component of WinCC /ChangeControl archives WinCC projects and creates reproducible project statuses or defined start time points for starting tracing. An Audit Trail is also provided with information on who has created which project version or which version has been reproduced or deleted.
Configuring the Audit Trail, the project version definition and the document management is simple, quick and comfortable.
The Audit Trail data is visualized from WinCC via the audit viewer, an executable program under Windows. The data can also be evaluated with the audit viewer OCX in Runtime by WinCC however. Users select the desired view of the Audit Trail information via filters or selection criteria and can export the data to an Excel file or print it on a printer. Audit Trail information is tamper-proof and can thus not be modified or deleted. An export function can be used to swap out the Audit Trail to an XML file or to archive it.
WinCC/Audit
WinCC/Audit has all of the functionality of WinCC/ChangeControl and is also used for tracing operator operations in RT operation. Tracing can be used for determining who, when and what conditions the machine has undergone. In addition to recording operator activities, the Audit Trail also records the starting and modifying of recipes or operator logs. In addition, the user can perform activities of an individual nature at specific objects or events, such as pressing a function button, moving sliders and other actions, while using a so-called audit entry function to record these activities in the Audit Trail.
A WinCC/ChangeControl RC license or a WinCC/Audit RC license is required for configuring the Audit Trail. One RT license is required for each station (client/server) to be monitored. One RC license always includes one RT license.
6AV6371-1DV07-5BX4
Siemens WinCC/Audit RT upgrade from V7.4 -> V7.5 SP2 for WinCC/Audit RT, runtime software, single license, software and documentation on CD, license key on USB flash drive – – content: set (1x DVD + 1x USB)
Visit 6AV6371-1DV07-5BX4
For more our products visit turll.com
| Weight | 0.220 kg |
|---|---|
| Dimensions | 187.00 × 267.00 × 34.00 mm |
