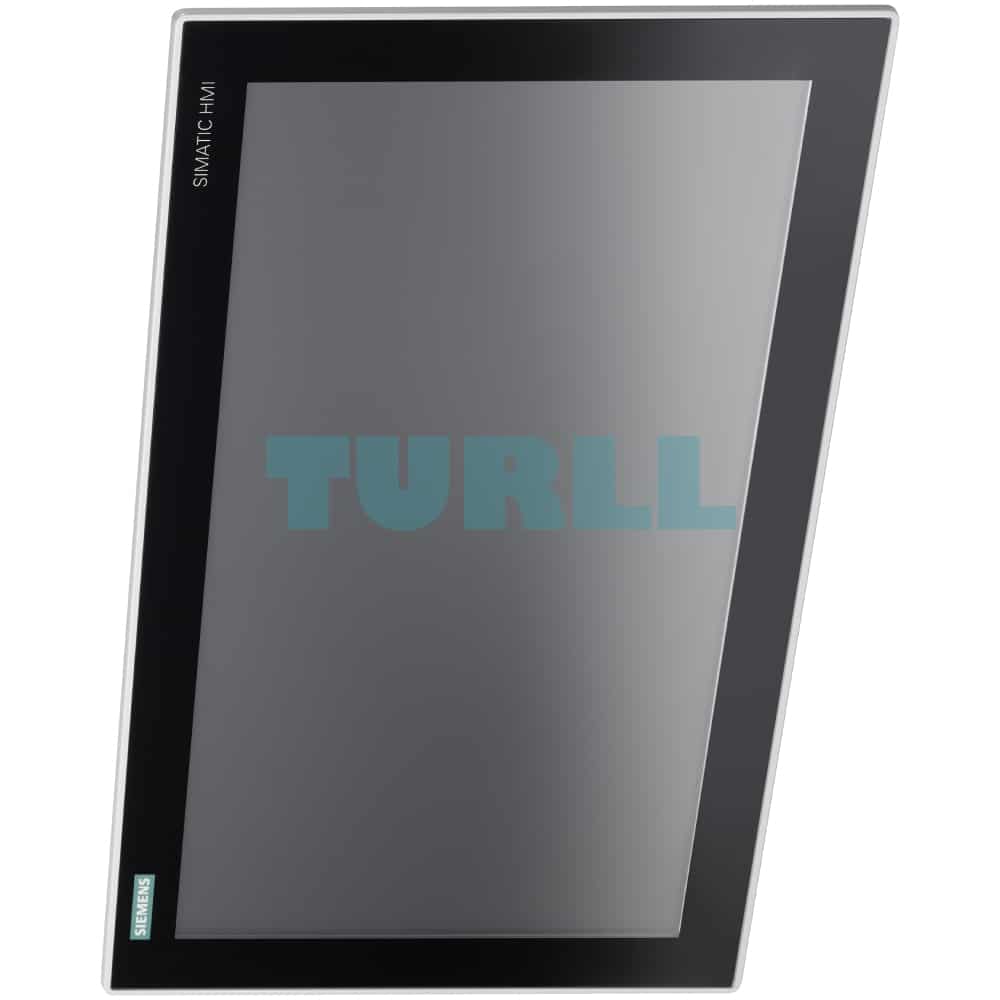

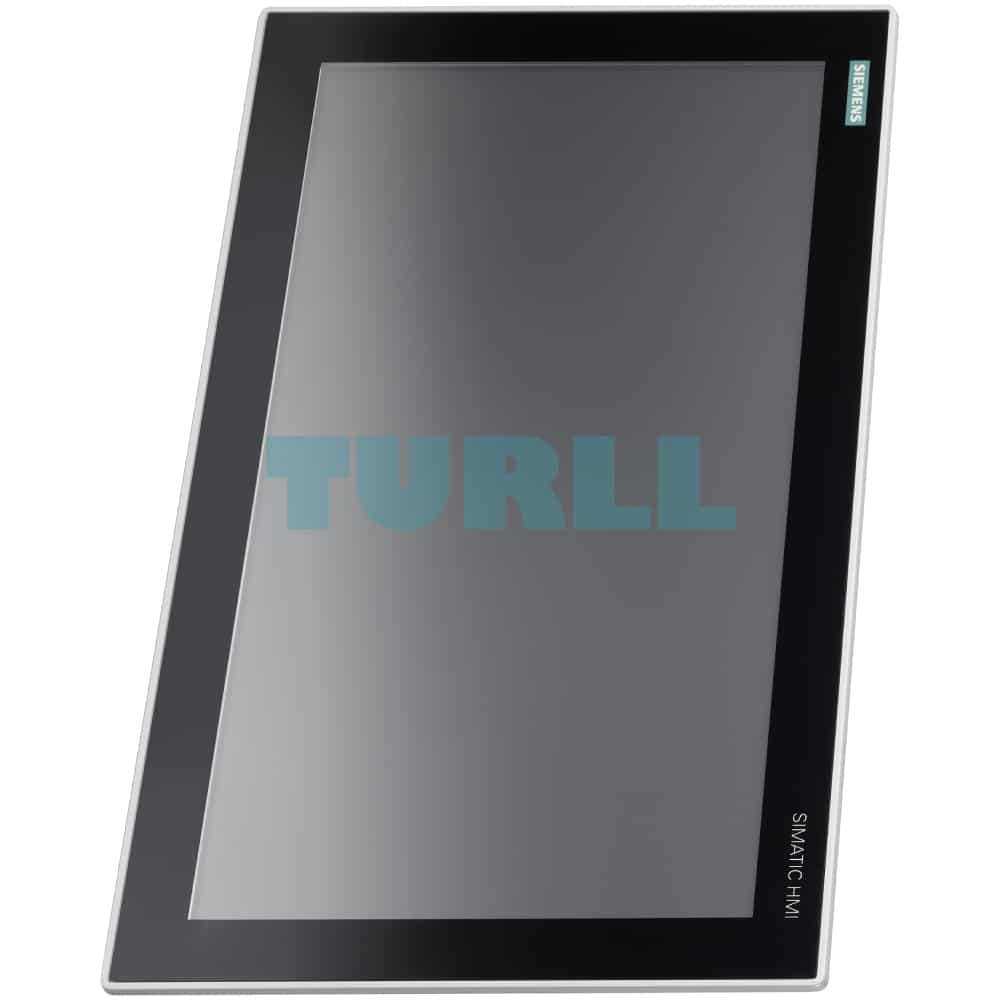

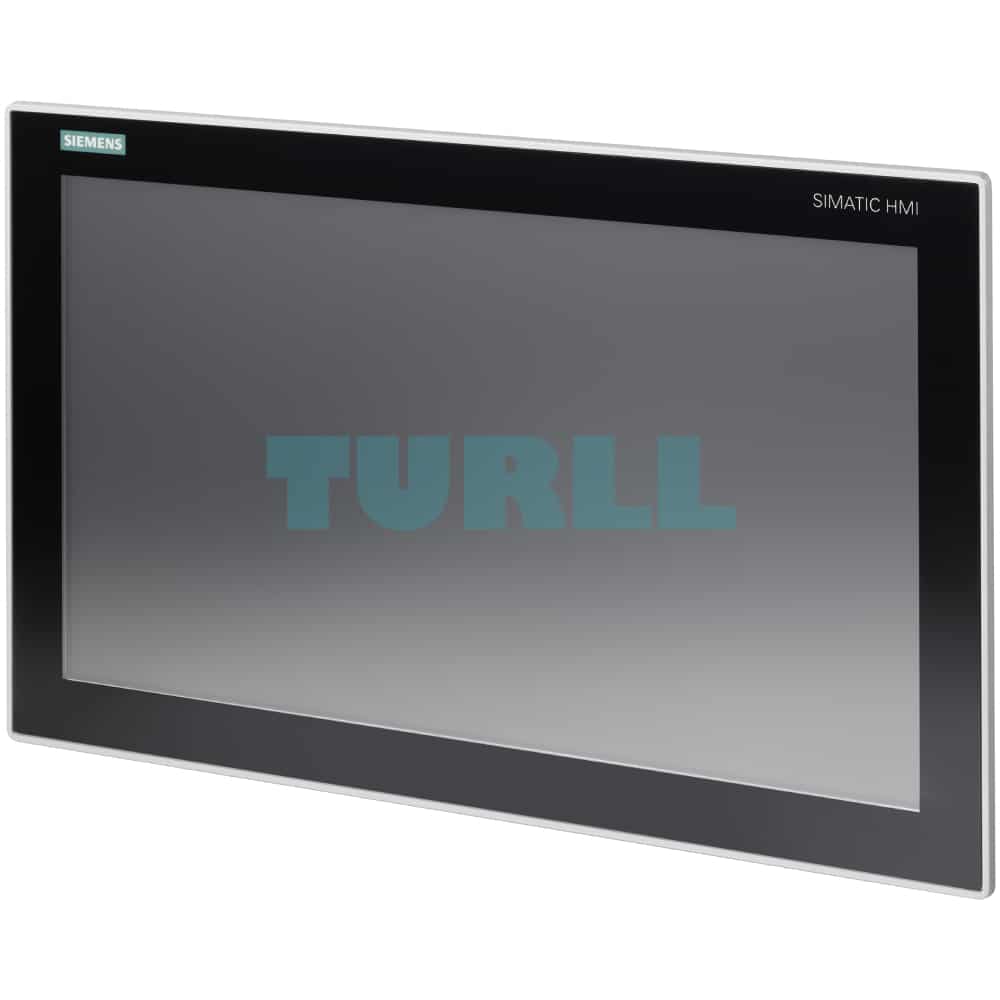

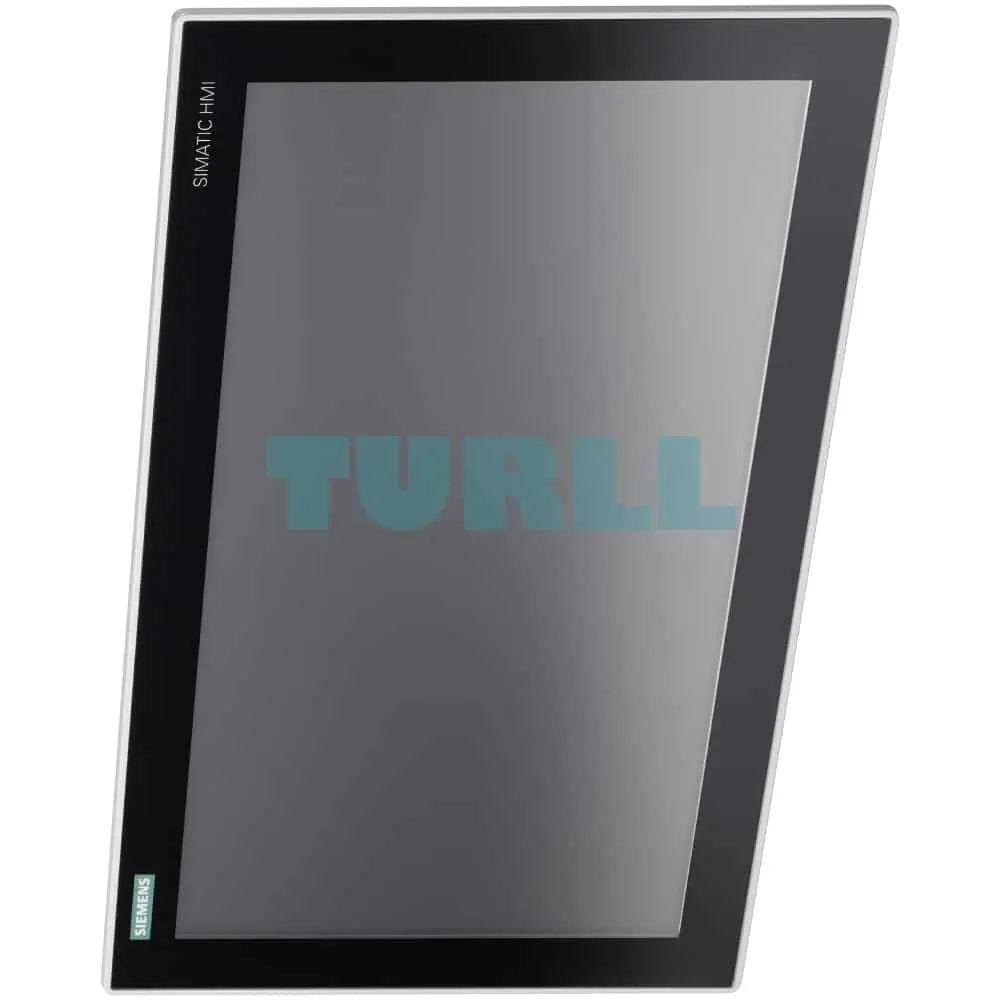

6AV7231-0ED41-2CA0 Siemens SIMATIC IPC377G Basic Panel PC Original Brand New

Based on Intel Atom processor technology, the SIMATIC IPC377G Panel PC represents a new IPC platform which has been specifically developed for cost-optimized, PC-based applications in industrial and industry-oriented environments.

The SIMATIC IPC377G Panel PC is characterized by a large number of interfaces.

Fast availability ex stock as well as the fanless industrial design complete the concept.

Industrial display

• Widescreen TFT color display with backlighting
  • 12″ (1 280 x 800 pixels)
  • 15″ (1 366 x 768 pixels)
  • 19″ (1 366 x 768 pixels)
  • 22″ (1 920 x 1080 pixels)

Future-proof thanks to the latest PC technology

• Intel Atom X6413E (4-core) with maximum performance
• DDR4 memory technology up to 16 GB RAM
• 2x M.2 for flexible expansions
• Windows 10 IoT Enterprise 2019 LTSC

Easy connection using a variety of interfaces

• 2x RS232/RS485/RS422 + 2x RS232 (optional)
• 7x USB – 4x USB 3.1, 1x USB 2.0 type A (internal), 2x USB 2.0 pin connector
• 2 x Gbit LAN
• 2 x DisplayPort

Proven reliability due to “Made for Industry” & SIMATIC quality

• Fanless, closed industry design (IP40) (not applicable for 22″ design)
• Run-in tested for fast and trouble-free commissioning
• Suitable for an ambient temperature up to 50 °C (in operation)
• Up to 1 g vibration / 15 g shock during operation
• Certificates for worldwide use
• Flexible mounting (cabinet, VESA)

Economic solutions and fast availability

• Ideal platform for cost-optimized PC and HMI applications in the industrial environment
• Attractive packages with SIMATIC HMI software
• Many configurations available directly ex stock

The IPC377G is versatile and can be used, for example, in the pharmaceutical industry, in factory automation, logistics or also for intelligent industrial operator stations.

Areas that can be covered by the applications include the following:

• HMI applications
• Easy image processing
• Simple control tasks
• Intelligent industrial operator stations
• Cost-optimized operator stations
• Remote data monitoring

Basic design

• All-metal enclosure with degree of protection IP40
• Integrated 24 V DC power supply
• Processor:
  Intel Atom x6413E, 1.5 GHz – burst frequency 3.0 GHz, Quad Core
• Interfaces:
  • 2 x Gbit Ethernet (RJ45)
  • 4 x USB 3.1 (up to 10 Gbps); 3 x USB 2.0
  • 4 x COM, of which 2 x in BIOS selectable between RS232 / RS485 / RS422
  • Audio in/out
• Video interfaces:
  • 2 x DisplayPort
• Expansion options
  • 2x M.2 modules

Equipment variants

• Main memory configuration
  • 4 GB, 8 GB, or 16 GB RAM
• Mass storage
  • Without mass storage
  • 256 GB SSD
  • 512 GB SSD
• Preinstalled operating systems:
  • Without operating system
  • Windows 10 Enterprise 2019 LTSC, 64-bit, MUI

Components of the operating unit:

The following operating units are available:

• 12″ (1 280 x 800 pixels)
• 15″ (1 366 x 768 pixels)
• 19″ (1 366 x 768 pixels)
• 22″ (1 920 x 1080 pixels)
