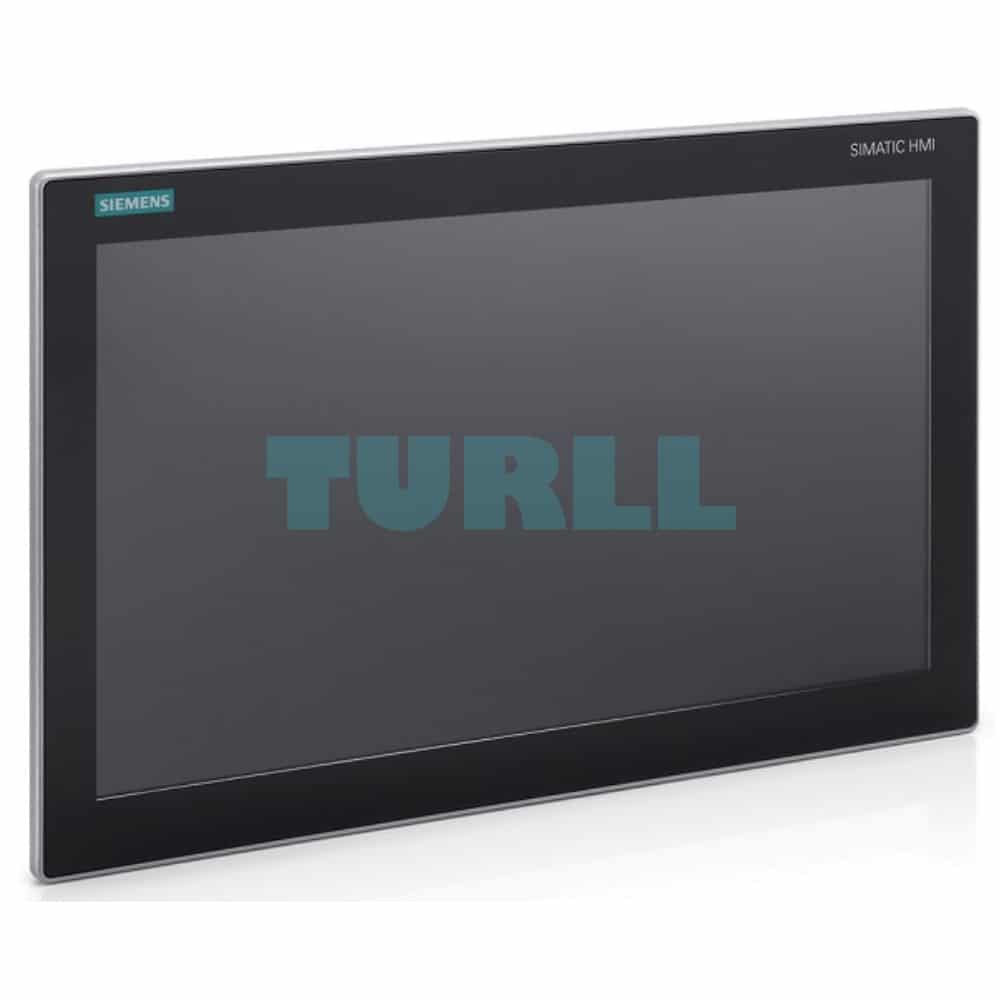

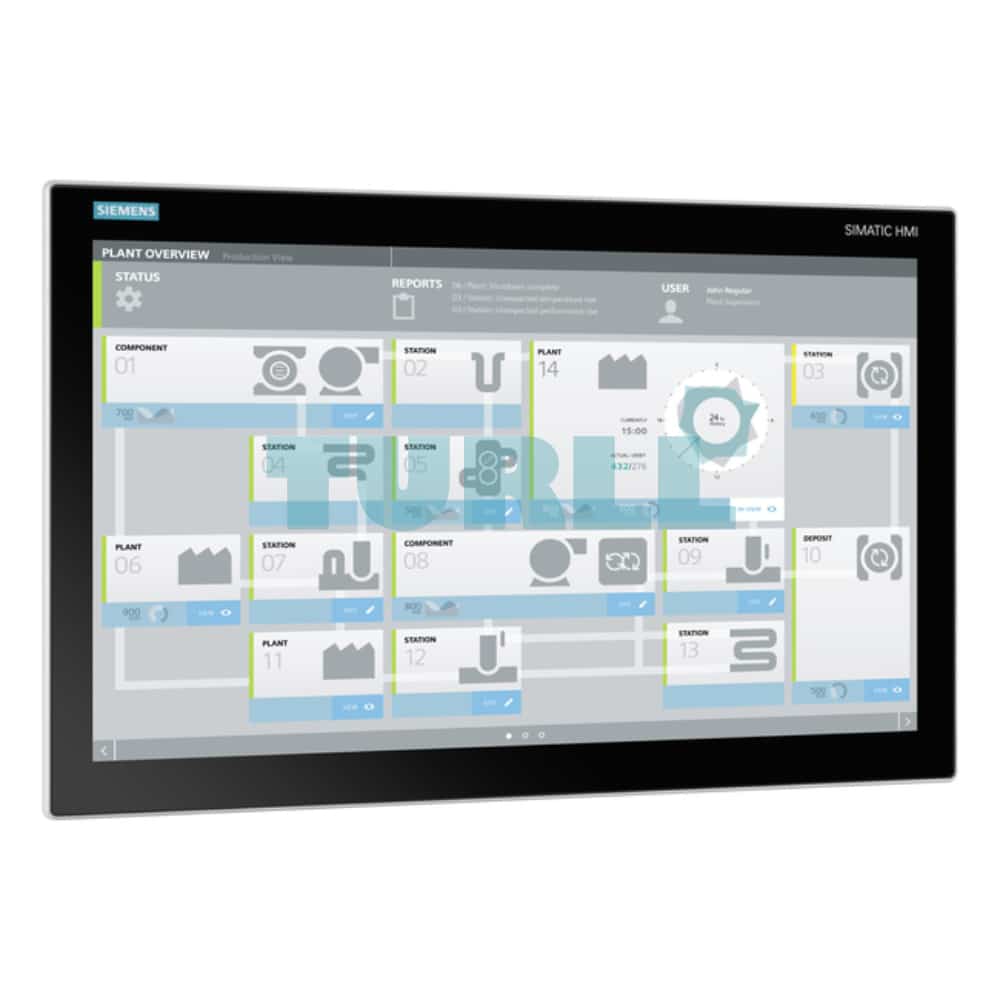

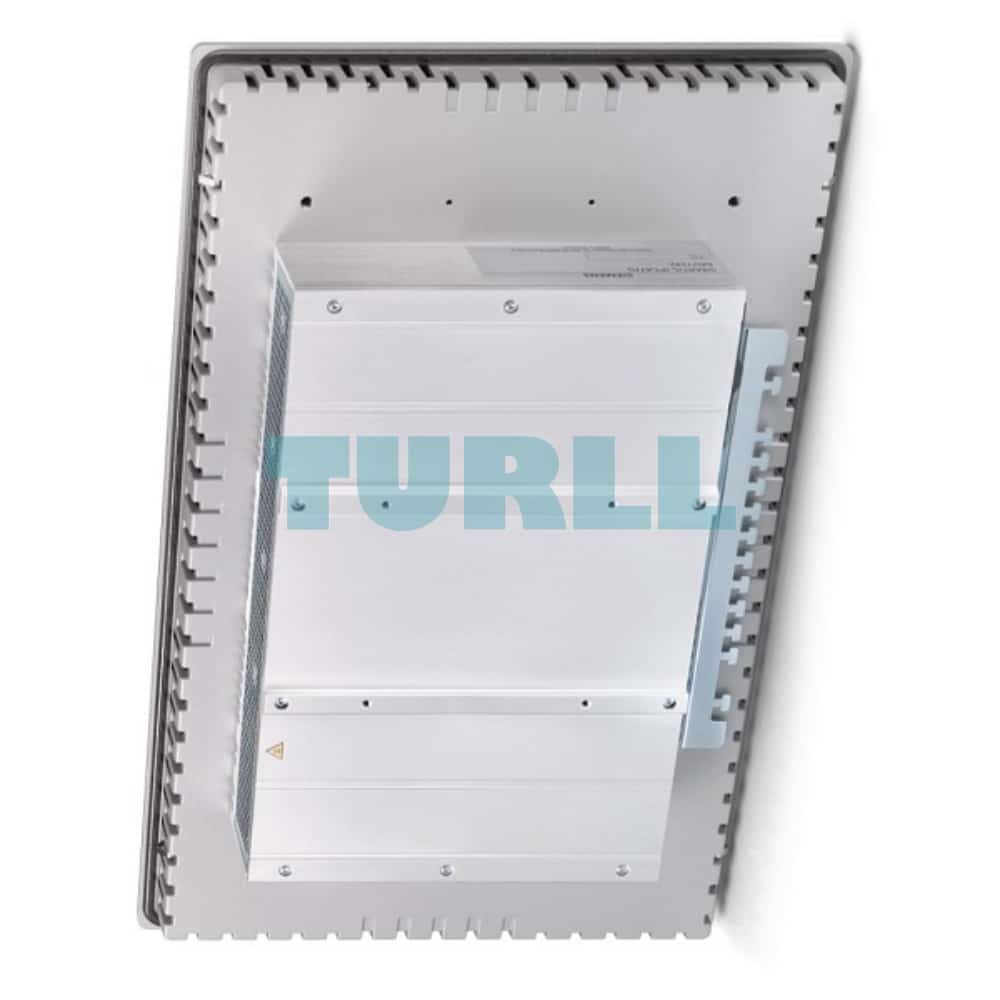

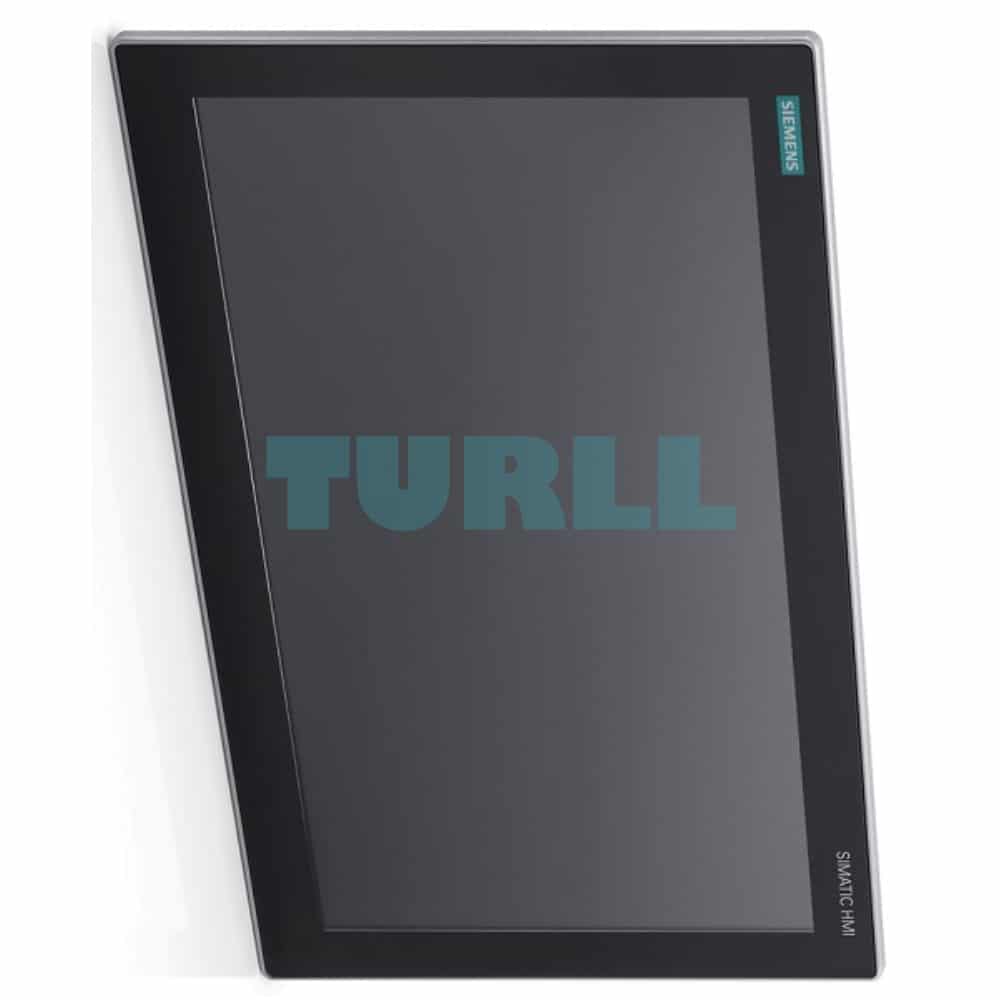

6AV7241-3XB05-0FA0 Siemens SIMATIC IPC 477E 19″ Multi-touch Original Brand New

Model / SKU6AV7241-3XB05-0FA0

6AV7241-3XB05-0FA0

Siemens SIMATIC IPC 477E 19″ multi-touch (1366 x 768); neutral front; 4 USB (back), Ethernet (10/100/1000); Core i3-6102E; 3x Gigabit Ethernet (IE/PN); 8 GB; without RS232/RS485; without PCIe; Windows 10 Enterprise 2019 LTSC (64-bit), MUI (en,de,fr,it,es) for Celeron, I3 and I5; without exchangeable mass storage; 240 GB solid-state drive SATA; without SIMATIC software; 24 V DC industrial power supply

$6,633.07
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

6AV7241-3XB05-0FA0

Siemens SIMATIC IPC 477E 19" multi-touch (1366 x 768); neutral front; 4 USB (back), Ethernet (10/100/1000); Core i3-6102E; 3x Gigabit Ethernet (IE/PN); 8 GB; without RS232/RS485; without PCIe; Windows 10 Enterprise 2019 LTSC (64-bit), MUI (en,de,fr,it,es) for Celeron, I3 and I5; without exchangeable mass storage; 240 GB solid-state drive SATA; without SIMATIC software; 24 V DC industrial power supply



Overview

The SIMATIC IPC477E is a high-performance compact unit comprising an operating unit (SIMATIC Flat Panel) with an integrated computing unit. SIMATIC IPC477E is rugged and reliable, provides the openness of a PC, and is designed for use on the machine. The operating unit is available as a 15", 19", 22" or 24" multi-touch display.

The licenses for the operating software SINUMERIK Operate and the PCU base software must be ordered separately.

Benefits

  • Highly suitable for use in industrial applications due to robust and compact construction, withstanding intense vibration and shock loads
  • Maximum investment security for long-term machine concepts due to guaranteed availability of spare parts for all components
  • High system availability minimizes downtimes through efficient self-diagnostics and no maintenance requirements for components such as fans and hard disks
  • Outstanding industrial functionality due to integrated PROFINET interface

Design

The SIMATIC IPC477E is connected to the SINUMERIK NCU via Ethernet.

Panel PC variants for SINUMERIK
  • SIMATIC IPC477E with Microsoft Windows 10 Enterprise LTSB 2016, 64 bit
    • 15" multi-touch device (capacitive glass touch), HD ready
      Intel Celeron G3902E 2 MB cache/1.60 GHz/4 GB
      Internal solid-state drive 240 GB
    • 19" multi-touch device (capacitive glass touch), HD ready
      Intel Core i3-6102E 3 MB cache/1.90 GHz/8 GB
      Internal solid-state drive 240 GB
    • 22" multi-touch device (capacitive glass touch), full HD
      Intel Core i3-6102E 3 MB cache/1.90 GHz/4 GB
      Internal 240 GB solid-state drive
    • 24" multi-touch device (capacitive glass touch), full HD
      Intel Core i5-6442EQ 6 MB cache/up to 2.70 GHz/8 GB
      Internal 240 GB solid-state drive

Interfaces:

  • 3 × Ethernet 10/100/1000 Mbps (RJ45 socket)
  • 4 × USB 3.0
  • 1 × DisplayPort
  • 1 slot for external CFast card

Integration

SIMATIC IPCs can be used for:

  • SINUMERIK 840D sl: NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PN
  • SIMATIC Panel for SINUMERIK Microsoft Windows 10



Visit 6AV7241-3XB05-0FA0

For more our products visit turll.com

Specifications

SKU / Model6AV7241-3XB05-0FA0
Weight6.6 kg
Dimensions1 × 1 × 1 mm
