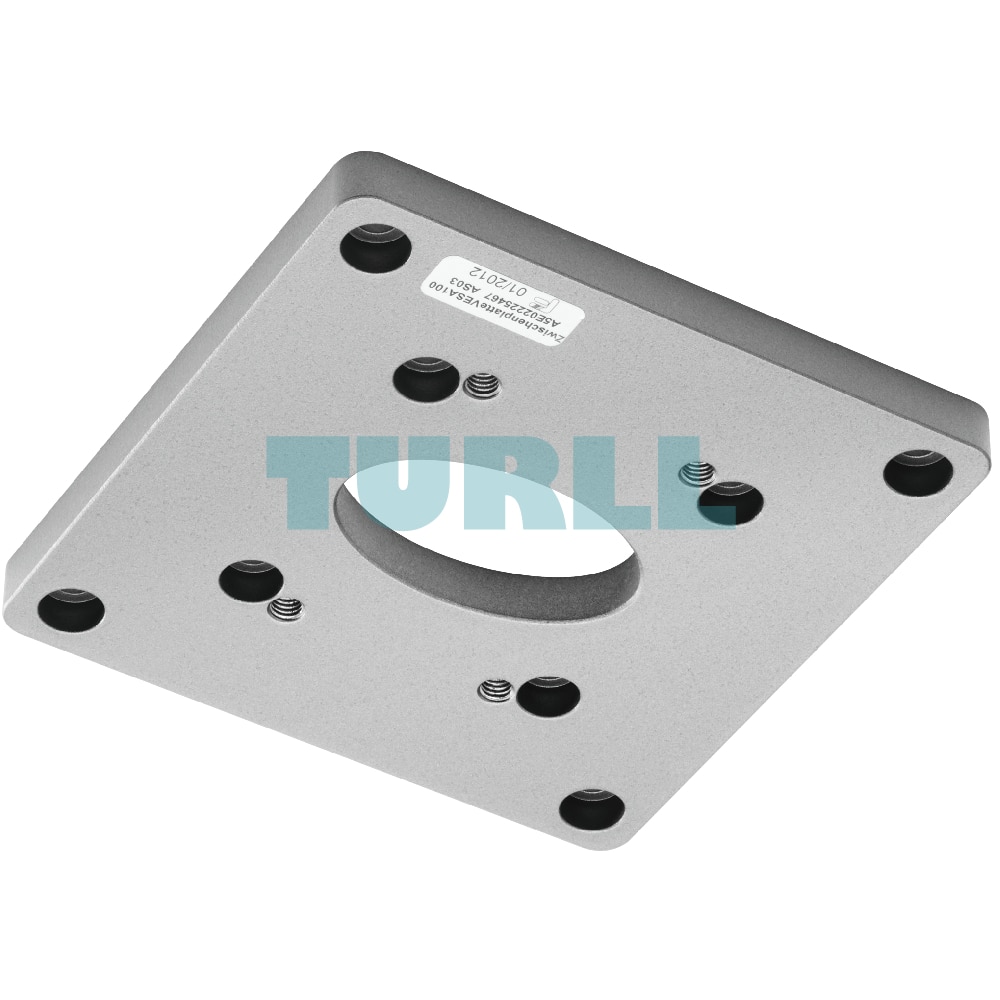

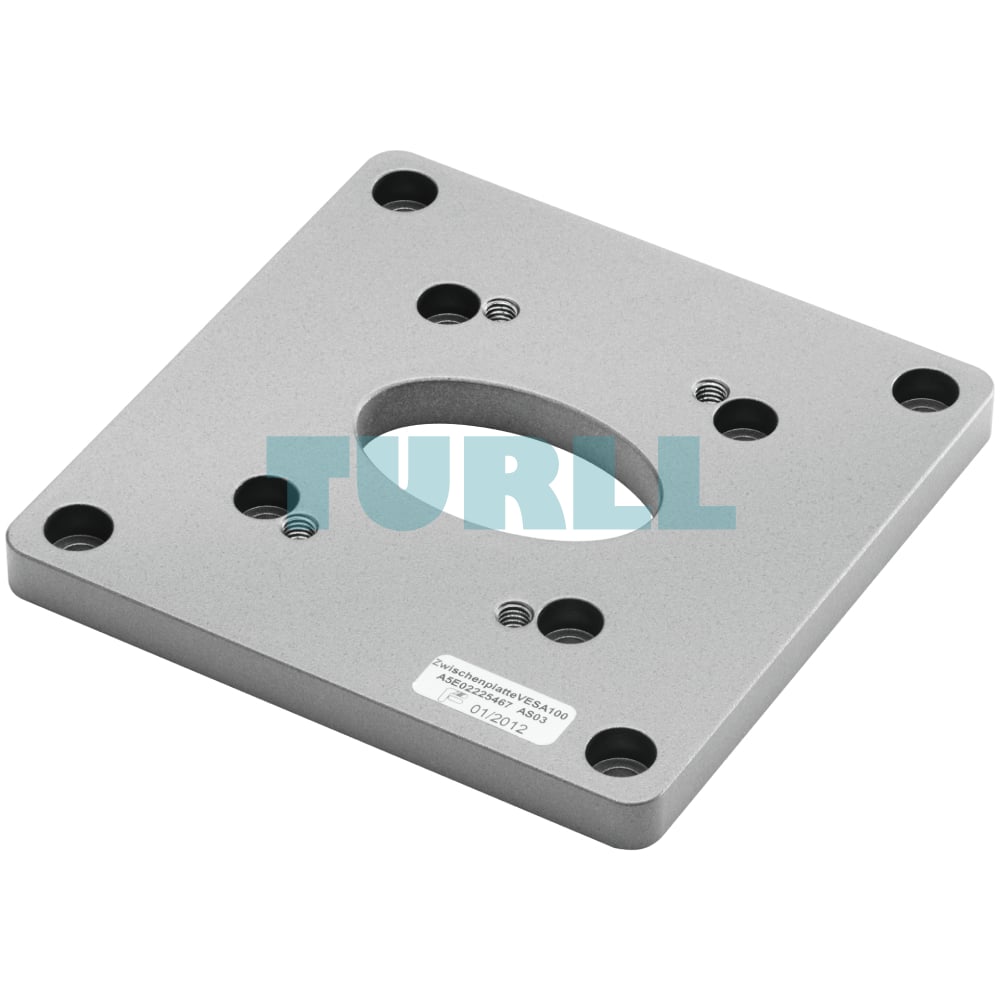

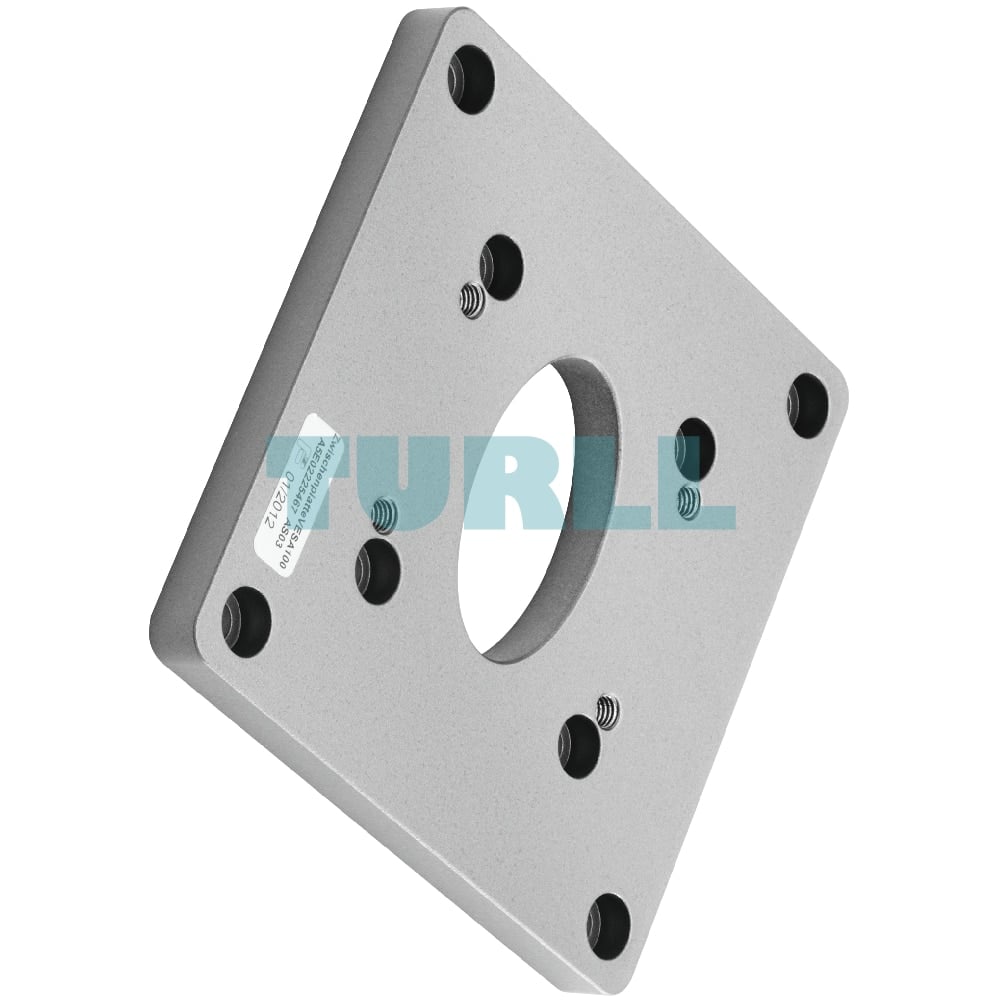

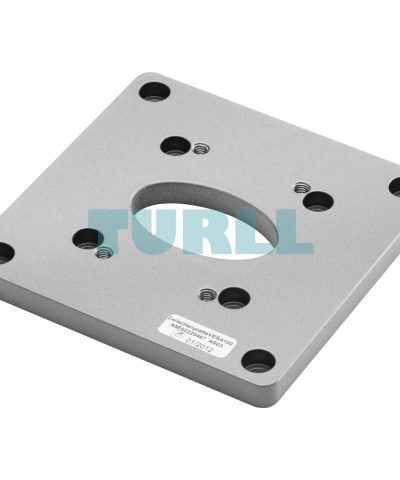

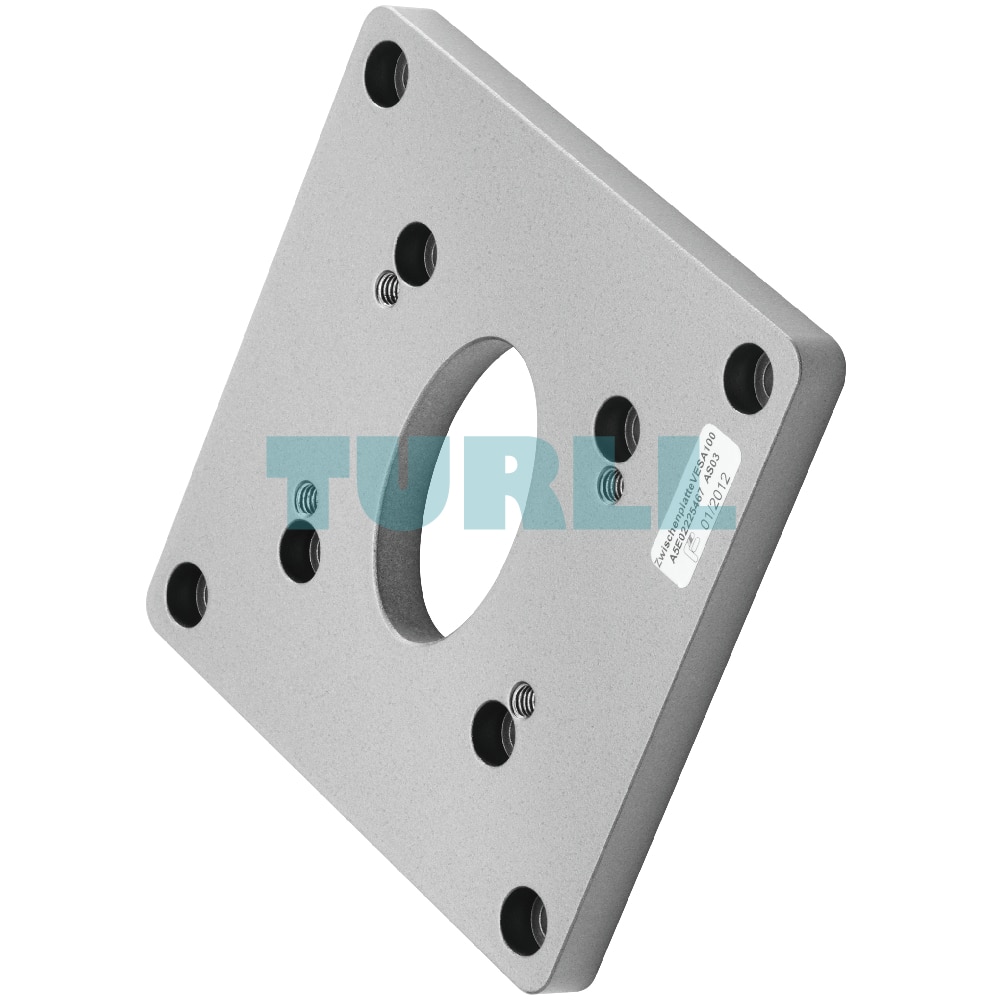

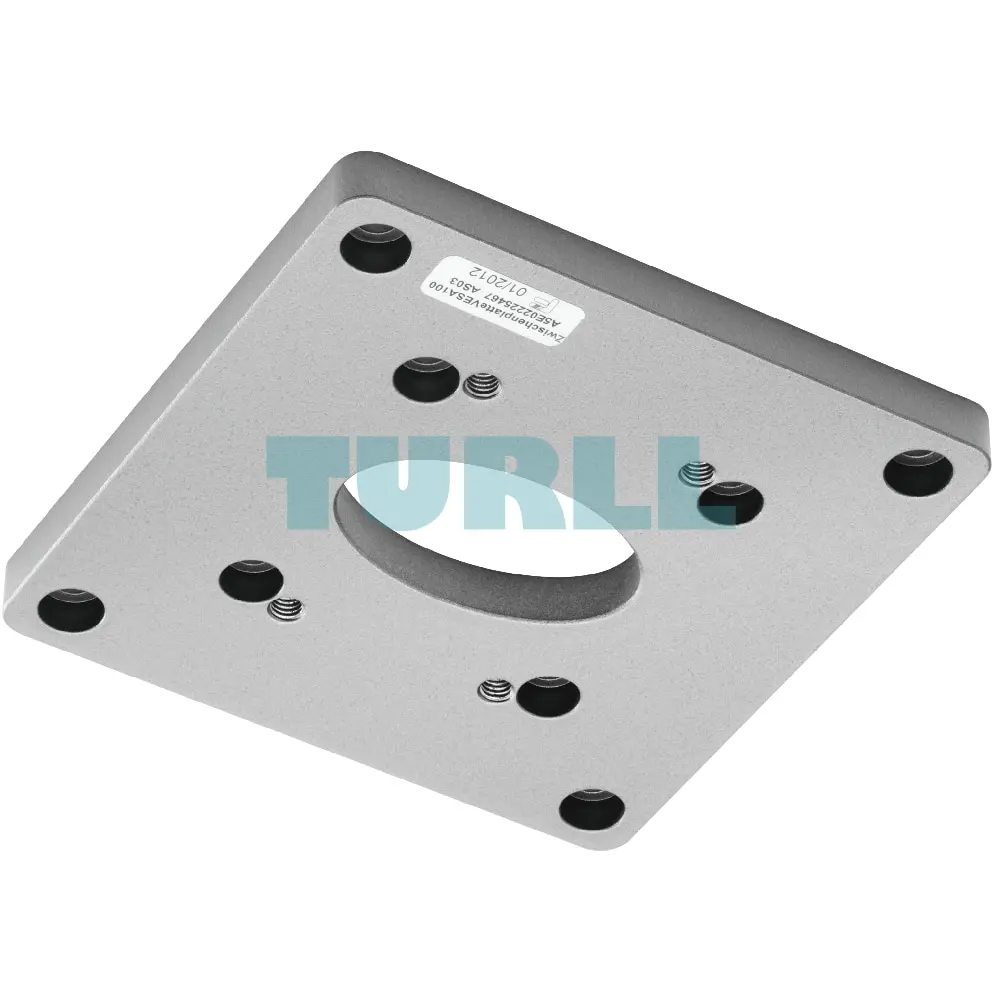

6AV7674-0KD00-0AA0 Siemens Adapter Kit VESA 100 for PRO Devices Original Brand New

Fixing elements

Adapter sets, basic adapter, round tube adapter and round tube cap

The fixing elements are required for connecting the SIMATIC HMI PRO device with the support arm head of the respective support arm system.

Since the support arm head is connected directly to the device, there is complete flexibility in the choice of support arm components.

Adapter sets are available for the VESA 75 and VESA 100 systems.

Further adapter sets can be obtained directly from the respective support arm manufacturers:

• Bernstein
• Rittal
• Rose
• Haseke and
• Rolec

For the 4:3 and 16:9 variants, basic adapters are available according to design:

• The basic adapter is included in the scope of delivery of the device for 4:3 systems (dark gray)
• The basic adapter is included in the scope of delivery of the device for 16:9 systems (silver) (the basic adapter is included in the scope of delivery as a matter of principle. It is excluded only from the version “prepared for support arm and extension components”, because connection is made via a round tube.)

For the version “prepared for support arm and extension components” of the 16:9 PRO devices, installation can alternatively take place with the Siemens round tube adapter or with a standard 48 mm diameter round tube. The round tube adapter enables the transition from a round tube connection to the familiar mechanical interface of the basic adapter. This means you can combine different versions of the PRO devices with the same support arm or pedestal system.
