Siemens SIMATIC PN/CAN LINK Gateway from Profinet to CAN or CANopen networks CAN 2.0A/B CANopen Manager to CiA301/302 CANopen Slave to CiA301/302 IP20
[ez-toc]

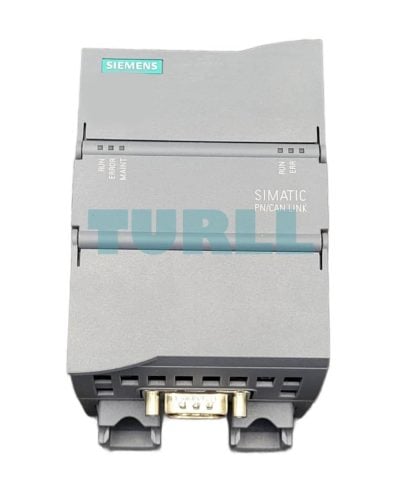

6BK1620-0AA00-0AA0
Siemens SIMATIC PN/CAN LINK Gateway from Profinet to CAN or CANopen networks CAN 2.0A/B CANopen Manager to CiA301/302 CANopen Slave to CiA301/302 IP20
Overview
- For data exchange between PROFINET and CAN Bus 2.0A/B or CANopen Manager or Slave (according to CiA 301 & 302)
- CANopen features:
- Node / lifeguarding
- Heartbeat
- SYNC (producer / consumer)
- Integrated in TIA via HSP, TIA Portal V14 or higher
- PROFINET switch and 9-pin D-sub plug integrated for CAN
- Up to 126 CAN nodes
- 512 receiver/transmitter PDOs
- Electrical isolation between the two networks
- Diagnostic interrupts
- Supported controllers: S7-1200, S7-1500, ET 200SP, Open Controller
- Optionally with function block SIMATIC ECC CHAdeMO:
Realization of digital communication as basis for conductible DC charging of electric vehicles in line with the CHAdeMO standard
Application
The SIMATIC PN/CAN LINK connects a PROFINET network to the CAN or CANopen fieldbus, and enables the data exchange.
This gives the user the option of communicating with up to 126 CAN nodes.
The configuration is made in the TIA Portal V14 or higher. A corresponding HSP is available to the user.
In CANopen mode, external device description files (.eds files) can be imported and exported.
The SIMATIC PN/CAN LINK has an internal PROFINET switch and integrates itself seamlessly into a PROFINET network.
Design

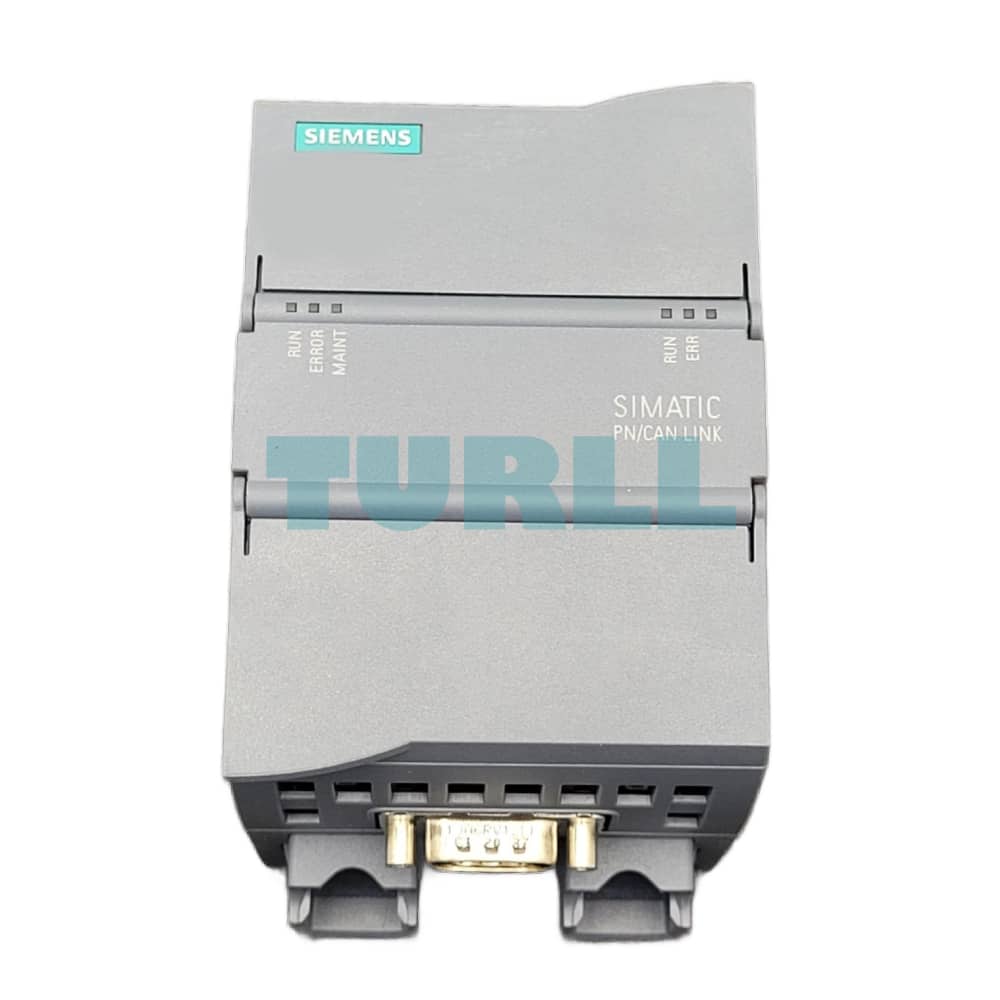

- S7-1200-type enclosure, width 70 mm

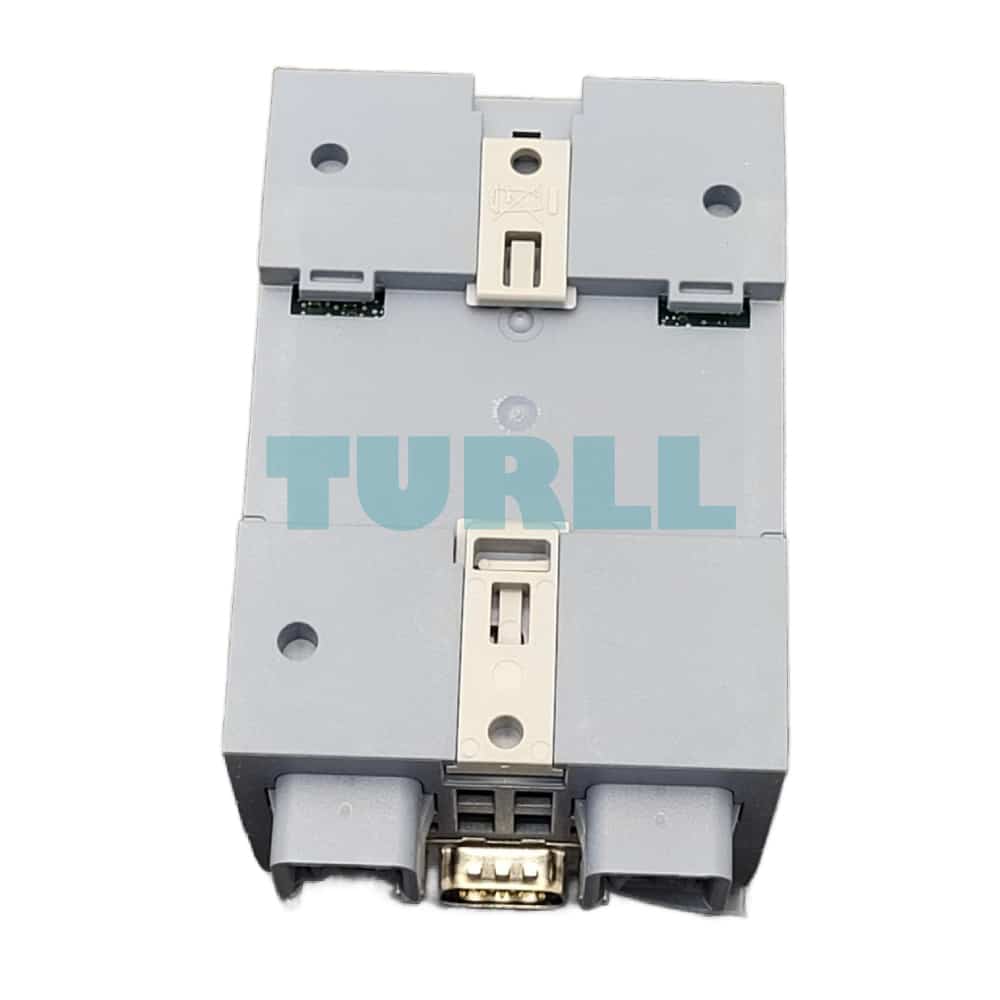

- Can be mounted on a standard mounting rail or a control panel

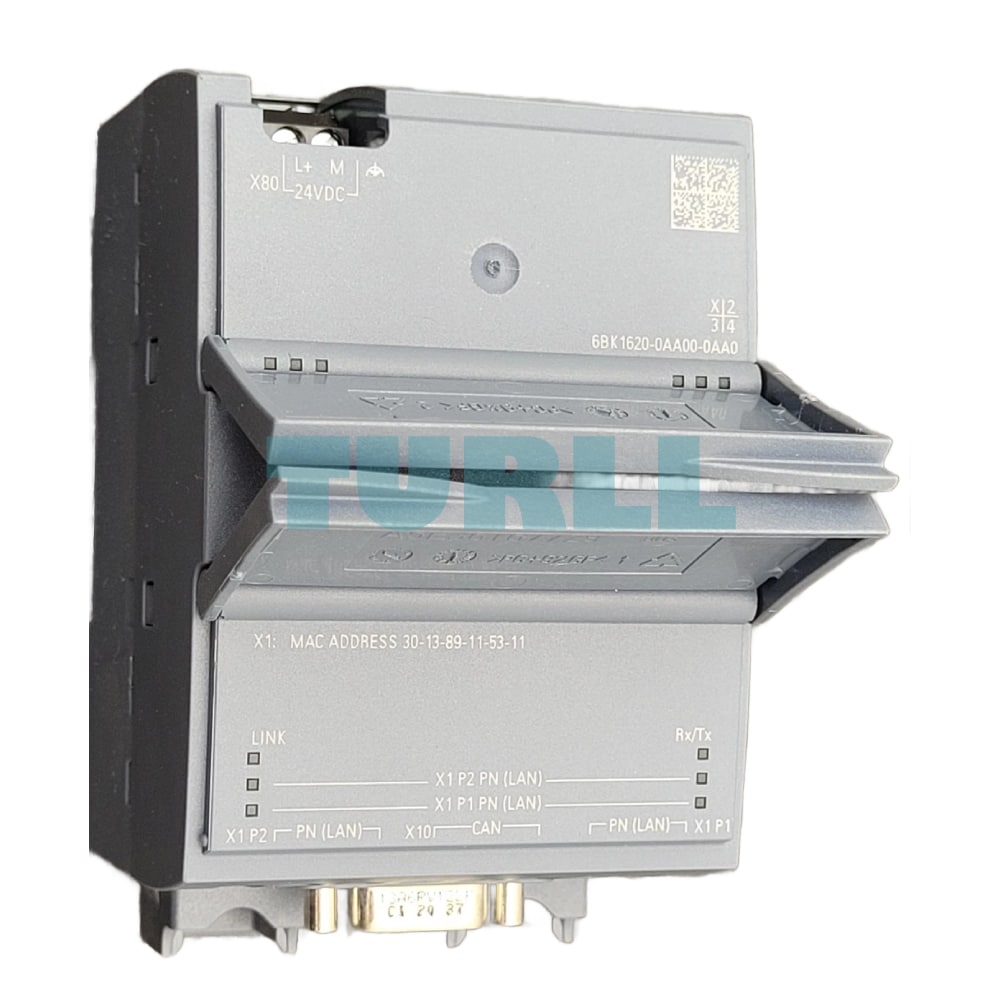

- Connection to PROFINET PN IO networks exclusively via PROFINET by RJ45 connectors

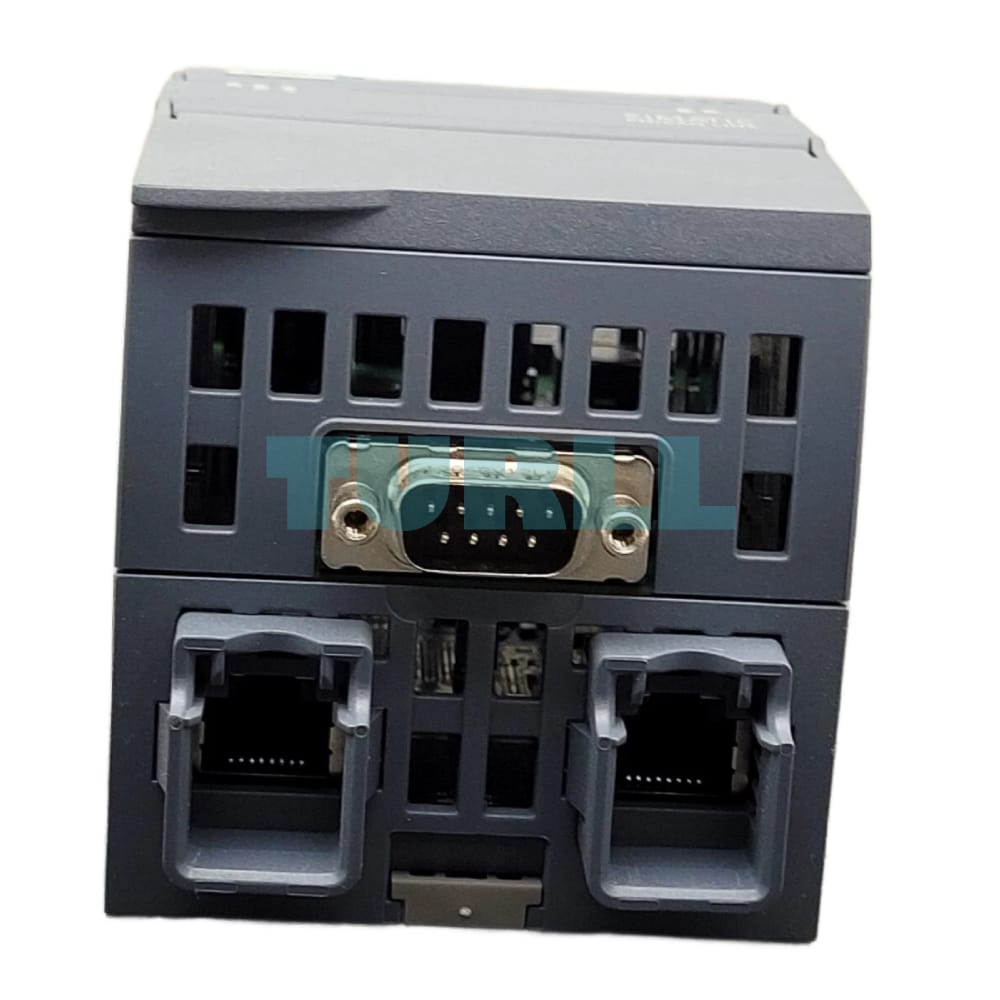

- Connection to CAN Bus via a D-sub connector (9-pin, socket)
- 3-pin connection of the external 24 V DC supply voltage
- Operation without fans or batteries
- LED for visualization of the operating states for CAN, PROFINET and PROFINET ports
- Maximum permissible cable length of the CAN network up to 1000 m (depending on data transmission rate, cable cross-section, number of participants)
Function
- PROFINET IO device
- Supported controllers: S7-1200, S7-1500, ET 200SP, Open Controller
- Supports 512 receiver and 512 transmitter PDOs
- Baud rate from 50 kbaud to 1 000 kbaud on the CAN side
- Three different operating modes:
- CANtransparent
- CANopen Manager
- CANopen Slave
- Data transmission options:
- After value change / acyclic
- Cyclic (after parameter assignment at first to 240th “SYNC”)
- On request out of the application (RTR)
- Cyclic data exchange between the PN/CAN LINK and the connected SIMATIC S7-CPU via update of the IO image
- Acyclic communication via the “Read/write data record” services
- Easy engineering and extensive diagnostics options due to optimum TIA integration
- Optionally with function block SIMATIC ECC CHAdeMO:
Realization of digital communication between a DC charging station and an electric vehicle as basis for conductible DC charging of electric vehicles in line with the standard CHAdeMO 1.x…2.0 charging mode 4
Visit 6BK1620-0AA00-0AA0
For more our products visit turll.com
| Weight | 0.225 kg |
|---|---|
| Dimensions | 70 × 75 × 112 mm |
