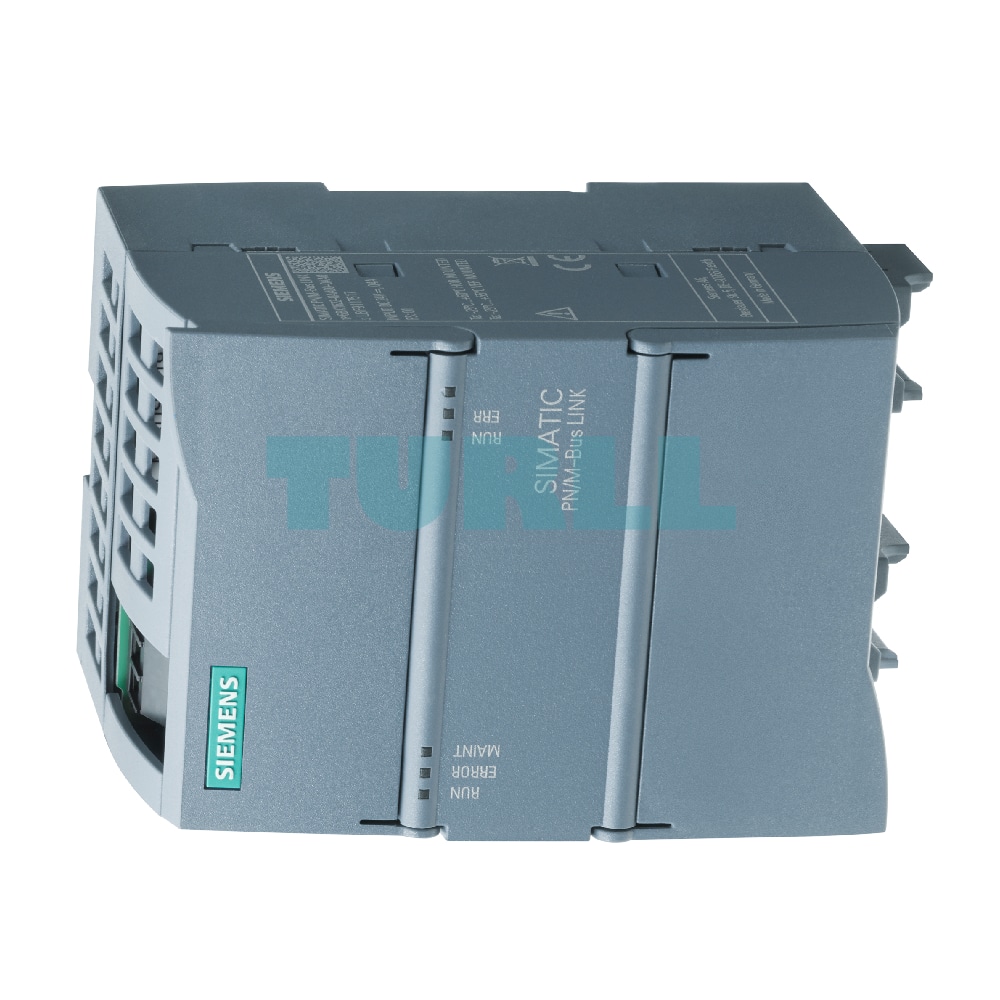

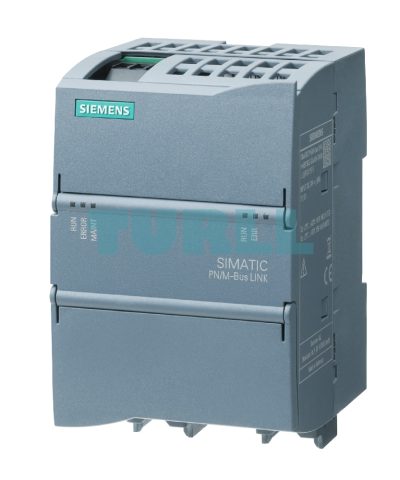

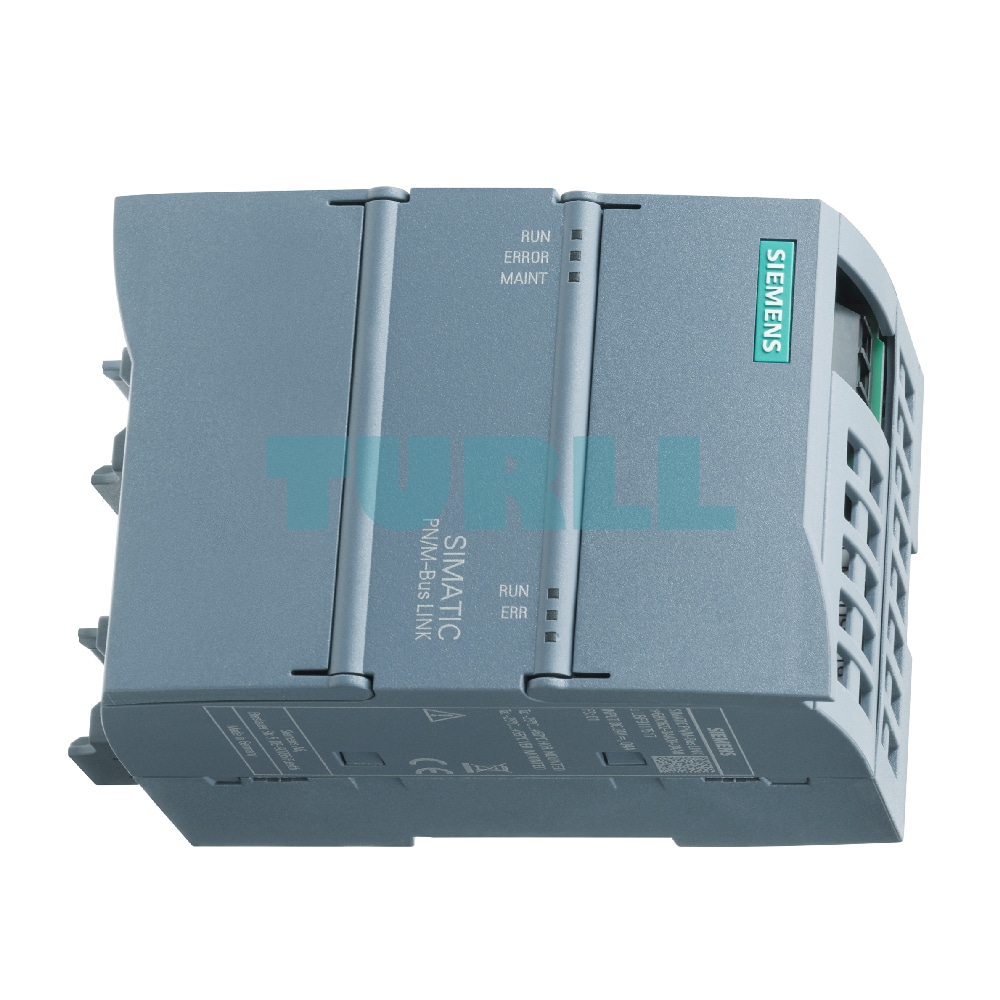

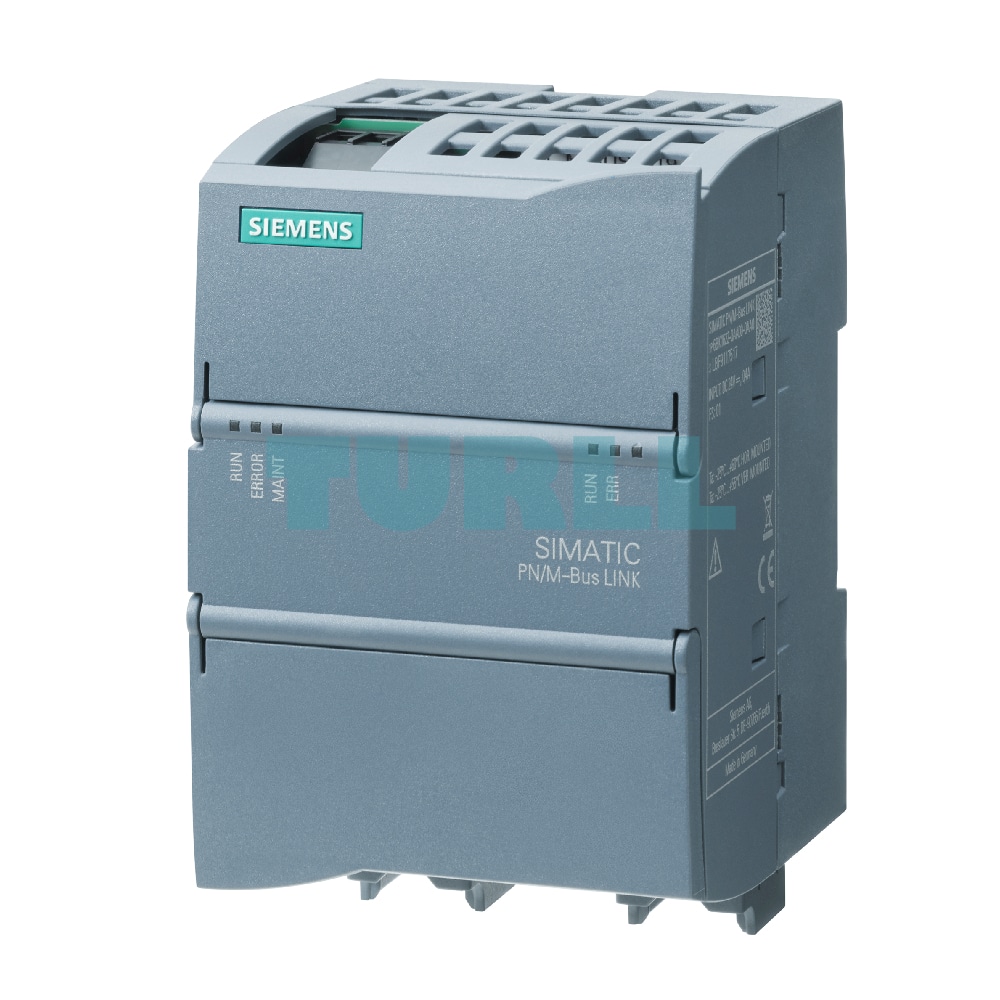

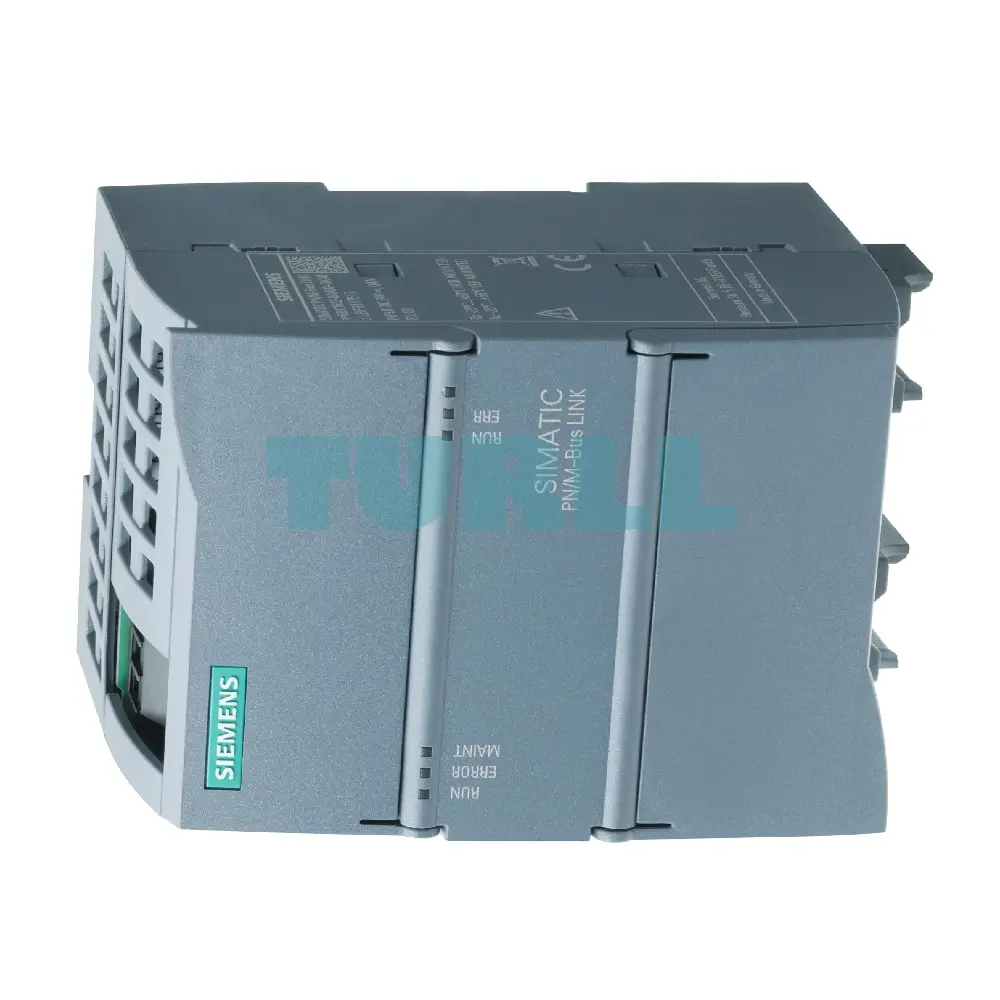

6BK1622-0AA00-0AA0 Siemens SIMATIC PN/M-Bus LINK Original Brand New

• For data exchange between PROFINET and M-Bus networks
• M-Bus functions:
  • M-Bus master
  • Primary address
  • Secondary address
  • Read-only access to M-Bus slaves
  • Short-circuit detection
• Integrated into Totally Integrated Automation via gsdml file in TIA Portal. No separate software required
• Integrated PROFINET switch with 3-pin screw terminal for M-Bus
• Up to 40 slaves (loads/units)
• Diagnostic interrupts
• Controllers supported: S7-1200, S7-1500, ET 200SP, Open Controller

The SIMATIC PN/M-Bus LINK integrates seamlessly into PROFINET networks and facilitates data exchange between the network and the M-Bus fieldbus. Communication with up to 40 slaves is possible.

• S7-1200-type enclosure, width 70 mm
• IP20 degree of protection according to EN 60529
• Can be mounted on a standard DIN rail or a control panel
• LEDs for visualizing the operating states for M-Bus, PROFINET and PROFINET ports
• Internal PROFINET switch
• Connection to PROFINET PN IO networks exclusively via PROFINET with RJ45 plugs.
• Connection to M-Bus fieldbus via 3-pin screw terminal (M+, M-, functional grounding)
• 3-pin connection to external 24 V DC supply voltage
• Operation without fans or batteries
• Maximum permissible cable length of the M-Bus network up to 1 000 m (depending on data transmission rate, cable cross-section, number of participants). Baud rates of 300 to 9 600 baud supported.

• PROFINET IO device
• Controllers supported: S7-1200, S7-1500, ET 200SP, Open Controller
• Easy engineering and extensive diagnostics options due to optimum TIA integration
• Update mechanisms via TIA Portal
• M-Bus functions:
  • M-Bus master
  • Primary address
  • Secondary address
  • Read-only access to M-Bus slaves
  • Short-circuit detection
