6DR5013-0NG01-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

6DR5013-0NG01-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

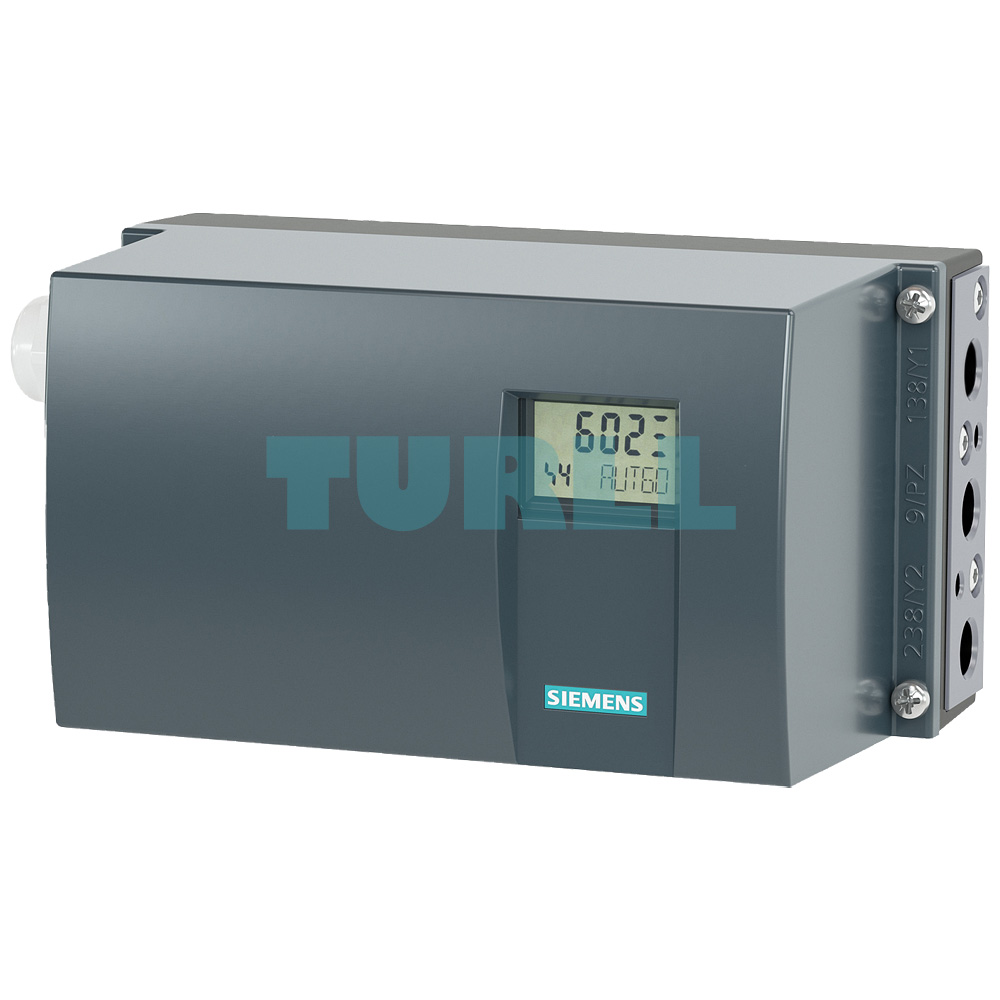

The SIEMENS 6DR5013-0NG01-0AA0 is a smart, electropneumatic positioner from the renowned SIPART PS2 series, offering exceptional precision and long-term reliability in valve control. This model supports 4...20 mA control signals and is designed for single-acting pneumatic linear and part-turn actuators. With its non-contacting (wear-free) position detection via NCS, this device eliminates mechanical wear and ensures enhanced accuracy over time.

Constructed with a robust aluminum enclosure, it is engineered for use in industrial environments. The unit is suitable for Ex/nEx applications and comes without explosion protection. It features an analog output module (AOM) for analog position feedback (4...20 mA), and optional accessories such as device plug M12 and isolating power supply can be ordered separately. The unit operates with fail-safe functionality—depressurizing the actuator in the event of auxiliary power failure.

Overview

SIPART PS2 positioners precisely control the position of valves based on specified setpoints. Advanced online and offline diagnostic capabilities are built-in and can be enhanced further with optional pressure sensors. These diagnostic tools ensure proactive maintenance and efficient operation.

Design

The SIPART PS2 positioner consists of:

• Base plate and lid (with or without inspection window)
• Electronics with 4–20 mA, HART, PROFIBUS PA, or FOUNDATION Fieldbus connectivity
• Position detection via potentiometer or non-contacting sensor (NCS)
• Pneumatic block with side-mounted air and pressure ports

Optional components include gauge blocks, boosters, VDI3847 interfaces, and solenoid valves. Installation is supported via compatible mounting kits for linear or part-turn actuators.

Optional Expansion

SIPART PS2 supports modular upgrades such as:

• Analog Output Module (AOM): Analog 4–20 mA position feedback
• Digital I/O Module (DIO): 3 digital outputs, 1 digital input with customizable alarms and limits
• Inductive Limit Switches (ILS): Independent NAMUR-compliant limit detection
• Mechanical Limit Switches (MLS): Mechanical limit monitoring with built-in fault detection

All modules feature electrical isolation and self-signaling fault indicators. Easy retrofit options are available for all components.

Remote Mounting Capability

The SIPART PS2 can be remotely mounted from the actuator, ideal for high-vibration or high-radiation zones. Stroke or angle detection remains precise while the positioner remains protected in a separate enclosure, connected via cables and pneumatic tubing.

Product Code: 6DR5013-0NG01-0AA0
