6DR7101-1NN11-1AA0 SIEMENS Exclusive SIPART PS100 Electropneumatic Positioner Original Brand New

6DR7101-1NN11-1AA0 SIEMENS Exclusive SIPART PS100 Electropneumatic Positioner Original Brand New

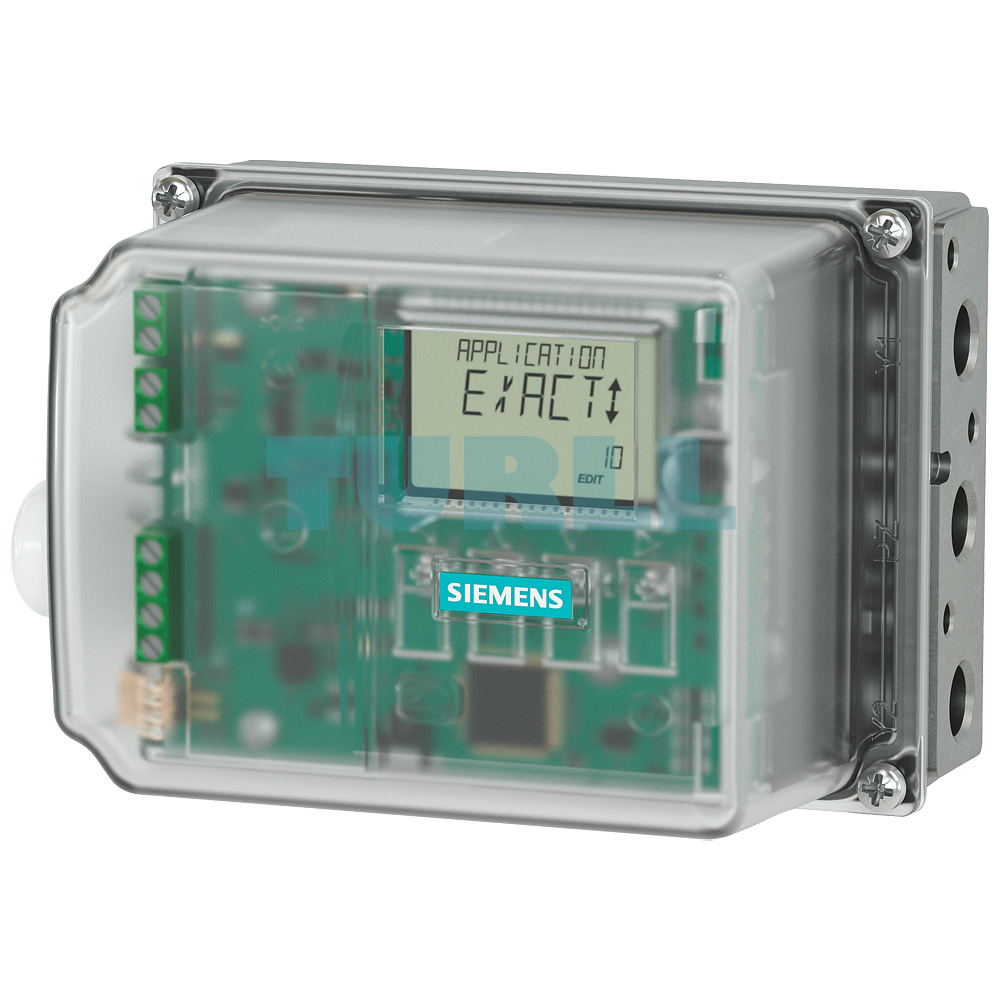

The 6DR7101-1NN11-1AA0 SIEMENS SIPART PS100 electropneumatic positioner offers a reliable and intelligent solution for automating control valves in various process environments. It features a robust housing with a polycarbonate lid and viewing window, making it suitable for both single-acting and double-acting linear or part-turn actuators. This original unit includes analog output functionality, enabling smooth 4 to 20 mA communication without additional configuration.

Commissioning is simplified—requiring no prior knowledge of positioner systems—thanks to a one-button setup process. Electrical and pneumatic connections are clearly separated on opposite sides of the enclosure for practical installation. With integrated analog feedback, and optional digital inputs/outputs or HART communication, the SIPART PS100 adapts easily to plant requirements.

Overview

The SIPART PS100 electropneumatic positioner is engineered to control the position of valves or dampers actuated pneumatically. It ensures accurate adjustment based on the incoming setpoint signal. The unit integrates seamlessly into control loops without the need for complex configuration, providing a dependable interface between process systems and actuators.

Design

This unit consists of:

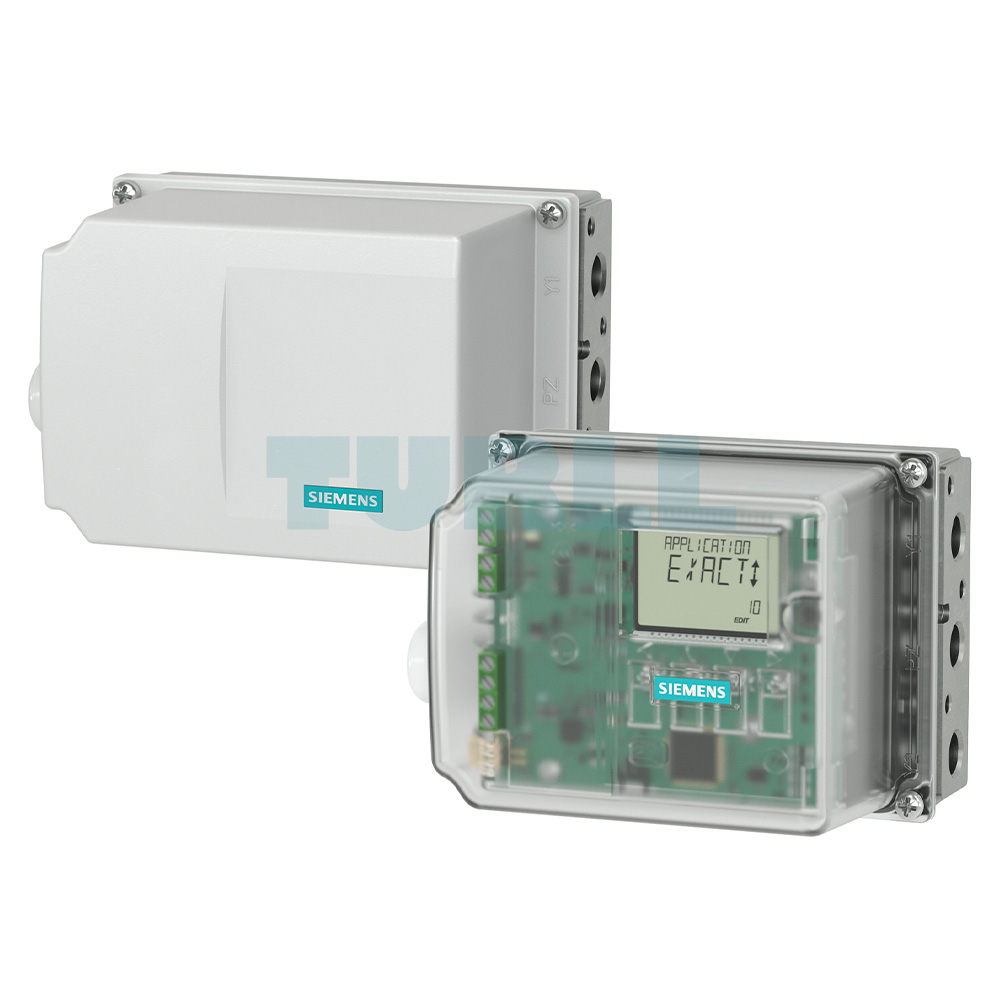

• Base enclosure with transparent polycarbonate lid
• Non-contact, wear-free position detection
• Integrated pneumatic block and electronics

Pneumatic and electrical connections are ergonomically positioned on opposite sides of the enclosure to streamline installation. The unit supports actuator mounting via a dedicated kit, connecting the spindle or shaft directly to the positioner shaft for accurate transmission.

Electronics variants include:

• Analog output (AO) 4–20 mA for feedback of valve position
• Optional digital I/O for limit signaling and alarm triggers
• Optional HART interface for diagnostics and parameterization

Product Code: 6DR7101-1NN11-1AA0
