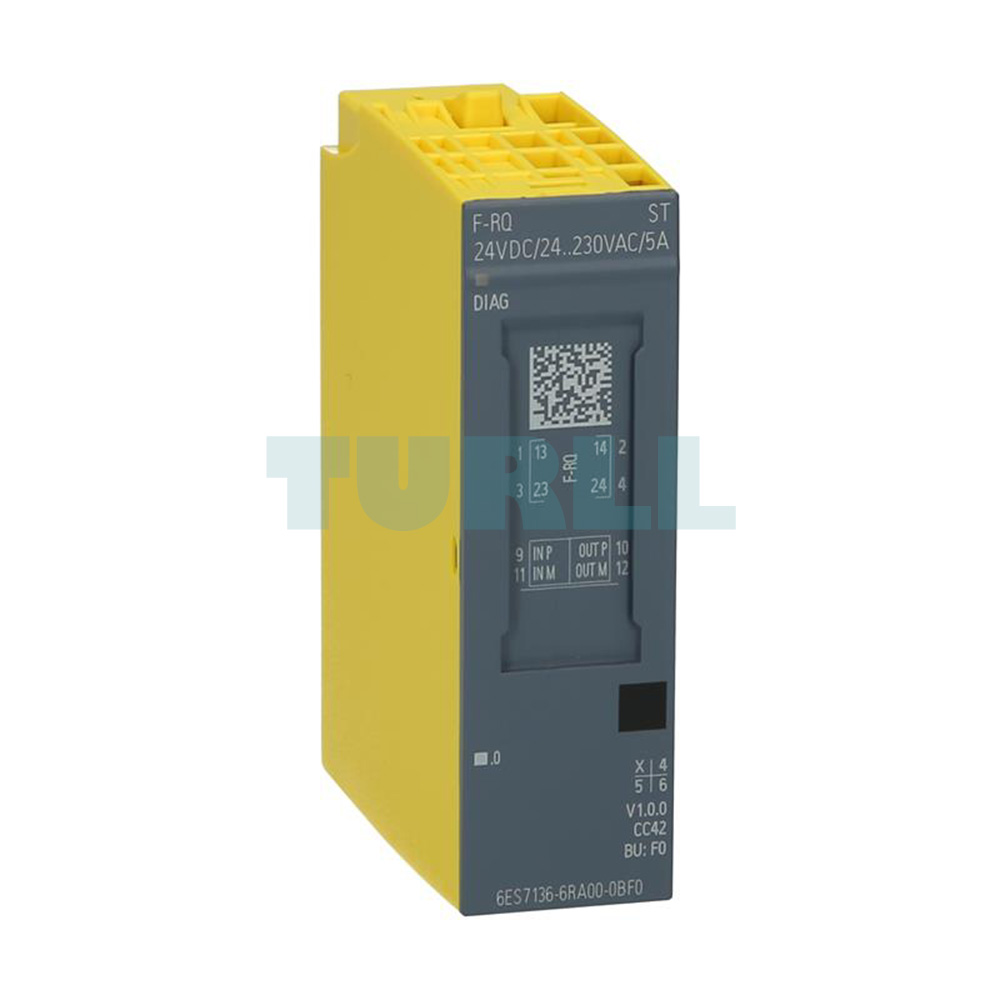

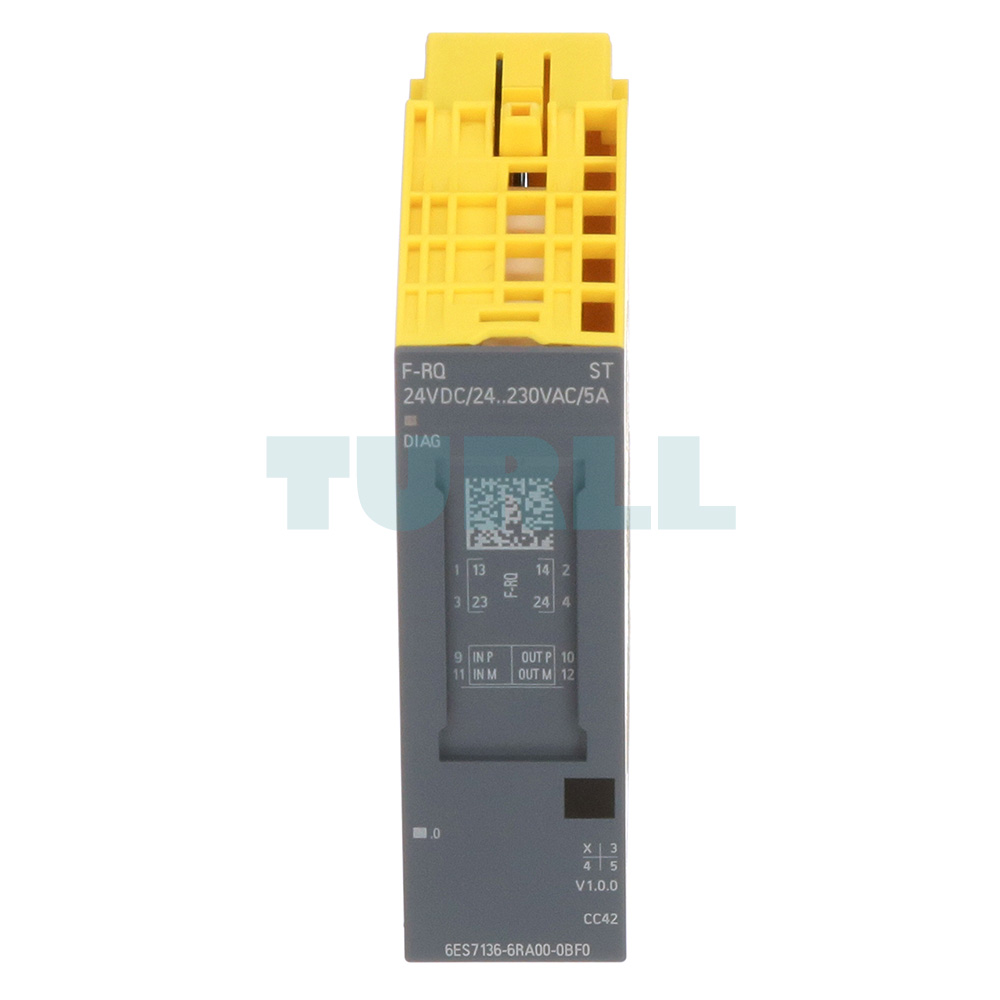

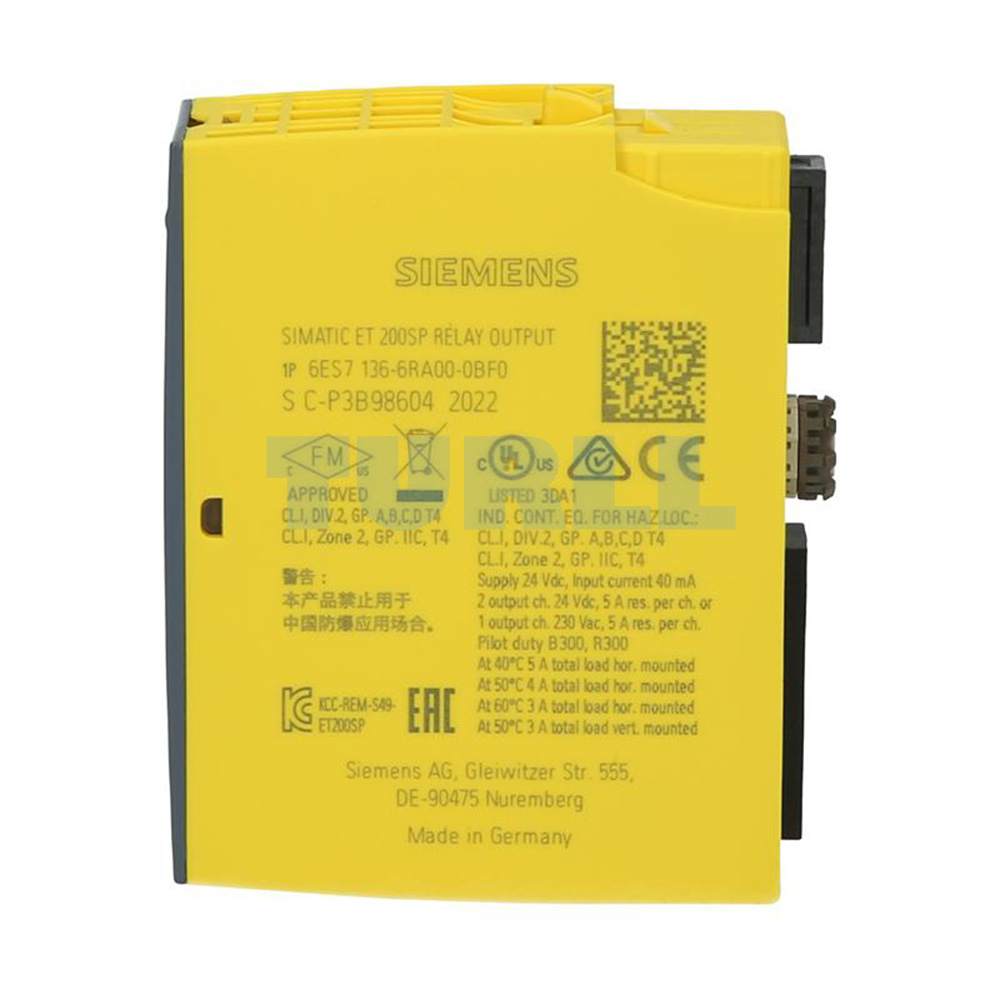

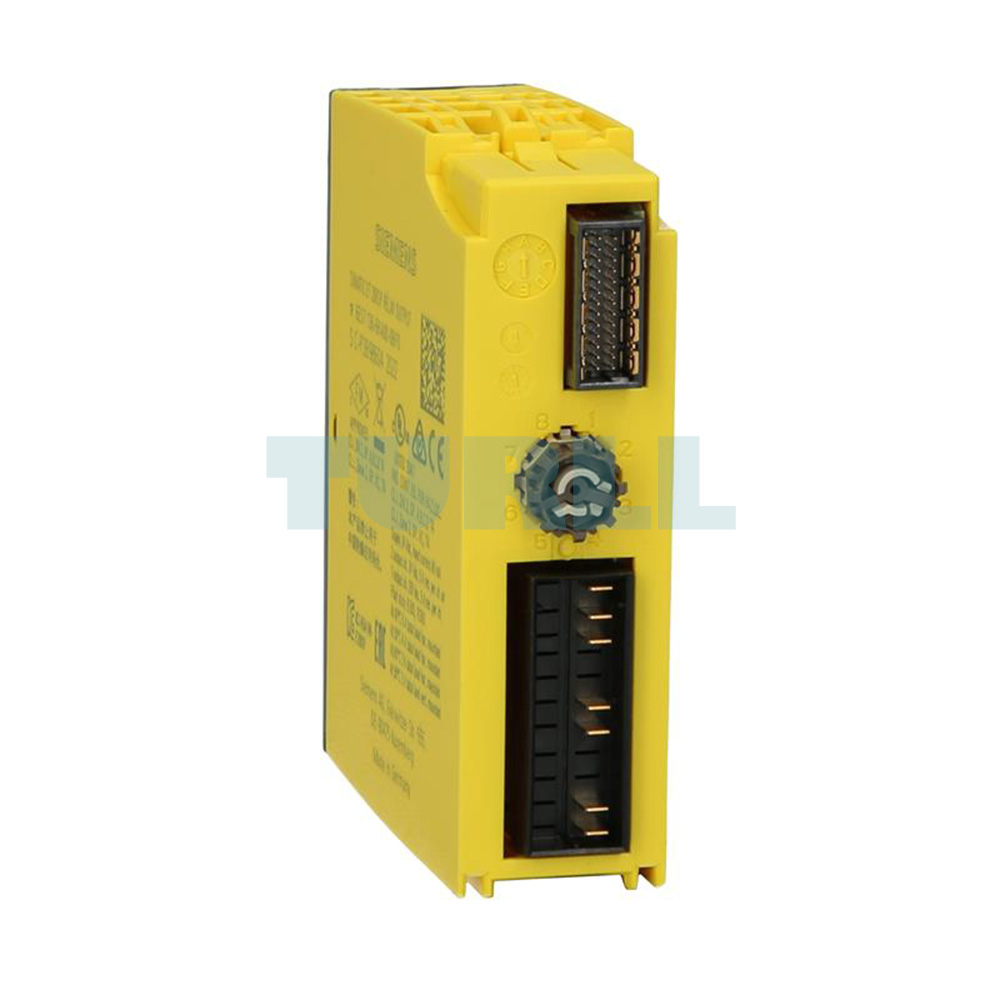

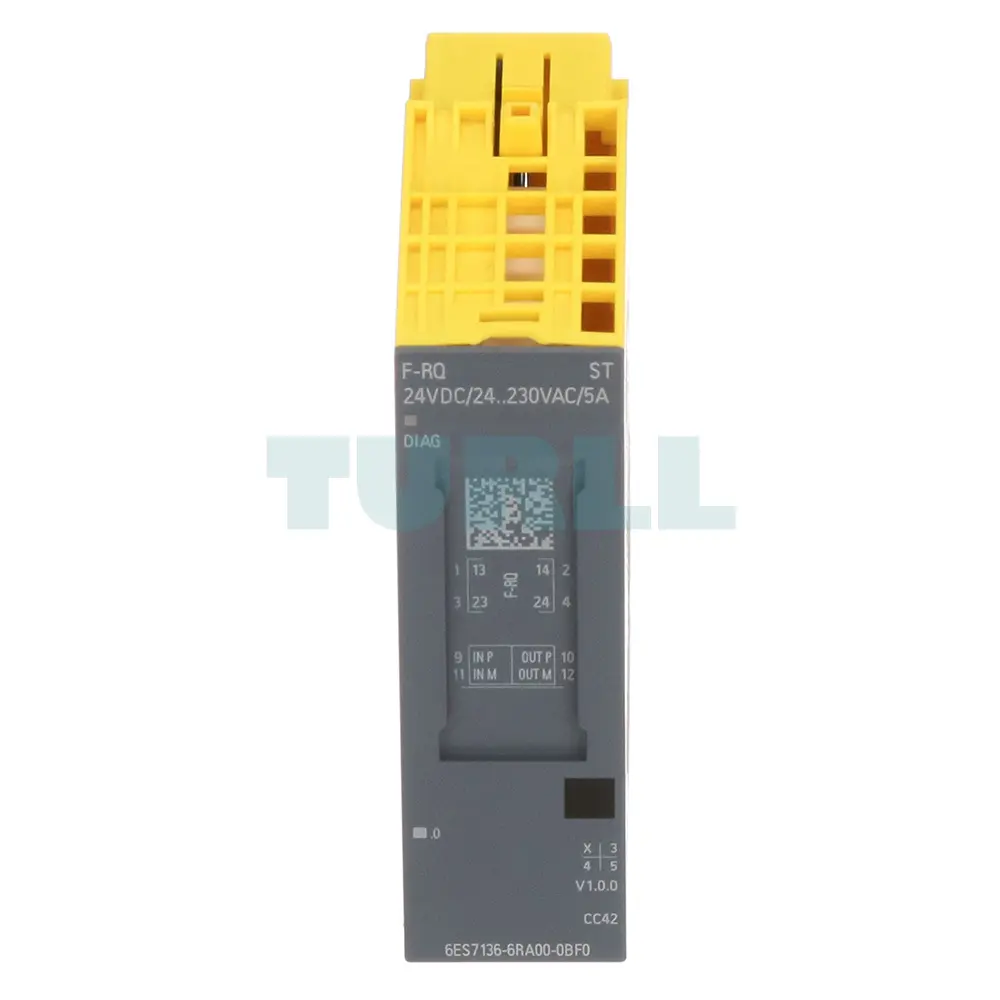

6ES7136-6RA00-0BF0 Siemens SIMATIC DP Electronics Module Original Brand New
$1,440.93
6ES7136-6RA00-0BF0 SiemensĀ
SIMATIC DP, Electronics module f. ET200SP, F-RQ 1x 24 V DC/24..230VAC/5A ST, 20 mm overall width, 1 relay output (2 NO) Summation output current 5 A, load voltage 24 V DC and 24.. 230 V AC, Can be used up to PL E (ISO 13849-1: 2008)/ SIL 3 (IEC 61508: 2010) if control takes place by (e.g. 6ES7136-6DB00-0CA0) F-DQ
6ES7136-6RA00-0BF0Ā
SIMATIC DP, Electronics module f. ET200SP, F-RQ 1x 24 V DC/24..230VAC/5A ST, 20 mm overall width, 1 relay output (2 NO) Summation output current 5 A, load voltage 24 V DC and 24.. 230 V AC, Can be used up to PL E (ISO 13849-1: 2008)/ SIL 3 (IEC 61508: 2010) if control takes place by (e.g. 6ES7136-6DB00-0CA0) F-DQ
Overview
The digital F electronic module relay 1 F-RQ DC 24VDC/24.230VAC/5 A has the following characteristics:
- 1 relay output (2 NO contacts)
- Total output current 5 A
- Rated load voltage 24 V DC and 24Ā …Ā 230 V AC
- The control circuit of the two safety relays must be routed from the outside to the respective terminals
The attainable safety integrity level is SILĀ 3 (IECĀ 61508) when the control of the F-RQ module is implemented via a fail-safe output (e.g. ET 200SP 4F-DQ 24 V DC/2 A PROFIsafe).
Application
The 1 F-RQ module is very versatile and can be used in multiple ways, e.g.
- for switching of external voltages,
- when floating signals are needed,
- for controller releases,
- when higher switching capacities (> 2 A) or other voltage levels are needed.
Design

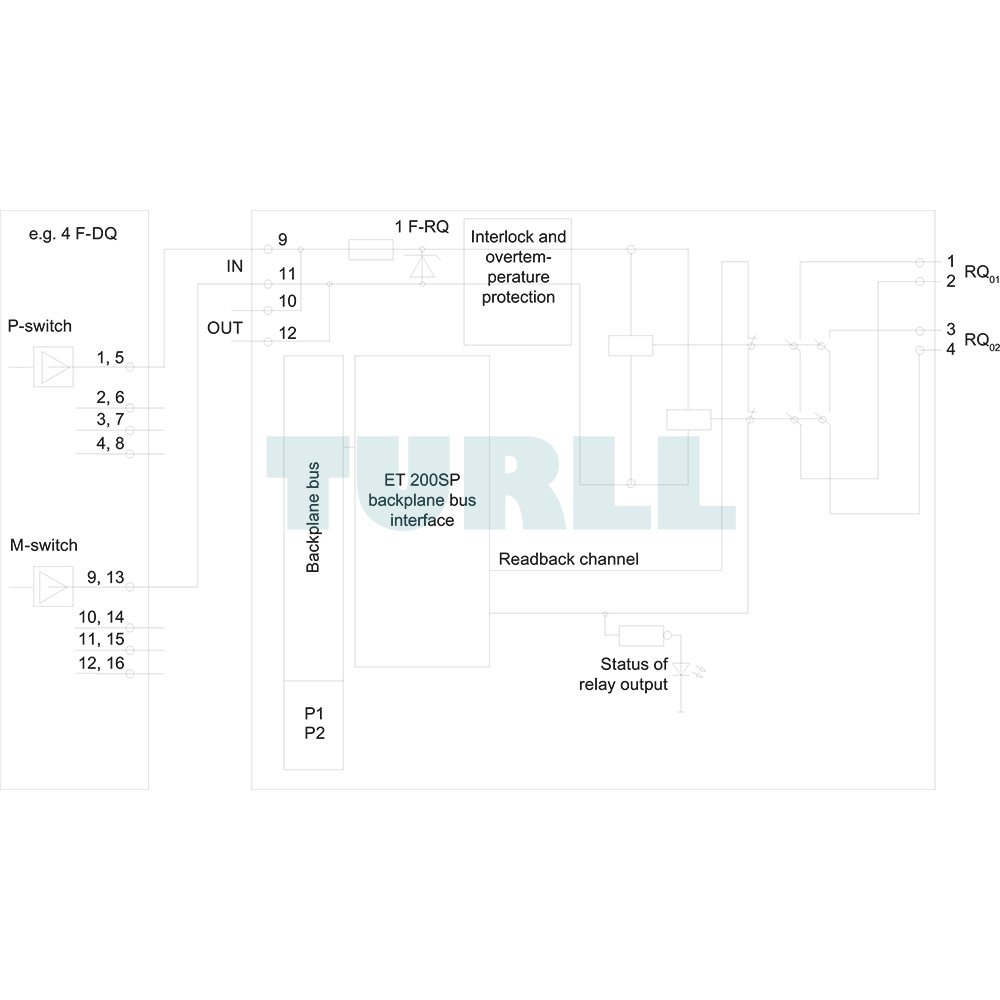

Control must be carried out from the outside via a fail-safe electronic module to the respective IN P and INĀ M terminals. The ET 200SP 4 F-DQ (6ES7136-6DB00-0CA0) can be used for this, for example.
One channel of the 4Ā F-DQ module can be used to control a further 1Ā F-RQ module. The output signal can be looped through for this purpose: OUT P and OUT M of the first 1F-RQ module are wired to IN P and IN M of the second 1F-RQ module.
Download
Visit 6ES7136-6RA00-0BF0
For more products visit turll.com
| Weight | 0.071 kg |
|---|---|

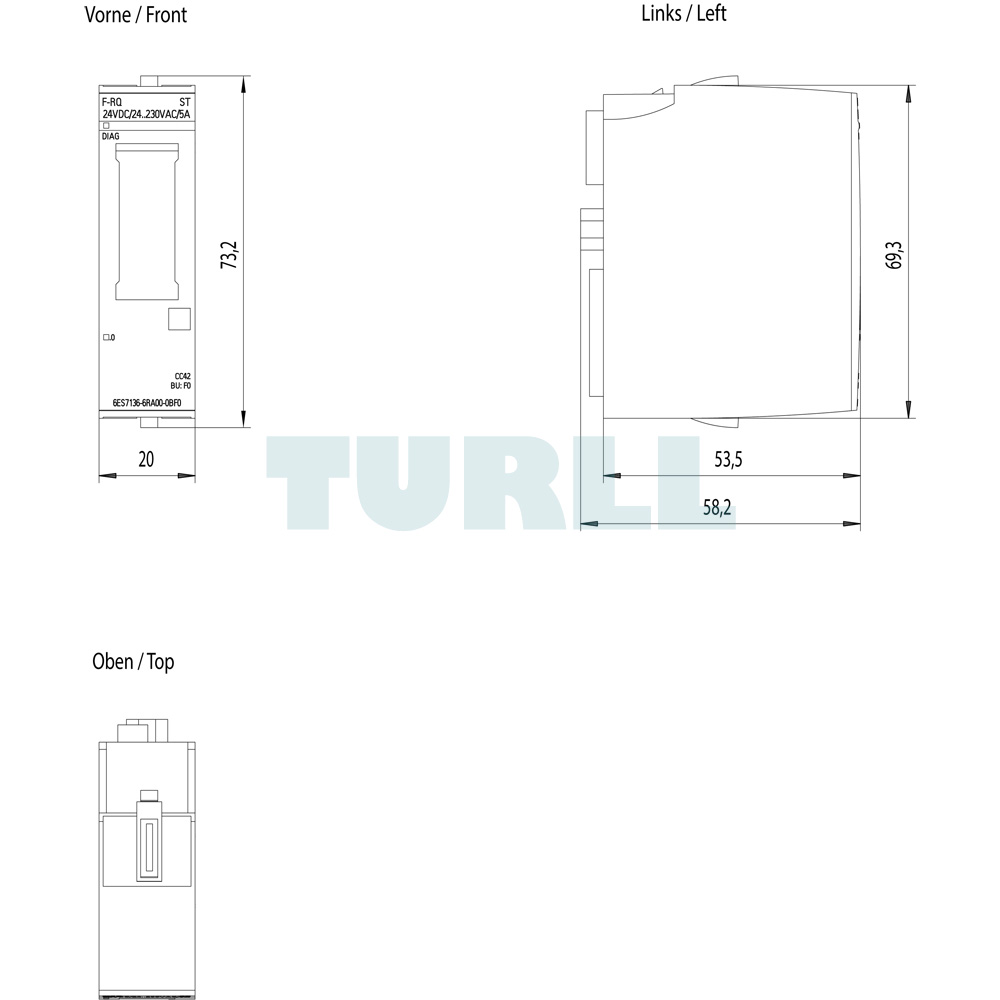

| Dimensions | 68 × 80 × 29 mm |
