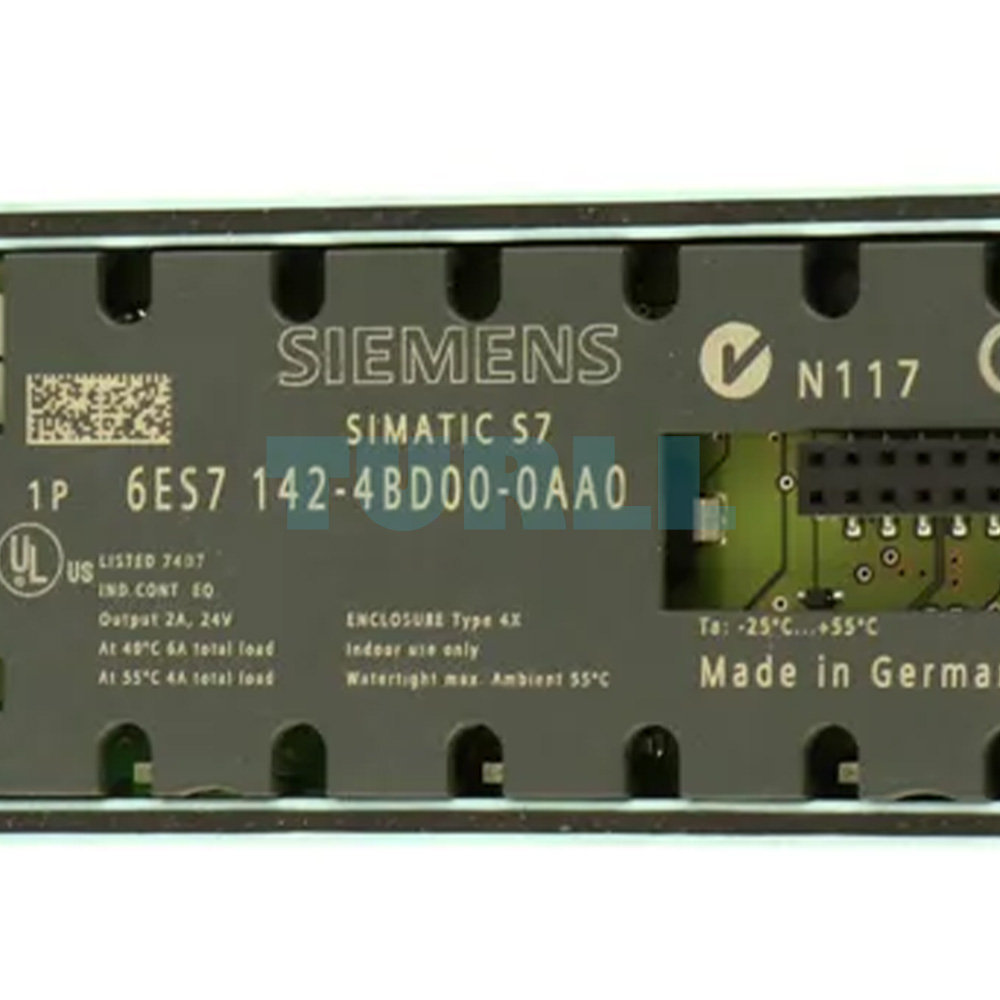

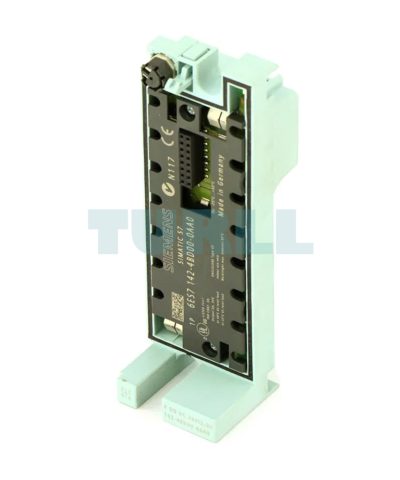

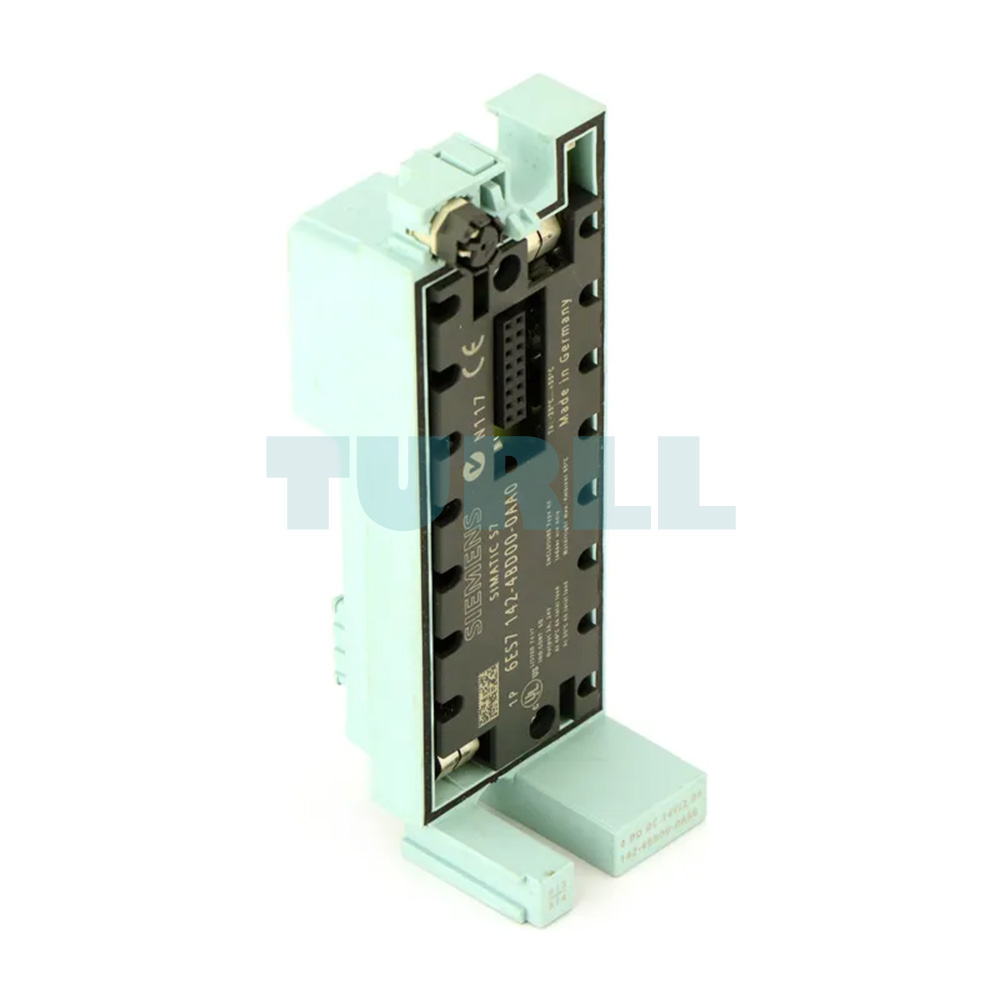

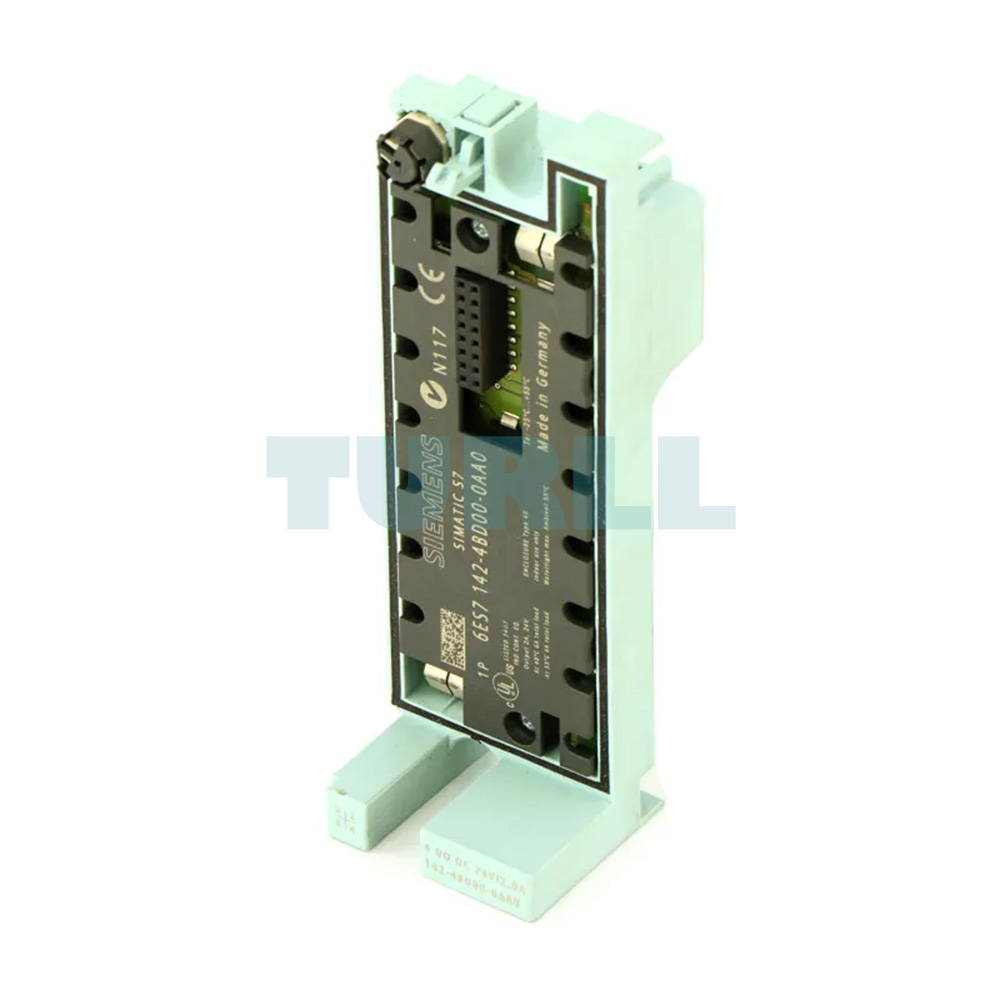

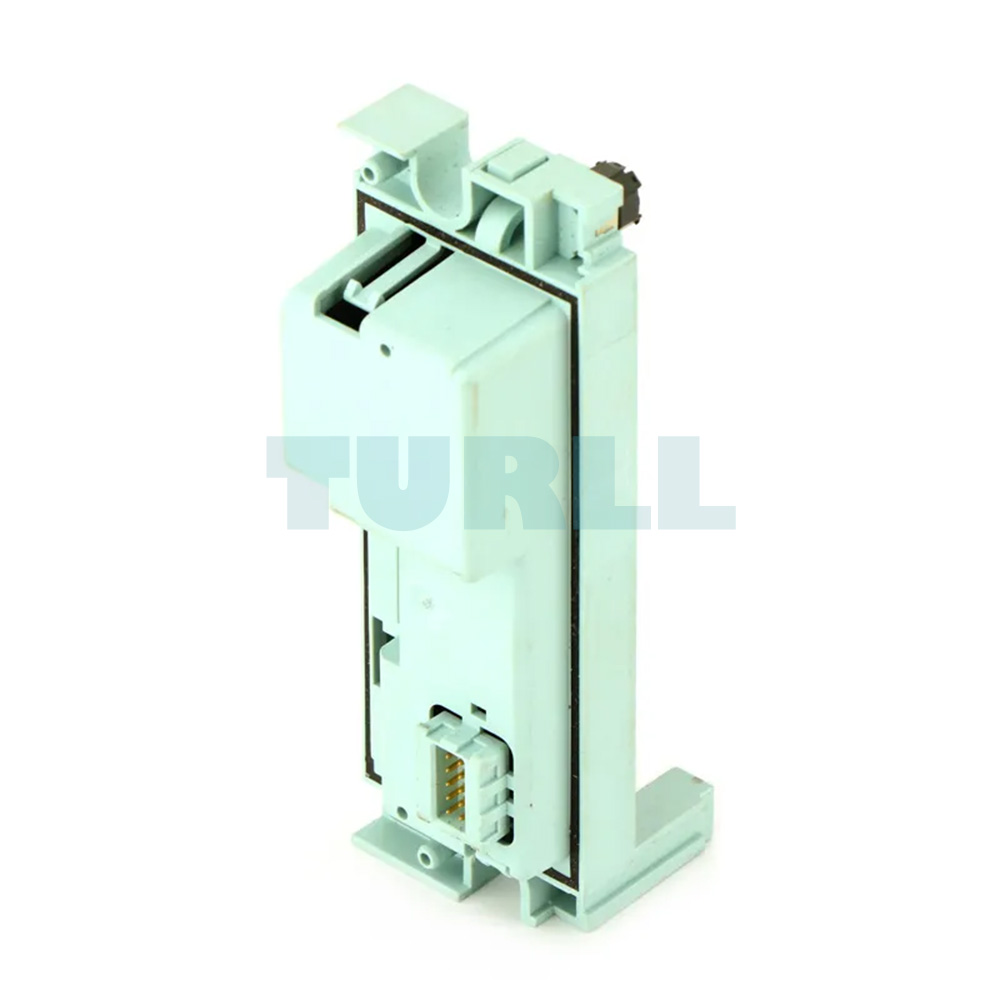

6ES7142-4BD00-0AA0 Siemens SIMATIC DP Electronic Module Original Brand New
$73.11
6ES7142-4BD00-0AA0
Siemens SIMATIC DP, electronic module for ET 200 PRO, 4 DO 24 V DC, 2.0A; Module diagnostics; incl. bus module, Connection module IO 6ES7194-4..00-0AA0 order separately
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
6ES7142-4BD00-0AA0
Siemens SIMATIC DP, electronic module for ET 200 PRO, 4 DO 24 V DC, 2.0A; Module diagnostics; incl. bus module, Connection module IO 6ES7194-4..00-0AA0 order separately
Overview
- Expansion modules with digital inputs/outputs for connection of actuators/sensors
- With scalable diagnostics
- Standard modules with module-specific diagnostics
- High Feature module with channel-specific diagnostics and parameterizable input delay or hardware interrupts
- Double or single assignment can be implemented for each M12 in the case of the 8 DI and 8 DO module by selecting CM IO 4 x M12 or CM IO 8 x M12
- IO connection modules are available in metal and plastic versions
Design
Sensors and actuators are connected by means of generally available 5-pin M12 connectors, 8-pin M12 connectors, 3-pin M8 connectors, and 12-pin M23 connectors.
For the digital input modules and digital output modules, the following connection variants are available in combination with IO connection modules:
- CM IO 4x M12; can be used with an 8-channel digital input module, 4- or 8-channel digital output module, 8-channel digital hybrid module 4 DI/4 DO, and analog modules
- CM IO 4x M12 P (plastic version); can be used with an 8-channel digital input module, 4- or 8-channel digital output module, and 8-channel digital hybrid module 4 DI/4 DO
- CM IO 4x M12, inverse; can be used with a 4-channel digital output module
- CM IO 8x M12; can be used with an 8-channel digital input module, 8-channel digital output module, and 8-channel digital hybrid module 4 DI/4 DO
- CM IO 8x M12 P (plastic version); can be used with an 8-channel digital input module, 8-channel digital output module, and 8-channel digital hybrid module 4 DI/4 DO
- CM IO 8x M12 D; can be used with a 16-channel digital input module and 8-channel digital hybrid module 4 DIO/4 DO
- CM IO 8x M8; can be used with an 8-channel digital input module, 4- or 8-channel digital output module, and 8-channel digital hybrid module 4 DI/4 DO
- CM IO 2x M12 (plastic version); can be used with an 8-channel digital input module, 4- or 8-channel standard digital output module, and 8-channel digital hybrid module 4 DI/4 DO
- CM IO 1x M23 (plastic version); can be used with an 8-channel digital input module, 4- or 8-channel standard digital output module, and 8-channel digital hybrid module 4 DI/4 DO
Download
Visit 6ES7142-4BD00-0AA0
For more our products visit turll.com
| Weight | 0.170 kg |
|---|---|

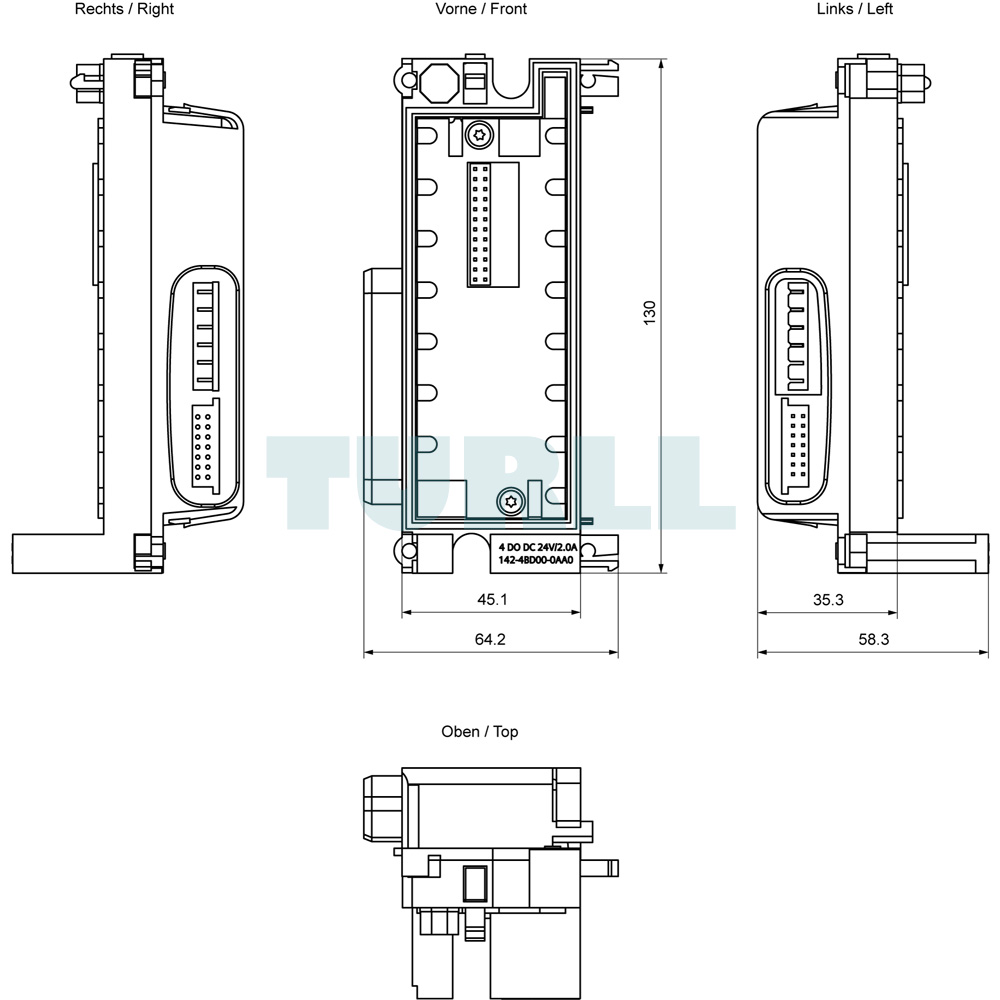

| Dimensions | 73.00 × 141.00 × 68.00 mm |
