Siemens SIMATIC DP, ET 200ECO PN, 8 AI RTD/TC; 8x M12, Degree of protection IP67
Siemens SIMATIC DP, ET 200ECO PN, 8 AI RTD/TC; 8x M12, Degree of protection IP67
Analog distributed I/O devices with 2x M12 L-coded power connectors and 45 mm width
Analog I/O devices with 2x M12 A-coded power connectors and 60Â mm width
Analog inputs record process signals such as pressure or temperature and forward them in digitalized format (16-bit format) to the PLC. They are suitable for measuring voltage, current (2-wire and 4-wire transmitters), resistance, resistance thermometers and the connection of thermocouples.
Analog outputs convert a 16-bit digital value into a current or a voltage and output this to the process. They are suitable, for example, for controlling proportional valves or small servo drives.
All I/O devices have configurable parameters and diagnostic functions and can thus be freely adapted to the respective process requirements.
Visit 6ES7144-6KD50-0AB0
For more our products visit turll.com
| SKU / Model | 6ES7144-6KD50-0AB0 |
|---|---|
| Weight | 0.960 kg |

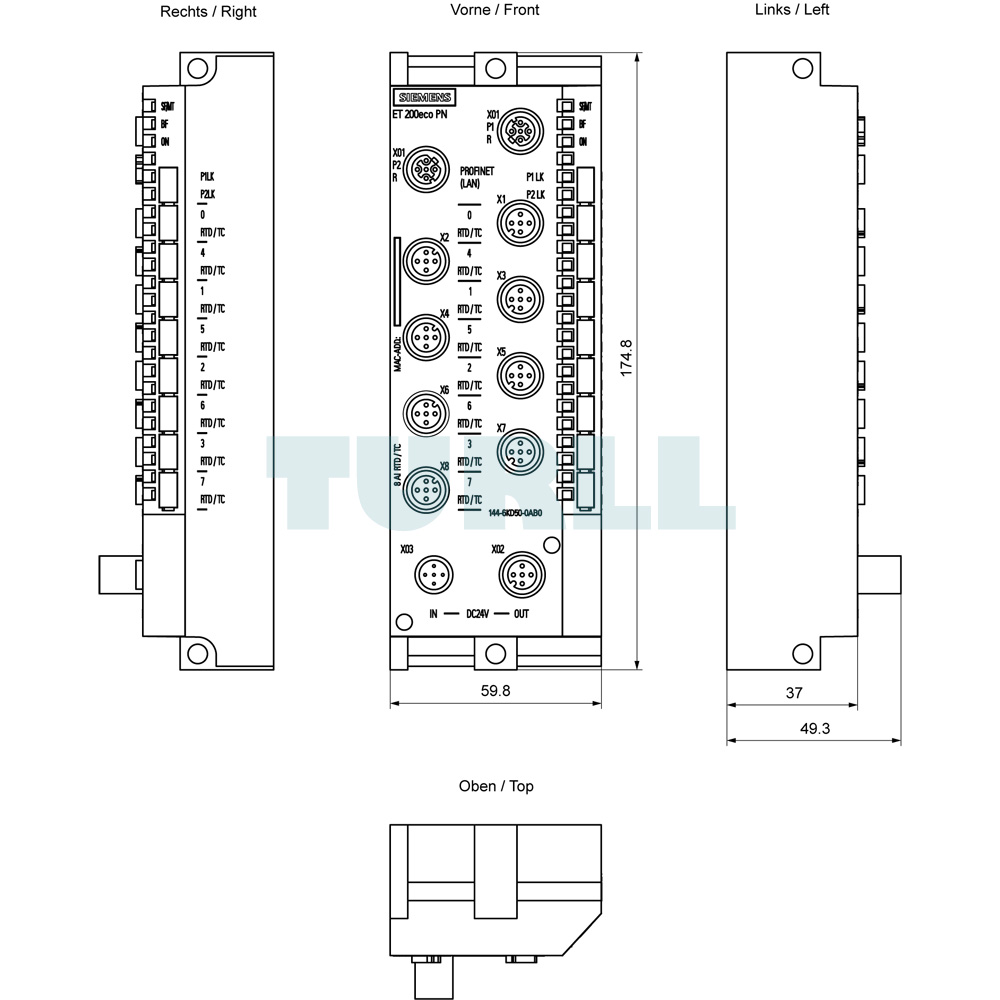

| Dimensions | 70.00 × 197.00 × 58.00 mm |
