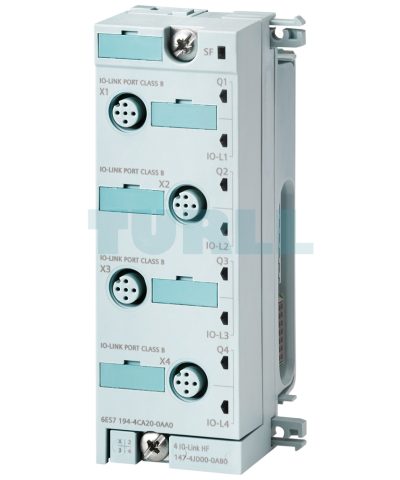

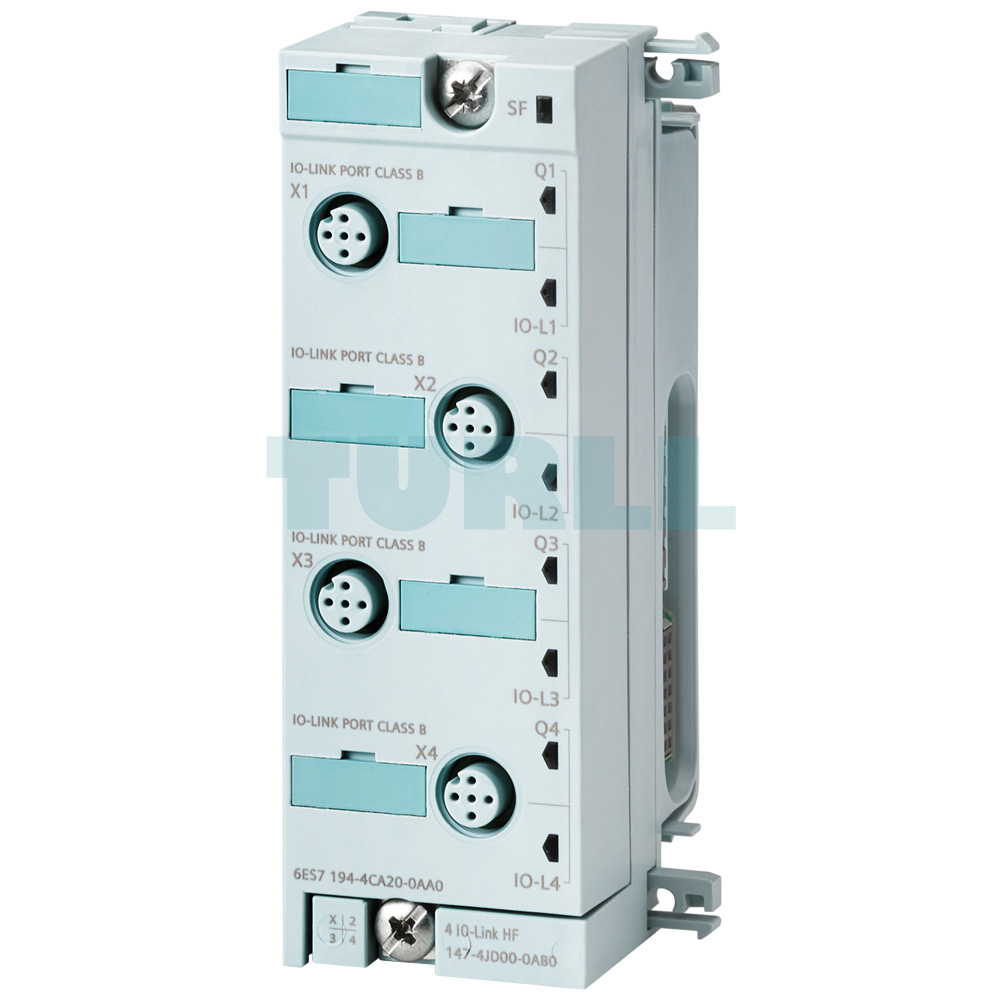

6ES7147-4JD00-0AB0 Siemens SIMATIC DP Electronic Module Original Brand New
$423.90
6ES7147-4JD00-0AB0
Siemens SIMATIC DP, electronic module for ET 200pro 4 IO-Link High Feature, Channel diagnostics, including bus module, Connection module IO 6ES7194-4CA20-0AA0 order separately
6ES7147-4JD00-0AB0
Siemens SIMATIC DP, electronic module for ET 200pro 4 IO-Link High Feature, Channel diagnostics, including bus module, Connection module IO 6ES7194-4CA20-0AA0 order separately
Overview
- 45 mm wide 4 IO-LINK HF electronic module
- 4 IO-Link ports according to IO-Link specification V1.1
- Port Class B
- The IO-Link parameters are configured using the Port Configuration Tool (S7-PCT), version V3.4 and higher
Application
The 4 IO-LINK HF electronic module facilitates data exchange with up to 4 IO-Link devices.
Since IO-Link is compatible with standard sensors, commercially available sensors in accordance with IEC 61131 Type 1 can also be operated on the IO-Link master.
Design
The 4 IO-LINK HF electronic module is used together with the CM IO-LINK 4 X M12 P connection module. Sensors and actuators are integrated using commercially available 3 or 5-pin M12 connectors on the CM IO-LINK 4 X M12 P.
IO-Link devices (e.g. sensors) with a Class A port are connected using a 3-wire cable. IO-Link devices that require additional supply voltage and have a Class B port (e.g. actuators) are connected using a 5-wire cable.=
Download
Visit 6ES7147-4JD00-0AB0
For more our products visit turll.com
| Weight | 0.181 kg |
|---|---|

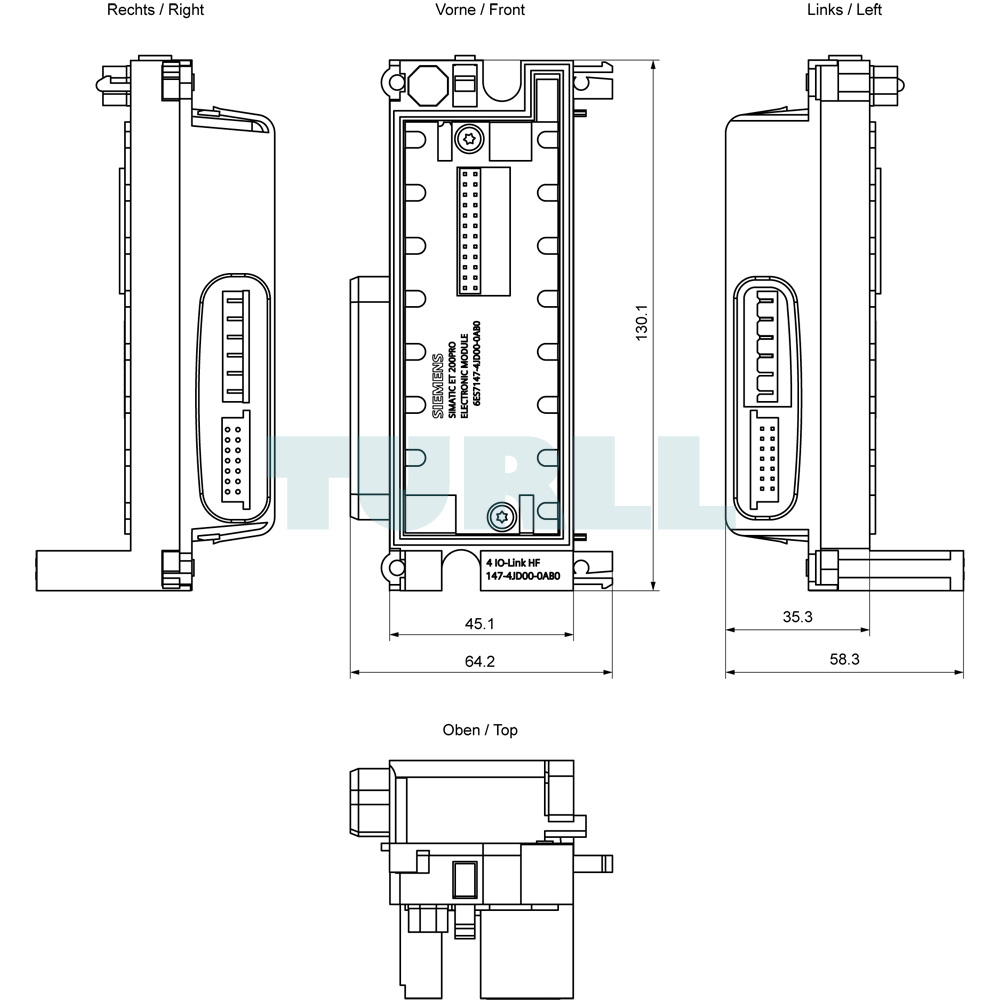

| Dimensions | 73.00 × 139.00 × 68.00 mm |
