6ES7148-4EA00-0AA0 Siemens SIMATIC DP Pneumatic Interface Original Brand New
$395.35
6ES7148-4EA00-0AA0
Siemens SIMATIC DP, Pneumatic interface for ET 200 PRO, 16 DO pneumatics for coupling with Festo valve terminal CPV-10; incl. bus module
6ES7148-4EA00-0AA0
Siemens SIMATIC DP, Pneumatic interface for ET 200 PRO, 16 DO pneumatics for coupling with Festo valve terminal CPV-10; incl. bus module
Overview
- Interface for holding an original FESTO CPV 10 or CPV 14 compact performance valve terminal
- For using ET 200pro in applications with flexible pneumatics
- Highly flexible pneumatics due to a variety of valve functions and choice of flow rates
Application
The pneumatic interface is designed for an original FESTO valve terminal. ET 200pro can then also be used for applications requiring flexible pneumatics.
A wide variety of valve functions from the standard FESTO spectrum and a choice of flow rates facilitate an extensive range of applications.
CPV 10 or CPV 14 FESTO valve terminals can be used and are available from FESTO.
Design

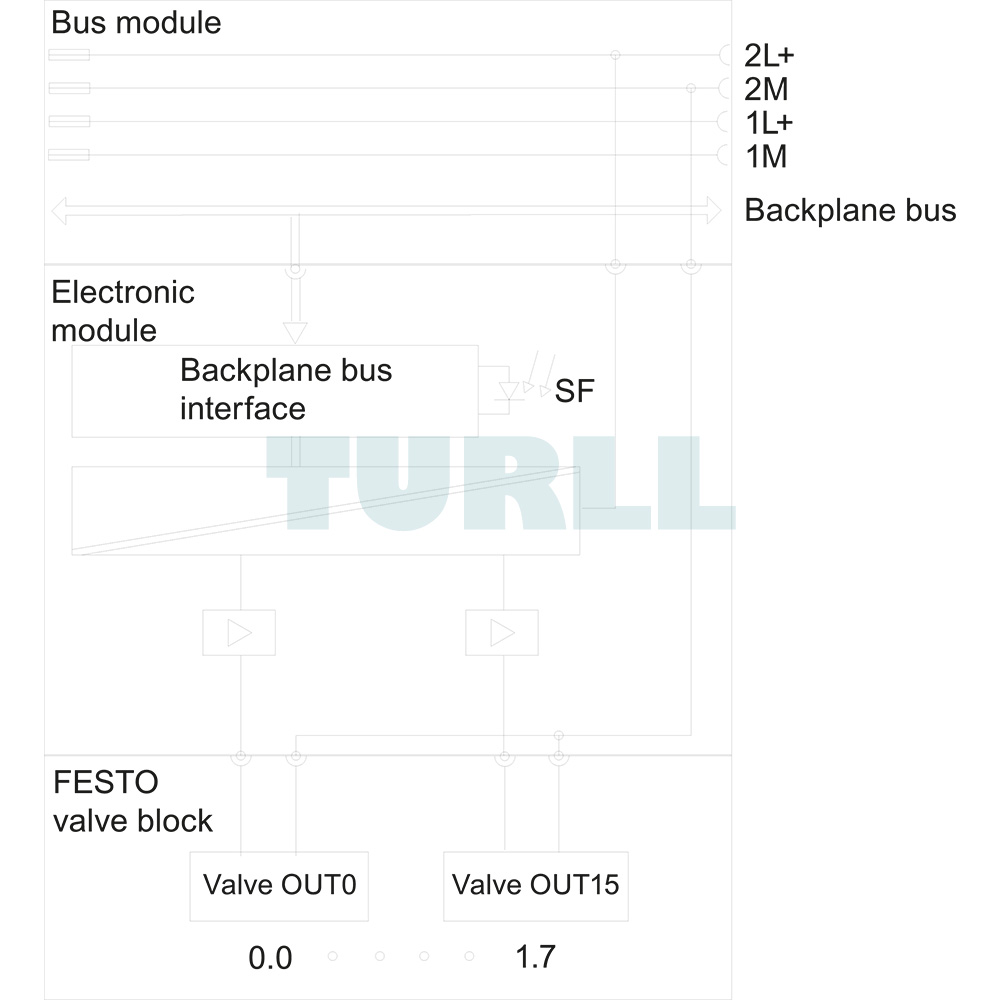

The pneumatic interface includes:
- Digital outputs for controlling the valves
- Location for valve terminal with clamp
Two different pneumatic interfaces are available:
- For connection of the CPV 10 valve terminal; valve disk thickness 10 mm, flow rate 400 l/min
- For connection of the CPV 14 valve terminal; valve disk thickness 14 mm, flow rate 800 l/min
Up to 8 valve disks (up to 16 valve functions) can be used per valve terminal.
Download
Data Sheet (PDF)
Visit 6ES7148-4EA00-0AA0
For more our products visit turll.com
| Weight | 0.476 kg |
|---|---|

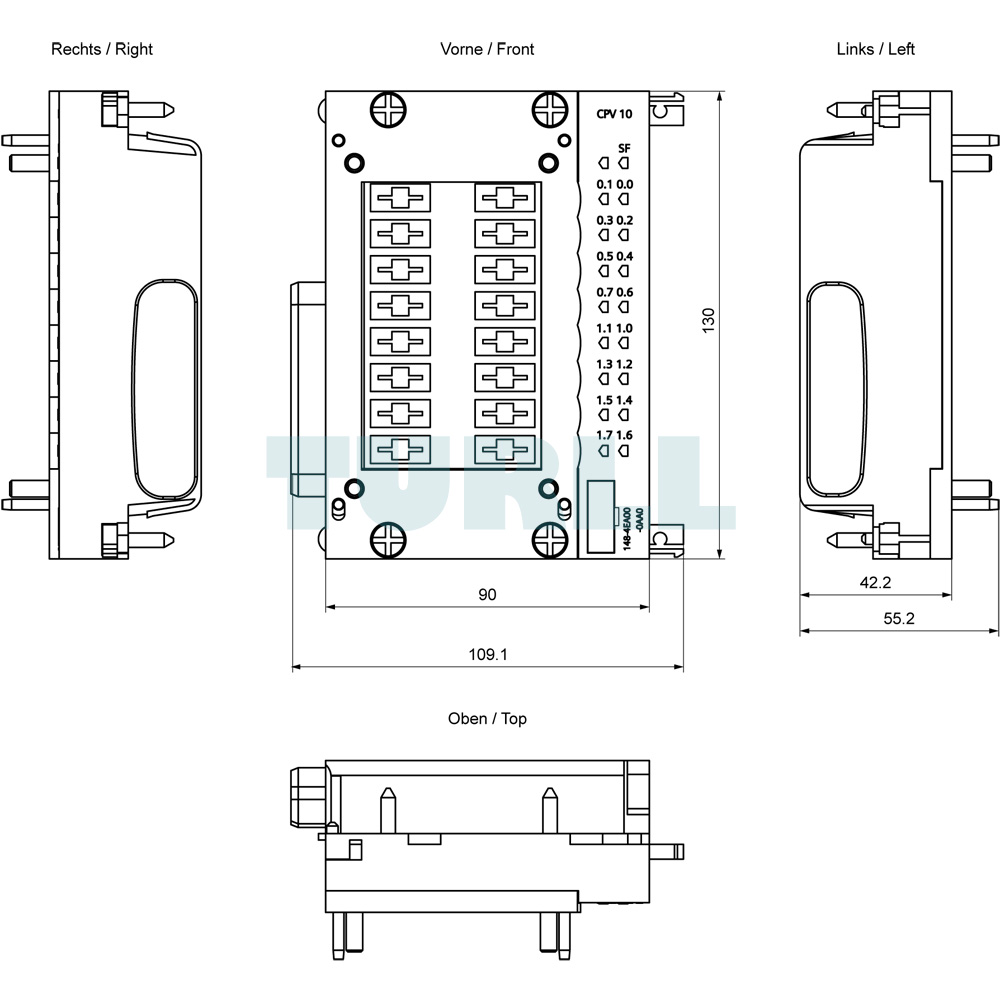

| Dimensions | 117.00 × 134.00 × 63.00 mm |
