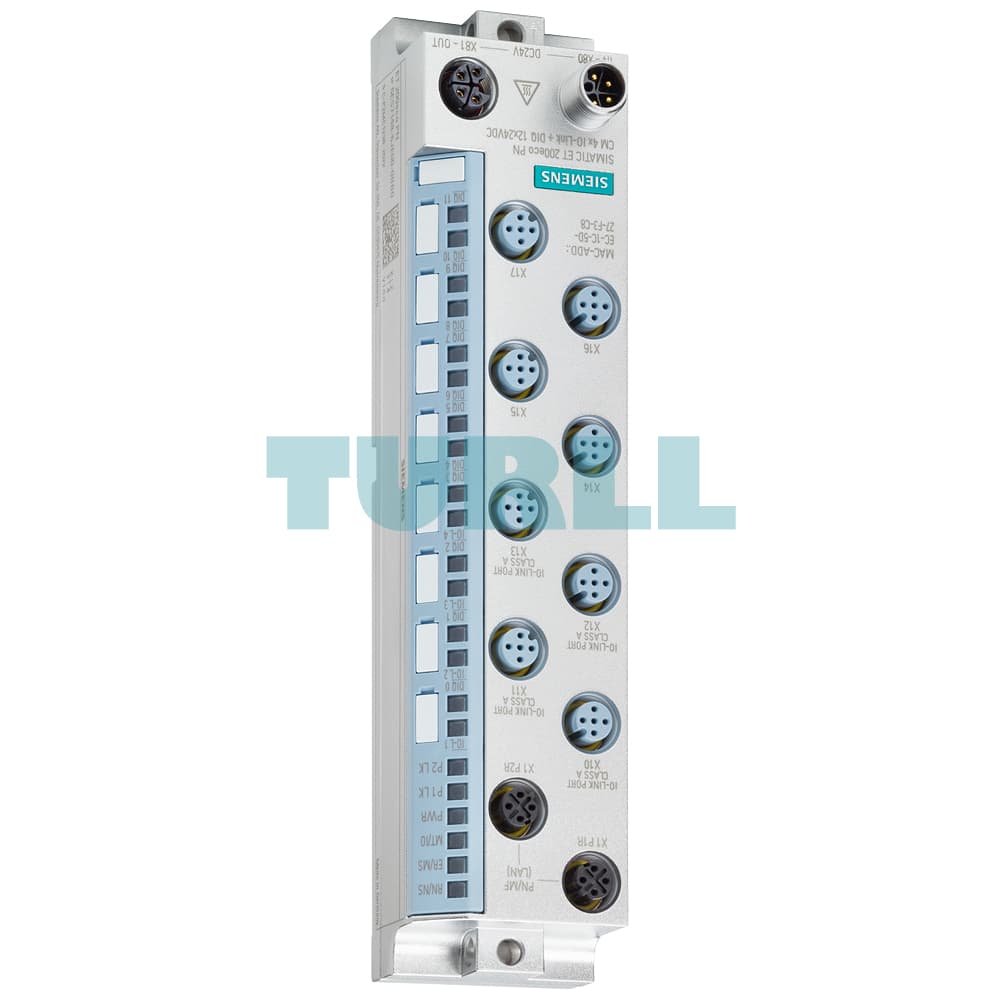

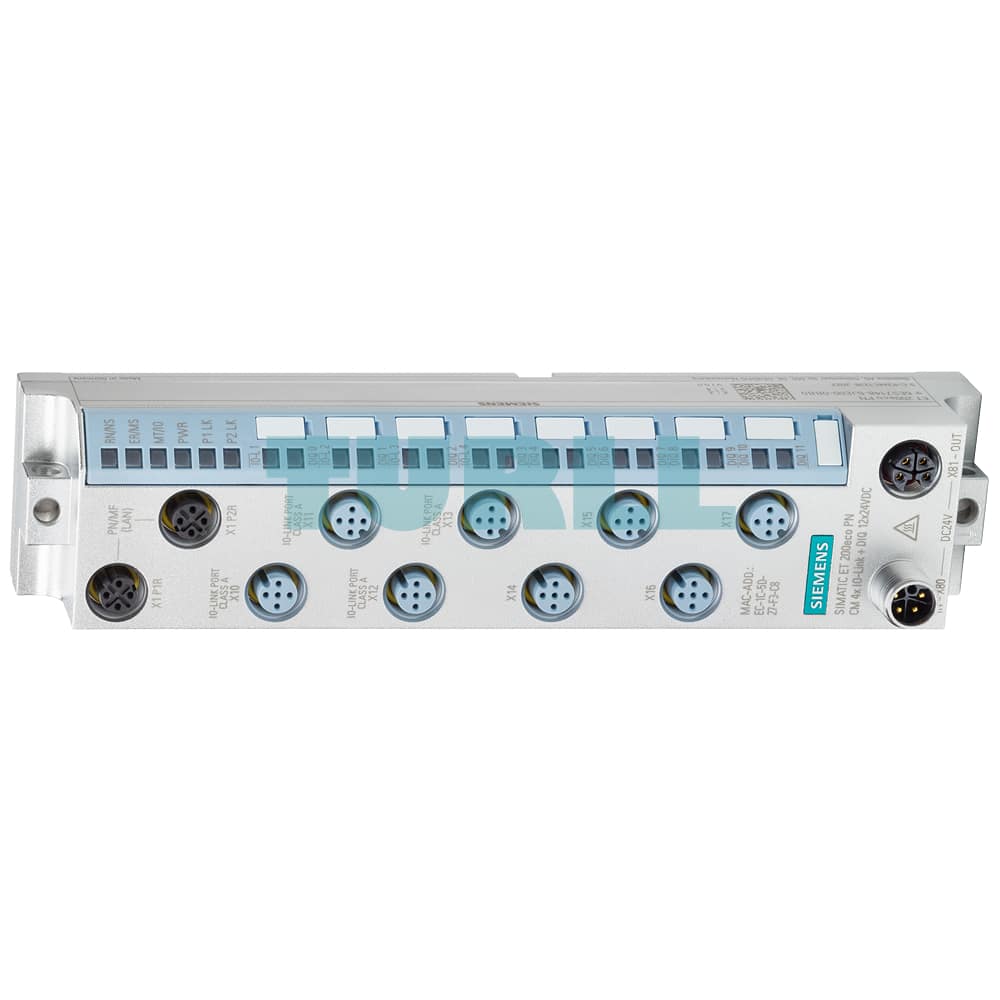

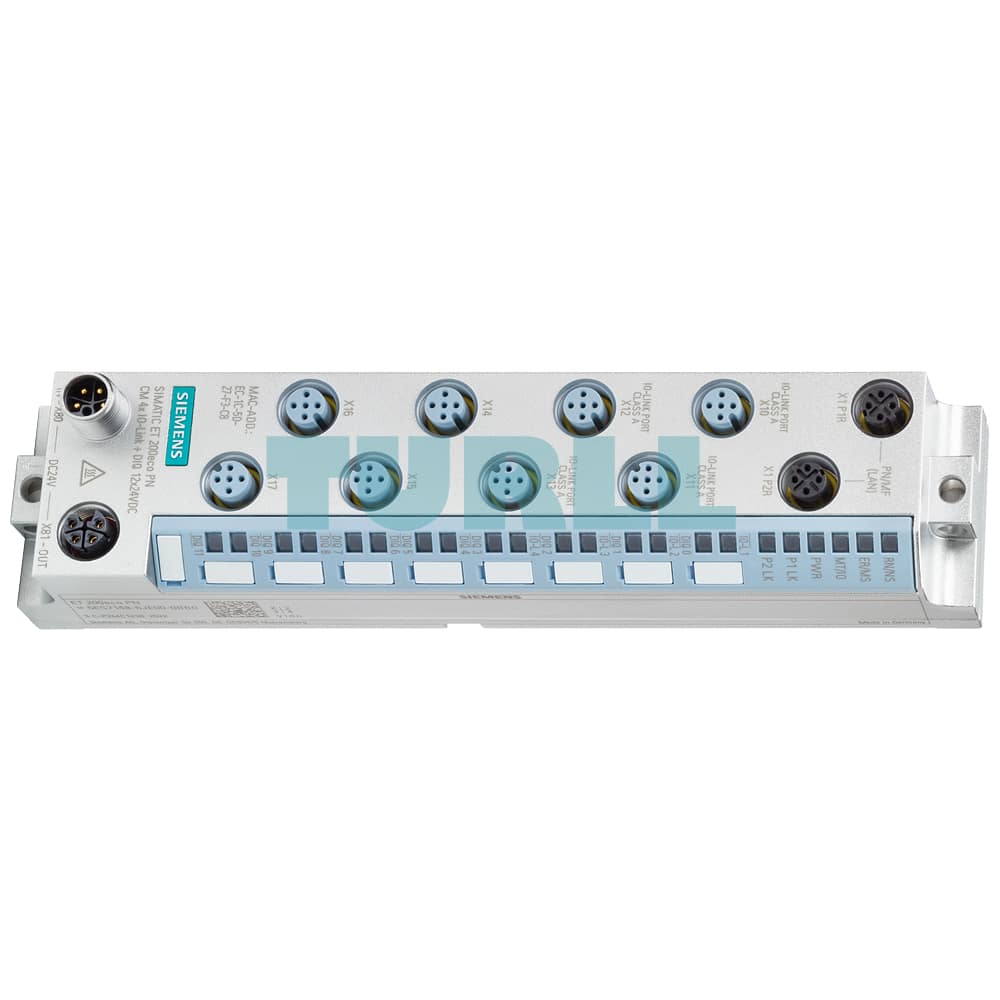

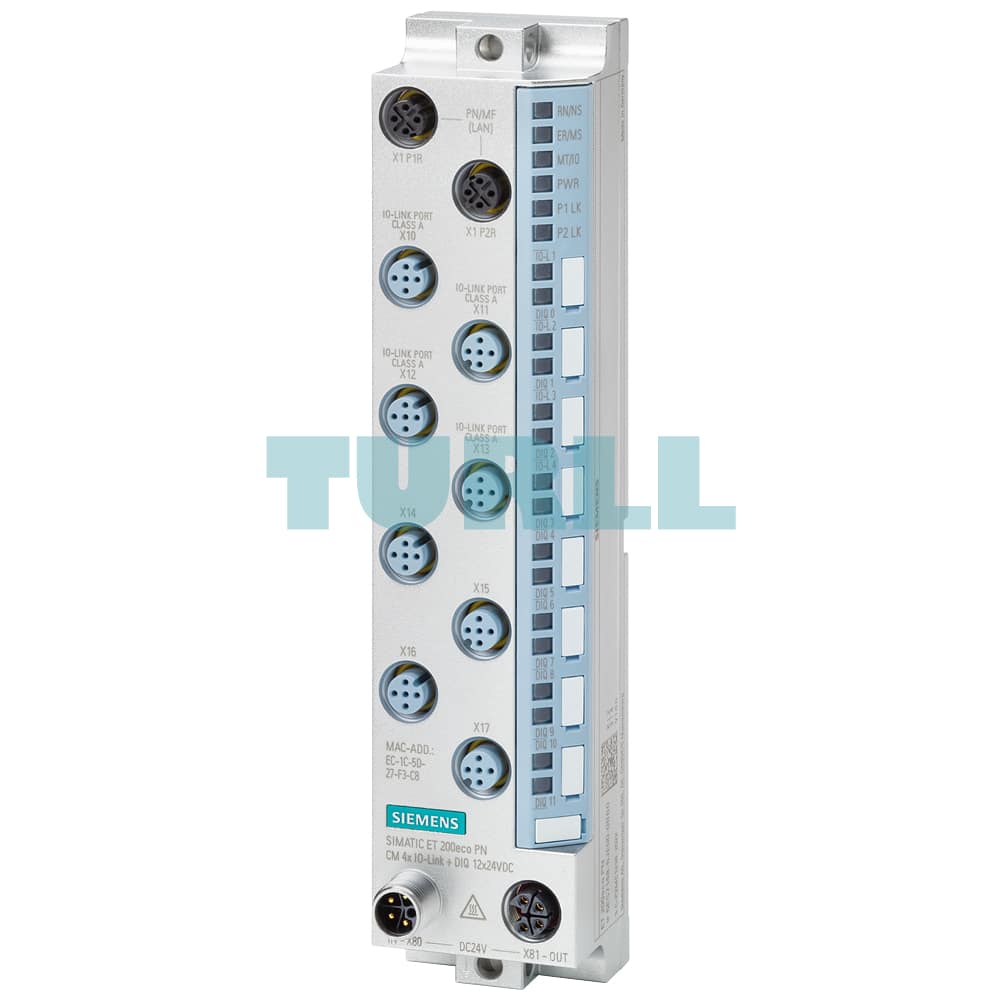

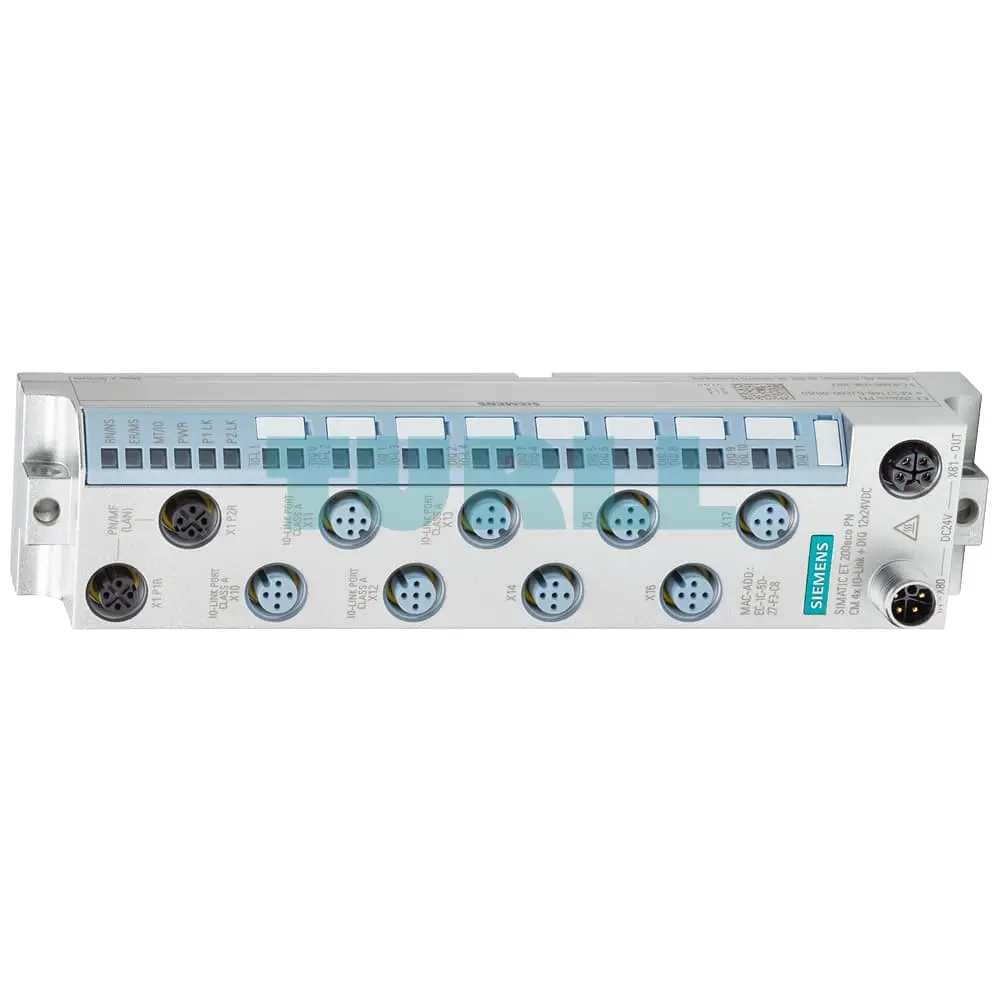

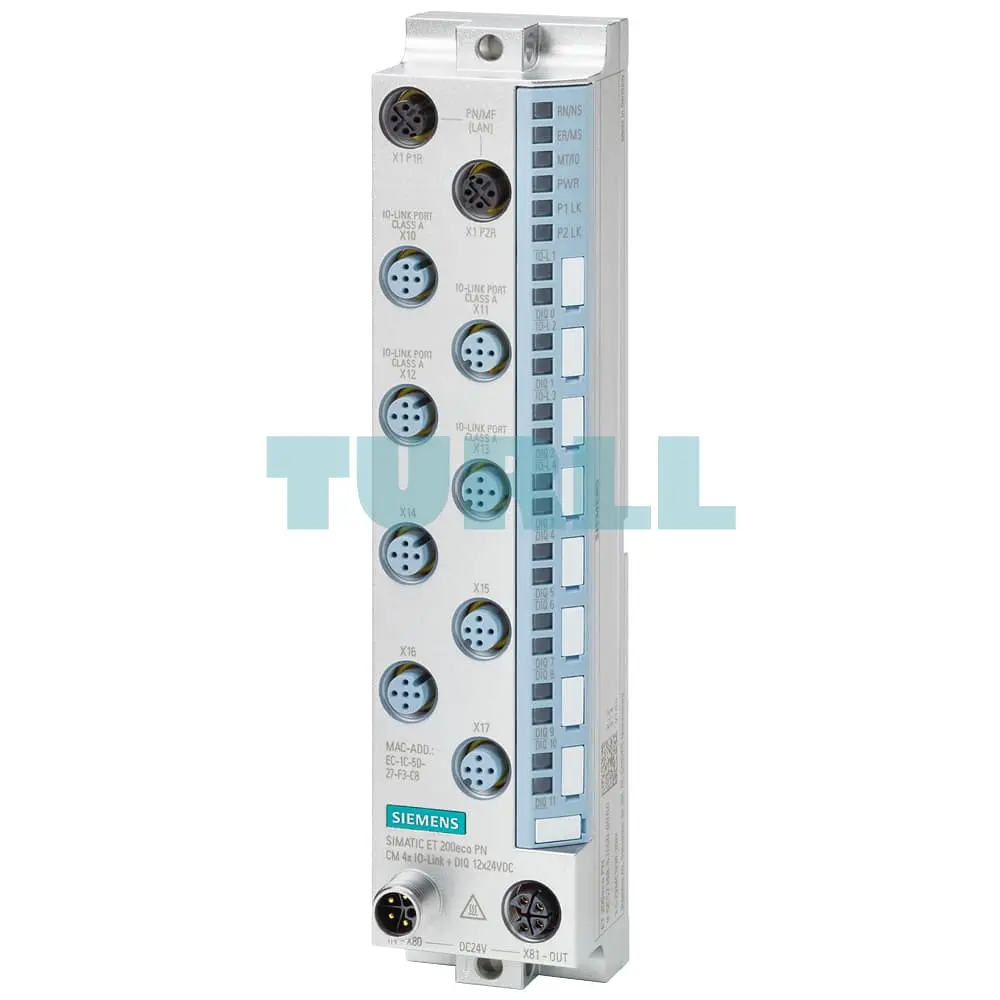

6ES7148-6JJ00-0BB0 Siemens SIMATIC ET 200eco PN IO-Link Master Original Brand New
$652.95
6ES7148-6JJ00-0BB0
Siemens SIMATIC ET 200eco PN, CM 8x IO-Link + DIQ 8x 24 V DC/0.5 A, M12-L, 8x M12, 8x port class A channel diagnostics, shared device, with 2 controllers, prioritized startup, MRP, S2 redundancy, I&M0…3, multi-fieldbus, PN IO, EtherNet/IP, Modbus TCP, degree of protection IP67 / IP69K
[ez-toc]
Overview
IO-Link master with 2x M12 L-coded power connectors and 45 mm width
- IO-Link communication modules for connecting up to 8 IO-Link devices
- Options: IO-Link master
- with 4x Class A port and 4x Class B port as well as additional 4 digital inputs,
- with 4x Port Class A and additional 12 digital inputs/outputs or
- with 8x Port Class A and additional 8 digital inputs/outputs.
- The IO-Link specifications V1.0 and V1.1 are supported
IO-Link master with 2x M12 A-coded power connectors and 30 mm width
- IO-Link communication modules for connecting up to 4 IO-Link devices
- IO-Link master with 4x Class B port
- The IO-Link specifications V1.0 and V1.1 are supported
IO-Link master with 2x M12 A-coded power connectors and 60 mm width
- IO-Link communication modules for connecting up to 4 IO-Link devices
- IO-Link master with 4x Class A port and additional 8 digital inputs and 4 digital outputs
- The IO-Link specification V1.0 is supported
Application
IO-Link allows sensors and actuators from different manufacturers to be integrated easily. The ET 200eco PN IO-Link master I/O devices enable data exchange with up to 4 IO-Link devices or 8 IO-Link devices.
IO-Link devices (e.g. sensors) with a Class A port are connected using a 3-wire cable. IO-Link devices that require additional supply voltage and have a Class B port (e.g. actuators) are connected using a 5-wire cable.
Thanks to the compatibility of IO-Link with standard sensors, commercially available sensors in accordance with IEC 61131 Type 1 can also be operated on the IO-Link master.
With a high degree of protection, robustness and compact dimensions, the IO-Link master I/O devices are particularly suitable for machine-related applications in confined spaces. They feature configurable parameters and diagnostic functions and can thus be freely adapted to the respective process requirements.
Function
In addition to the general functions of the ET 200eco PN I/O system, the IO-Link masters according to IO-Link specification V1.1. have other functions:
- Supported data transmission rates of IO-Link communication
- COM1 (4.8 kBd)
- COM2 (38.4 kBd)
- COM3 (230.4 kBd)
- Expansion limits
- Cable length to IO-Link device: Max. 20 m
- Max. 32 bytes of input and output data per IO-Link port
- Automatic backup of the device parameters when replacing the IO-Link device (only for V1.1 devices)
- Re-parameterization of the devices in runtime using SPS function block
- Master backup using SPS function block
- Supports firmware updates of IO-Link devices
- Configuration using GSD file or S7-PCT
6ES7148-6JJ00-0BB0
Siemens SIMATIC ET 200eco PN, CM 8x IO-Link + DIQ 8x 24 V DC/0.5 A, M12-L, 8x M12, 8x port class A channel diagnostics, shared device, with 2 controllers, prioritized startup, MRP, S2 redundancy, I&M0…3, multi-fieldbus, PN IO, EtherNet/IP, Modbus TCP, degree of protection IP67 / IP69K
Visit 6ES7148-6JJ00-0BB0
For more our products visit turll.com
| Weight | 0.822 kg |
|---|---|
| Dimensions | 71.00 × 200.00 × 60.00 mm |
