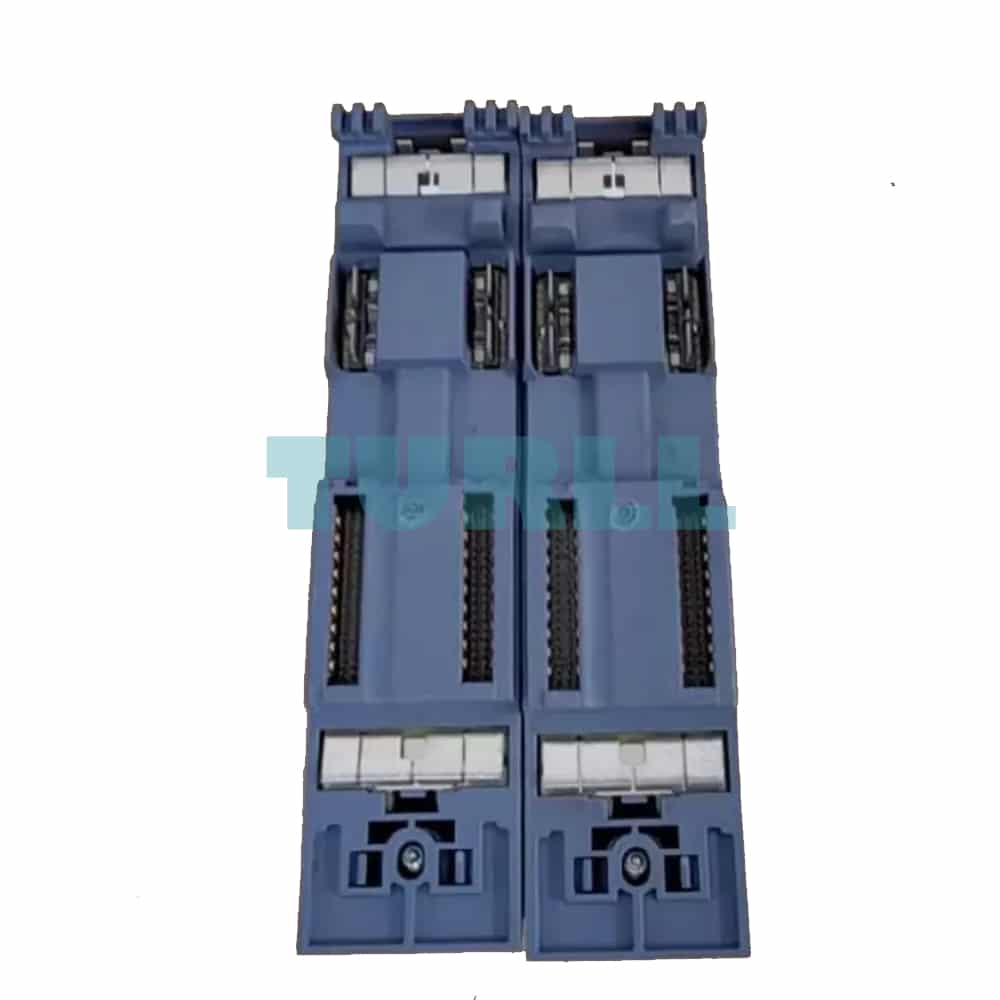

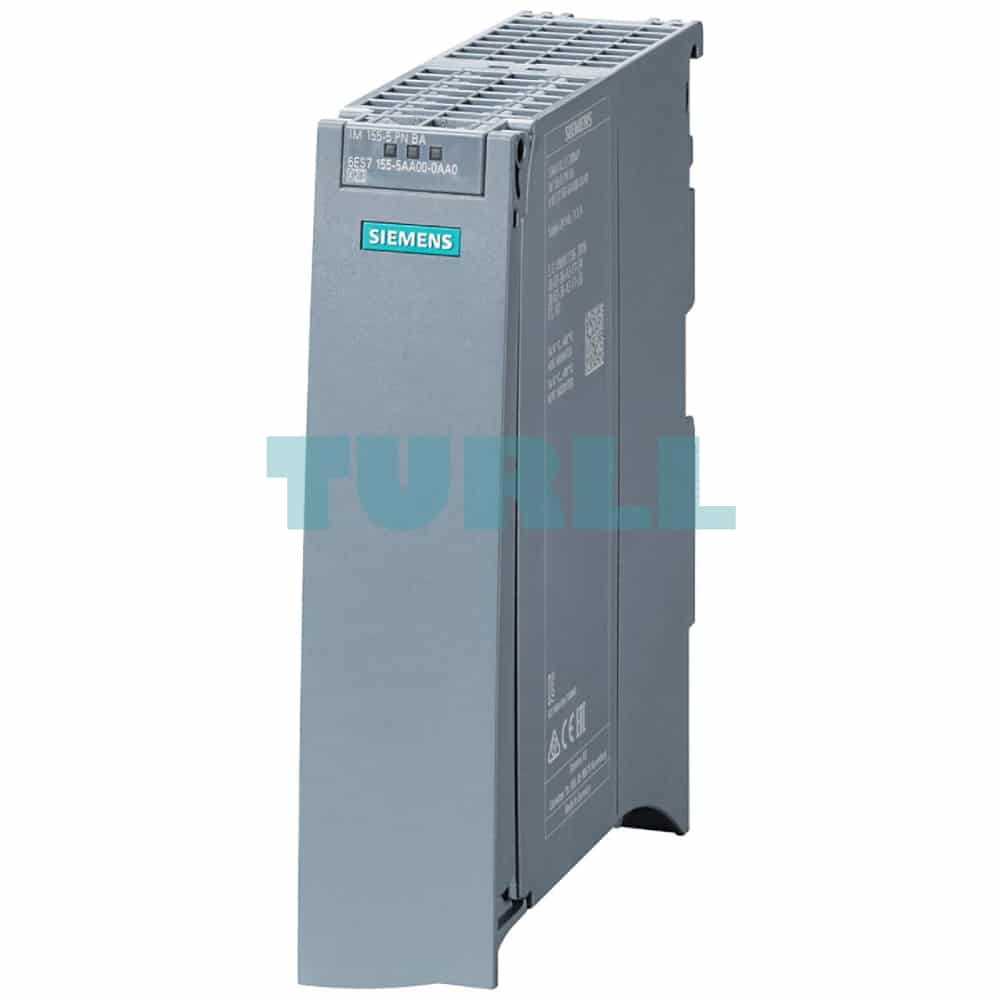

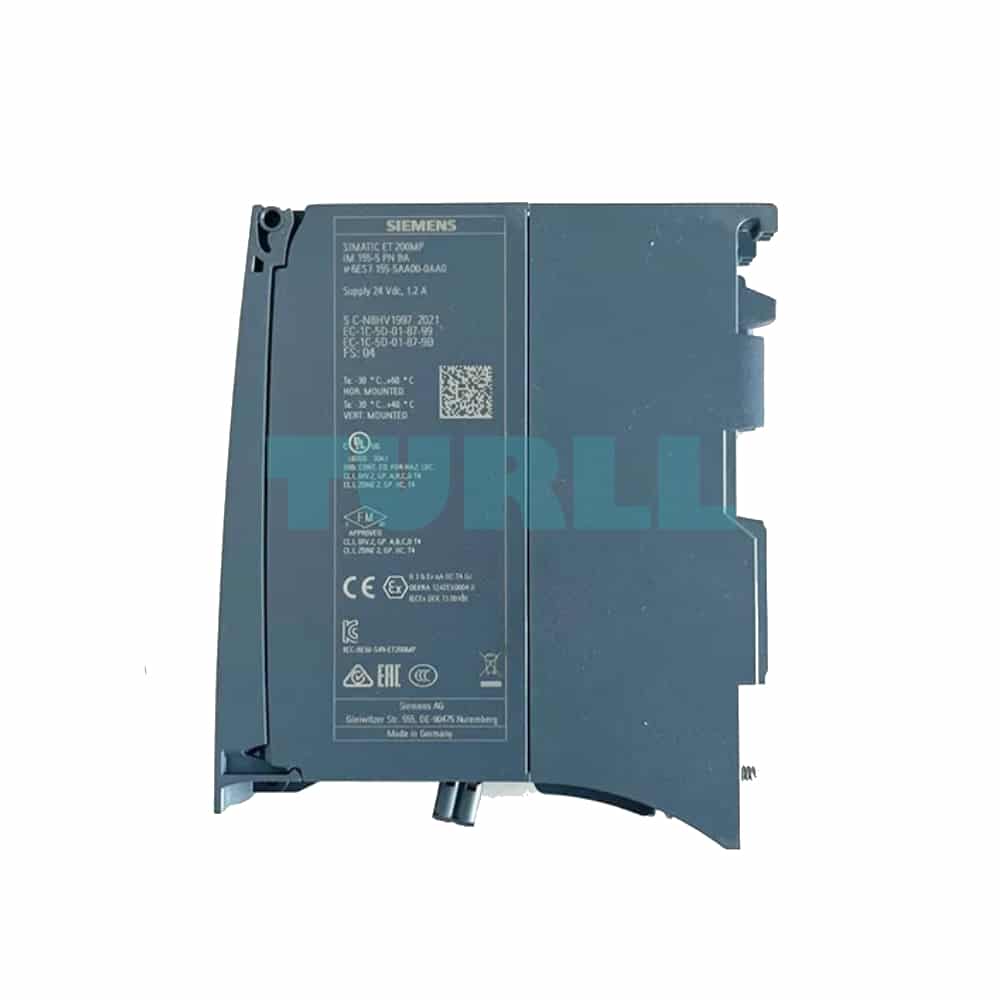

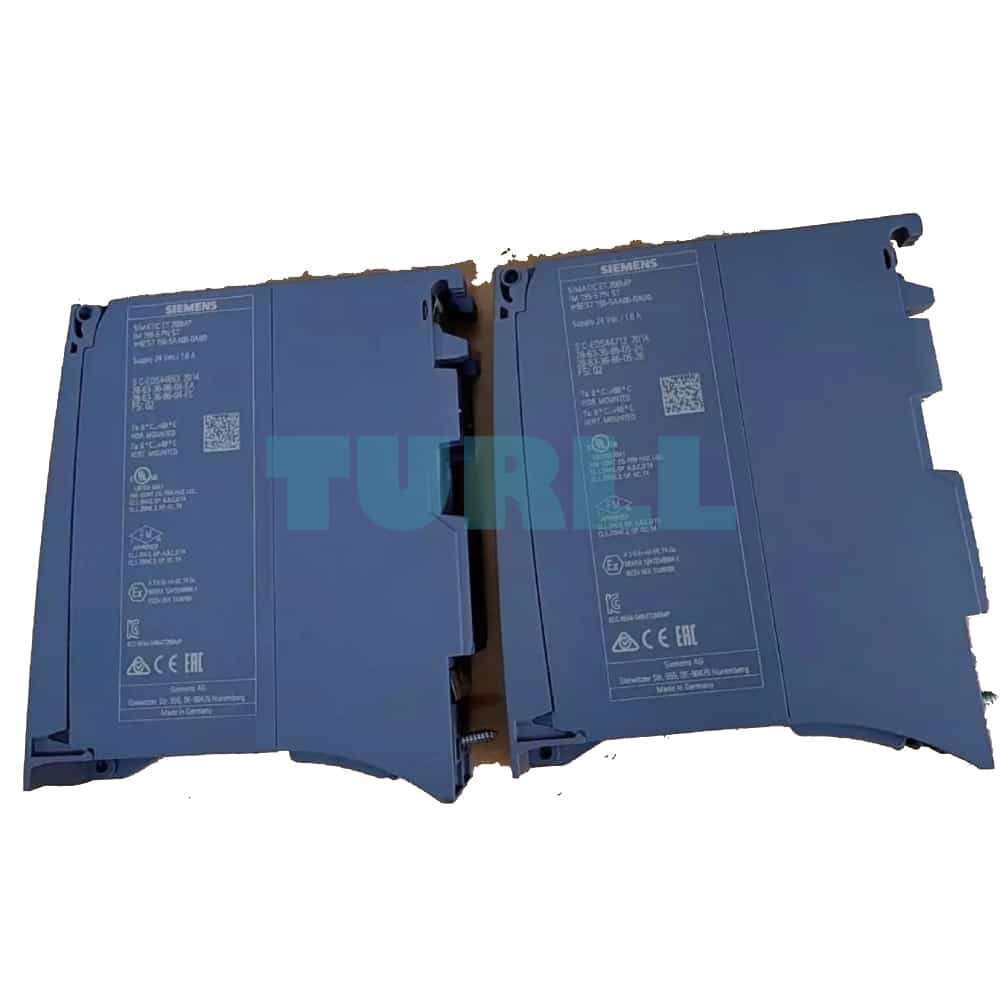

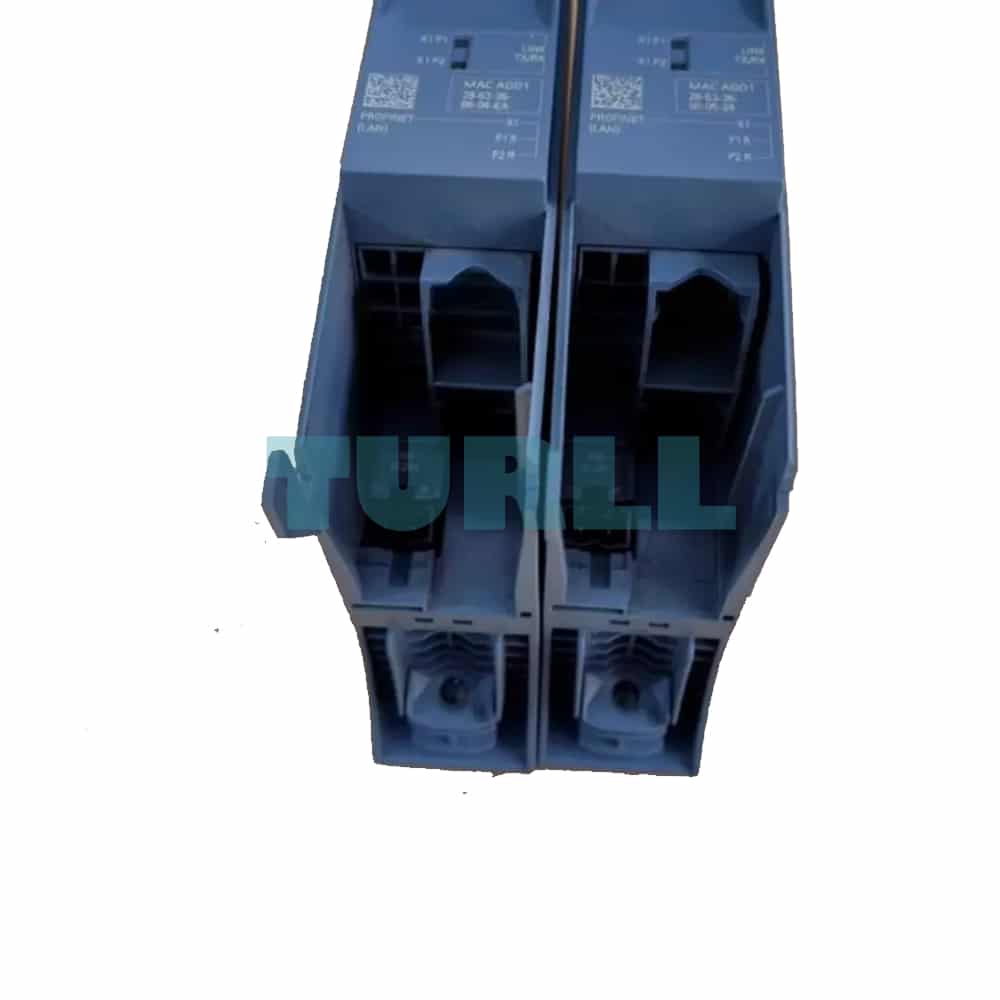

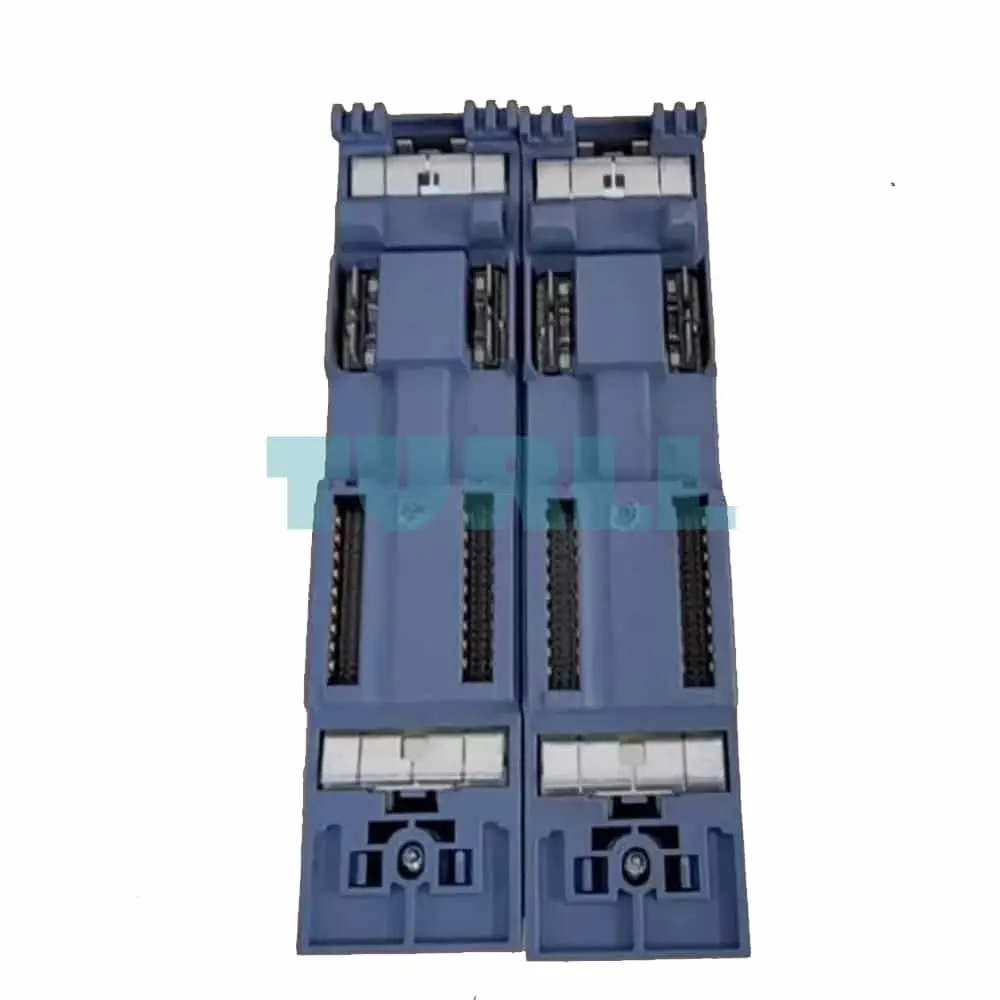

6ES7155-5AA00-0AA0 Siemens SIMATIC ET 200MP IM 155-5 PN Original Brand New

The IM 155-5 interface modules enable the ET 200MP to be connected to PROFINET, Ethernet/IP, Modbus TCP and PROFIBUS and handle communication between the modules and the higher-level I/O controller autonomously.

The following modules are available:

IM 155-5 MF HF

• MultiFieldbus for connection to PROFINET, Ethernet/IP and Modbus TCP
• Max. 30 I/O modules
• Max. 1,440 byte inputs or outputs
• BusAdapter concept for universal connection with various connection systems and transmission media
• Operation of F-modules and PROFIsafe
• Operation on active backplane bus
• Support for security features such as PN Security Class 1
• Shortest bus cycle time 250 µs
• Media Redundancy Protocol (MRP)
• Support for the MRPD function (media redundancy with planned duplication)
• S2 redundancy for operation with an S7-1500 R/H
• Shared device on up to four IO controllers (when configuring using GSD file; depends on the respective configuration tool)
• Submodule-granular shared device with up to four IO controllers
• Module shared input and module shared output (MSI/MSO), i.e. the inputs or outputs of a module can be made available simultaneously to up to four IO controllers
• Configuration control (option handling)
• Operation on a highly available SIMATIC S7-400H
• Optional cable grip for increased mechanical stress

IM 155-5 PN HF

• For connection to PROFINET
• Max. 30 I/O modules
• Max. 512 byte inputs or outputs
• Shortest bus cycle time 250 µs
• Connecting to the isochronous task of the CPU
• Prioritized fast startup (FSU) with max. 12 I/O modules
• Media Redundancy Protocol (MRP)
• Shared device on up to two IO controllers (when configuring using GSD file; depends on the respective engineering tool)
• Omission of SIMATIC Memory Card (SMC); IM replacement without PG using LLDP
• Operation of F-modules and PROFIsafe
• Submodule-granular shared device with up to two IO controllers
• Configuration control (option handling)
• Module shared input and module shared output (MSI/MSO), i.e. the inputs or outputs of a module can be made available simultaneously to up to two IO controllers
• Shared device on up to 4 IO controllers
• Module shared input and module shared output (MSI/MSO) on up to four IO controllers
• Operation on a highly available SIMATIC S7-400H
• Support for the MRPD function (media redundancy with planned duplication)
• S2 redundancy for operation with an S7-1500 R/H
• Operation on the active backplane bus (as of FW V 4.4.1)

IM 155-5 PN ST

• For connection to PROFINET
• Max. 30 I/O modules
• Max. 512 byte inputs or outputs
• Shortest bus cycle time 250 µs
• Connecting to the isochronous task of the CPU
• Prioritized fast startup (FSU) with max. 12 I/O modules
• Media Redundancy Protocol (MRP)
• Shared device on up to two IO controllers (when configuring using GSD file; depends on the respective engineering tool)
• Omission of SIMATIC Memory Card (SMC); IM replacement without PG using LLDP
• Operation of F-modules and PROFIsafe
• Submodule-granular shared device with up to two IO controllers
• Configuration control (option handling)
• Module shared input and module shared output (MSI/MSO), i.e. the inputs or outputs of a module can be made available simultaneously to up to two IO controllers

IM 155-5 PN BA

• For connection to PROFINET
• Max. 64 byte inputs or outputs
• Max. 12 I/O modules
• Operation of F-modules and PROFIsafe
• Shortest bus cycle time 1 ms
• Media redundancy (MRP)
• Shared device on up to 2 IO controllers
• Omission of SIMATIC Memory Card (SMC); IM replacement without PG using LLDP

IM 155-5 DP ST

• For connection to PROFIBUS
• Max. 64 byte inputs or outputs
• Max. 12 I/O modules
• Automatic detection of baud rate 9.6 kBd … 12 MBd
• PROFIBUS addresses 1 … 125; adjustable using DIP switches
• Identification and maintenance data IM0 … IM3
