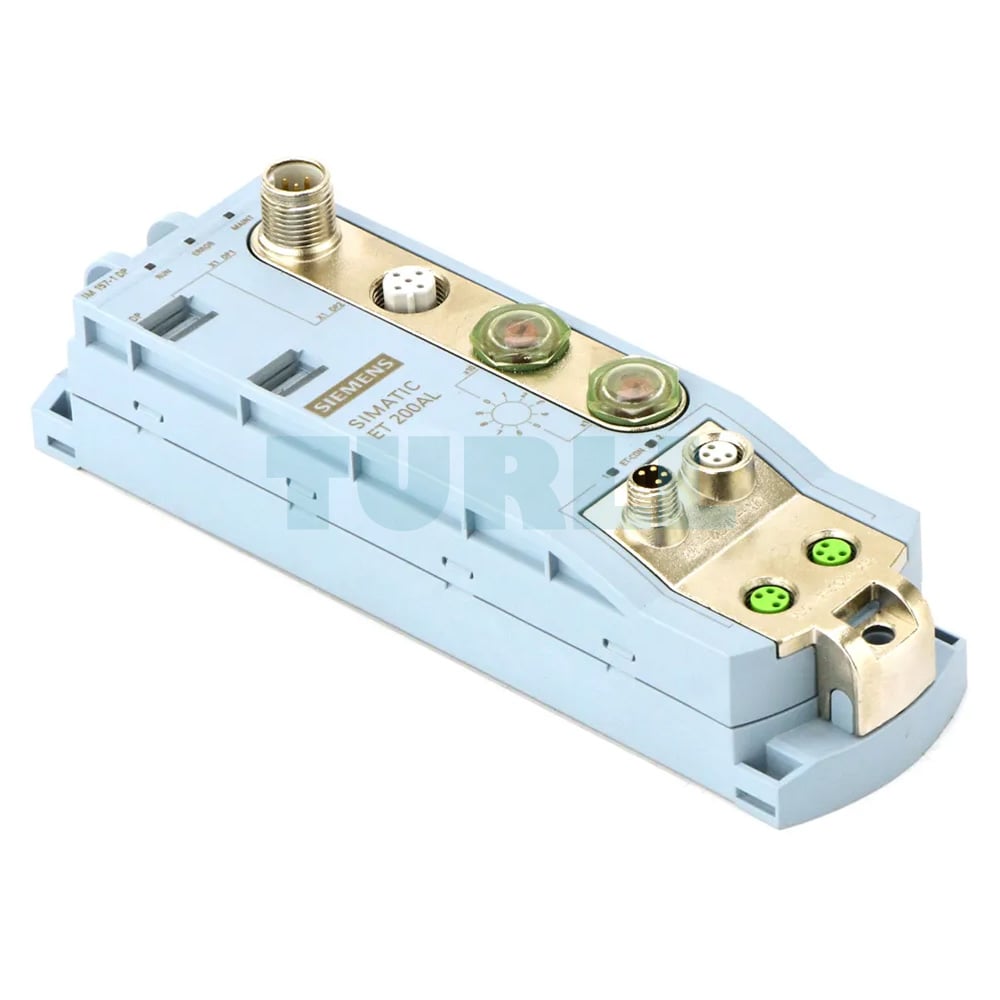

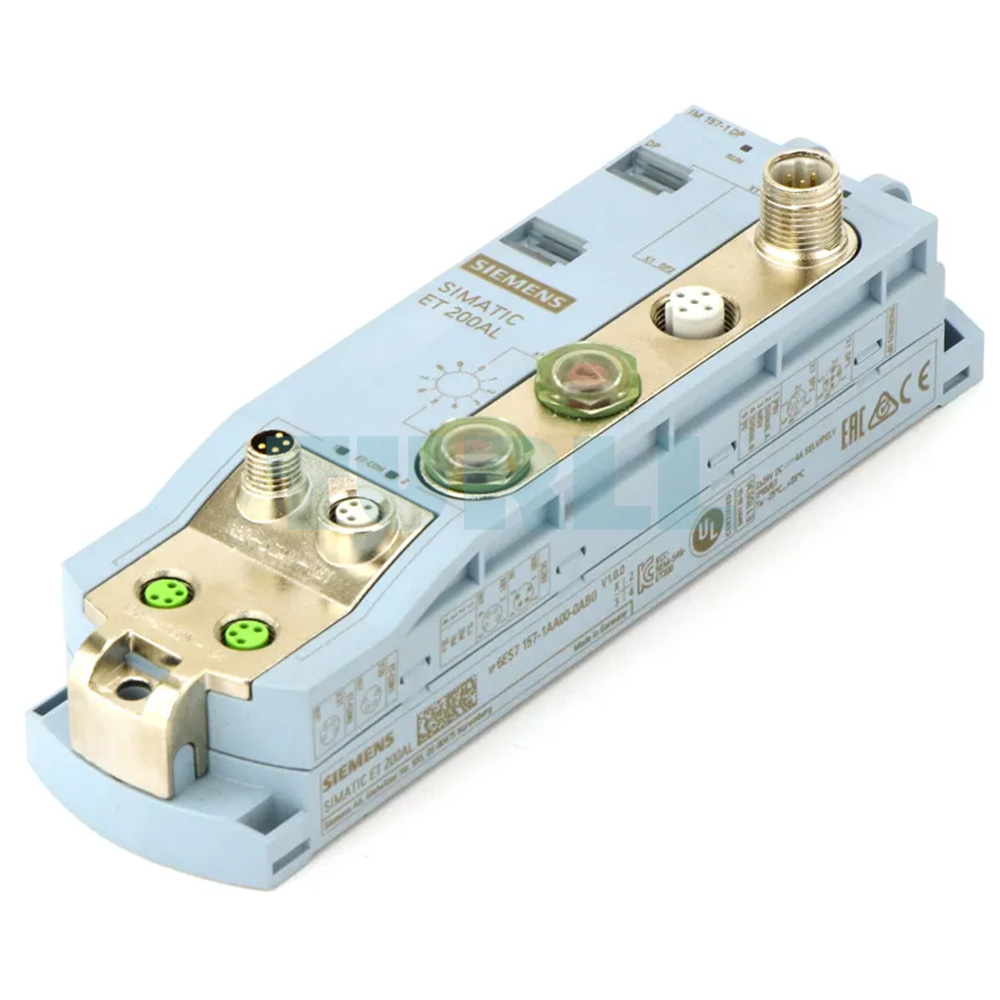

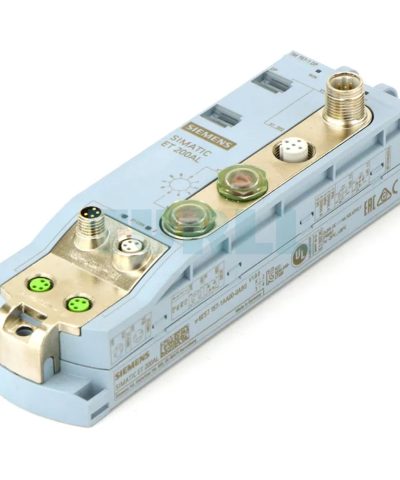

6ES7157-1AA00-0AB0 Siemens SIMATIC ET 200AL Interface Module IM 157-1 DP Original Brand New
$280.76
6ES7157-1AA00-0AB0
Siemens SIMATIC ET 200AL, PROFIBUS interface module IM 157-1 DP, Degree of protection IP67
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
6ES7157-1AA00-0AB0
Siemens SIMATIC ET 200AL, PROFIBUS interface module IM 157-1 DP, Degree of protection IP67
Overview
- Interface module for connecting ET 200AL to PROFIBUS
- As DPV1 slave it handles the data exchange with the PROFIBUS master in the PLC
- Max. 32 I/O modules can be connected
- Max. data volume of 244 bytes, for input and output data respectively
- Automatic detection of baud rate 9.6 kBd … 12 MBd
- PROFIBUS addresses 1 … 99; can be set by means of rotary switch
- Identification and maintenance data IM0 … IM3
- Firmware update
- Configuration management (option handling)
Application
The IM 157-1 DP interface module enables the connection of ET 200AL to PROFIBUS and handles the communication between the I/O modules and the higher-level PROFIBUS master in the PLC autonomously.
Design
The interface module IM 157-1 PN can be mounted in any position on even surfaces or on aluminum mounting rails.

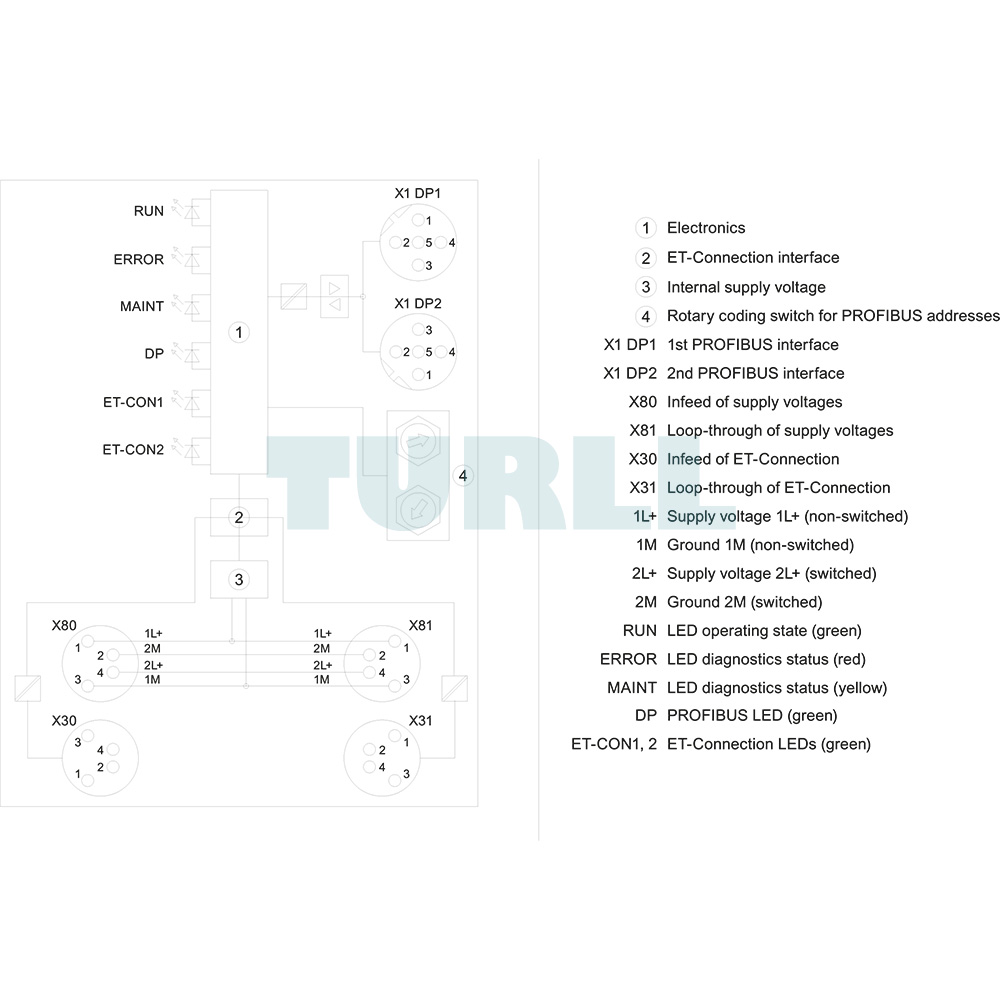

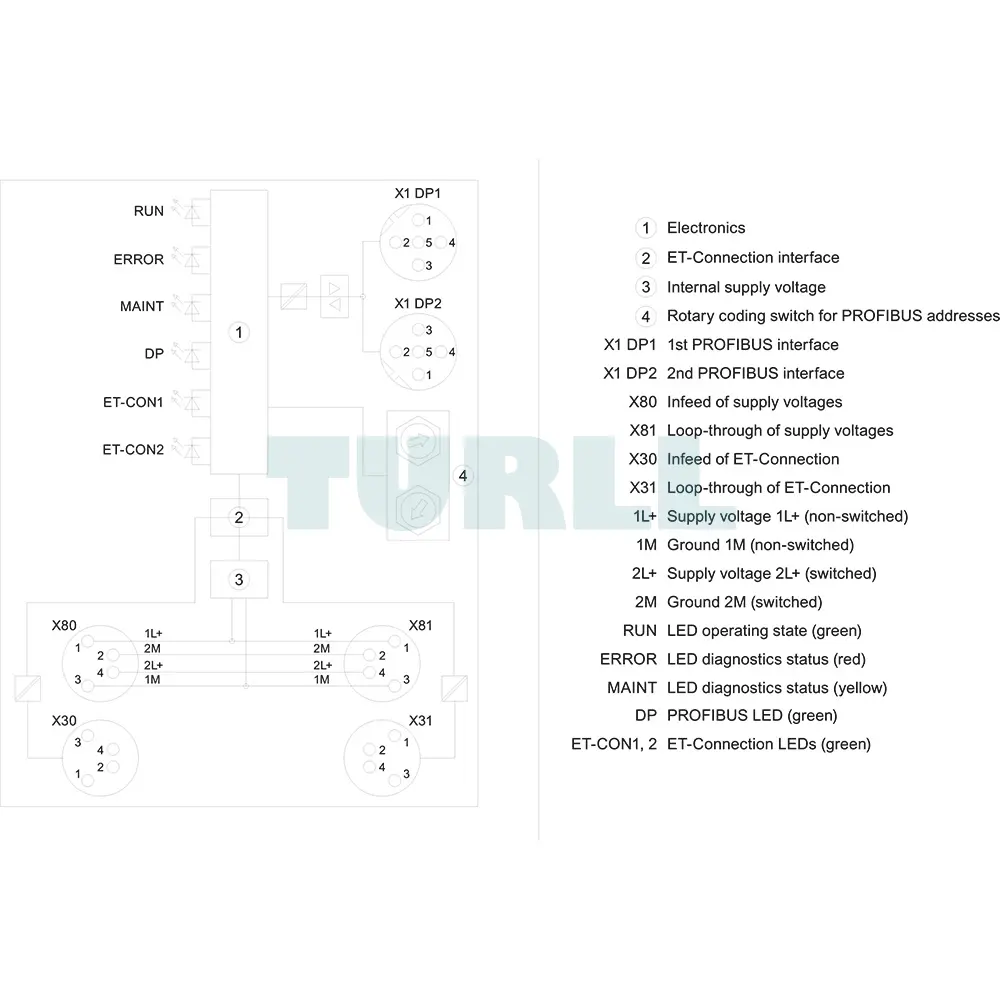

The IM 157-1 DP features the following:
- Two backplane bus outlets (ET connection 1 and 2) for connection of the I/O modules
- A power supply connection with M8 connection technology with forwarding
- Diagnostics displays for operation (RUN), errors (Error), maintenance (MAINT)
- Labels for the identification of interfaces, modules and slots
- Integrated cable tie opening

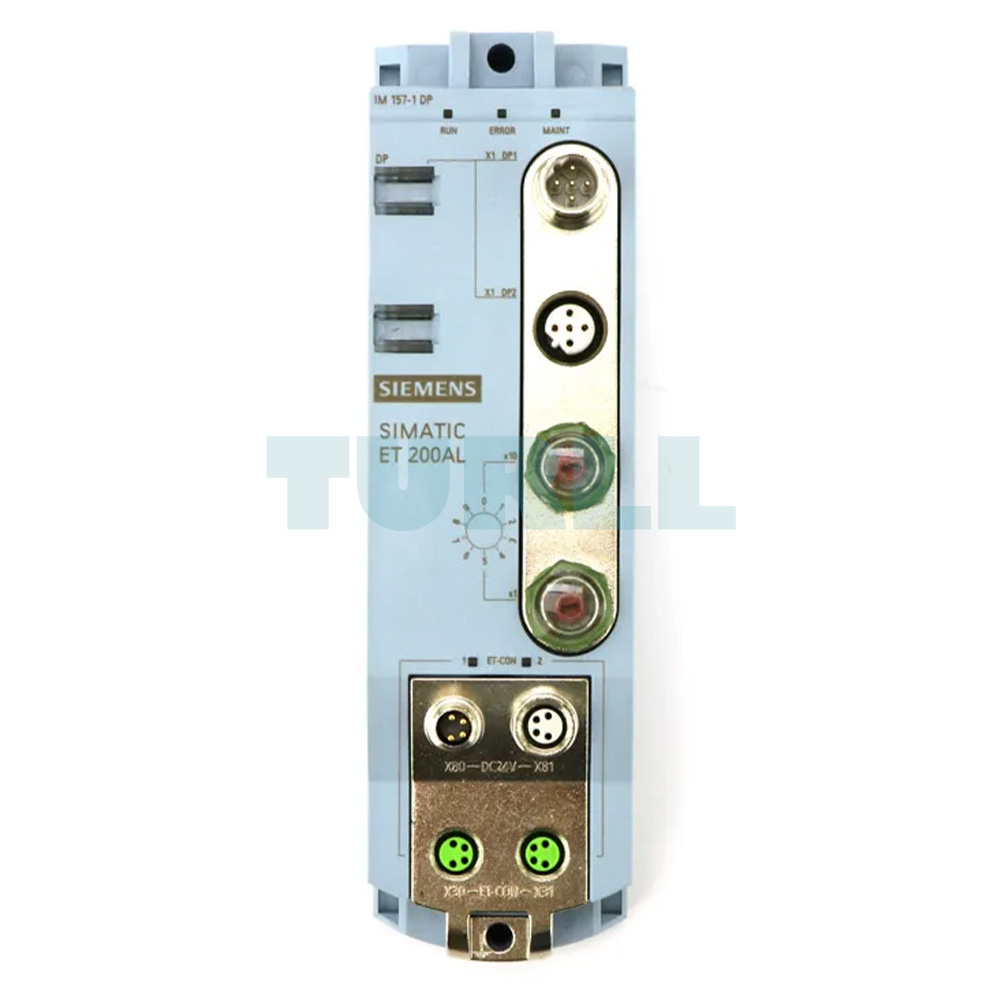

- Clear labeling on front of module:
- Plain text identification of the module type
- Interface designation
- LED label

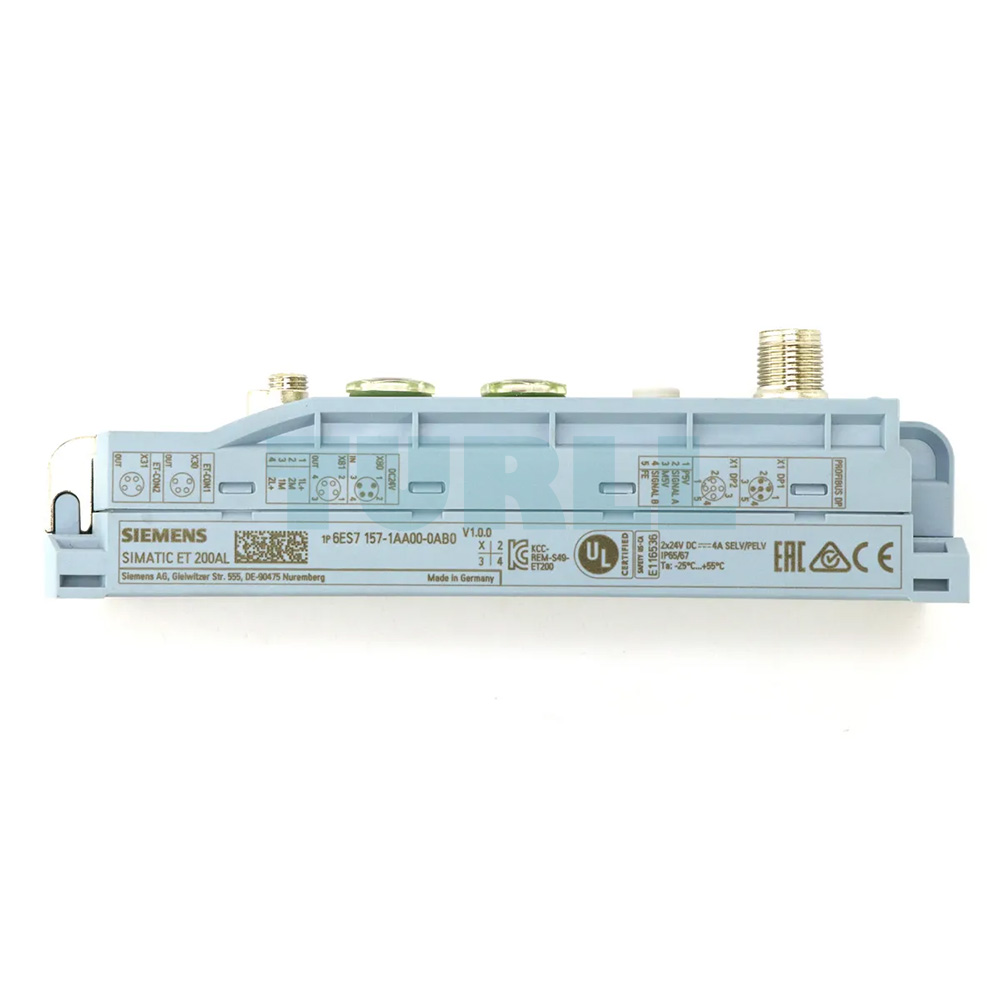

- Clear labeling on side of module:
- Article number, functional status and FW version
- 2D matrix code (article and serial number)
- Pin assignment of all interfaces
Download
Visit 6ES7157-1AA00-0AB0
For more our products visit turll.com
| Weight | 0.246 kg |
|---|---|

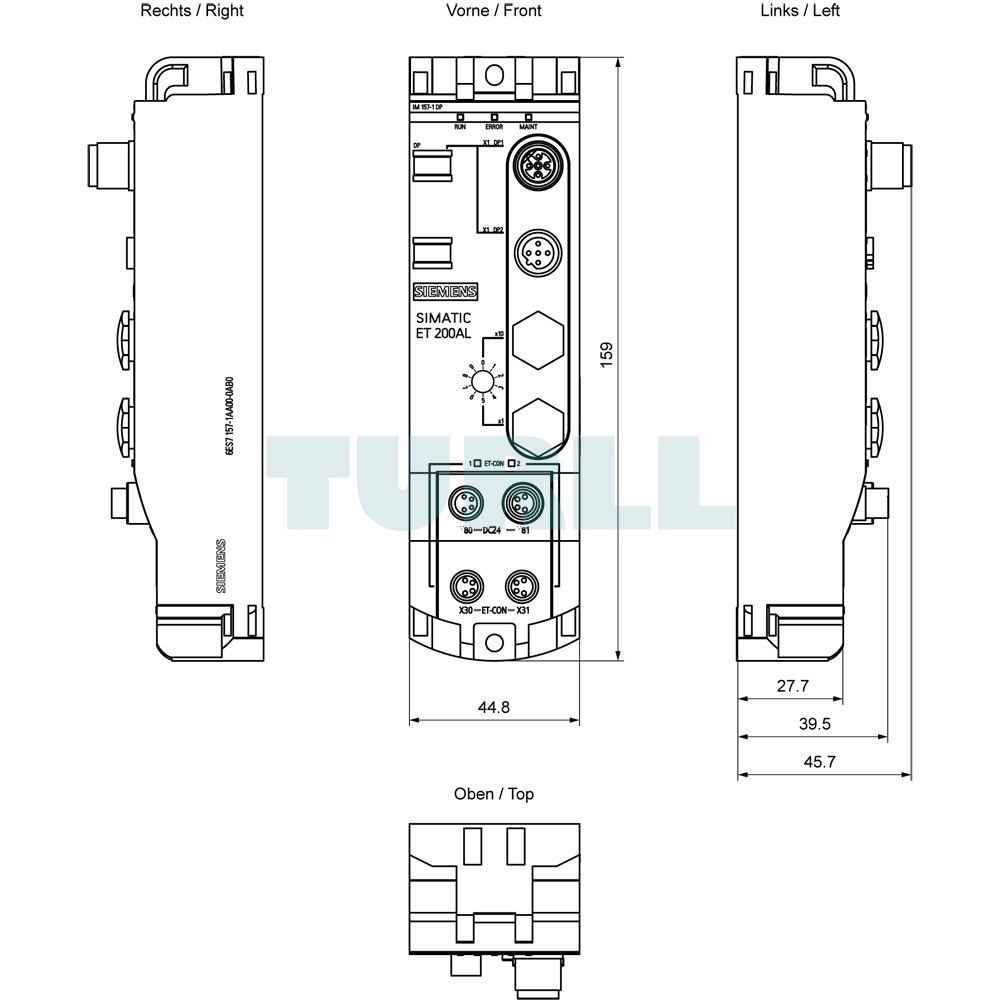

| Dimensions | 57.00 × 179.00 × 53.00 mm |
