6ES7193-6AG50-0AA0 Siemens SIMATIC Bus Adapter BA 2xLC-LD Original Brand New
$448.03

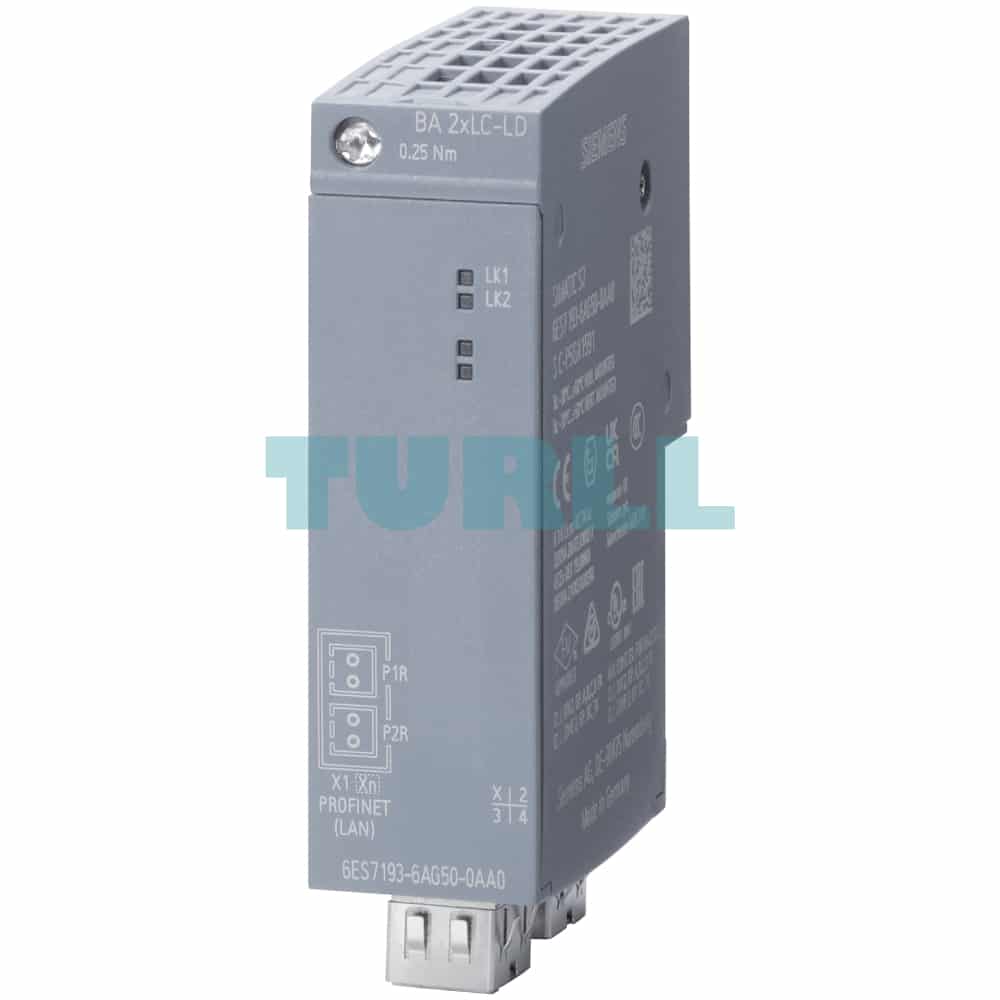

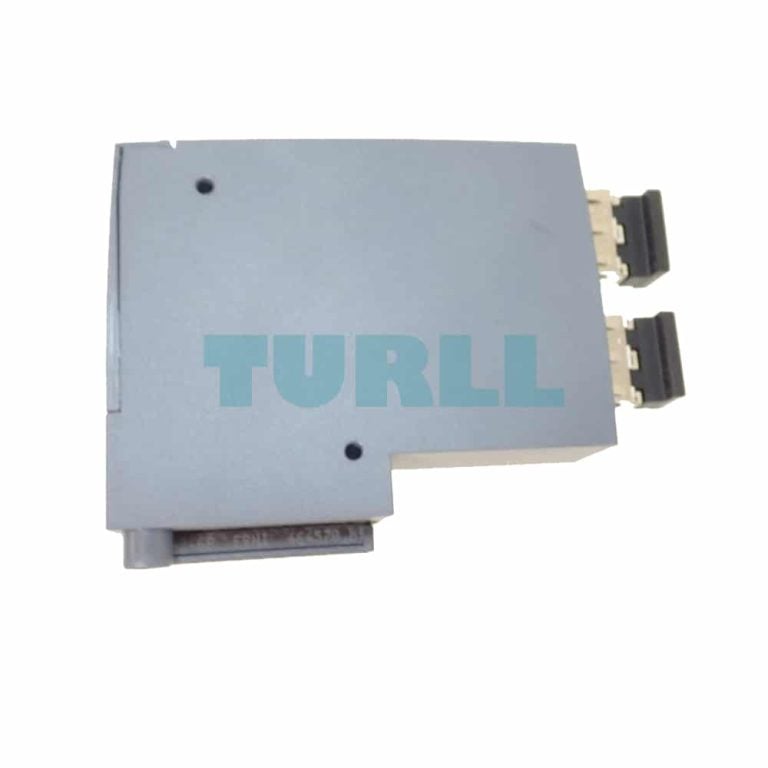

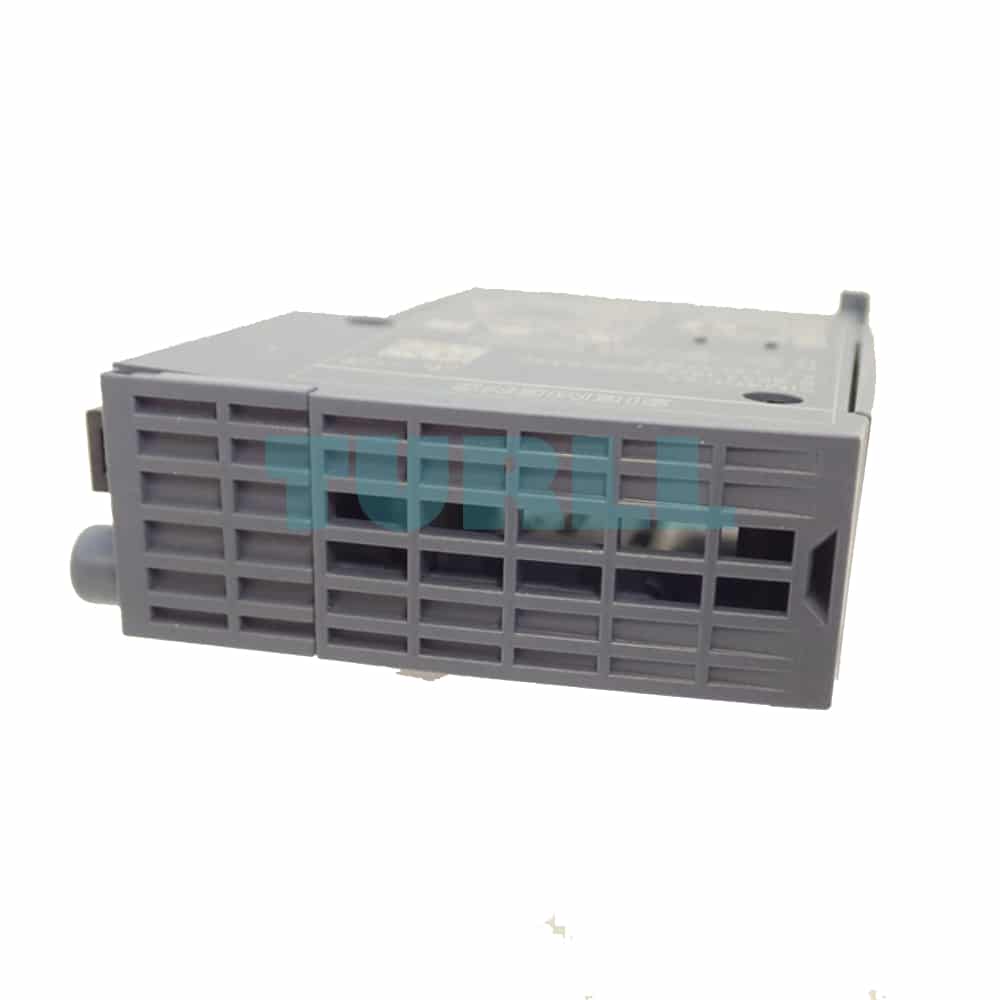

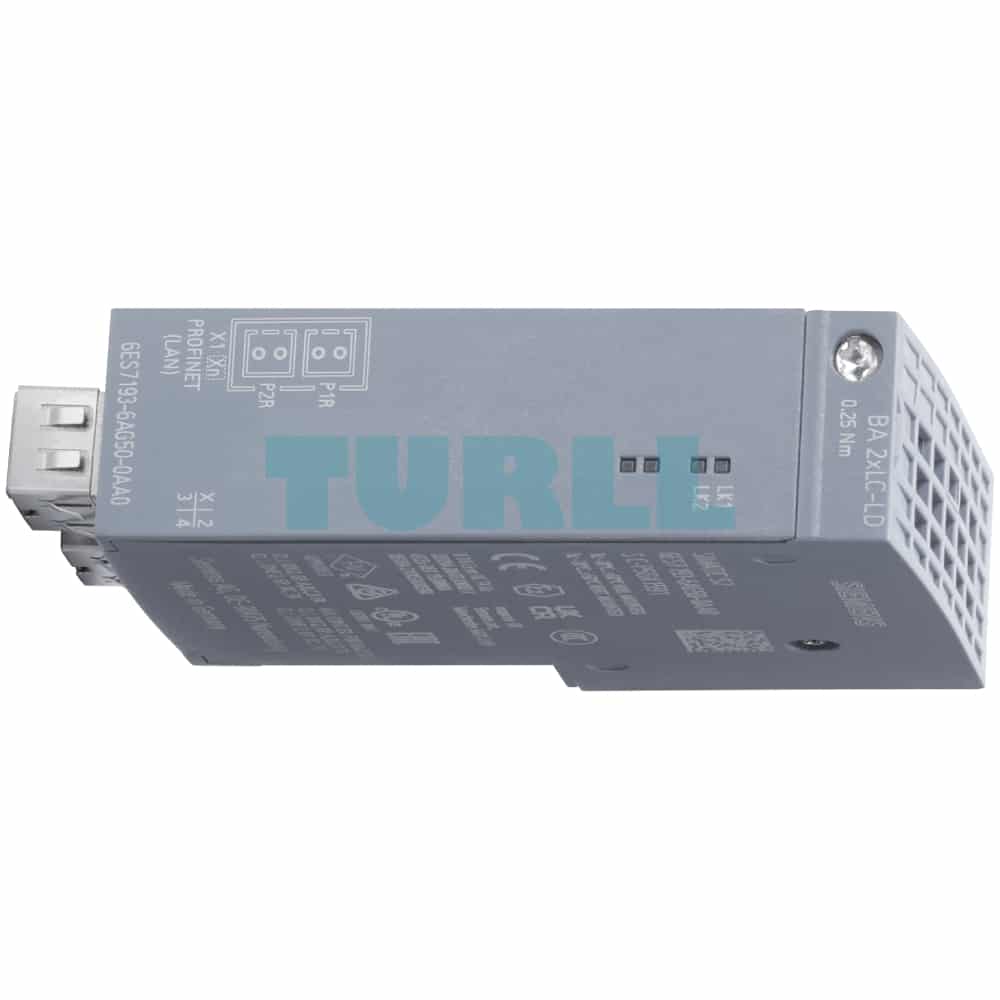

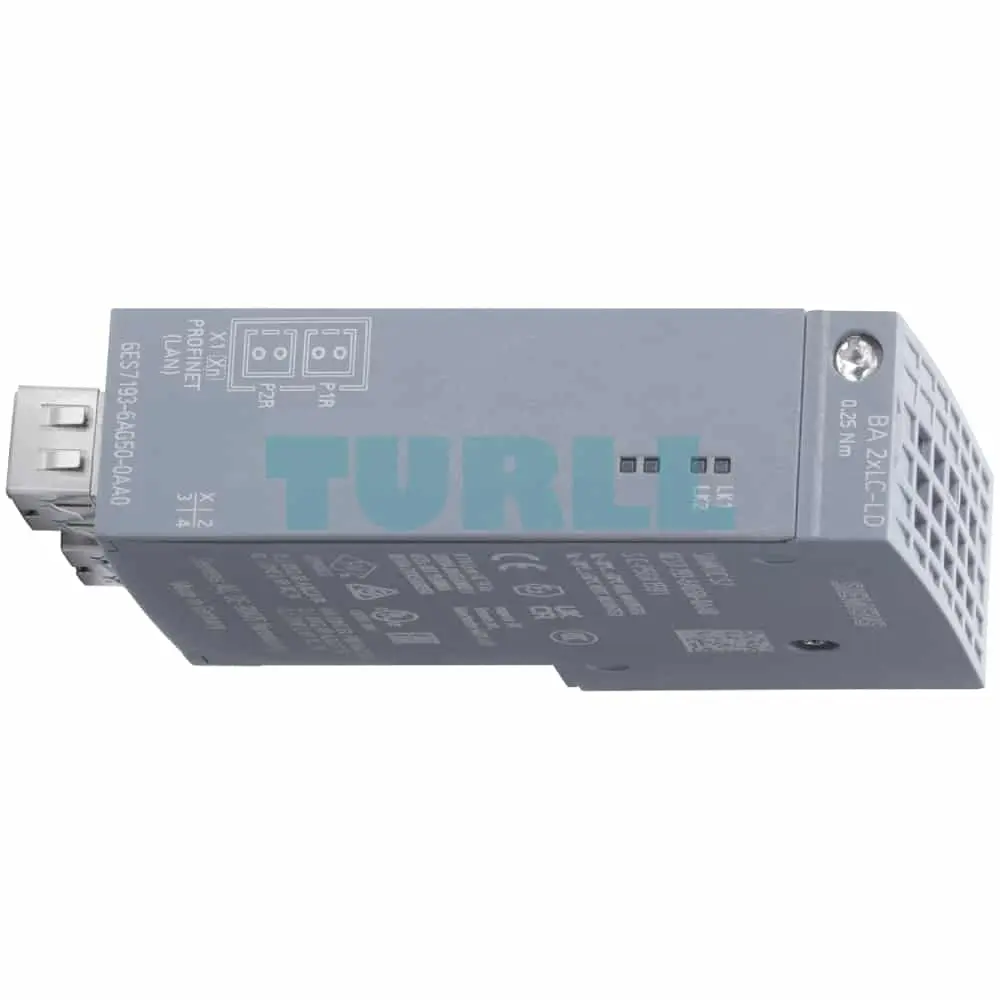

6ES7193-6AG50-0AA0
Siemens SIMATIC BusAdapter BA 2xLC-LD 2x LC-LD port, for single-mode fiber-optic cable, up to 20 km
[ez-toc]
Overview
For SIMATIC ET 200SP, two types of BusAdapter (BA) are available for selection:
- ET 200SP “BA-Send” BusAdapter
for expansion of an ET 200SP station with up to 16 modules from the ET 200AL I/O series with IP67 protection via an ET connection - SIMATIC BusAdapter
for the free selection of the connection system (pluggable or direct connection) and physical PROFINET connection (copper, POF, HCS or glass fiber) to devices with a SIMATIC BusAdapter interface.
One further advantage of the SIMATIC BusAdapter: only the adapter needs to be replaced for subsequent conversion to the rugged FastConnect technology or a fiber-optic connection, or to repair defective RJ45 sockets.
Application
ET 200SP BusAdapter “BA-Send”
BA-Send BusAdapters are used whenever an existing ET 200SP station is to be expanded with IP67 modules of the SIMATIC ET 200AL.
The SIMATIC ET 200AL is a distributed I/O device with degree of protection IP65/67 that is easy to operate and install. Due to its high degree of protection and ruggedness as well as its small dimensions and low weight, the ET 200AL is especially suitable for use at the machine and on moving plant sections. SIMATIC ET 200AL enables the user to access digital and analog signals and IO-Link data at low cost.
SIMATIC BusAdapters
In standard applications with moderate mechanical and EMC loads, SIMATIC BusAdapters with an RJ45 interface can be used, e.g. the BusAdapter BA 2xRJ45.
For machines and systems in which higher mechanical and/or EMC loads act on the devices, a SIMATIC BusAdapter with connection via FastConnect (FC) or FO cable (SCRJ, LC, or LC-LD) is recommended. Likewise, all SIMATIC BusAdapters with a fiber-optic cable connection (SCRJ, LC) can be used with the increased loads.
BusAdapters with connections for fiber-optic cables can be used to cover high potential differences between two stations and/or high EMC loads.
Design
ET 200SP “BA-Send” BusAdapter
- Inserted immediately next to the head-end station on a “BU-Send” BaseUnit
- Can be used on interface modules in “Standard” function class or above
- Can be used on CPU 1510SP (F) and CPU 1512SP (F), as well as Open Controller 1515SP
SIMATIC BusAdapters
- Are plugged onto the device with SIMATIC BusAdapter interface and can be equipped with an equipment labeling plate for identification of the equipment.
- BusAdapters with a copper interface can be used on all devices with a SIMATIC BusAdapter interface.
- BusAdapter with FOC interface can be used on selected devices with SIMATIC BusAdapter interface
(e.g. ET 200SP interface modules with High Feature function class or above, CPU 1512SP (F), etc.)
Versions with two PN copper interfaces (RJ45, M12 or FastConnect (FC))
- BA 2xRJ45 with two RJ45 sockets
- BA 2xM12 with two M12 push-pull sockets
- BA 2xFC with two FastConnect connections
Versions with one or two PN fiber-optic cable (FOC) connections
- BA 2xSCRJ with two SCRJ sockets
- BA SCRJ/RJ45 with one SCRJ and one RJ45 socket (media converter)
- BA SCRJ/FC with one SCRJ socket and one FastConnect connection (media converter)
- BA 2xLC with two LC (Lucent Connector) sockets
- BA LC/RJ45 with one LC and one RJ45 socket (media converter)
- BA LC/FC with one LC socket and one FastConnect connection (media converter)
- BA 2xLC-LD with two LC-LD sockets (Lucent Connector Long Distance)
- BA LC-LD/RJ45 with one LC-LD and one RJ45 socket (media converter)
- BA LC-LD/M12 with one LC-LD and one M12 socket (media converter)
Assembly
FastConnect (FC)
Using the FastConnect stripping tool, the protective jacket and braided shielding can be quickly and conveniently removed from Industrial Ethernet FastConnect cables in one simple operation. The detached PN bus cable is connected directly to the FC connector by means of the FastConnect terminals – in a similar way to the PROFIBUS connector, tried and tested in millions of applications. It is then only necessary to close the cover and lock it with the slider (no tools required).
RJ45
In principle, all industry standard RJ45 Ethernet connectors can be used here. If the PN cable is to be assembled on site, the FastConnect stripping tool can also be used here in connection with the “Industrial Ethernet FastConnect RJ45 plug 180” connector.
E connecting cable M12-180/M12-180
Preassembled with IE FC trailing cable GP 2×2, with two M12 push-pull connectors (D-coded).
The cables tested in the factory permit fast and fault-free mounting on the M12 BusAdapter. The push-pull mechanism reduces the mounting time and ensures a constant connection between the cable and the BusAdapter in the M12 socket by simple engagement.
SCRJ
POF and PCF fiber-optic cables can be assembled easily on site using the PROFINET-compatible SC RJ connectors. The SC RJ connector used for both cable versions is a connector that secures the fibers and the strain relief elements by means of a clamping mechanism in the connector (screwed).
POF cables
With the aid of the IE termination kit SC RJ POF plug, cable lengths specific to the plant requirements can be assembled quickly and easily using the “SC RJ POF plug”. In the case of the POF cables, the fibers protruding at the connector are trimmed to length with side cutters and then polished.
PCF cables
With the aid of the IE termination kit SC RJ PCF plug, cable lengths specific to the plant requirements can be assembled quickly and easily using the “SC RJ POF plug”. In the case of the PCF cables, the fibers protruding from the connector are broken with a special tool after fixing in the connector.
LC
LC connectors are extremely compact next-generation “small form factor” (SFF) connectors. The connector is available in a full duplex version and is interlocked by means of the push/pull system.
With the aid of the FC FO termination kit (LC), cable lengths specific to the plant requirements can be assembled quickly and easily using the “FC FO LC plug” LC connector. No specially trained personnel or expensive tools are necessary.
Alternatively, preassembled fiber-optic cables are offered.
6ES7193-6AG50-0AA0
Siemens SIMATIC BusAdapter BA 2xLC-LD 2x LC-LD port, for single-mode fiber-optic cable, up to 20 km
Visit 6ES7193-6AG50-0AA0
For more our products visit turll.com
| Weight | 0.078 kg |
|---|---|
| Dimensions | 65.00 × 77.00 × 23.00 mm |
