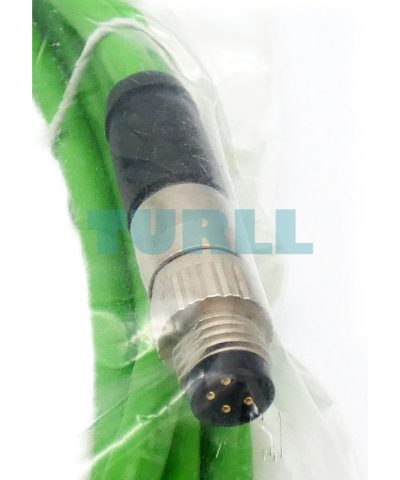

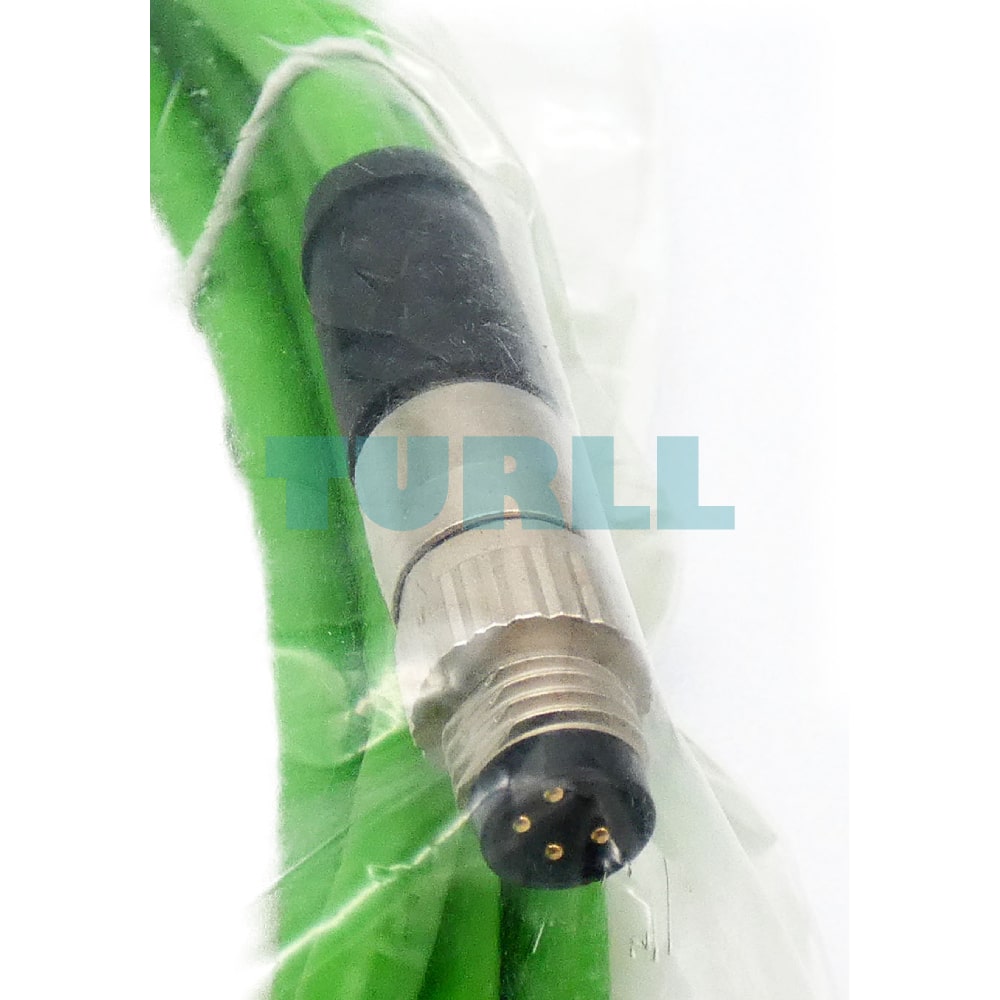

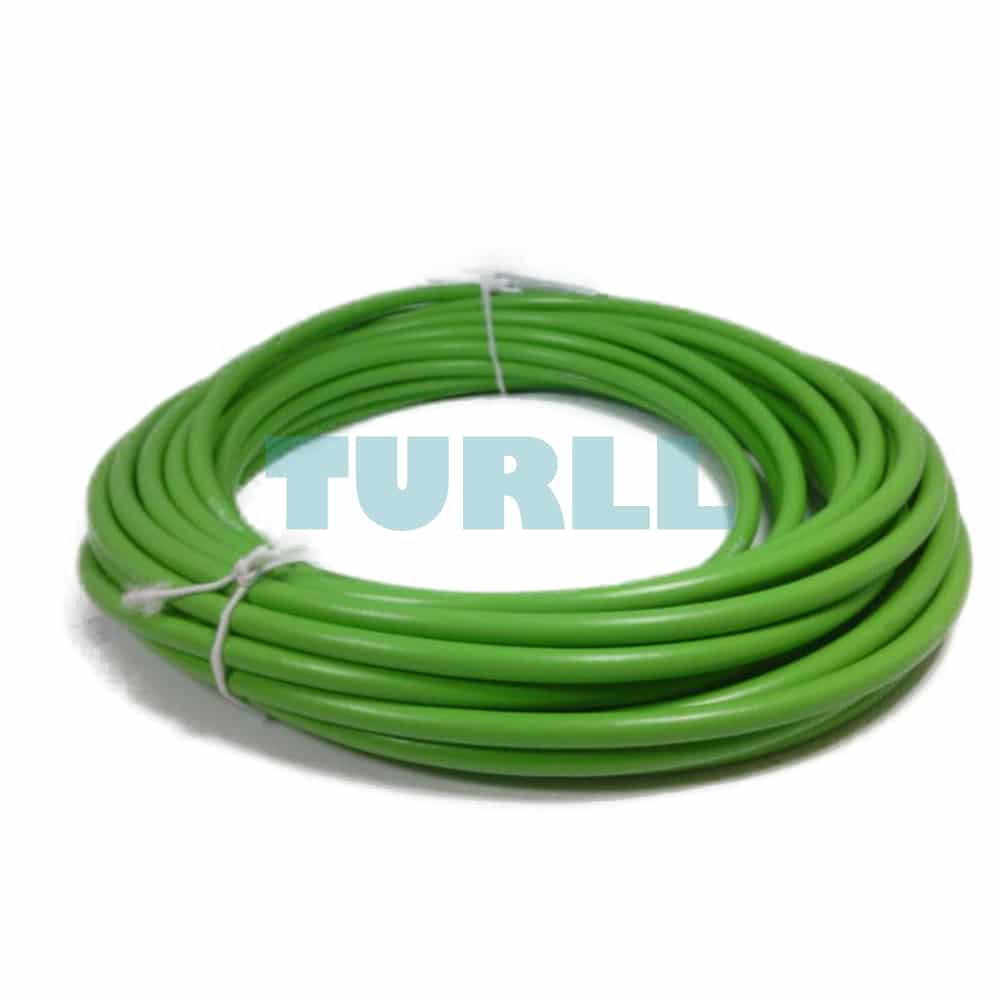

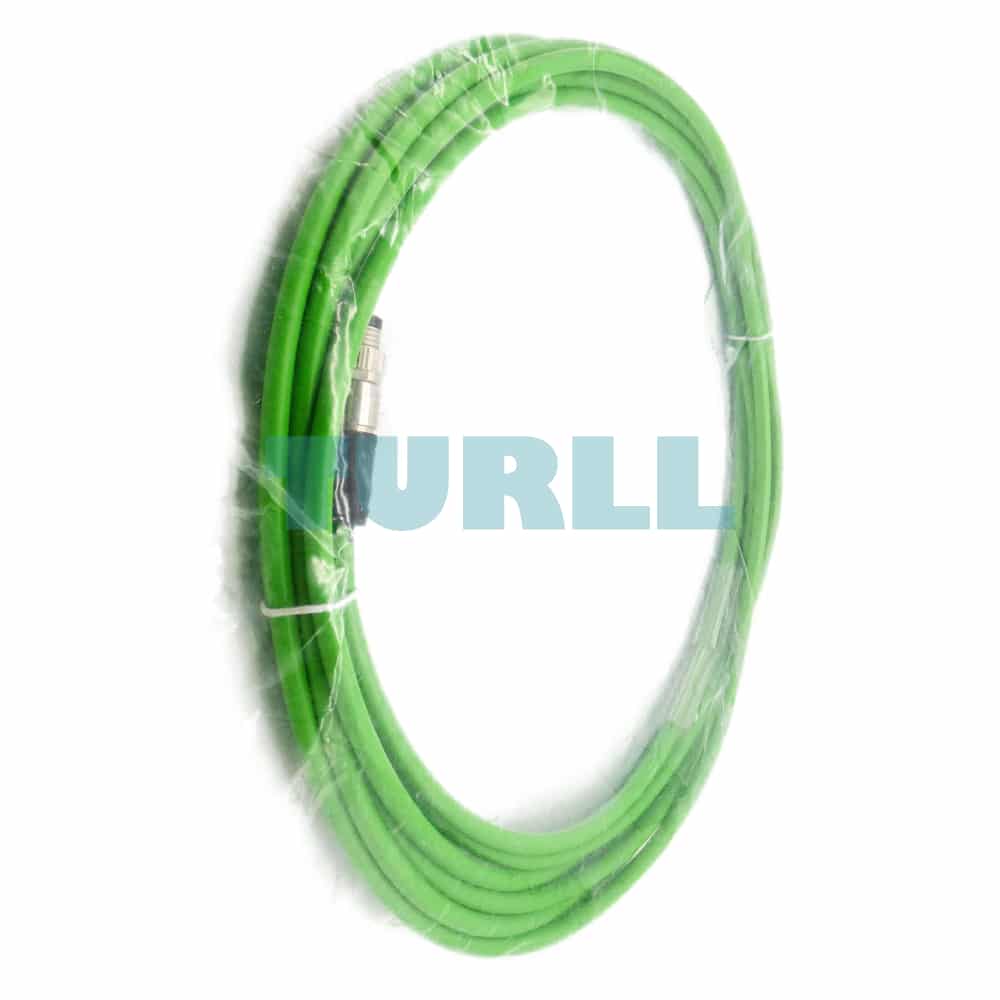

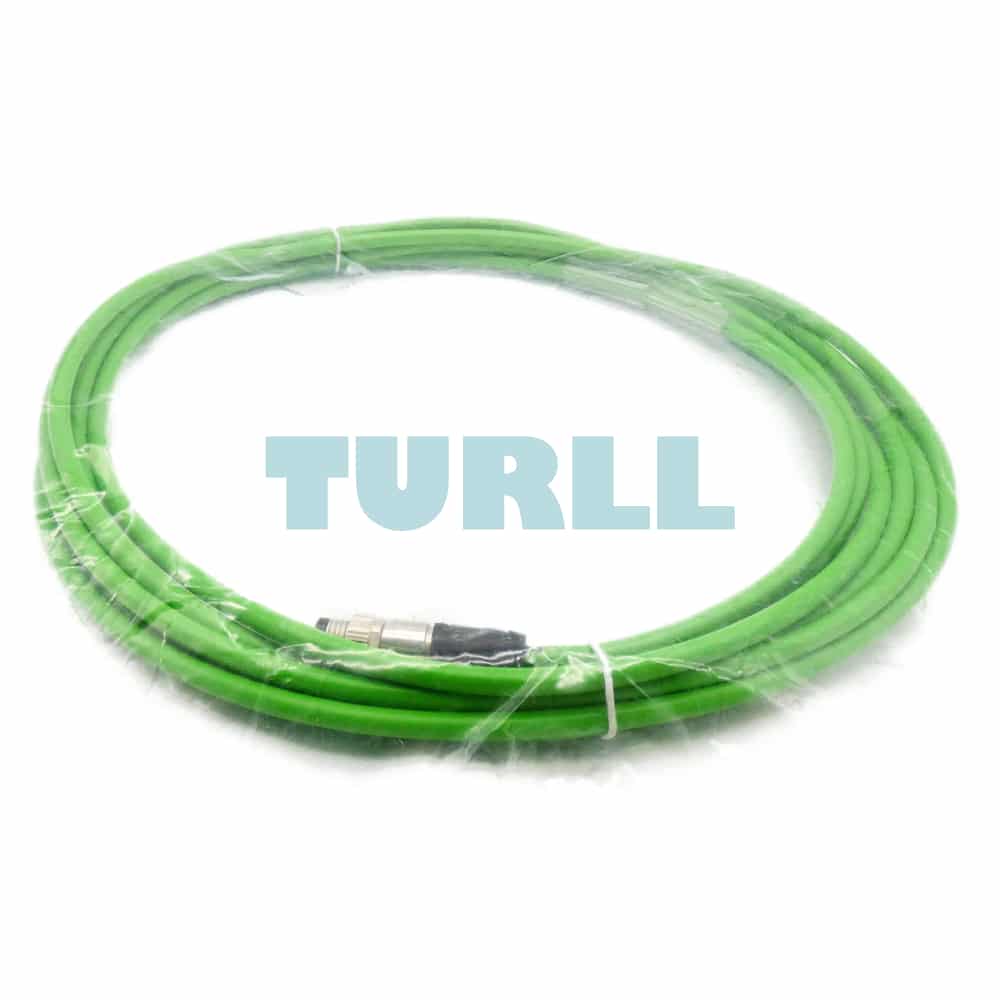

6ES7194-2MN15-0AC0 Siemens Bus Cable for ET Connection M8 Original Brand New
Model / SKU6ES7194-2MN15-0AC0
6ES7194-2MN15-0AC0
Siemens bus cable for ET connection M8, PUR cable Pre-assembled at one end with 1x M8 connector, 4-pole, shielded Length 15 m
$184.62
Out of stockSubject to sourcing — request a quote
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
[ez-toc]
Overview
- Pre-assembled cables in various designs and lengths:
- For connecting the interface modules and I/O modules via the internal backplane bus (ET connection).
- For power supply.
Design
The following cable and connector versions are available:
- Bus cable for ET connection M8, pre-assembled at both ends with 2 x M8 connectors, 4-pin, shielded; lengths of 0.19 m, 0.3 m, 1 m, 2 m, 5 m, 10 m and 15 m available
- Bus cable for ET connection M8, pre-assembled at both ends with 2 x angled M8 connectors, 4-pin, shielded; lengths of 0.3 m, 1 m, 2 m, 5 m, 10 m and 15 m available
- Bus cable for ET connection M8, pre-assembled at one end with 1 x M8 connector, 4-pin, shielded; lengths of 2 m, 5 m, 10 m and 15 m available
- M8 connector for ET connection, 4-pin, shielded
- ET connection FastConnect stripping tool, for fast stripping of the ET connection bus cable
- Power cable M8, pre-assembled at both ends with M8 connector and M8 socket, 4-pin; lengths of 0.19, 0.3 m, 1 m, 2 m, 5 m, 10 m and 15 m available
- Power cable M8, pre-assembled at both ends with angled M8 connector and angled M8 socket, 4-pin; lengths of 0.3 m, 1 m, 2 m, 5 m, 10 m and 15 m available
- Power cable M8, pre-assembled at one end with M8 socket, 4-pin; lengths of 2 m, 5 m, 10 m and 15 m available
- M8 power connector, male contact insert, 4-pin
- M8 power connector, female contact insert, 4-pin
6ES7194-2MN15-0AC0
Siemens bus cable for ET connection M8, PUR cable Pre-assembled at one end with 1x M8 connector, 4-pole, shielded Length 15 m
Visit 6ES7194-2MN15-0AC0
For more our products visit turll.com
Specifications
| SKU / Model | 6ES7194-2MN15-0AC0 |
|---|---|
| Weight | 0.521 kg |
| Dimensions | 233.00 × 332.00 × 47.00 mm |
