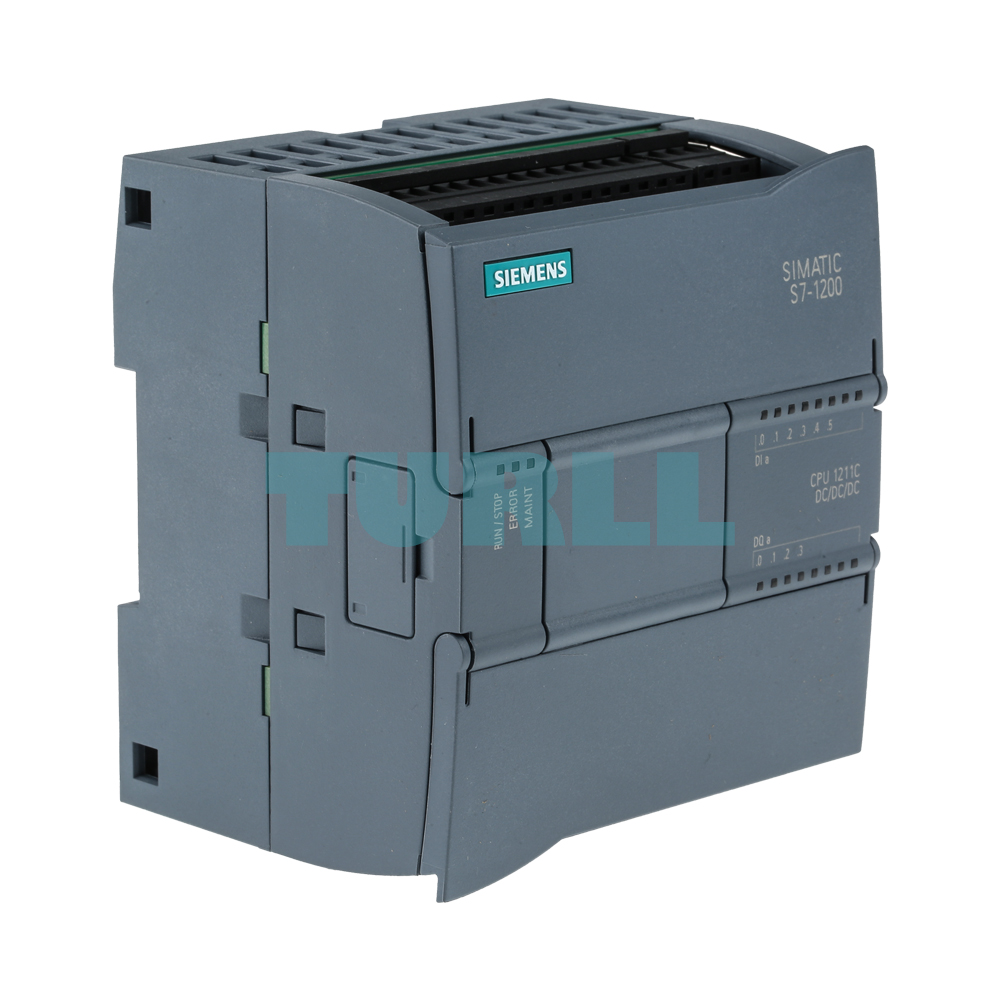

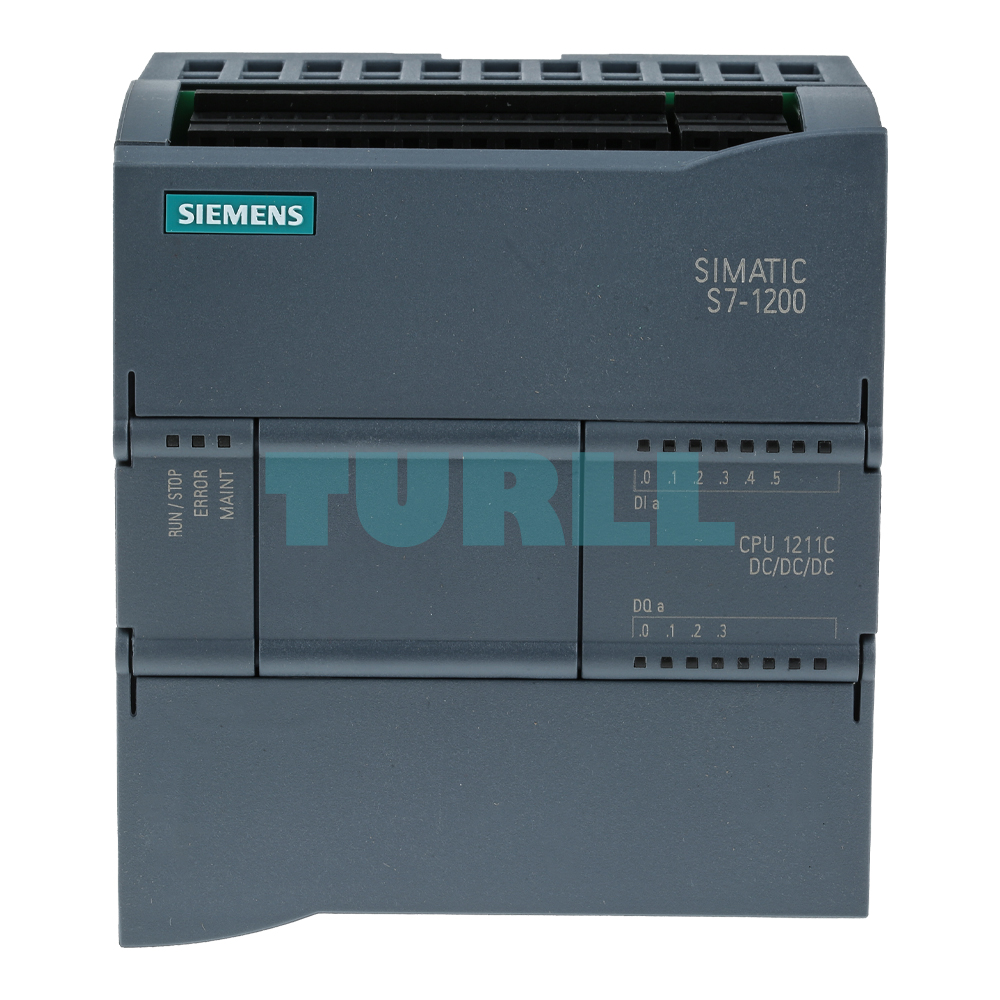

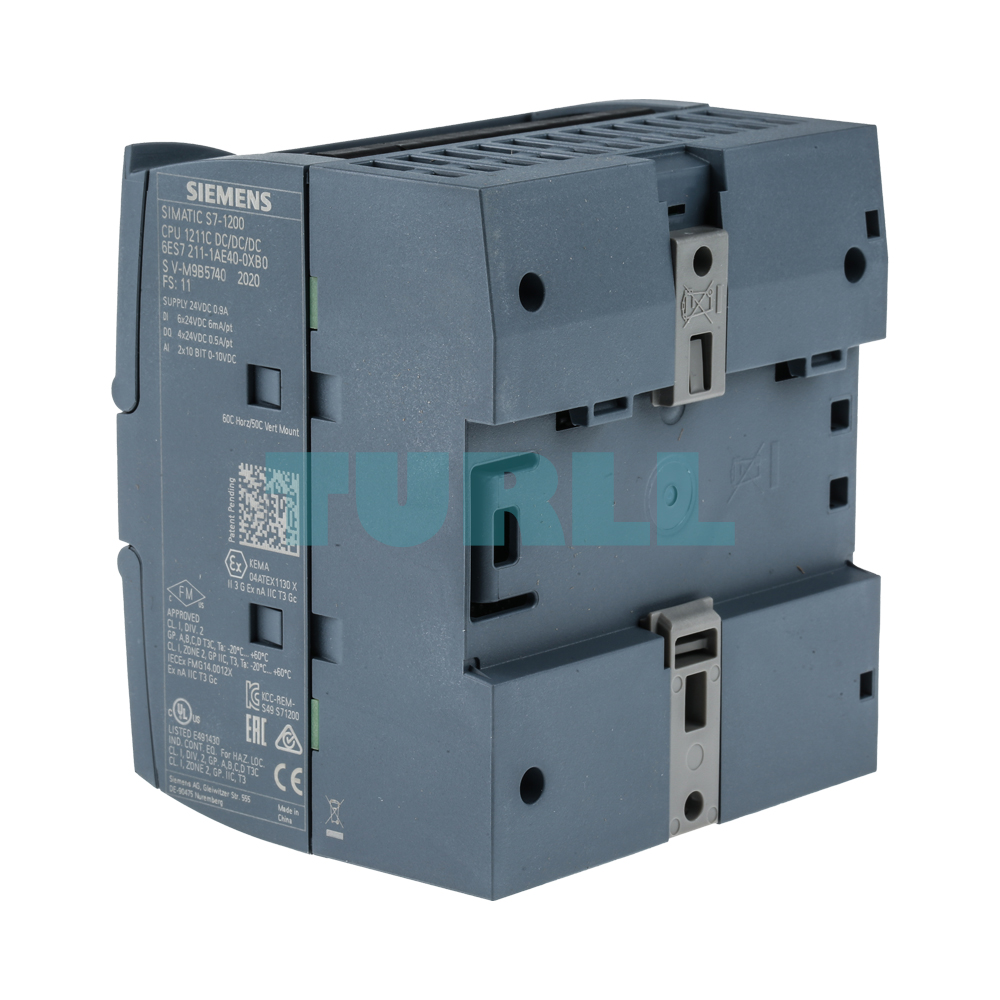

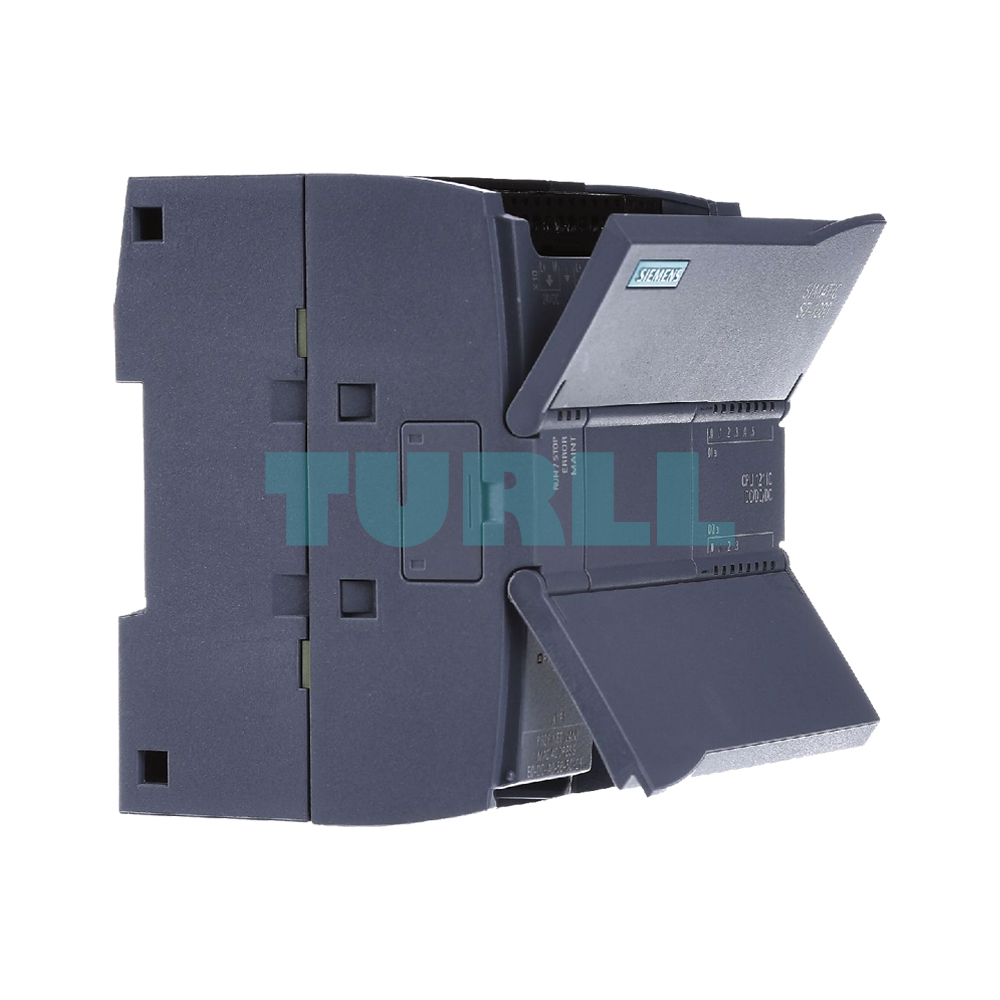

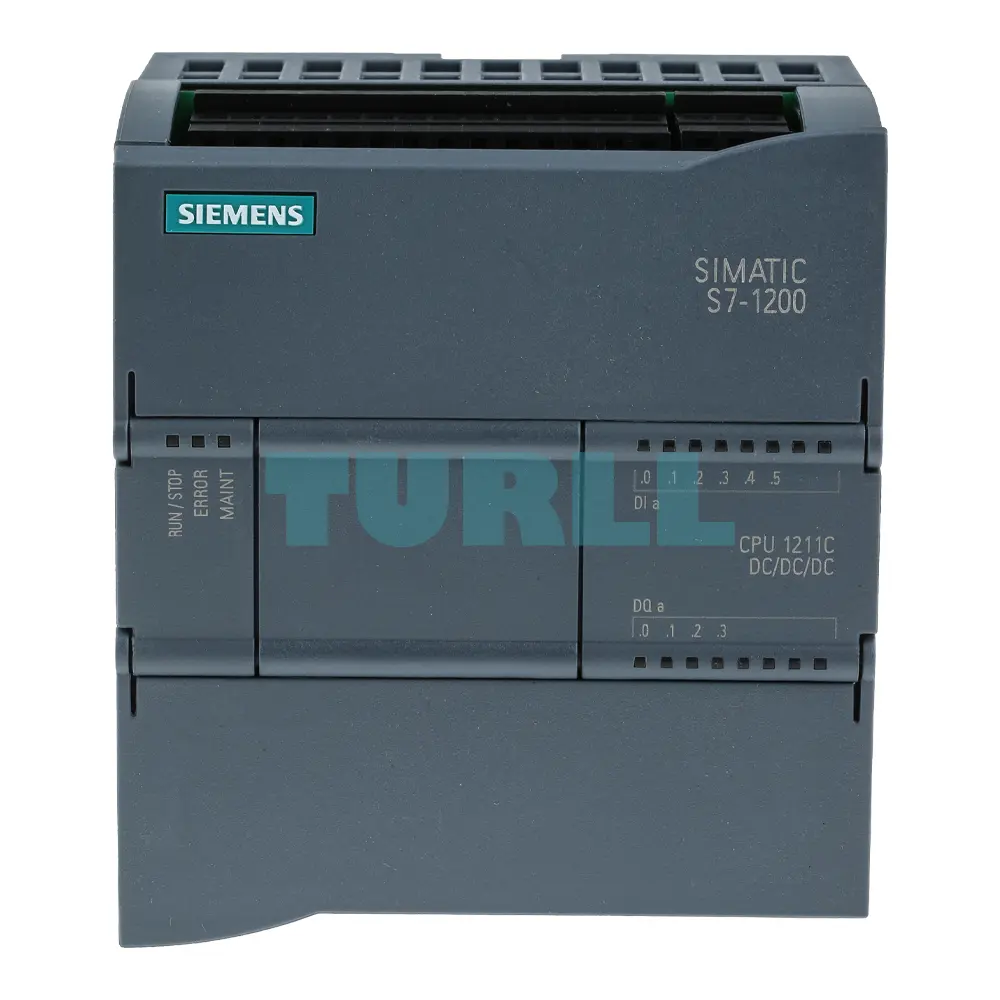

6ES7211-1AE40-0XB0 SIEMENS Exclusive Compact CPU Original Brand New
$165.22
A compact and efficient SIEMENS S7-1200 CPU with integrated digital and analog I/O, designed for flexible automation tasks and expandable communication options.
6ES7211-1AE40-0XB0 SIEMENS Exclusive Compact CPU Original Brand New
The 6ES7211-1AE40-0XB0 SIEMENS CPU is a versatile and compact controller from the SIMATIC S7-1200 family, built for flexible automation tasks that require reliability, efficiency, and straightforward integration. Designed as the CPU 1211C DC/DC/DC variant, it offers a combination of digital and analog onboard I/O, making it a suitable entry-level solution for a wide range of machine and process applications. With its optimized engineering workflow and high operational stability, this controller supports streamlined automation development while maintaining consistent performance across diverse environments.

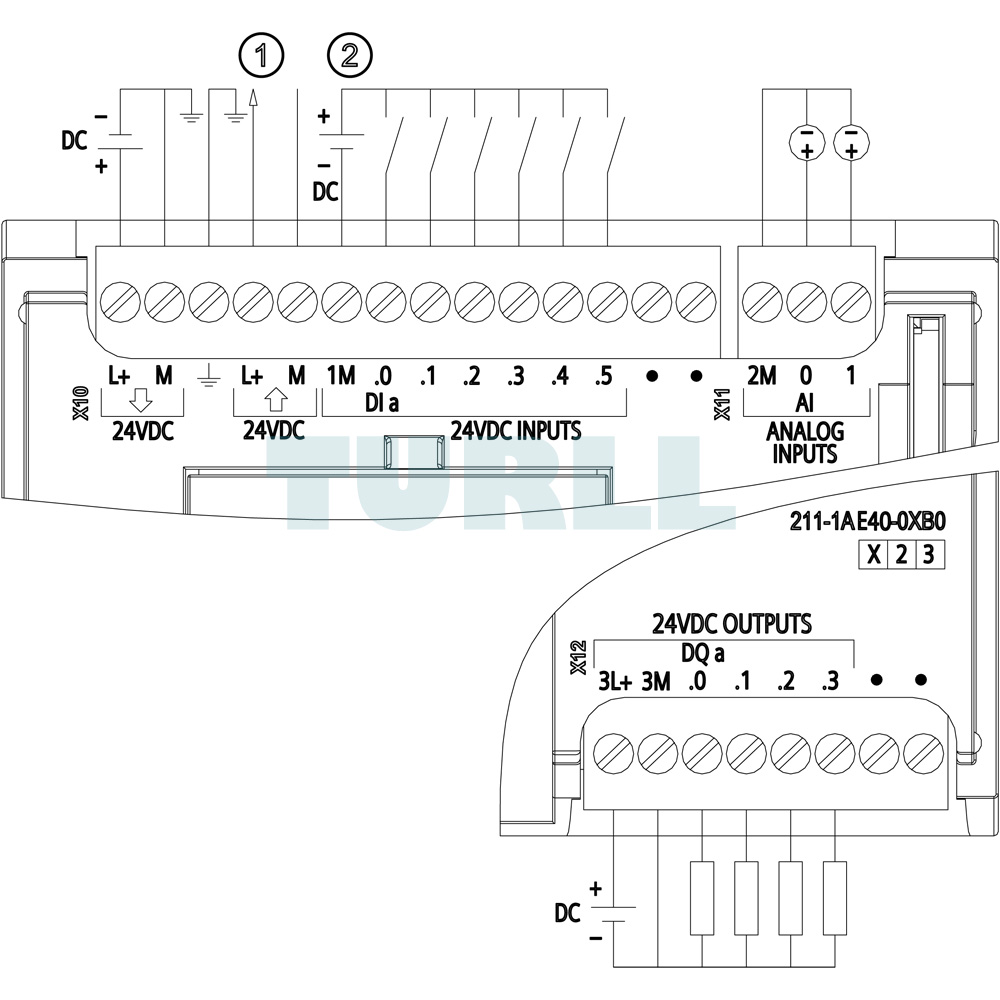

The onboard configuration includes 6 digital inputs, 4 digital outputs, and 2 analog inputs, allowing essential process signals to be directly connected without additional modules. The wide input voltage tolerance enhances reliability in environments where power fluctuation may occur. Its integrated memory of 75 KB provides sufficient capacity for structured programs, modular logic, and efficient project scaling, making it suitable for both compact and moderately complex applications.
This CPU supports expansion by adding signal boards, communication boards, or communication modules, enabling users to enhance functionality without increasing installation space. It is well-suited for systems requiring incremental encoder feedback, fast counters, or high-speed PWM control, as the unit features PWM outputs and six fast counters operating up to 100 kHz. Removable terminals simplify wiring and maintenance, making the controller practical for field use.
Overview
The 6ES7211-1AE40-0XB0 is an excellent choice for introducing automation with the S7 platform. It supports one expansion board as well as up to three communication modules, providing flexibility for projects that require scalable communication or signal integration. This allows the controller to serve both simple and evolving automation tasks efficiently.
Design
- PWM outputs capable of operating at up to 100 kHz
- Six high-speed counters suitable for encoder and counting applications
- Expandable communication interfaces, including RS232 or RS485
- Support for digital or analog signal boards while maintaining the same footprint

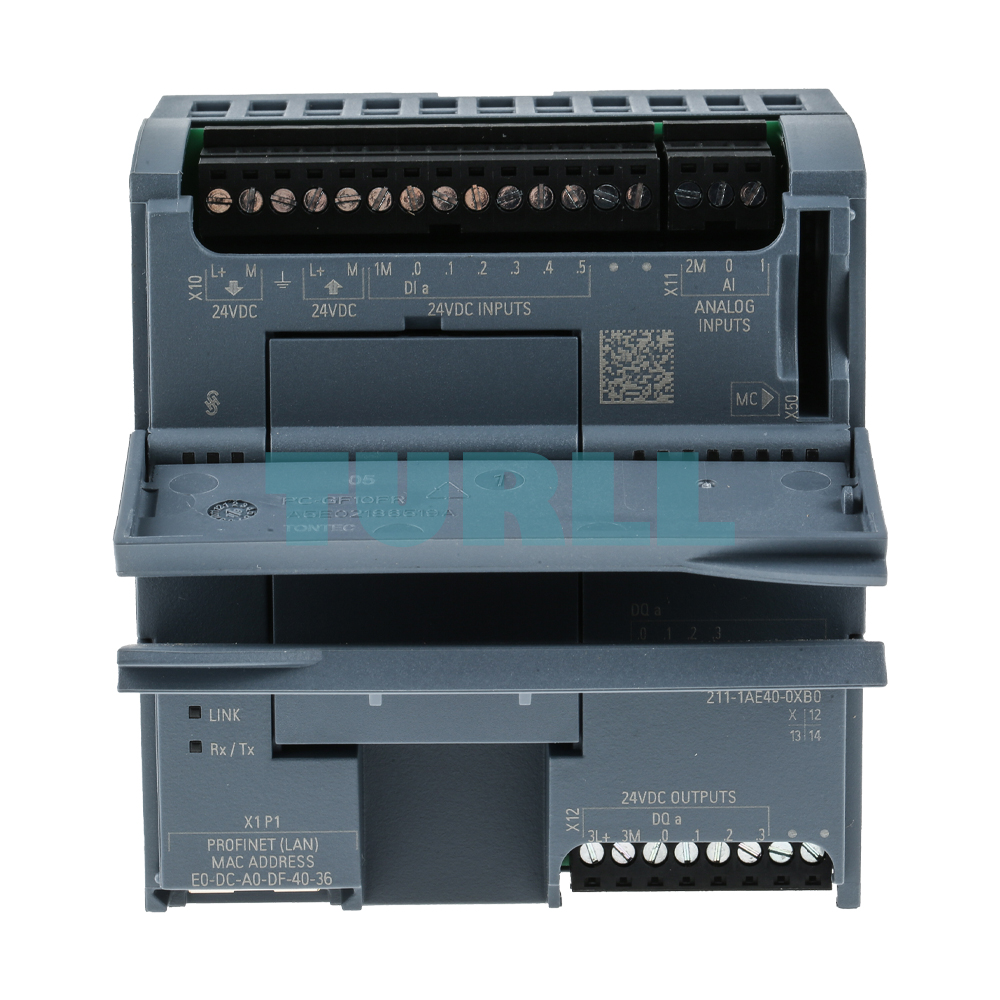

- Removable terminals for simplified wiring and servicing
- Optional simulator for testing signals and program logic
Programming
Programming is performed using the STEP 7 Basic engineering package, which enables complete configuration, monitoring, and commissioning of all S7-1200 controllers and their I/O. The software provides intuitive tools to develop structured logic, configure devices, and perform diagnostics for efficient commissioning.
Download
Product Code: 6ES7211-1AE40-0XB0
More Siemens products at Turll.com
| Weight | 0.292 kg |
|---|---|
| Dimensions | 106 × 101 × 87 mm |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
