6ES7212-1HE40-0XB0 SIEMENS Exclusive S7-1200 CPU 1212C Original Brand New
$929.00
Compact SIMATIC S7-1200 CPU 1212C controller with integrated I/O, Ethernet communication, and flexible expansion options for efficient industrial automation systems.
6ES7212-1HE40-0XB0 SIEMENS Exclusive S7-1200 CPU 1212C Original Brand New
The SIMATIC S7-1200 CPU 1212C 6ES7212-1HE40-0XB0 is a compact and highly efficient controller designed to meet the demands of modern automation systems. Engineered for flexibility and performance, this unit integrates essential control functions, communication capabilities, and onboard I/O into a single compact device, making it an ideal solution for small to medium-sized automation tasks.

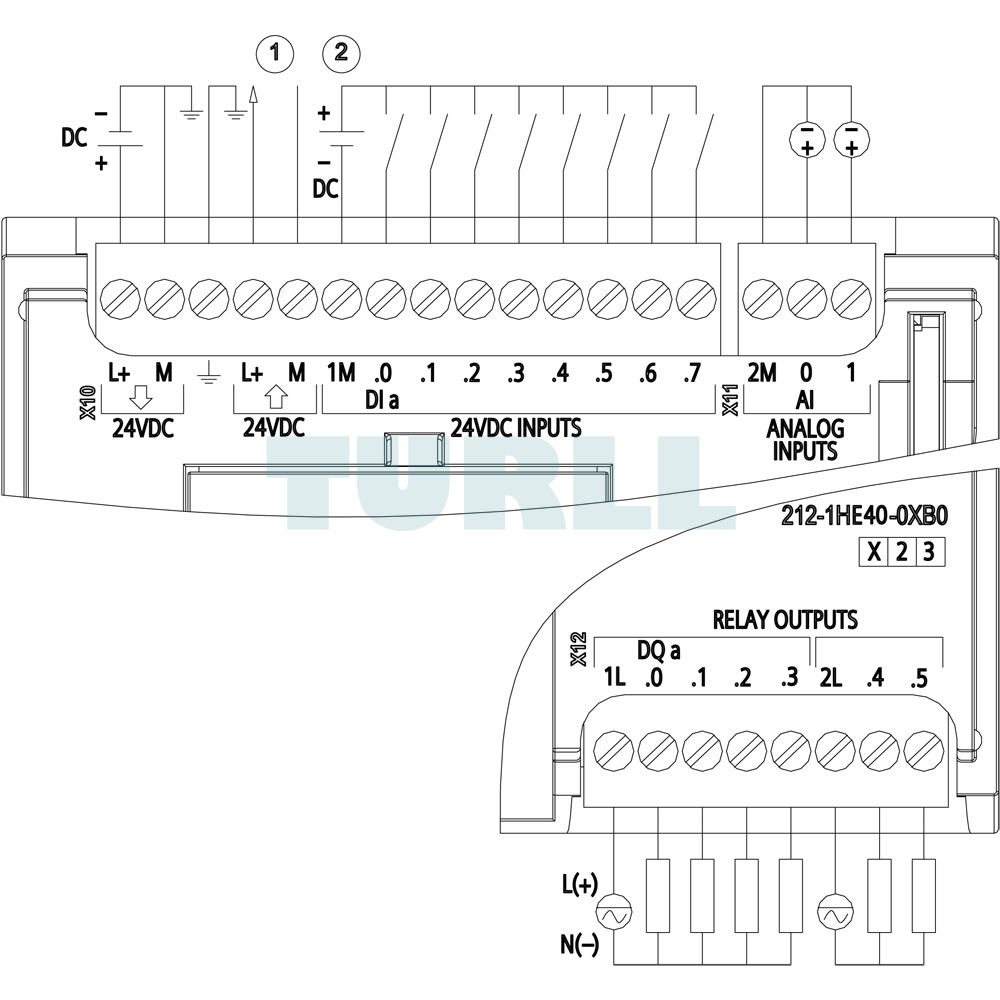

This SIMATIC S7-1200 CPU 1212 C 6ES7212-1HE40-0XB0 operates with a DC power supply range of 20.4 to 28.8 V and features onboard digital and analog inputs and outputs. It includes 8 digital inputs at 24 V DC, 6 relay-based digital outputs rated at 2 A, and 2 analog inputs supporting 0–10 V signals. With a program and data memory capacity of 100 KB, it provides sufficient space for efficient control logic and process management.
The integrated Ethernet interface supports native TCP/IP communication and ISO-on-TCP, enabling seamless connectivity within industrial networks. In addition, the controller supports expansion through signal boards, signal modules, and communication modules such as RS485 or RS232, ensuring scalability as system requirements evolve.
Designed with usability in mind, the CPU includes a real-time clock, removable terminals, and optional simulation features for program testing. Its robust architecture allows reliable operation in industrial environments while maintaining ease of installation and maintenance.
Design
The compact CPU 1212C offers multiple device versions with varying supply and control voltage configurations. It features an integrated power supply, either AC or DC, and includes a built-in 24 V load current supply for direct connection of sensors and encoders.
- 8 integrated digital inputs (24 V DC)
- 6 integrated digital outputs (relay type)
- 2 analog inputs (0–10 V)
- 2 high-speed pulse outputs up to 100 kHz
- PWM outputs up to 100 kHz
- Integrated Ethernet interface
- 4 fast counters with configurable parameters
- Expandable via signal boards and modules
- Optional SIMATIC memory card support
- Built-in PID controller with auto-tuning
- Integrated real-time clock
- Interrupt inputs for fast signal response
- Removable terminals for easy wiring
- Optional simulator for testing applications
Function
The 6ES7212-1HE40-0XB0 SIMATIC S7-1200 CPU 1212C includes a comprehensive instruction set that supports a wide range of programming operations. These include logic processing, timing, counting, data handling, and mathematical functions. Advanced communication commands such as Modbus RTU, USS protocol, and S7 communication enable efficient integration with external devices.
It also supports motion control functions compliant with PLCopen standards, allowing implementation of simple positioning and movement tasks. Built-in diagnostics and testing tools, including forcing of inputs and outputs, simplify commissioning and troubleshooting processes.
Interrupt handling capabilities ensure rapid system response to process changes, including edge-triggered, time-triggered, and counter-based interrupts. The system also includes password protection and library functionality to support secure and reusable programming.
Download
Product Code: 6ES7212-1HE40-0XB0
More Siemens products at Turll.com
| Weight | 0.323 kg |
|---|---|
| Dimensions | 100 × 105 × 82 mm |
