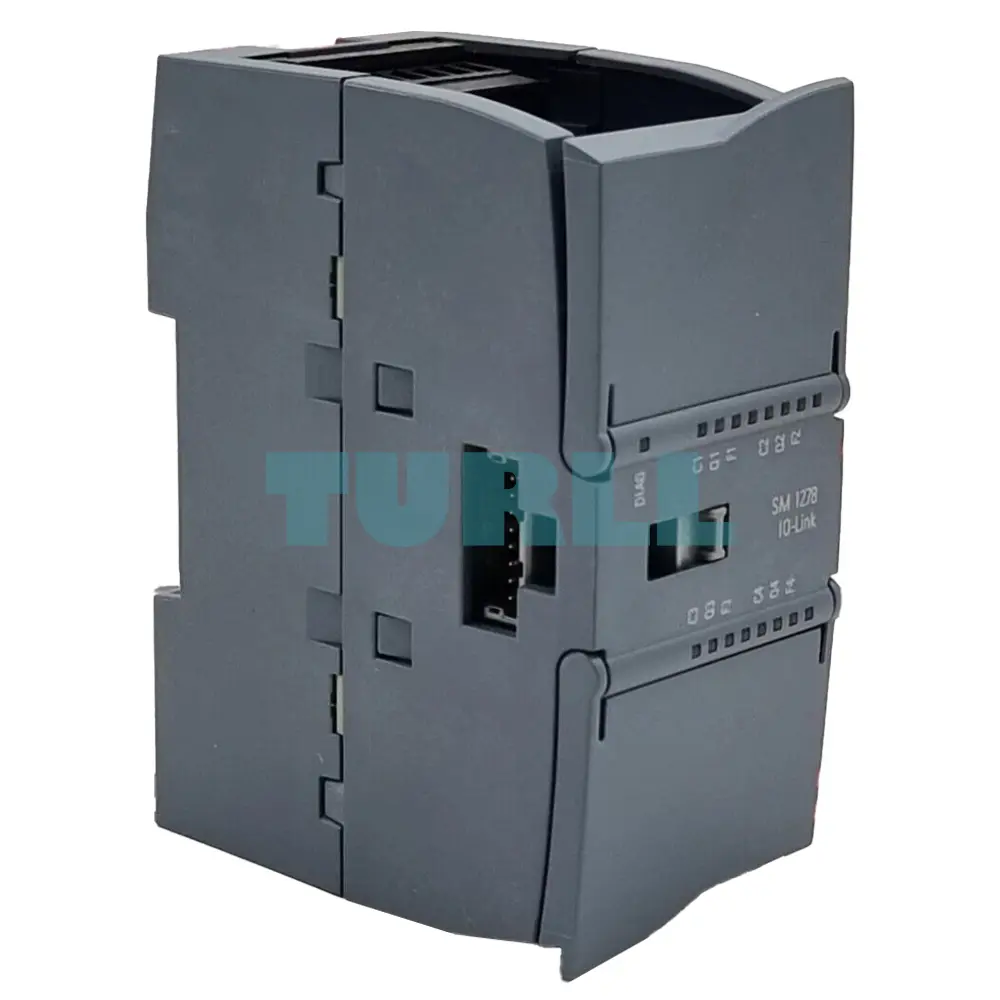

6ES7278-4BD32-0XB0 Siemens SIMATIC S7-1200 SM1278 Original Brand New

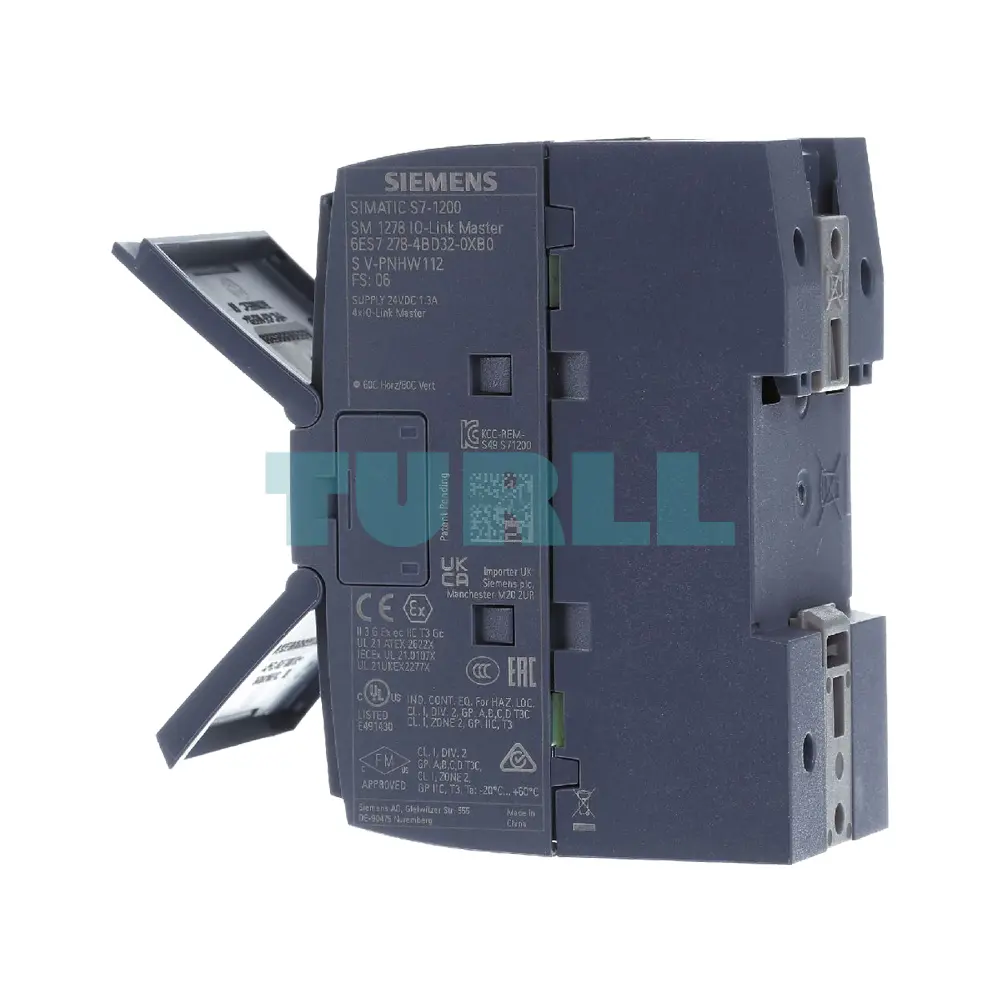

6ES7278-4BD32-0XB0 Siemens SIMATIC S7-1200 SM1278 Original Brand New - Image 2

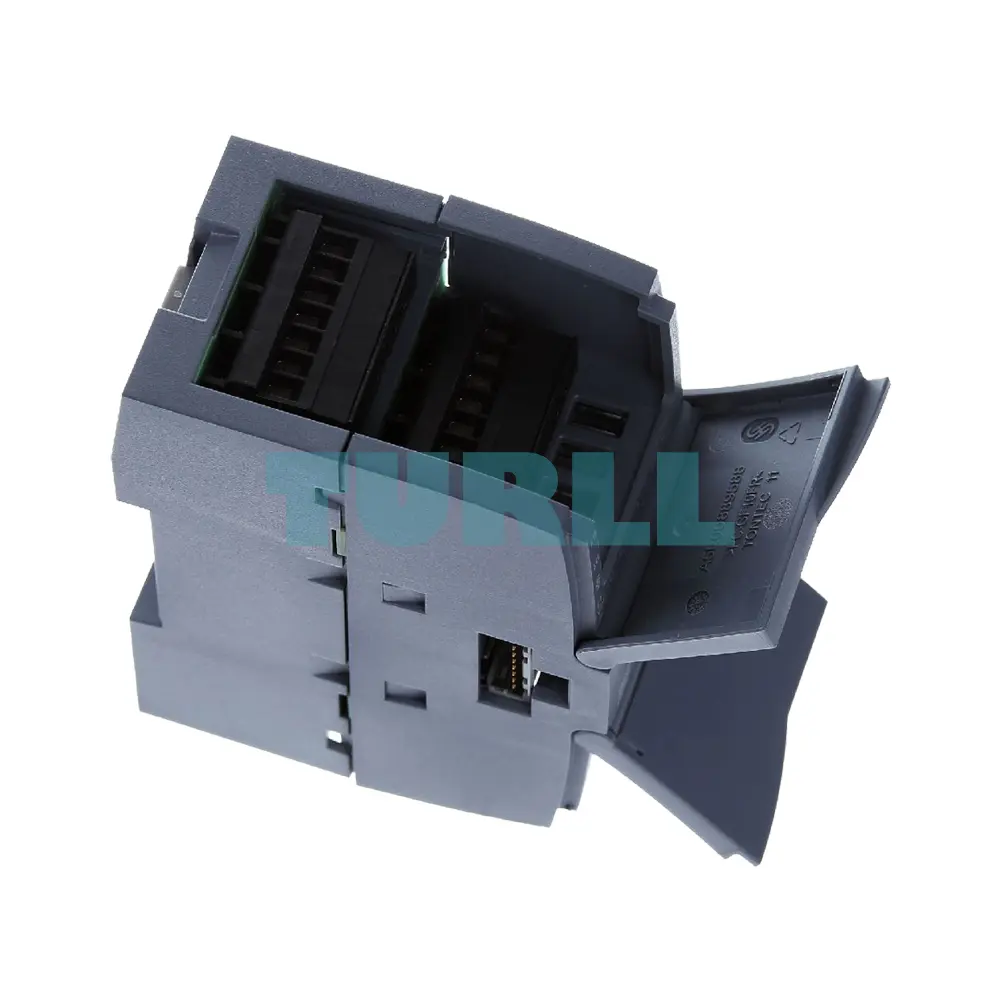

6ES7278-4BD32-0XB0 Siemens SIMATIC S7-1200 SM1278 Original Brand New - Image 3

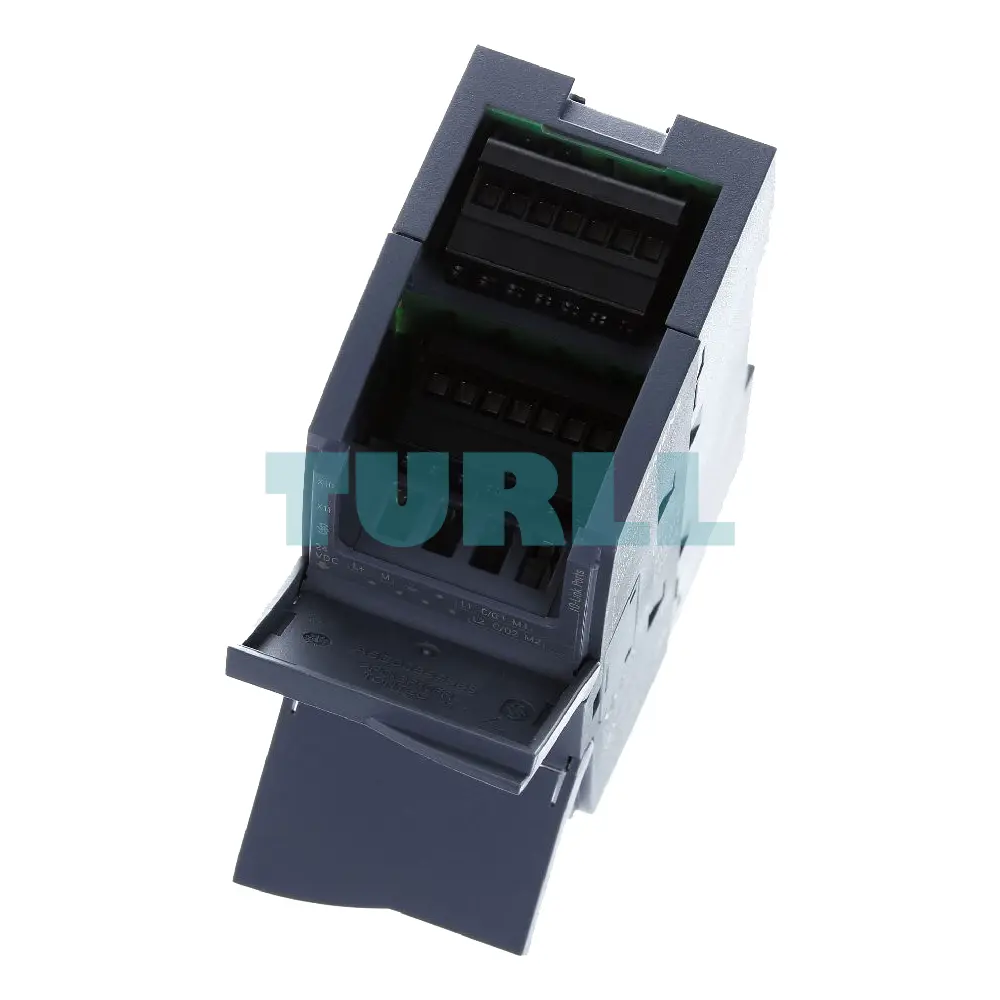

6ES7278-4BD32-0XB0 Siemens SIMATIC S7-1200 SM1278 Original Brand New - Image 4

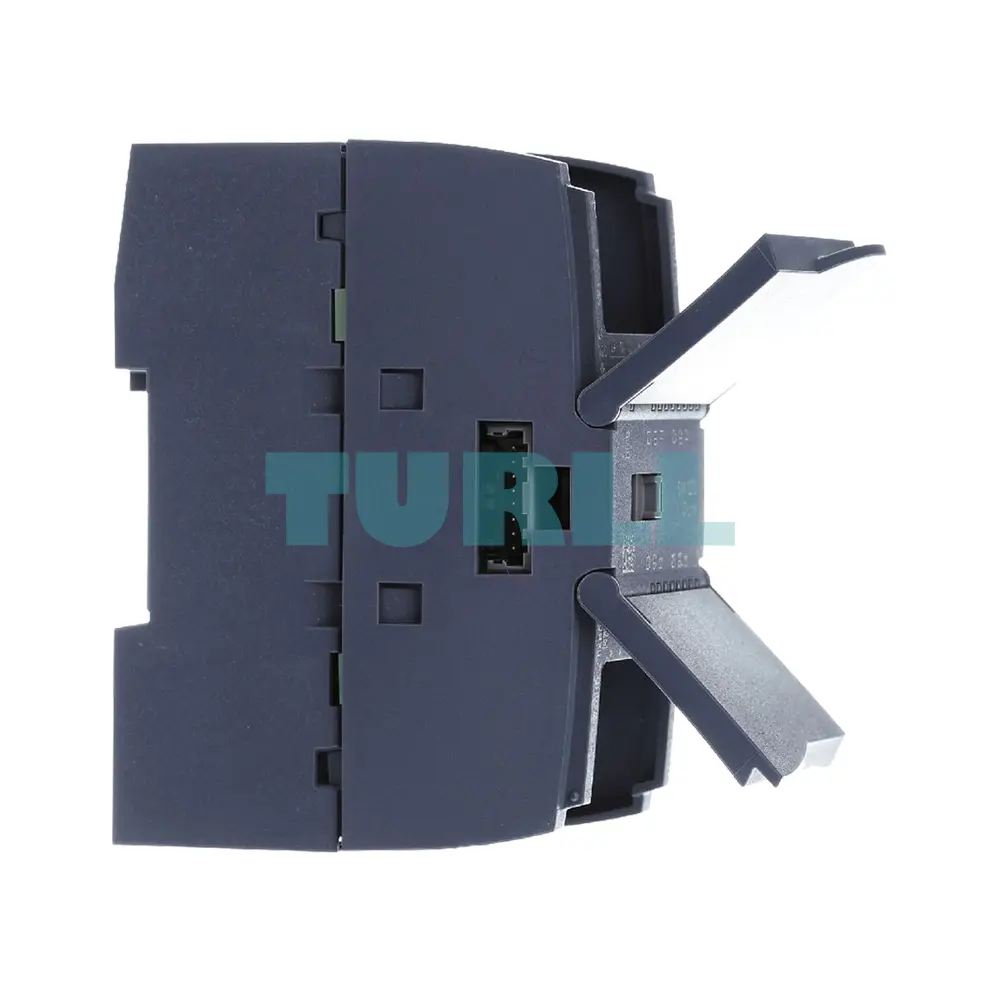

6ES7278-4BD32-0XB0 Siemens SIMATIC S7-1200 SM1278 Original Brand New - Image 5

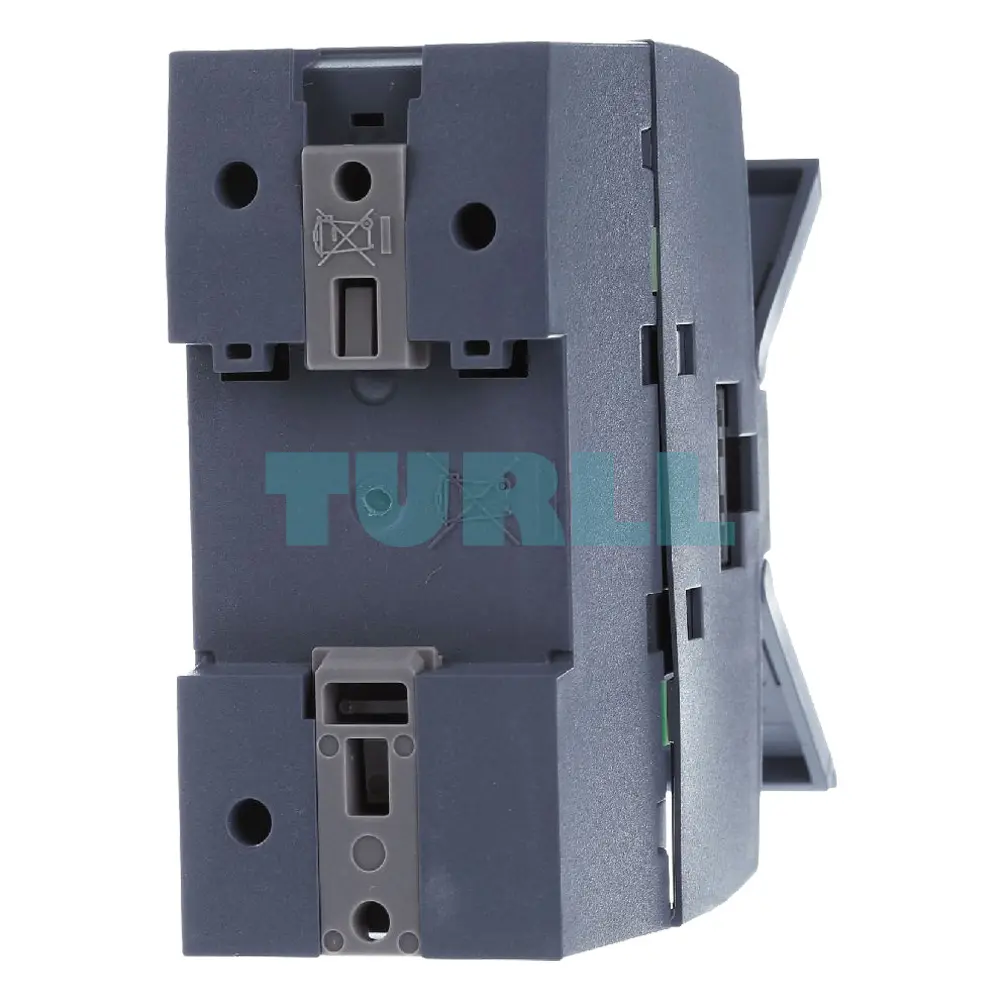

6ES7278-4BD32-0XB0 Siemens SIMATIC S7-1200 SM1278 Original Brand New - Image 6

6ES7278-4BD32-0XB0 Siemens SIMATIC S7-1200 SM1278 Original Brand New

Model / SKU6ES7278-4BD32-0XB0

6ES7278-4BD32-0XB0

Siemens SIMATIC S7-1200, SM1278 IO-Link, 4xIO-Link Master

Original price was: $492.07.Current price is: $430.49.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

Overview

  • Module for connecting up to 4 IO-Link devices according to IO-Link Specification V1.1. The IO-Link parameters are configured using the Port Configuration Tool (PCT), Version V3.2 and higher.

Application

The SM 1278 module enables data exchange with up to 4 external IO-Link devices via one 3-wire cable each or four standard actuators/standard sensors. Comprehensive parameterization options make it possible to adapt the controller flexibly to the communication partner. Thanks to the compatibility of IO-Link with standard sensors, commercially available sensors in accordance with IEC 61131 Type 1 can also be operated on the IO-Link master.

Design

  • Expansion limits
    • Length of cable: Max. 20 m
    • Max. 32 bytes of input and output data per port
    • Max. 32 bytes of input and output data per module

LED indicators

  • DIAG: Operating state indicator (green/red) of the module
  • C1..C4: Port status indicator (green) for Port 1, 2, 3 and 4
  • Q1..Q4: Channel status indicator (green) for Port 1, 2, 3 and 4
  • F1..F4: Port fault indicator (red) for Port 1, 2, 3 and 4

Depending on the CPU type used, as many as 8 SM 1278 modules can be used on one S7-1200 CPU.

Function

Supported functions

  • Identification data I&M
  • Firmware update
  • SIO mode (standard IO mode)
  • IO-Link parameterization with the S7-PCT interface configuration tool, TIA Portal V13 and higher and one S7-1200 CPU V4.0 or higher

Supported data transfer rates

  • COM1 (4.8 kbit/s)
  • COM2 (38.4 kbit/s)
  • COM3 (230.4 kbit/s)

6ES7278-4BD32-0XB0

Siemens SIMATIC S7-1200, SM1278 IO-Link, 4xIO-Link Master

Visit 6ES7278-4BD32-0XB0

For more our products visit turll.com

Specifications

SKU / Model6ES7278-4BD32-0XB0
Weight0.202 kg
Dimensions90.00 × 106.00 × 57.00 mm
