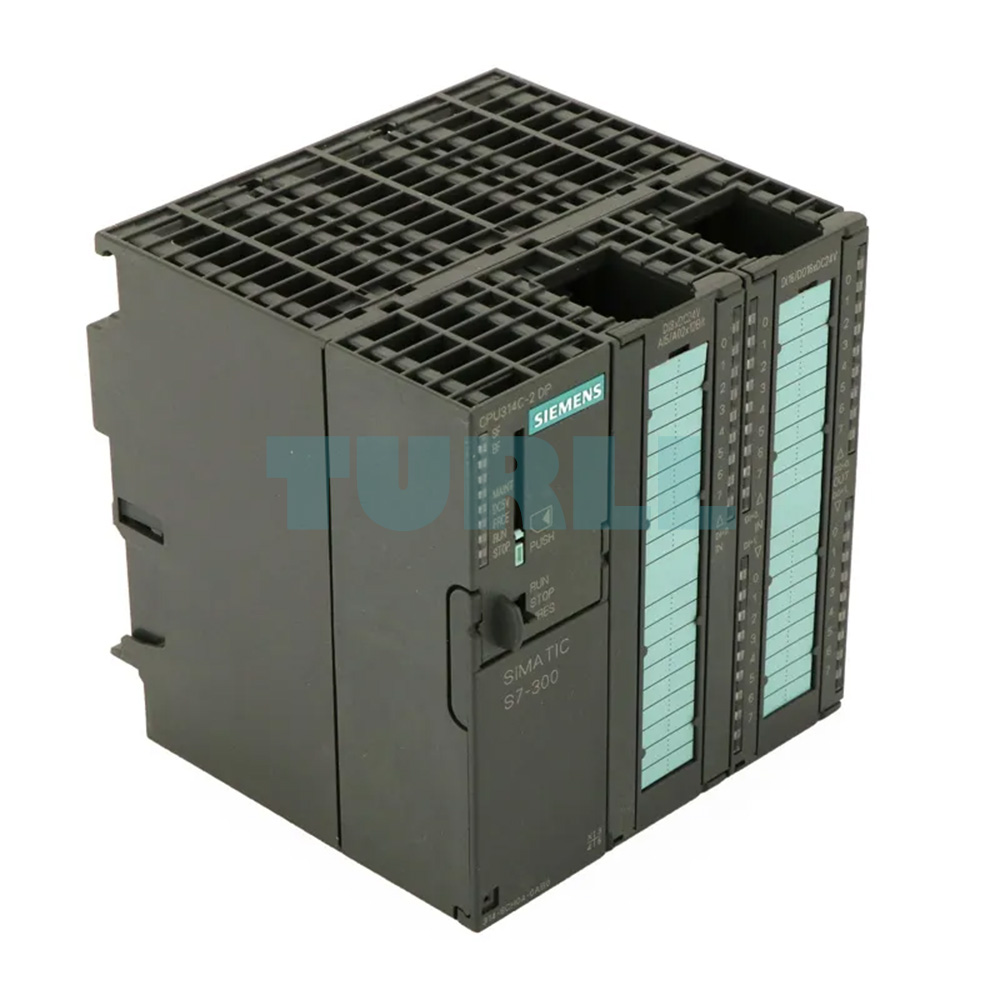

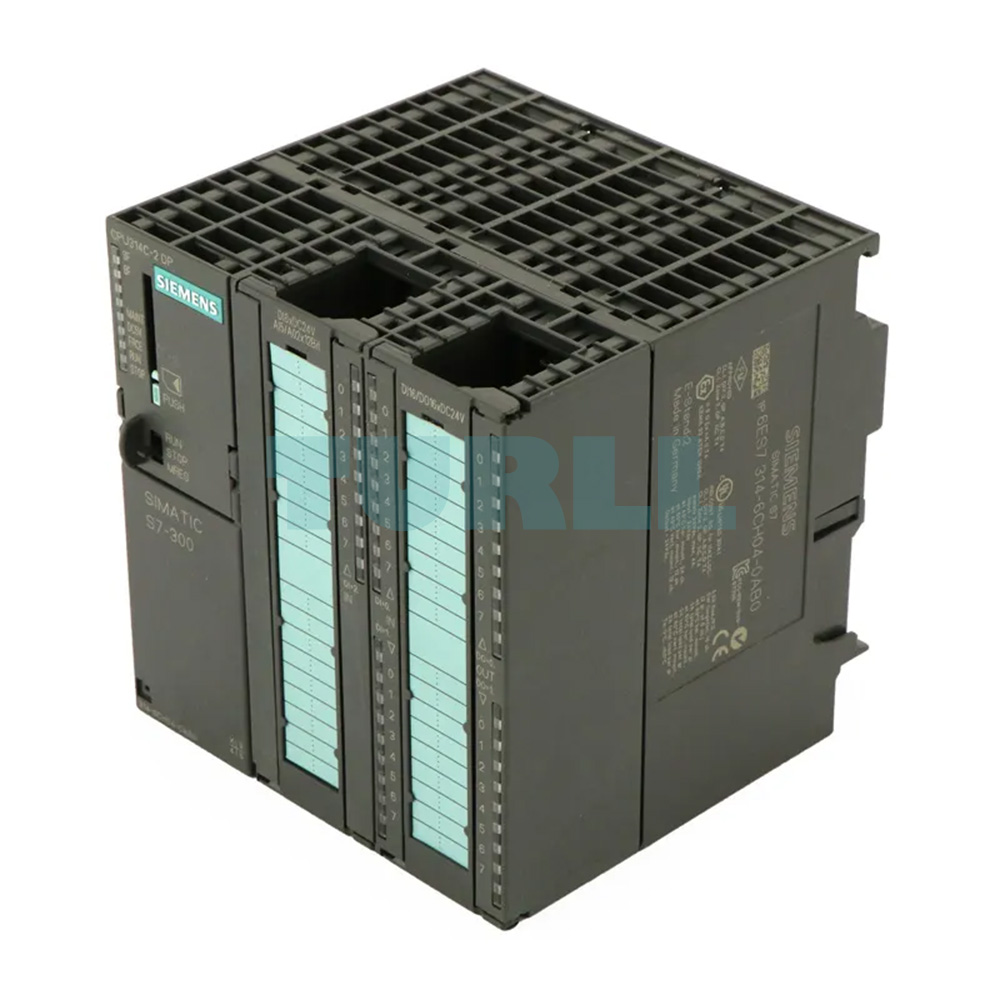

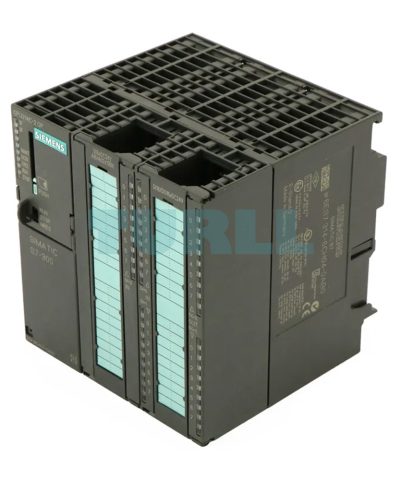

6ES7314-6CH04-0AB0 Siemens SIMATIC S7-300 CPU 314C-2 DP Compact CPU Original Brand New
$3,287.43
6ES7314-6CH04-0AB0
Siemens SIMATIC S7-300, CPU 314C-2 DP Compact CPU with MPI, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 4 high-speed counters (60 kHz), integrated DP interface, Integr. power supply 24 V DC, work memory 192 KB, Front connector (2x 40-pole) and Micro Memory Card required
6ES7314-6CH04-0AB0
Siemens SIMATIC S7-300, CPU 314C-2 DP Compact CPU with MPI, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 4 high-speed counters (60 kHz), integrated DP interface, Integr. power supply 24 V DC, work memory 192 KB, Front connector (2x 40-pole) and Micro Memory Card required
Overview
- The compact CPU with integral digital and analog inputs/outputs and PROFIBUS DP master/slave interface
- With technological functions
- For plants with high processing performance and response time requirements
- For connecting distributed I/Os
SIMATIC Micro Memory Card required for operation of the CPU.
Application
The CPU 314C-2 DP is the compact CPU for systems with a distributed structure. With its extended main memory, this compact CPU is also suitable for medium-sized applications. Integrated digital and analog inputs/outputs support direct interfacing with the process; the PROFIBUS DP master/slave interface supports connection to distributed I/O parts. The CPU 314C-2 DP can therefore be used both as a distributed unit for fast preprocessing and as a higher-level controller with a lower-level fieldbus system.
Other possible uses result from the integrated technological functions:
- Counting
- Frequency measurement
- Period measurement
- Pulse-width modulation
- PID control
- Controlled positioning
Design
The CPU 314C-2 DP is equipped with the following:
- Microprocessor;
the processor achieves a processing time of 60 ns per binary instruction - Extensive memory;
192 KB high-speed work memory (equals approx. 64 K instructions) for program sections relevant to execution offer user programs sufficient memory space;
SIMATIC Micro Memory Cards (max. 8 MB) as load memory for the program also allow the project to be stored in the CPU (complete with symbols and comments). - Flexible expansion capability;
max. 31 modules, (4-tier configuration) - MPI multi-point interface
The integrated MPI interface can establish as many as 12 connections simultaneously to S7-300/400 or connections to programming device, PC, OP. Among these connections, one is always reserved for programming devices and another for OPs. The MPI makes it possible to set up a simple network with a maximum of 16 CPUs via “global data communication”. - PROFIBUS DP interface:
The CPU 314C-2 DP with PROFIBUS DP master/slave interface allows a distributed automation configuration offering high speed and ease of use. From the user’s point of view, the distributed I/O is treated as central I/O (same configuring, addressing and programming). - Integrated inputs/outputs;
24 digital inputs (all can be used for alarm processing) and 16 digital outputs as well as 4 analog inputs and 2 analog outputs for current/voltage signals and an additional input for measuring temperature (Pt 100) make the CPU 314C-2 DP a high-value control.
Download
Visit 6ES7314-6CH04-0AB0
For more our products visit turll.com
| Weight | 0.726 kg |
|---|---|

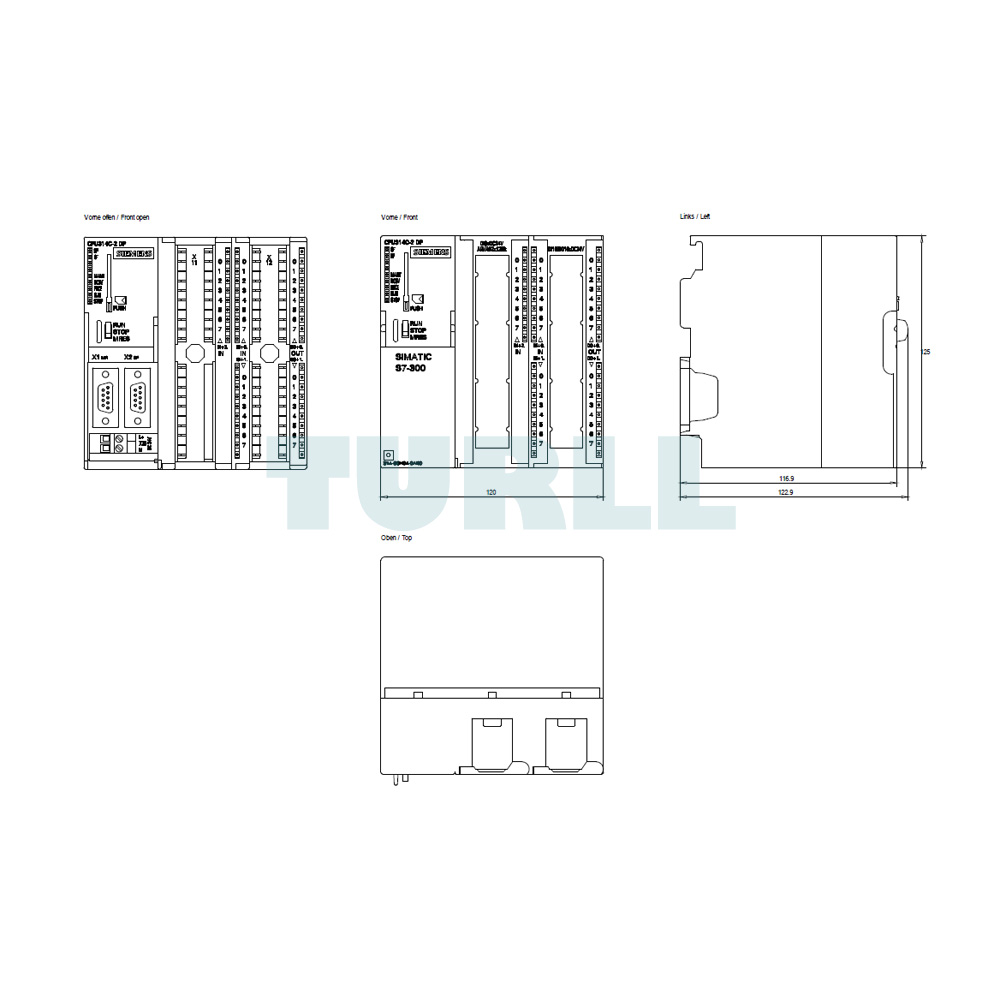

| Dimensions | 134.00 × 154.00 × 129.00 mm |
