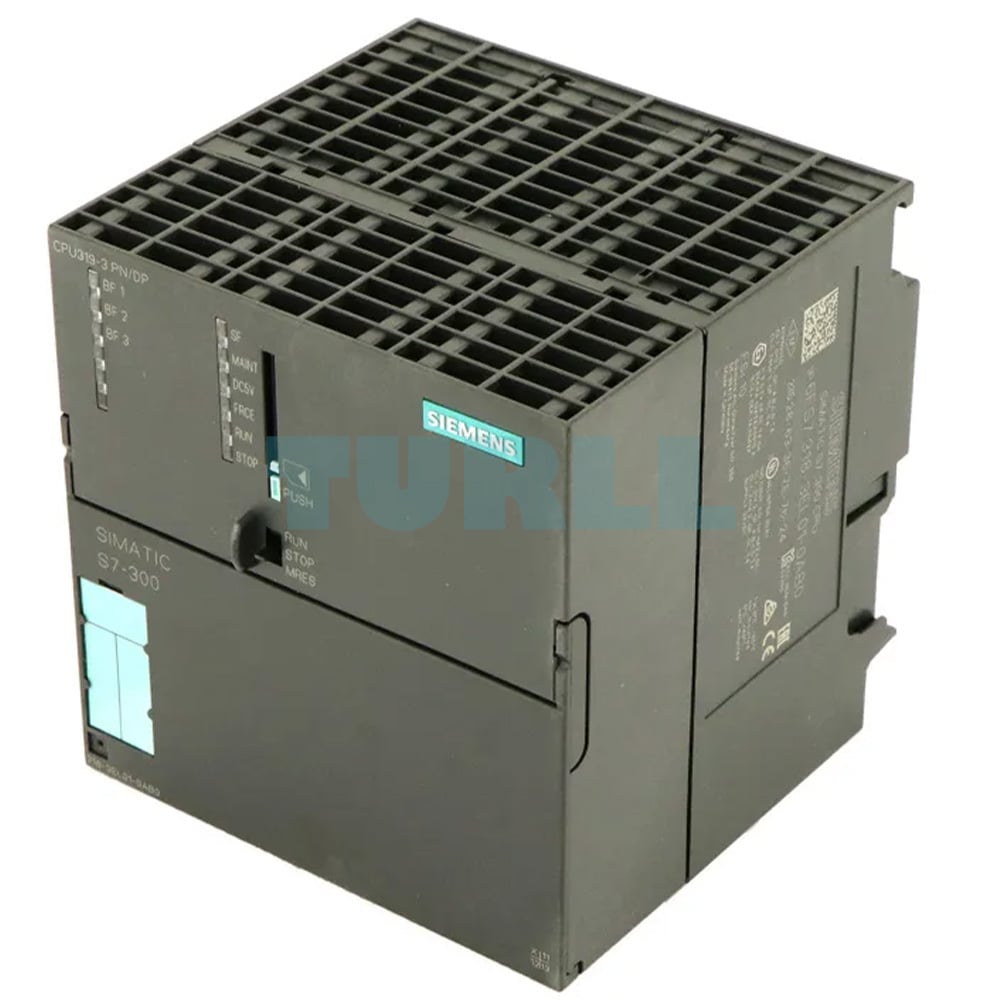

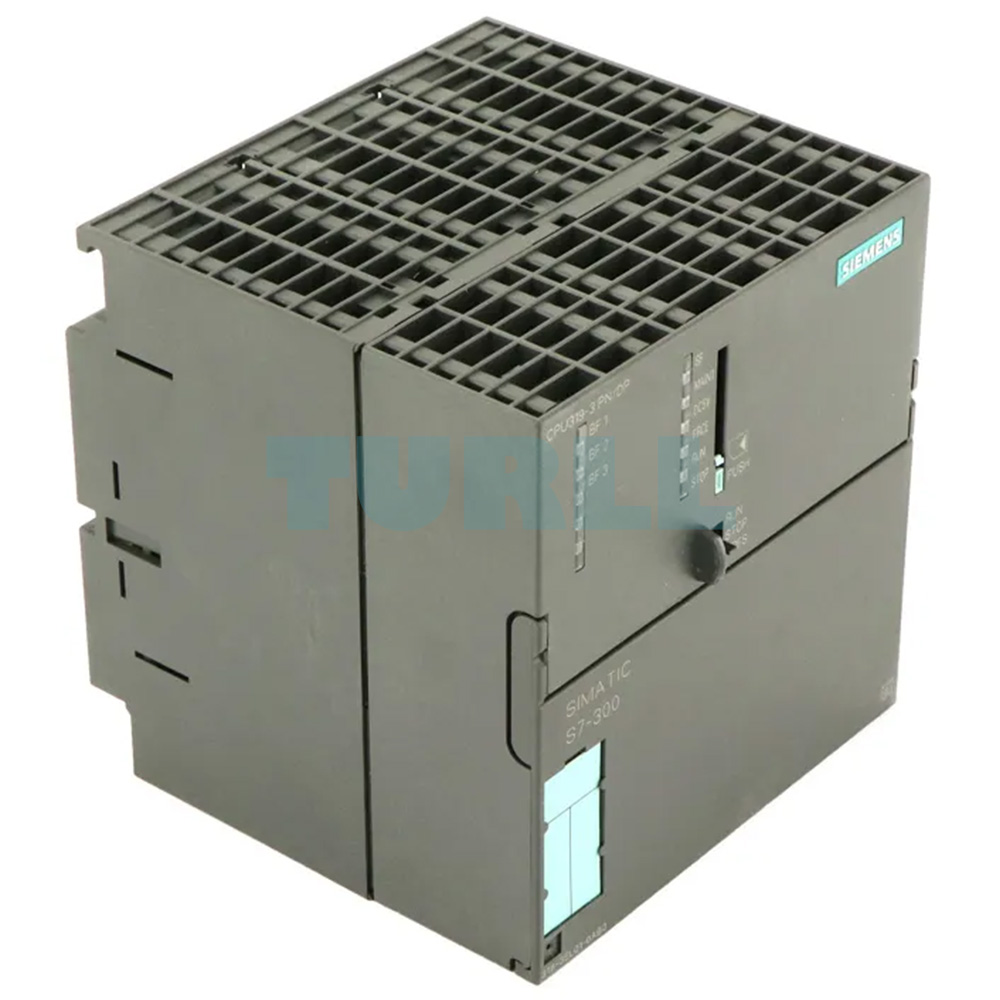

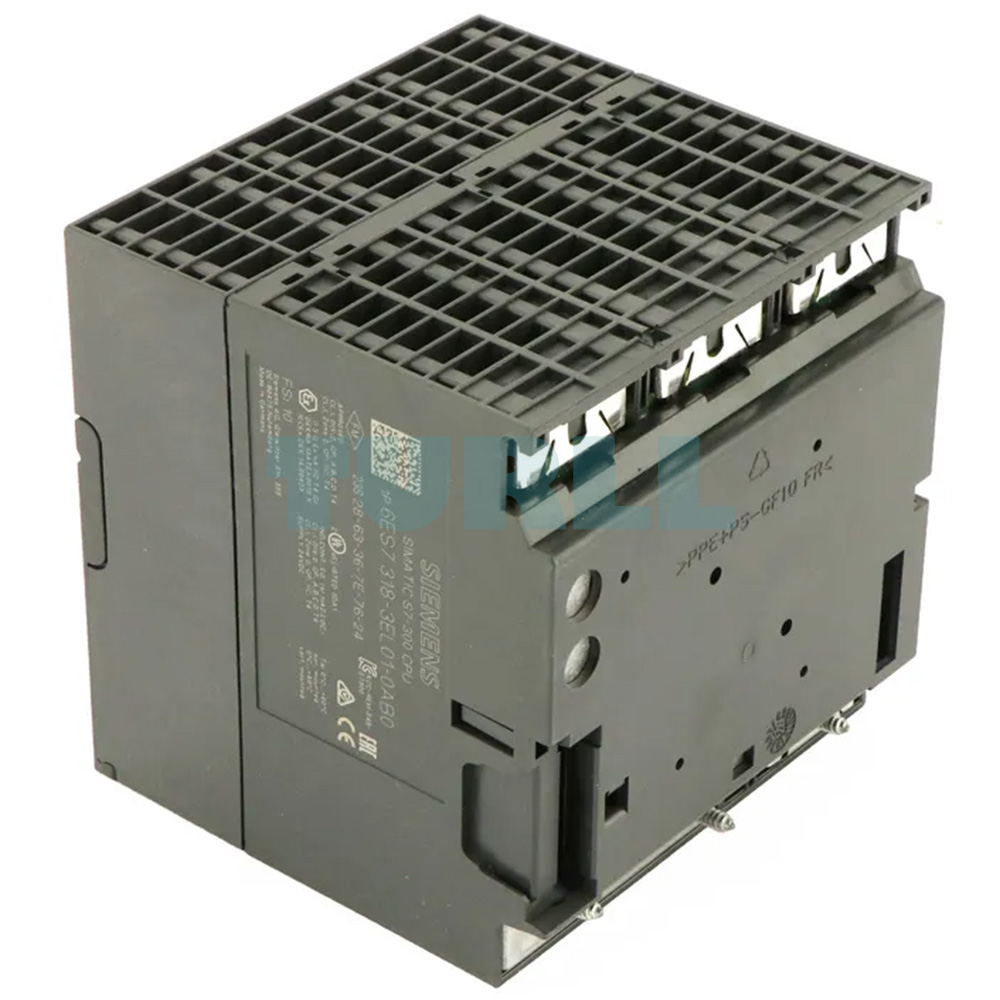

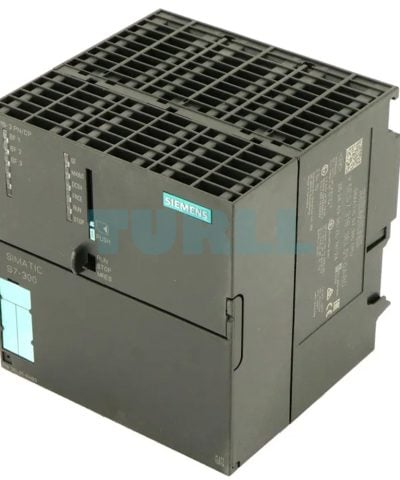

6ES7318-3EL01-0AB0 Siemens SIMATIC S7-300 CPU 319-3 PN/DP Original Brand New

• The CPU with high command processing performance, large program memory and quantity framework for demanding applications
• For cross-industry automation tasks in series machine, special machine and plant construction
• Used as central controller in production lines with central and distributed I/O on PROFIBUS and PROFINET
• PROFINET I/O controller for operating distributed I/O on PROFINET
• PROFINET I-Device for connecting the CPU as an intelligent PROFINET device under a SIMATIC or non-Siemens PROFINET I/O controller
• PROFINET interface with 2-port switch
• Isochronous mode on PROFIBUS or PROFINET
• Integrated web server with the option of creating user-defined web pages
• Distributed intelligence in Component Based Automation (CBA) on PROFINET
• PROFINET proxy for intelligent devices on PROFIBUS DP in Component Based Automation (CBA)
• Optionally supports the use of SIMATIC engineering tools

The CPU 319-3 PN/DP is equipped with the following:

• Multi-processor system
• High command processing and communications performance
• 2 MB work memory (corresponds to approx. 680 K instructions);
  the extensive work memory for program components relevant to execution offers sufficient space for user programs. SIMATIC Micro Memory Cards (8 MB max.) as load memory for the program also allow the project to be stored in the CPU (complete with symbols and comments) and can be used for data archiving and recipe management.
• Flexible expansion capability;
  max. 32 modules (4-tier configuration)
• Combined MPI/DP interface;
  The first MPI/DP integrated interface can establish as many as 32 connections simultaneously to S7-300/400 or connections to PG, PC, OP. Of the connections, one is permanently reserved for programming devices and one for OPs.
  The MPI supports simple networking of up to 32 CPUs over “Global data communication”.
  This interface can be reconfigured from MPI interface to DP interface.
  PROFIBUS DP interface:
  The PROFIBUS DP V1 standard is fully supported. This increases the scope of DP V1 standard slaves in terms of diagnostics and parameterization capability.
• DP interface;
  the second DP integrated interface can establish as many as 32 connections simultaneously to S7-300/400 or connections to PG, PC, OP. One of the connections is permanently reserved for PG and one for OP.
  The DP interface can be used as DP master or DP slave. PROFIBUS DP slaves can be operated in isochronous mode at this interface. The PROFIBUS DP V1 standard is fully supported. This increases the scope of DP V1 standard slaves in terms of diagnostics and parameterization capability.
• Ethernet interface;
  The third integrated interface of the CPU 319-3 PN/DP is a PROFINET interface with 2-port switch based on Ethernet TCP/IP. It supports the following protocols:
  • S7 communication for data communication between SIMATIC controllers
  • PG/OP communication for programming, commissioning and diagnostics through STEP 7
  • PG/OP communication for interfacing to HMI and SCADA
  • Open TCP/IP, UDP and ISO-on-TCP (RFC1006) communication over PROFINET
  • SIMATIC NET OPC-Server for communication with other controllers and I/O devices with own CPU
