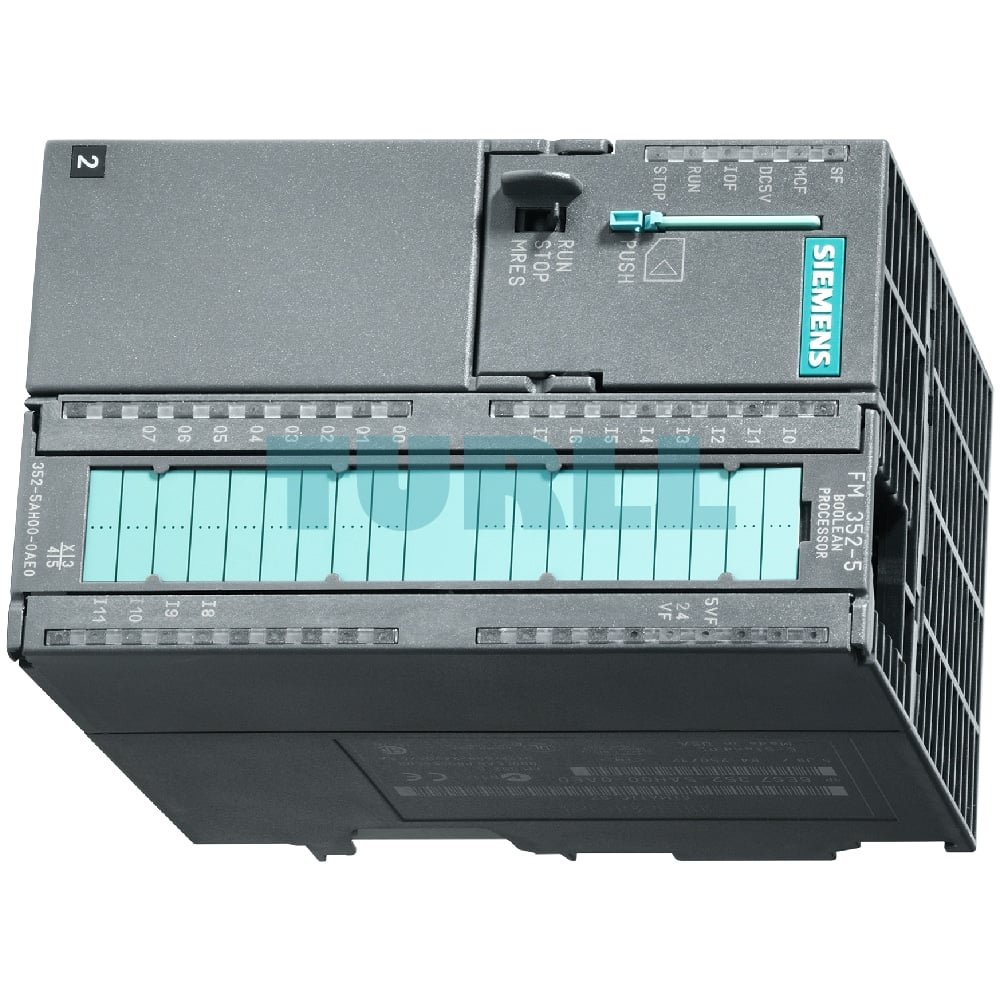

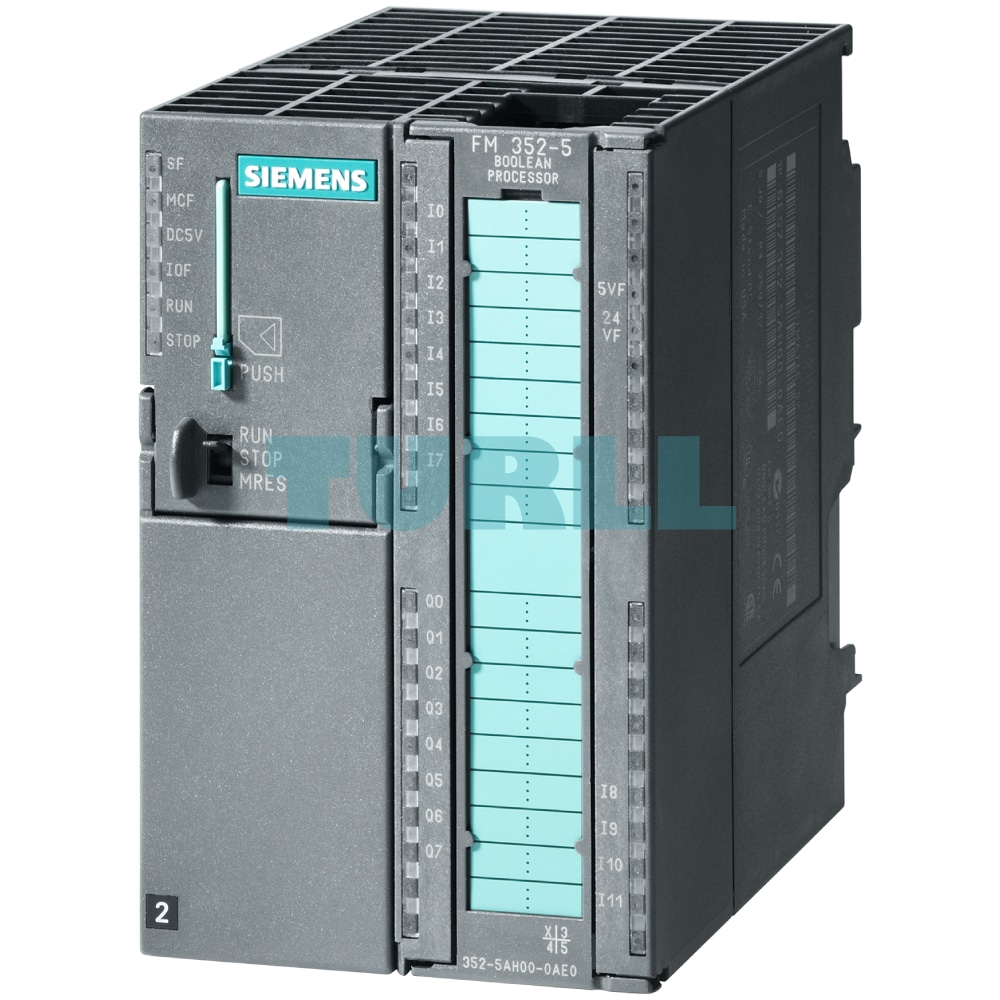

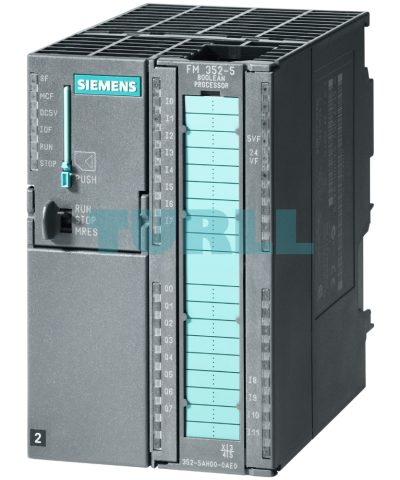

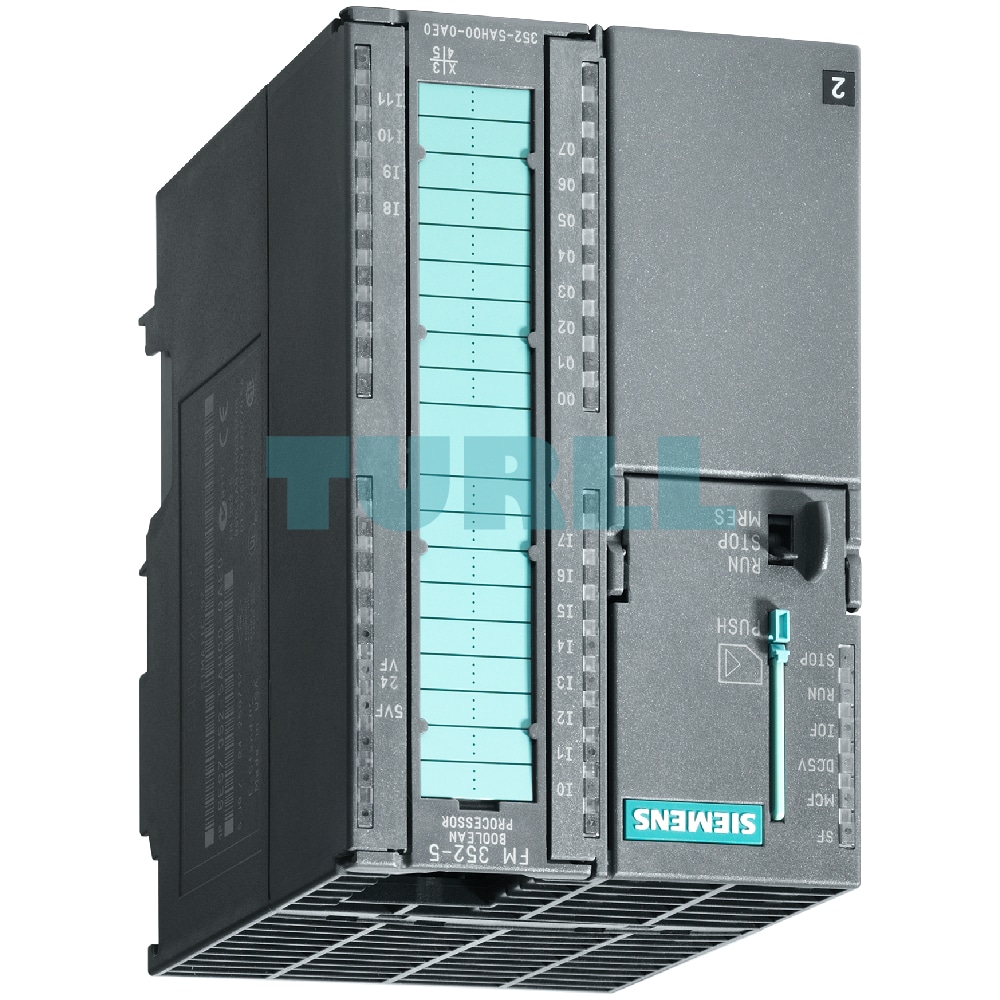

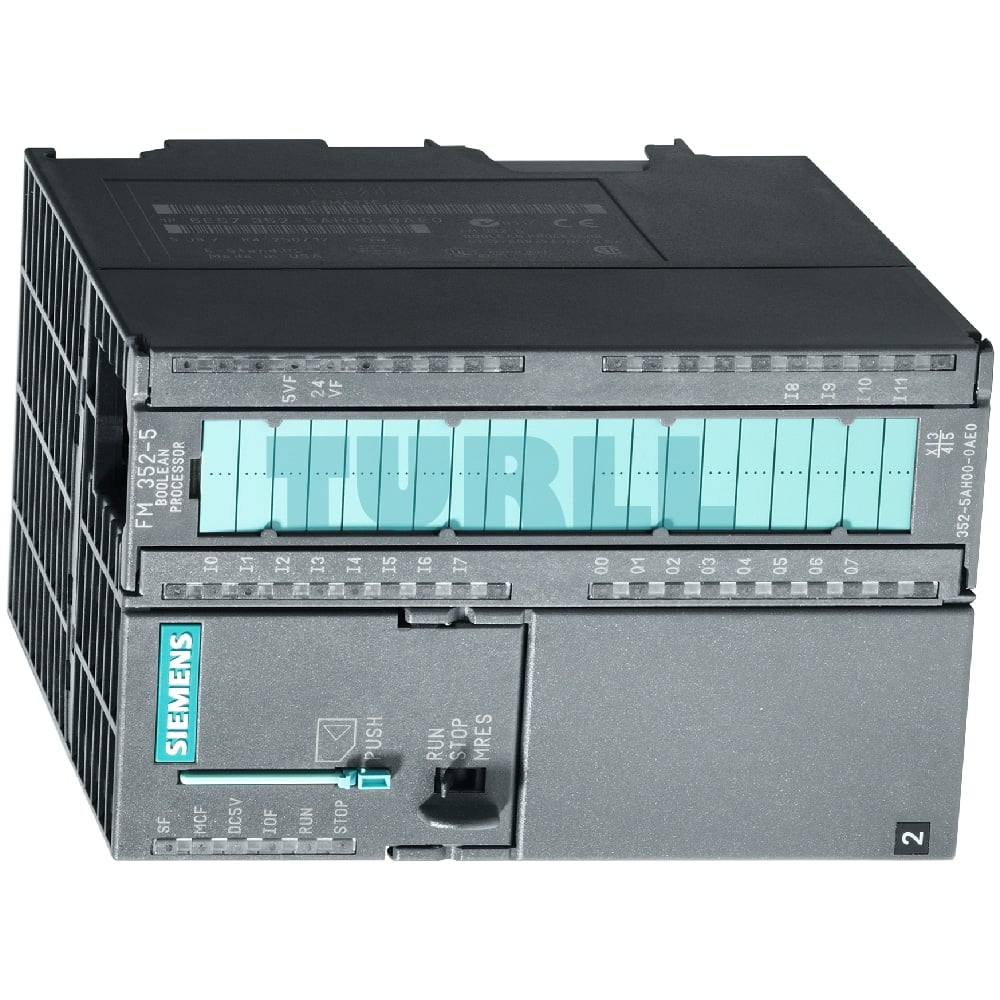

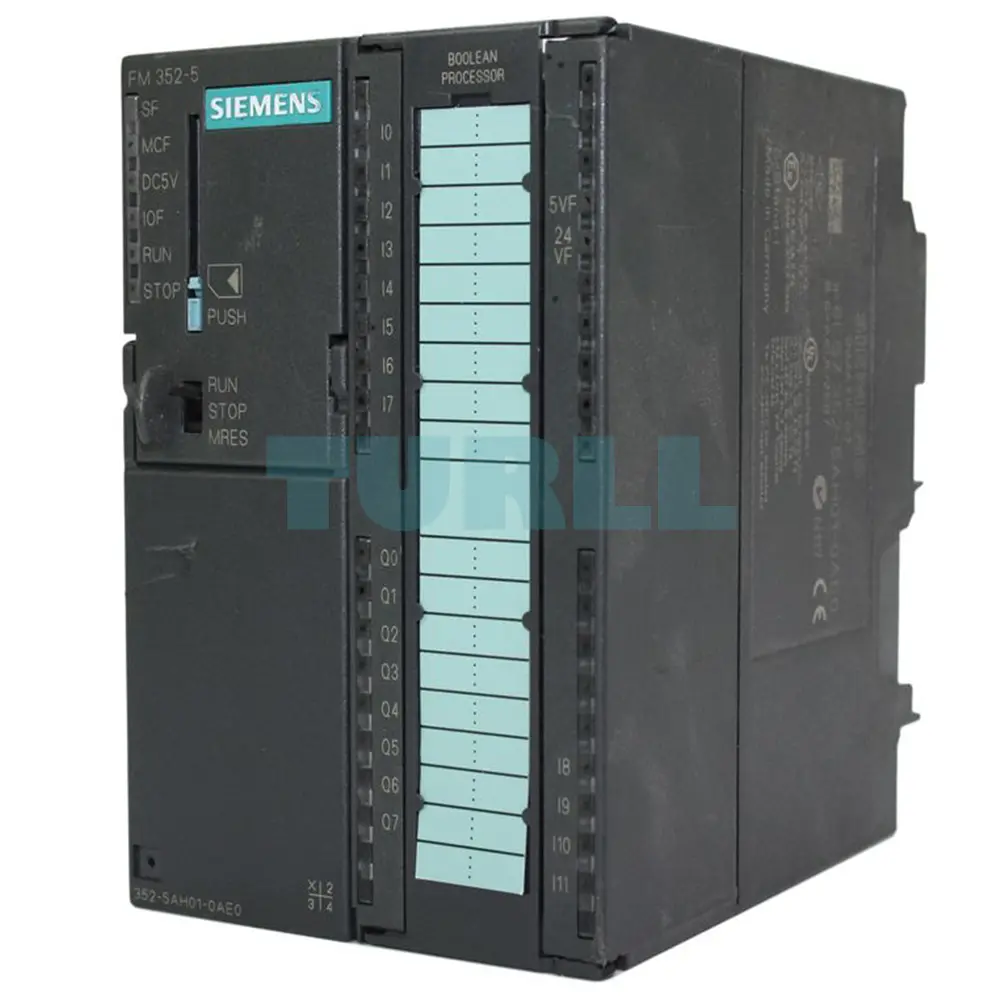

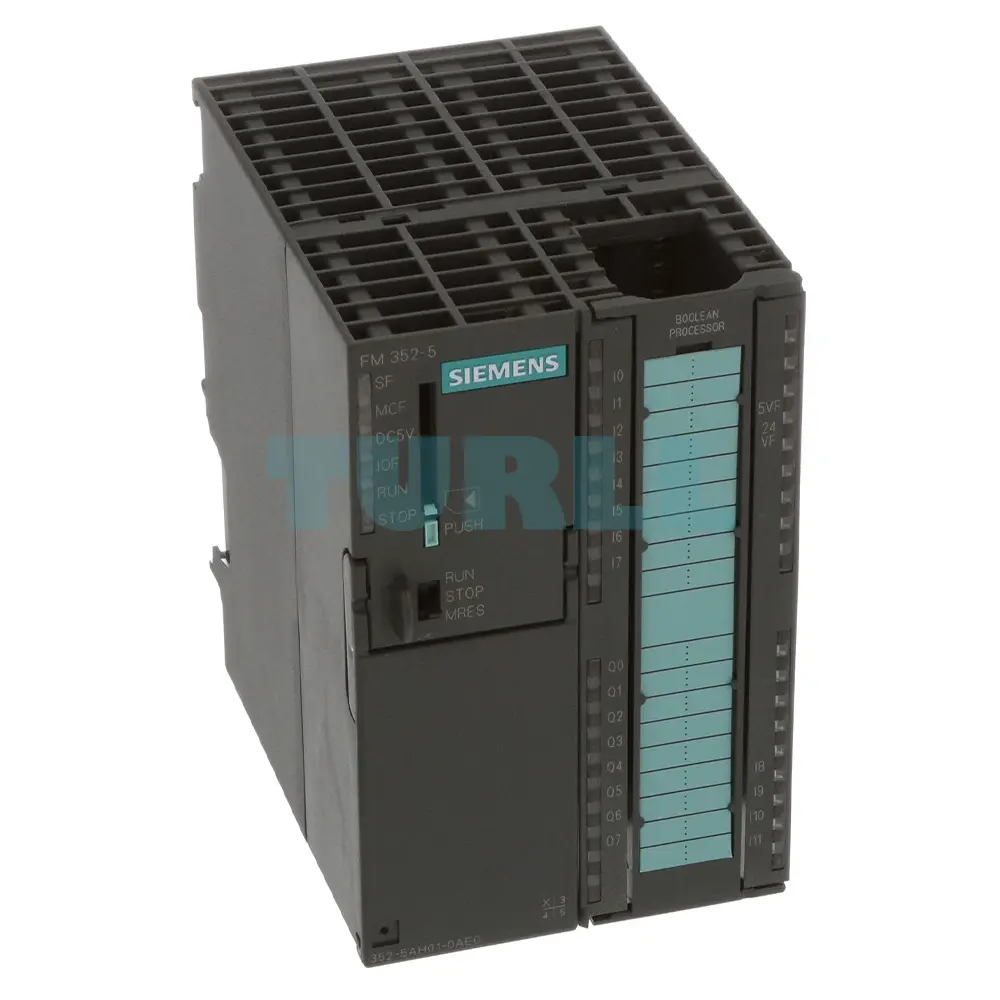

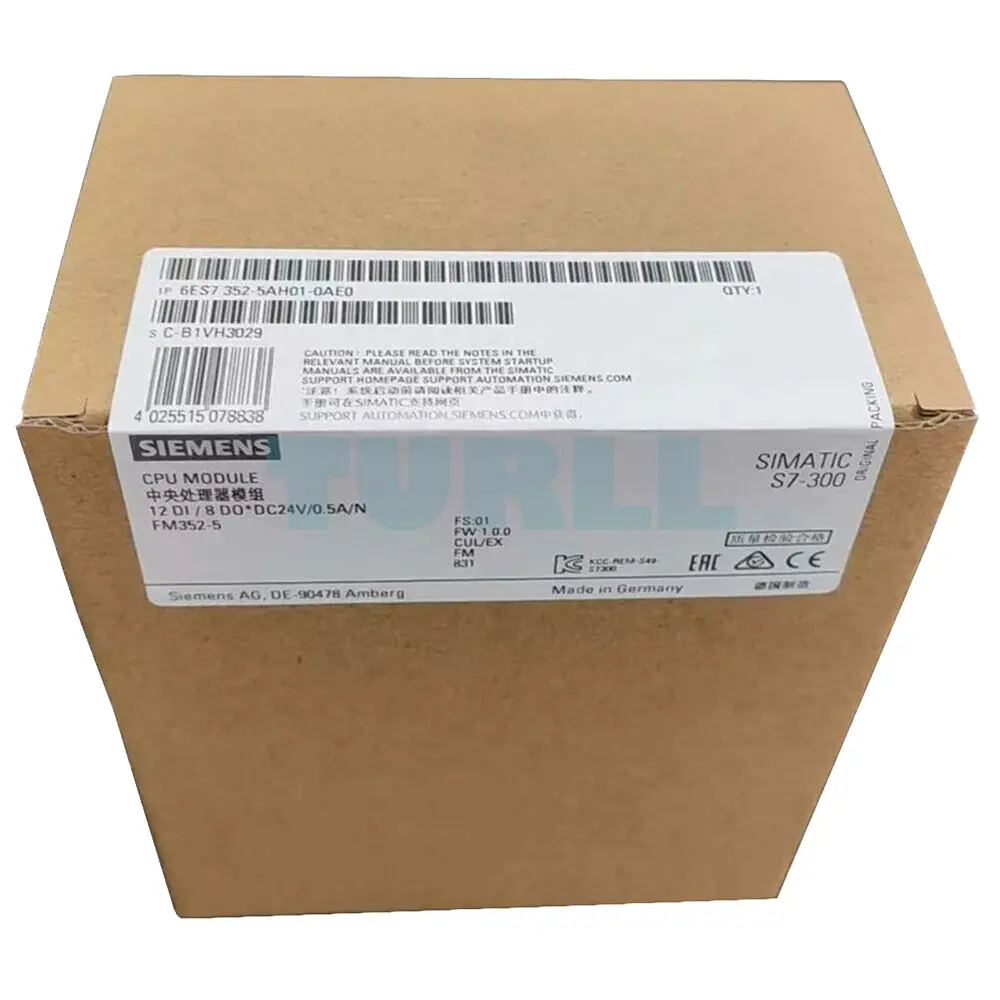

6ES7352-5AH01-0AE0 Siemens SIMATIC S7-300 FM352-5 with NPN Output Original Brand New

• The FM 352-5 high-speed Boolean processor provides extremely fast binary control and also some of the fastest switching processes ever possible (cycle time: 1 µs).
• Programming is possible with LAD or FBD.
• The available set of statements comprises bit statements (partial statement set of STEP 7), timers, counters, frequency dividers, frequency generators, shift registers.
• 12 integral DI / 8 integral DO.
• 2 versions: sinking or sourcing digital outputs.
• 1 channel for connection of a 24-V incremental encoder, a 5-V incremental encoder (RS422) or an SSI absolute encoder.

Micro Memory Card required for use of the FM 352-5

Note:

We offer position measuring systems and preassembled connecting cables for counting and positioning functions under SIMODRIVE Sensor or Motion Connect 500, see under this link.

The FM 352-5 High-speed Boolean processor offers extremely fast binary functions and some of the quickest switching procedures ever possible. The module is already used in many sectors, including:

• Packaging machines
• Printing and paper machines
• Machines for food and beverage production
• Machines for the production of pharmaceutical products
• Printing and punching presses

Examples of controllable sub-processes are:

• Tracking of small accessory parts at high speeds
• Guarantee of "online” quality (faulty parts are removed)
• Guarantee of functions for tool and machine safety
• Logic control of processes without jitter

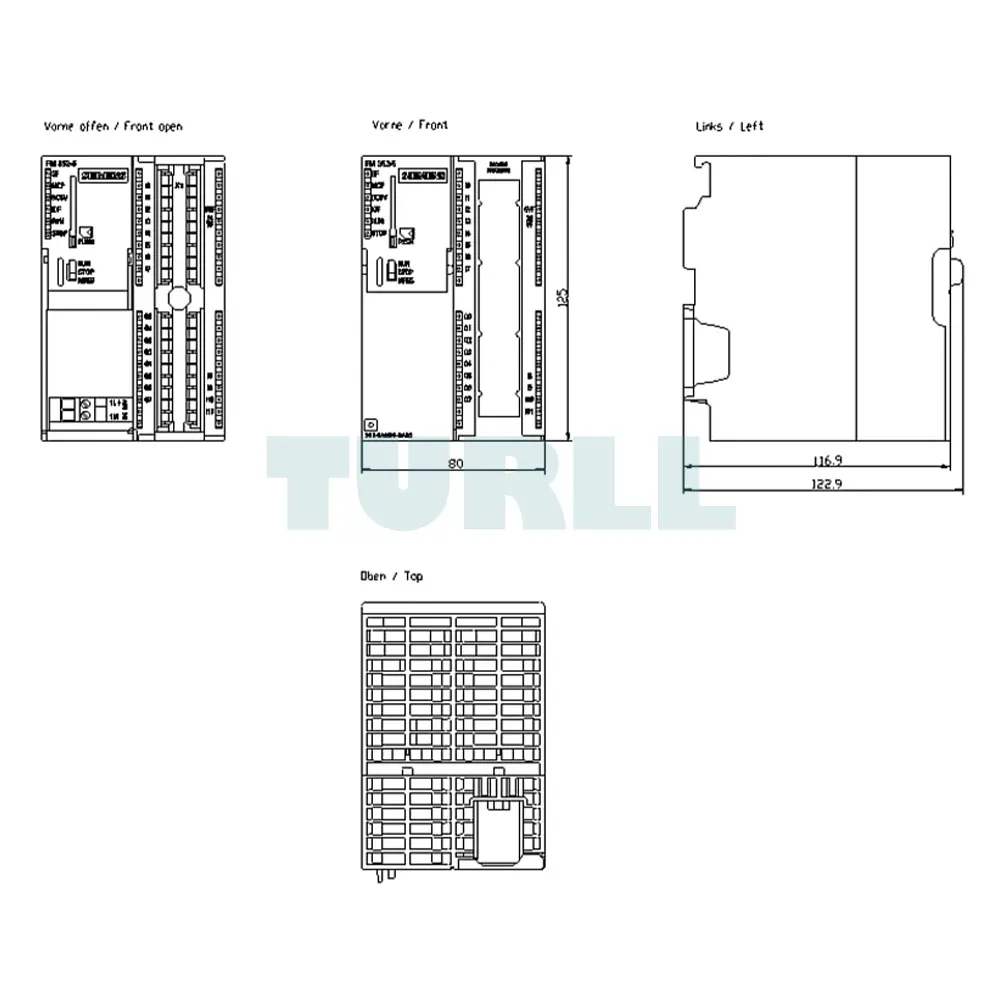

• S7-300 module, 80 mm wide
• 40-pin front connector for connection of DI, DQ and position encoder
• DQ current sinking or current sourcing depending on module variant
• Shaft for MMC card with FM 352-5 program
• Switch for STOP, RUN and RESET
• Assignment of input/output addresses (16 bytes each) for data exchange with a higher-level S7-CPU
• Operation of the FM352-5 is possible:
  • In a central S7-300 configuration
  • Distributed as a standard PROFIBUS DP slave via IM 153-1/IM 153-2 to a DP port integrated in S7-300, S7-400, WinAC or third-party master
  • Stand-alone operation without higher-level PLC
