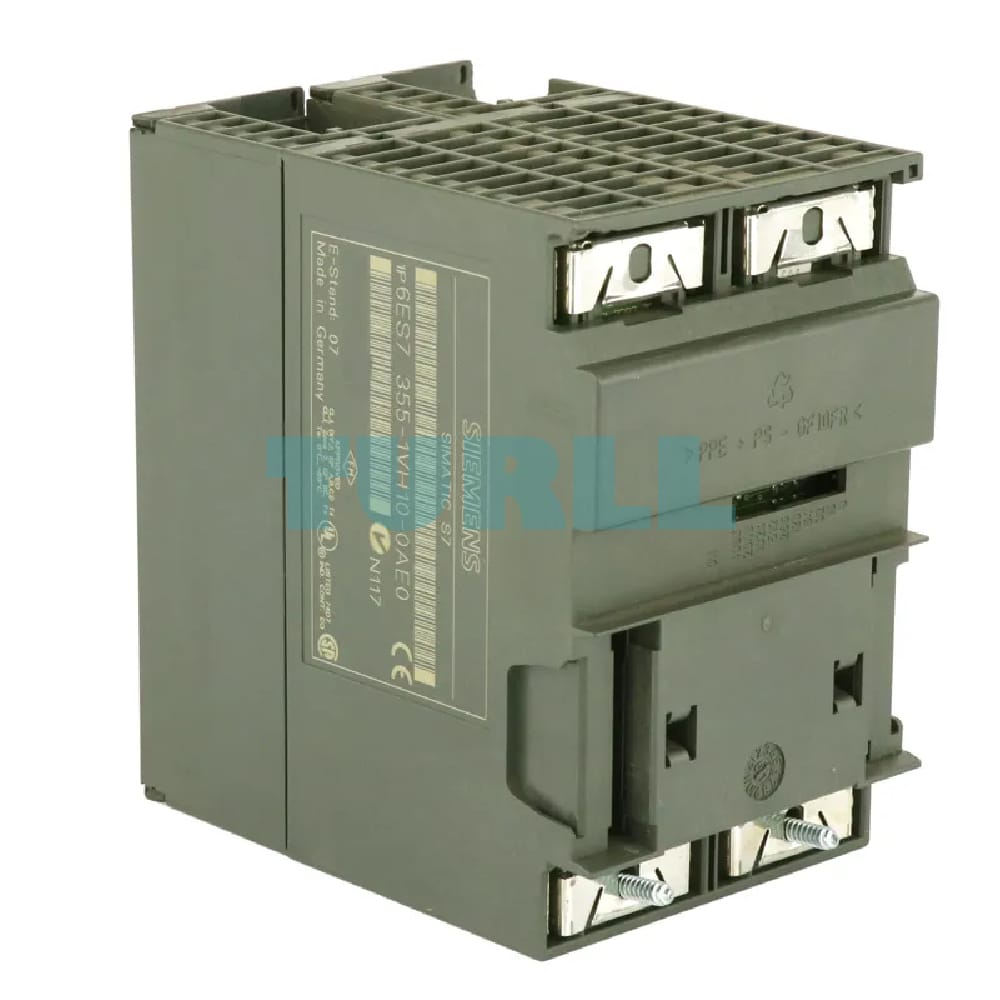

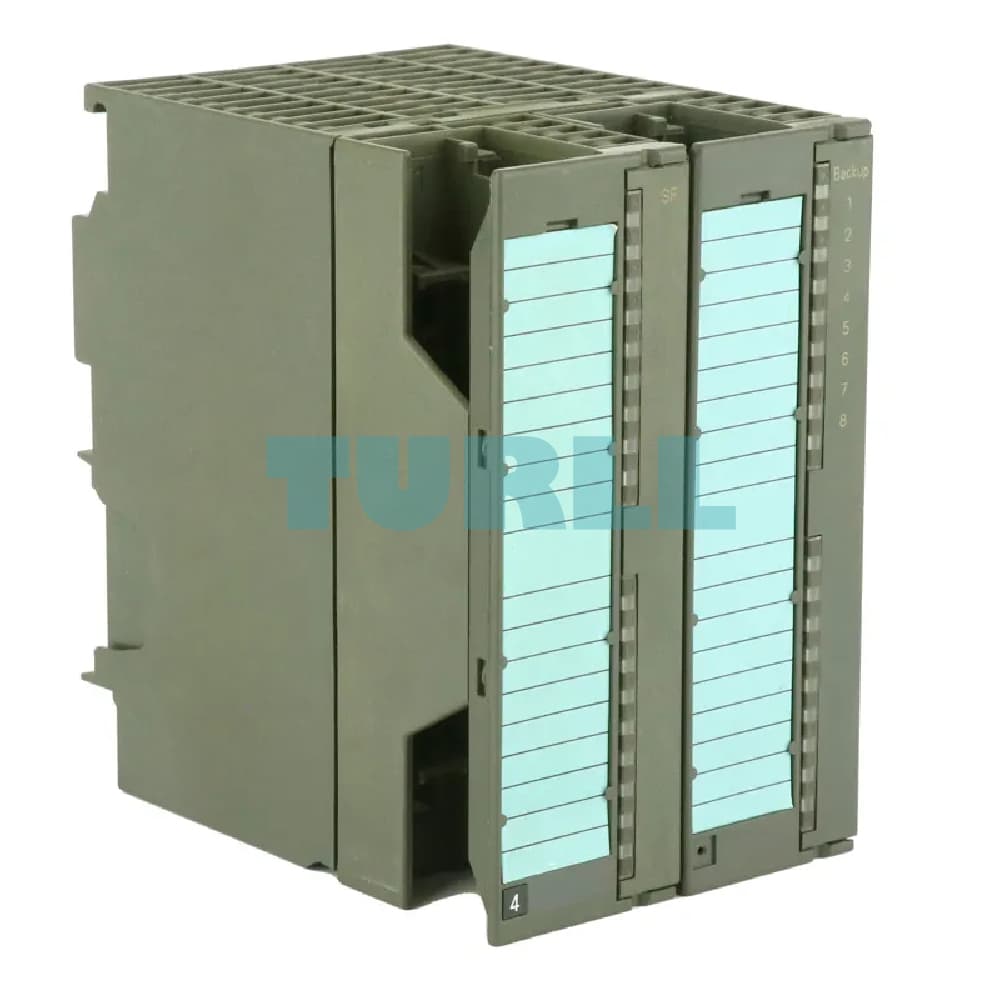

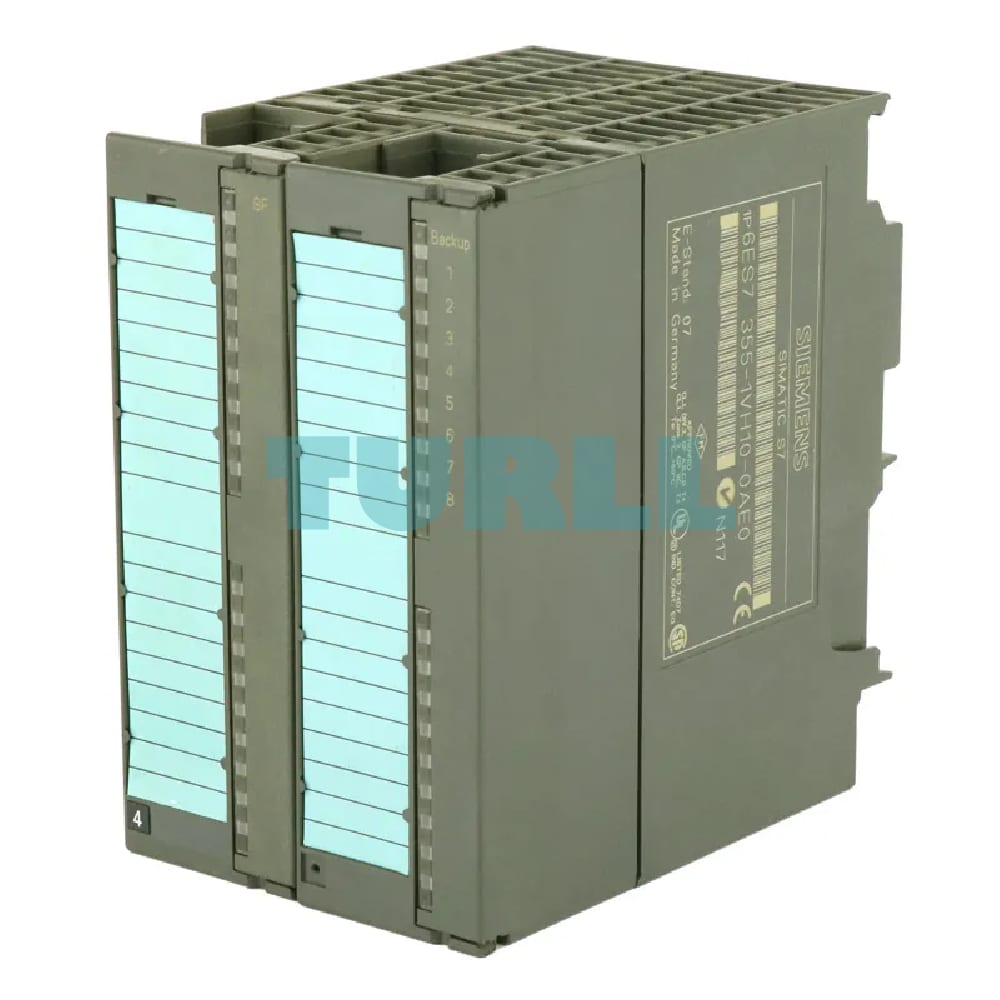

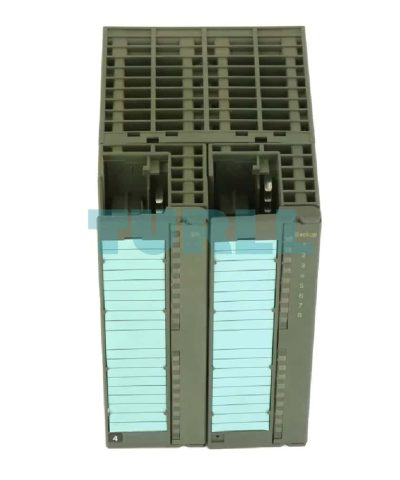

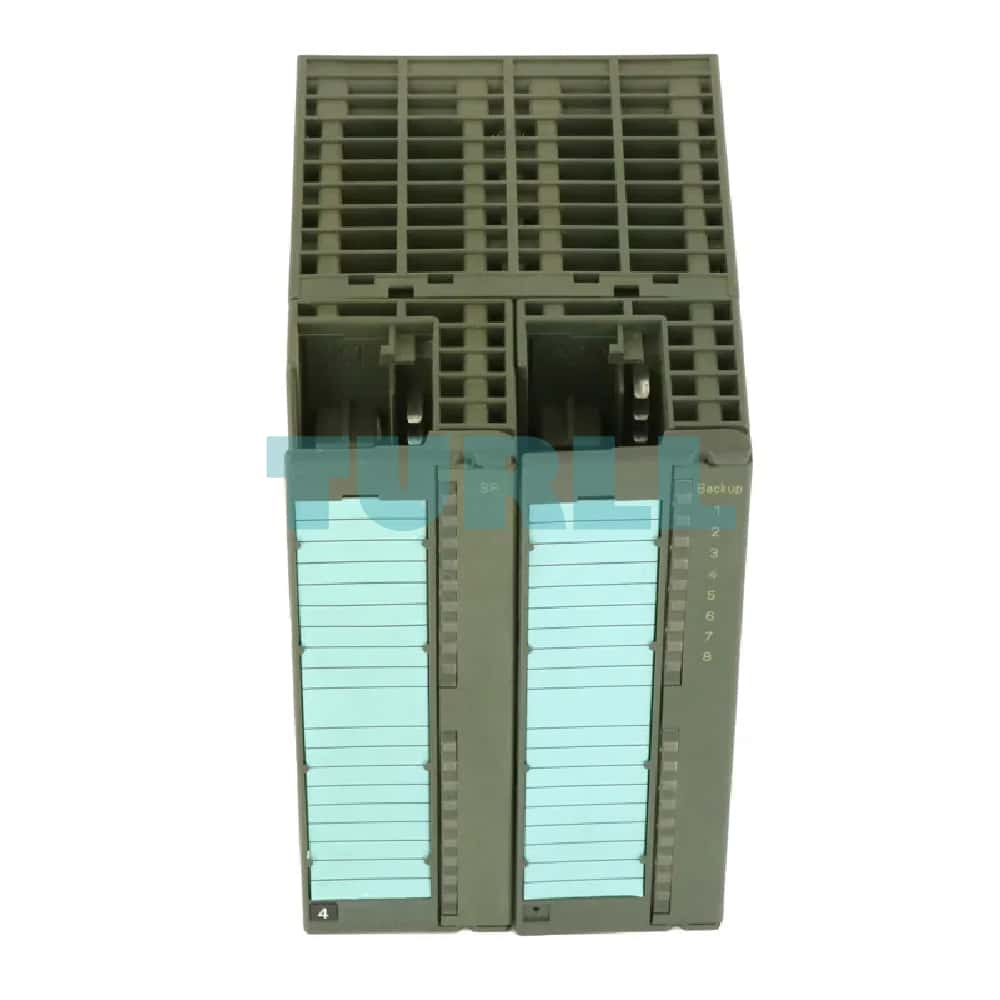

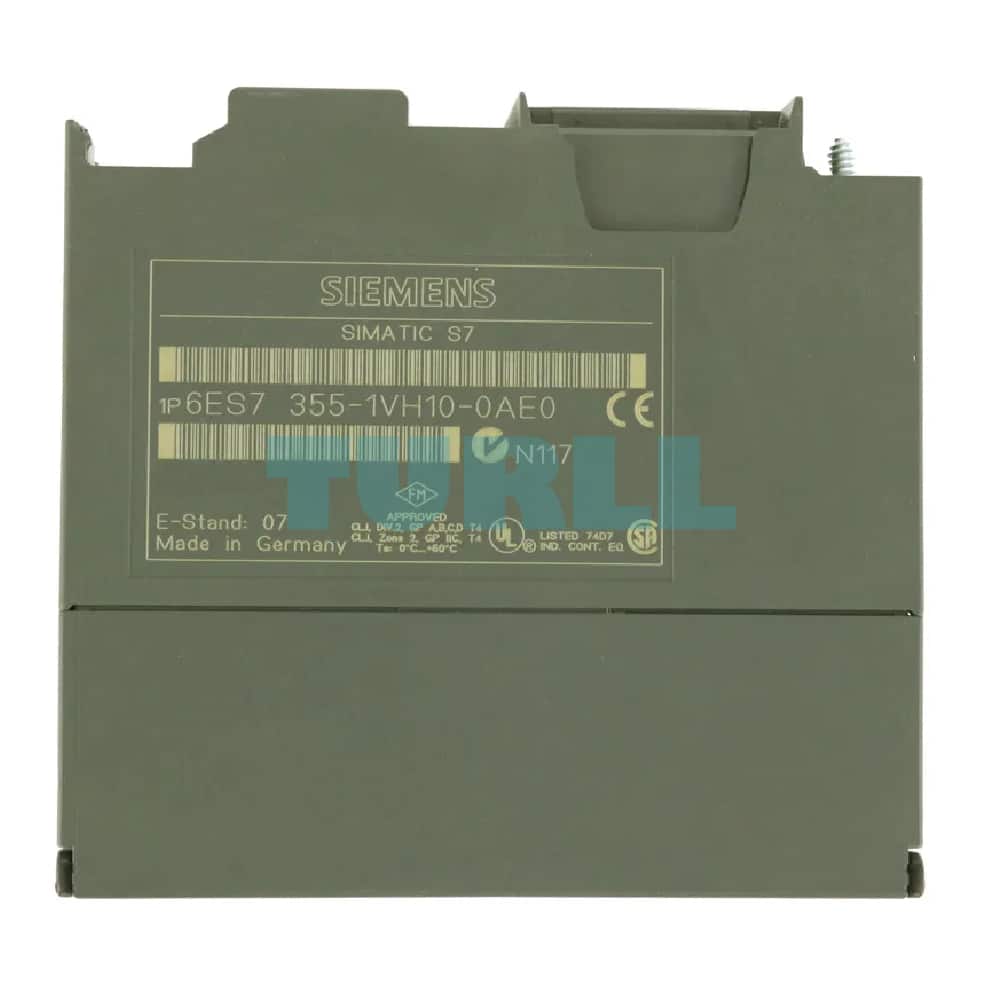

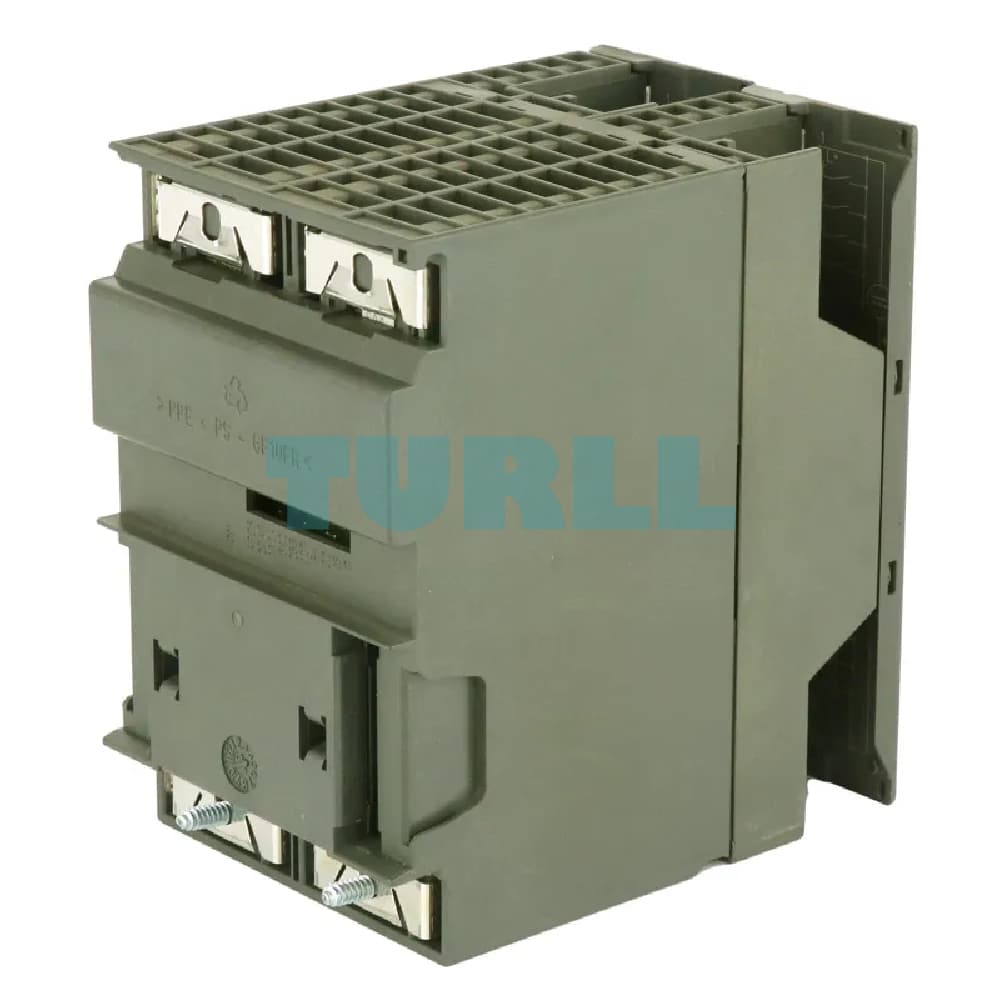

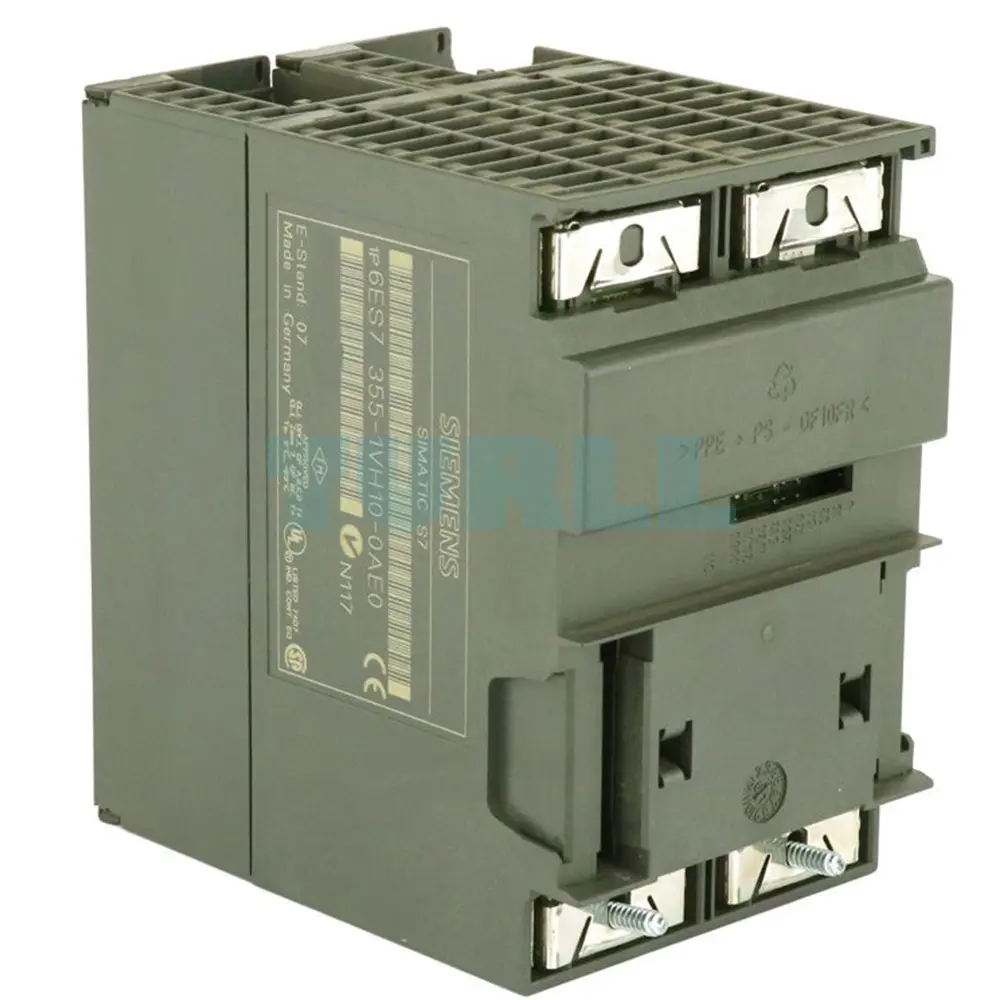

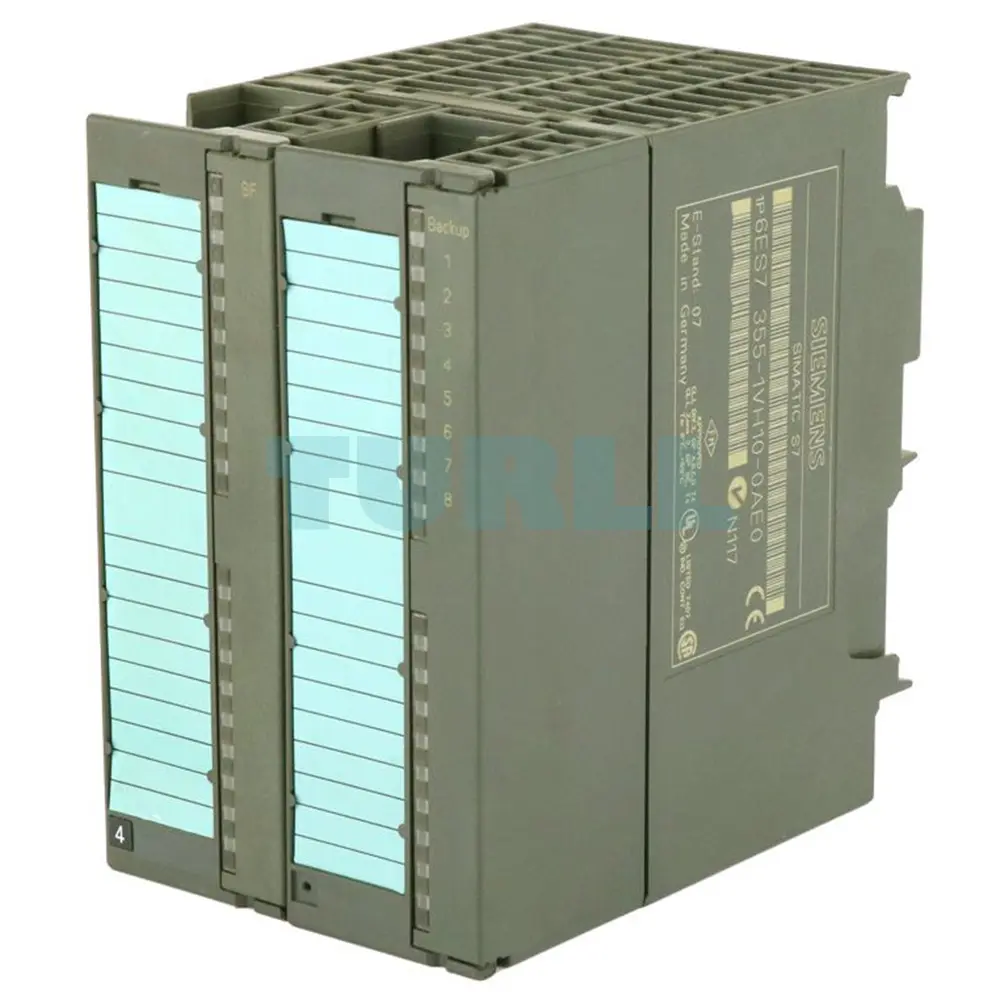

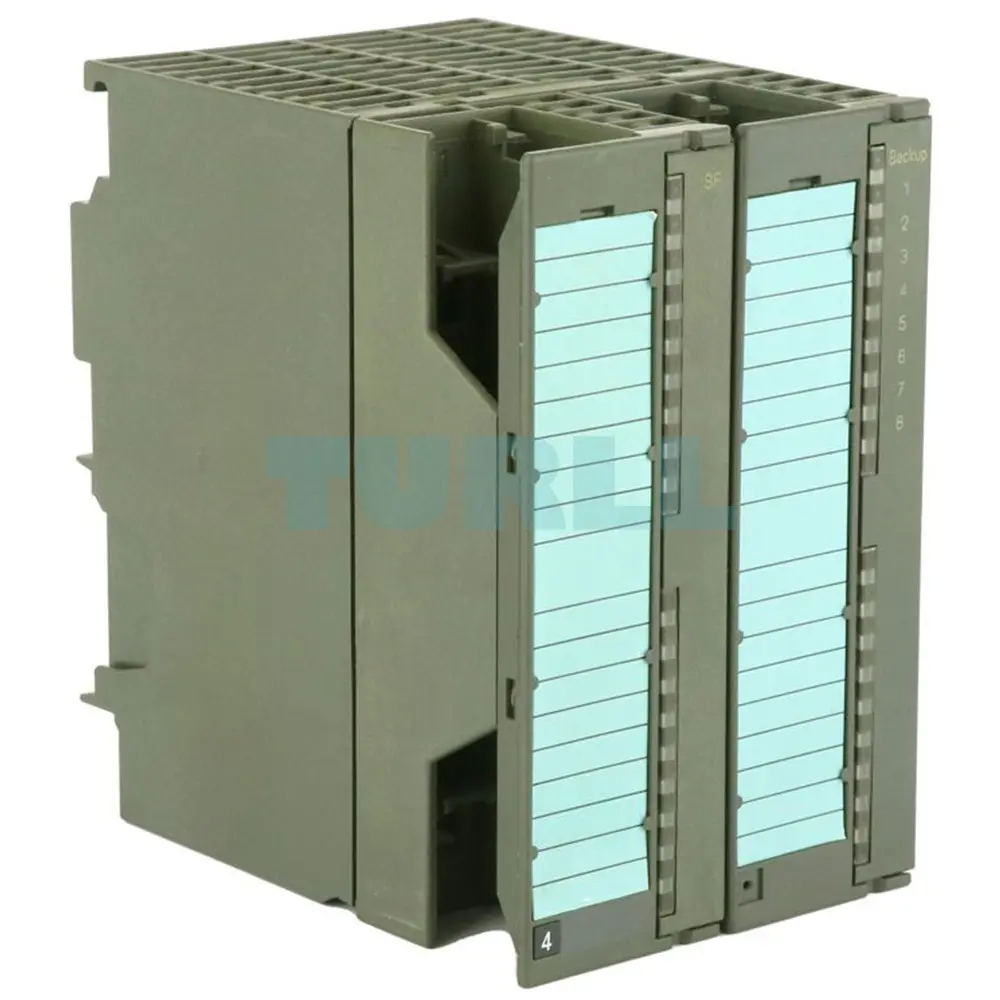

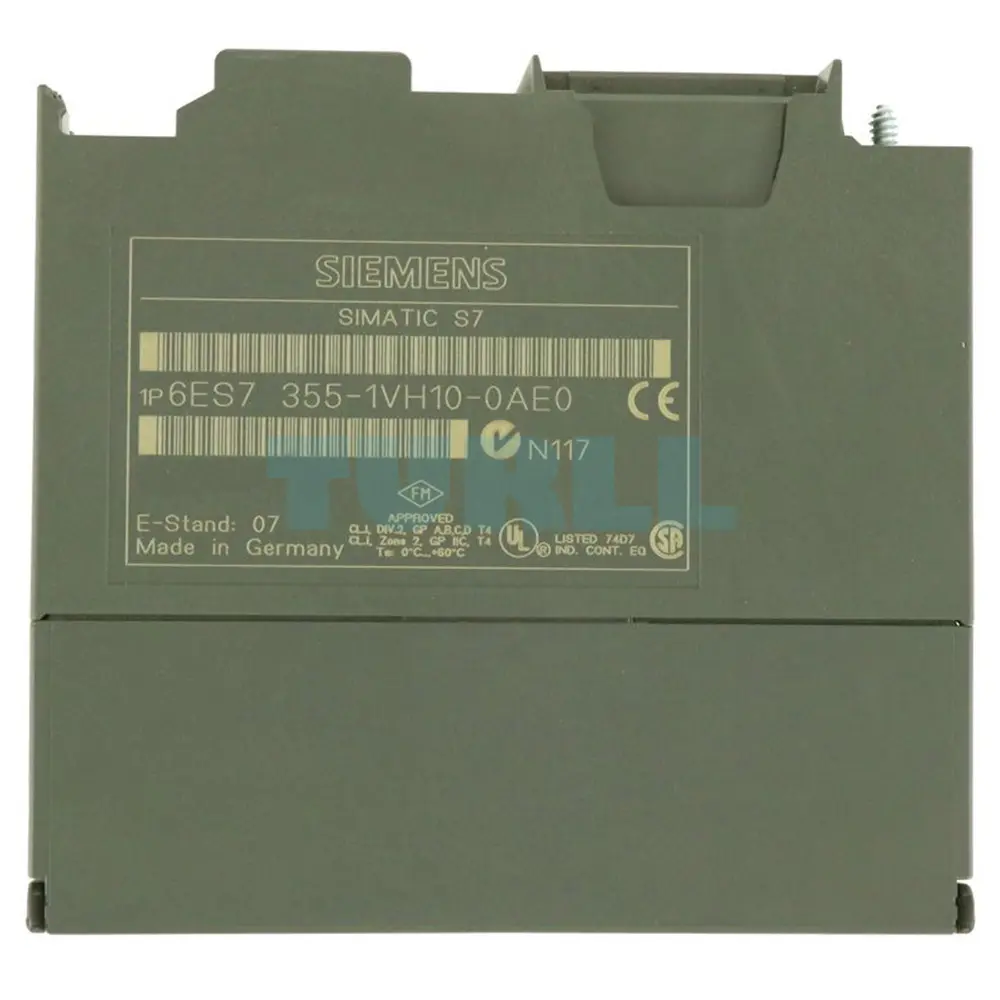

6ES7355-1VH10-0AE0 Siemens SIMATIC S7-300 Control Unit FM 355 S Original Brand New

• 4-channel closed-loop controller module for universal control tasks
• Can be used for temperature, pressure, flow and level controls
• Convenient online self-optimization for temperature controls
• Predefined controller structures
• 2 control algorithms
• 2 versions:
  • FM 355 C as continuous controller;
  • FM 355 S as step or pulse controller
• With 4 analog outputs (FM 355 C) or 8 digital outputs (FM 355 S) for direct control of the most common actuators
• Continuation of control mode also possible with CPU stop or failure

The FM 355 controller module is the intelligent 4-channel controller module for universal control tasks.

It can be used for:

• Temperature control
• Pressure control
• Flow control
• Level control
• General mechanical equipment manufacture
• Plant construction
• Industrial furnaces
• Heating and cooling systems
• Food industry
• Rubber and plastics machines
• Chemical and process engineering
• Glass and ceramics industry
• Wood and paper industry

The FM 355 is offered in two designs:

• FM 355 C as a continuous-action controller with 4 analog outputs for controlling analog actuators
• FM 355 S as a step or pulse controller with 8 digital outputs for controlling motor-driven (integrating) actuators or binary controlled actuators (e.g. electrical heating strips and cartridges).

The FM 355 can be used in the SIMATIC S7-300 and ET 200M with S7-300/400 as DP master.

• User-friendly wiring:
  Encoders and actuators are connected via two separate 20-pin front connectors.
• LEDs:
  • Red LED for displaying faults (group fault)
  • Green LEDs for digital input status display
  • Yellow LED for indicating backup operation
• High-performance measured data acquisition:
  The module has 4 analog inputs for analog value acquisition and disturbance variable input as well as 1 additional analog input for temperature compensation when used with thermocouples.
• Various encoders can be used:
  thermocouples, Pt 100, voltage encoders, current encoders.
• Extensive I/O:
  • FM 355 C: 4 analog outputs for analog actuators
  • FM 355 S: 8 digital outputs for motorized actuators or binary controlled actuators. The 24 V DC supply for the actuators is applied externally.

Configuring package

The configuring package supplied on CD contains:

• Standard function blocks for exchanging data with the CPU
• Parameterization screen forms
• Getting Started - A short guide to startup
• Manual
