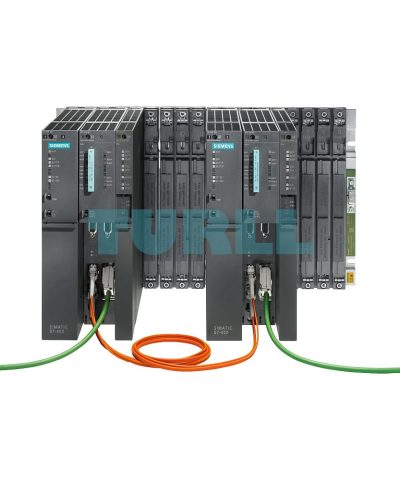

6ES7400-0HR54-4AB0 SIEMENS Exclusive SIMATIC S7-400H 417-5H High-Availability System Bundle Original Brand New
$39,552.99
SIEMENS 6ES7400-0HR54-4AB0 SIMATIC S7-400H 417-5H high-availability system bundle with dual CPUs, integrated PROFINET/PROFIBUS communication, and advanced redundancy features for critical automation.
6ES7400-0HR54-4AB0 SIEMENS Exclusive SIMATIC S7-400H 417-5H High-Availability System Bundle Original Brand New
The SIEMENS 6ES7400-0HR54-4AB0 is a premium high-availability system bundle from the SIMATIC S7-400H series, configured with dual CPU 417-5H units for redundant, mission-critical industrial applications. This system is designed to deliver top-tier performance, reliability, and flexibility in complex automation environments with high safety and availability demands.
Overview
The bundle includes 1 x UR2-H rack, 2 x PS 405 power supplies (10A, 24/48/60 V DC), 4 synchronization modules (up to 10 meters), and 2 synchronization cables (1 meter). The core of this system features two powerful CPU 417-5H processors with a 7.5 ns instruction execution time and 32 MB RAM (16 MB for programs, 16 MB for data). Supporting up to 262,144 digital and 16,384 analog I/O points, this system is engineered for demanding industrial automation tasks.
6ES7400-0HR54-4AB0 Integrated PROFIBUS DP, MPI, and PROFINET interfaces ensure seamless communication and robust networking, with system redundancy and MRP supported for maximum reliability. The diagnostics buffer and real-time clock enable precise monitoring and event tracking. The high scalability and flexible expansion make this system ideal for advanced industrial automation solutions.
- Includes 2 x CPU 417-5H, 1 x UR2-H rack, 2 x PS 405 power supplies
- 4 synchronization modules and 2 synchronization cables included
- Processor cycle time: 7.5 ns per binary instruction
- 32 MB RAM (16 MB for programs, 16 MB for data)
- Supports up to 262,144 digital and 16,384 analog I/O points
- Integrated PROFIBUS DP master, MPI, and PROFINET interfaces
- System redundancy and MRP supported via PROFINET
- Diagnostics buffer with real-time clock for advanced monitoring
- Memory cards and backup batteries required (not included)
Design
- High-availability design suitable for critical industrial operations
- Dual redundant CPU operation with integrated synchronization modules
- Advanced communication with PROFIBUS, MPI, and PROFINET
- Modular expandable architecture for system scalability
- Comprehensive diagnostic features with event timestamping
- Engineered for industrial reliability and long-term operation
- Fully compatible with SIMATIC S7-400H and S7-400F/FH architectures
Product Link: 6ES7400-0HR54-4AB0
| Weight | 11 kg |
|---|---|
| Dimensions | 304 × 591 × 280 mm |
