6ES7455-1VS00-0AE0 SIEMENS Exclusive SIMATIC S7-400 Control Module FM 455 S Original Brand New

6ES7455-1VS00-0AE0 SIEMENS Exclusive SIMATIC S7-400 Control Module FM 455 S Original Brand New

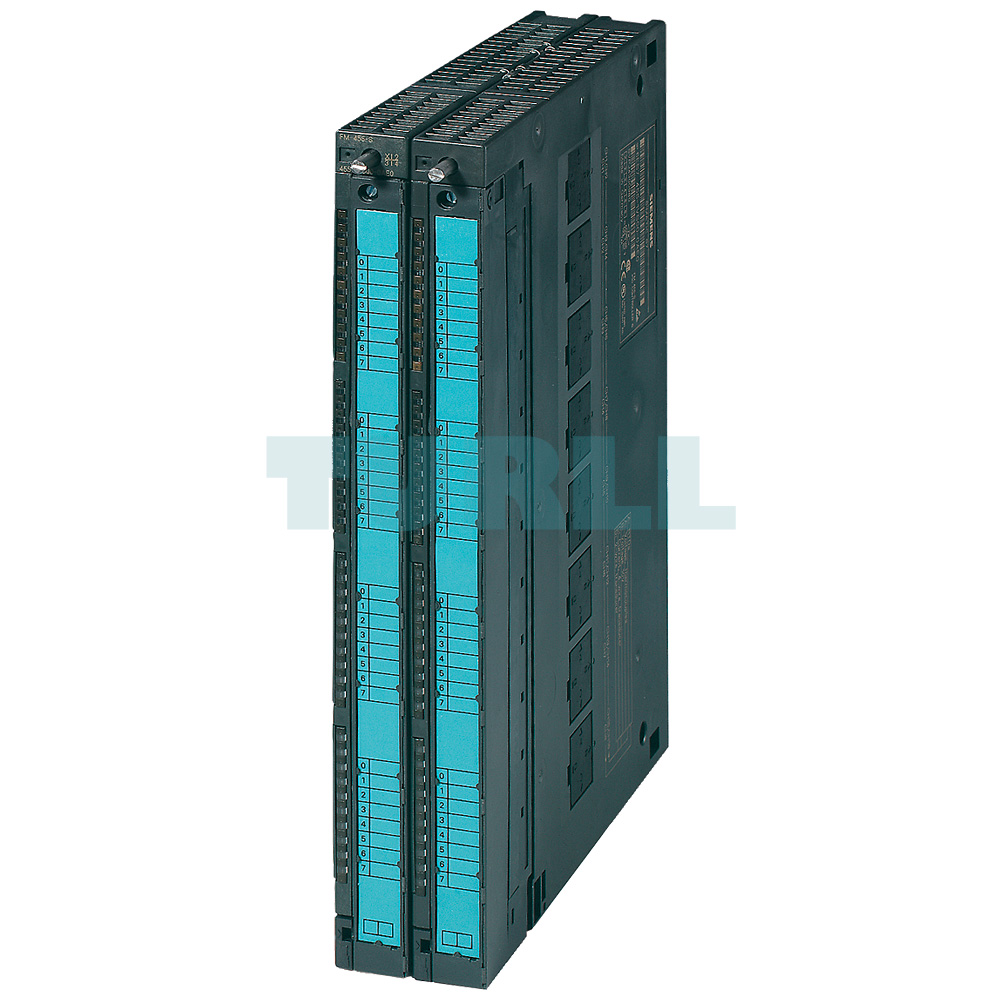

The SIEMENS 6ES7455-1VS00-0AE0 control module is a high-performance solution for universal closed-loop control tasks in industrial automation. Designed for the SIMATIC S7-400 platform, the FM 455 S offers 16 channels and supports step and pulse control modes. With advanced integration capabilities and reliable hardware design, it ensures precision and stability for controlling processes such as temperature, pressure, and flow.

This module features 8 or 16 analog inputs, 16 digital inputs, and 32 digital outputs. It supports a wide range of encoders, including thermocouples, Pt100 sensors, voltage, and current transducers, making it an incredibly flexible tool for demanding industrial applications.

Overview

The FM 455 S is a 16-channel closed-loop control module with predefined control structures and two configurable control algorithms. Key features include:

• Ideal for temperature, pressure, and flow control systems
• Online self-optimization for temperature regulation
• Supports both step and pulse control operations
• 32 digital outputs for binary or motor-driven actuators (FM 455 S variant)
• High-speed analog value acquisition for accurate process feedback

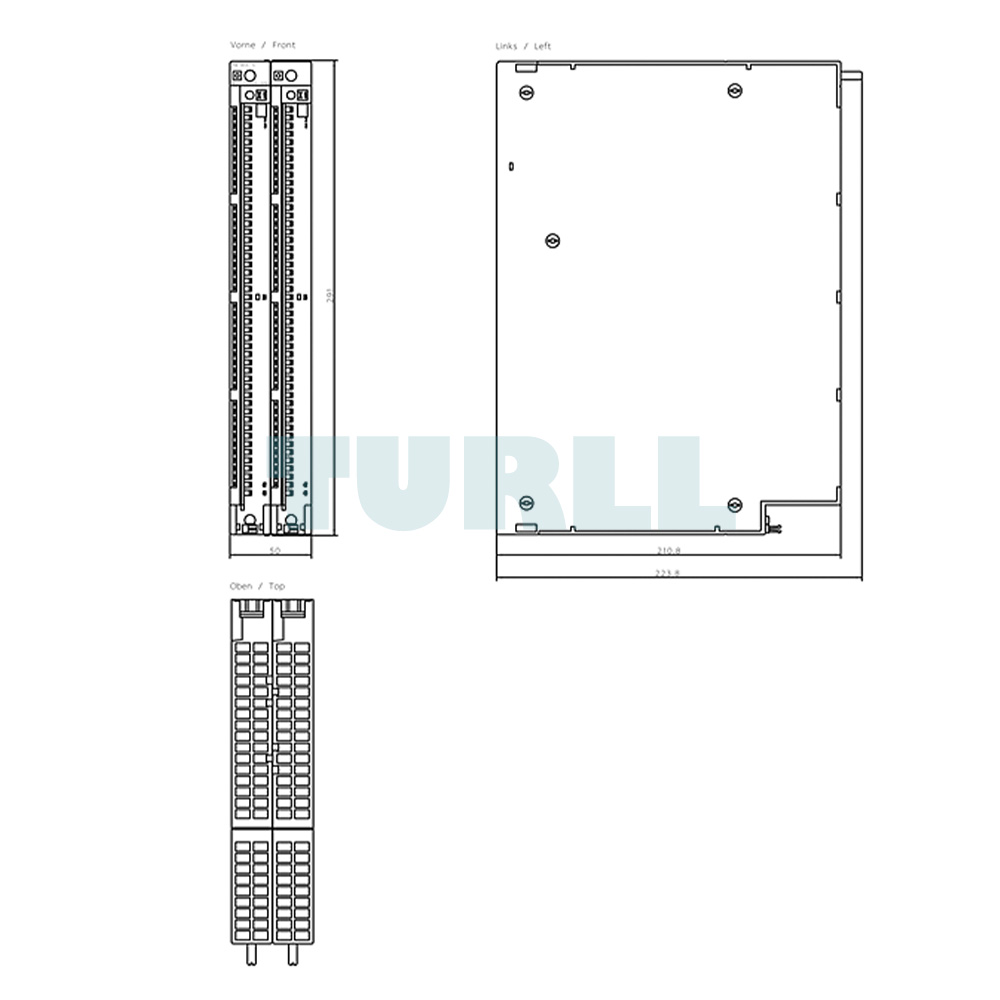

Design

The FM 455 S module is engineered for ease of installation and reliable long-term operation. Design highlights include:

• Two 48-pin front connectors for simplified sensor and actuator wiring
• LED indicators: green for DI status, red for internal/external faults, yellow for backup mode
• 16 analog inputs for process values and disturbance variables
• 1 additional analog input for temperature compensation (with thermocouples)
• External 24 V DC supply for actuators

Configuring Package

The configuration package includes:

• User manual
• Parameter assignment forms
• Standard function blocks for integration with CPU

Download

Data Sheet (PDF)

Product Code: 6ES7455-1VS00-0AE0
