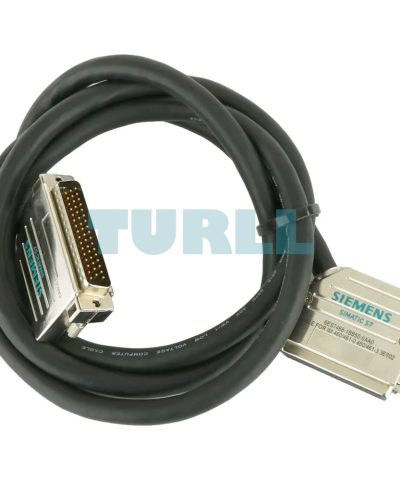

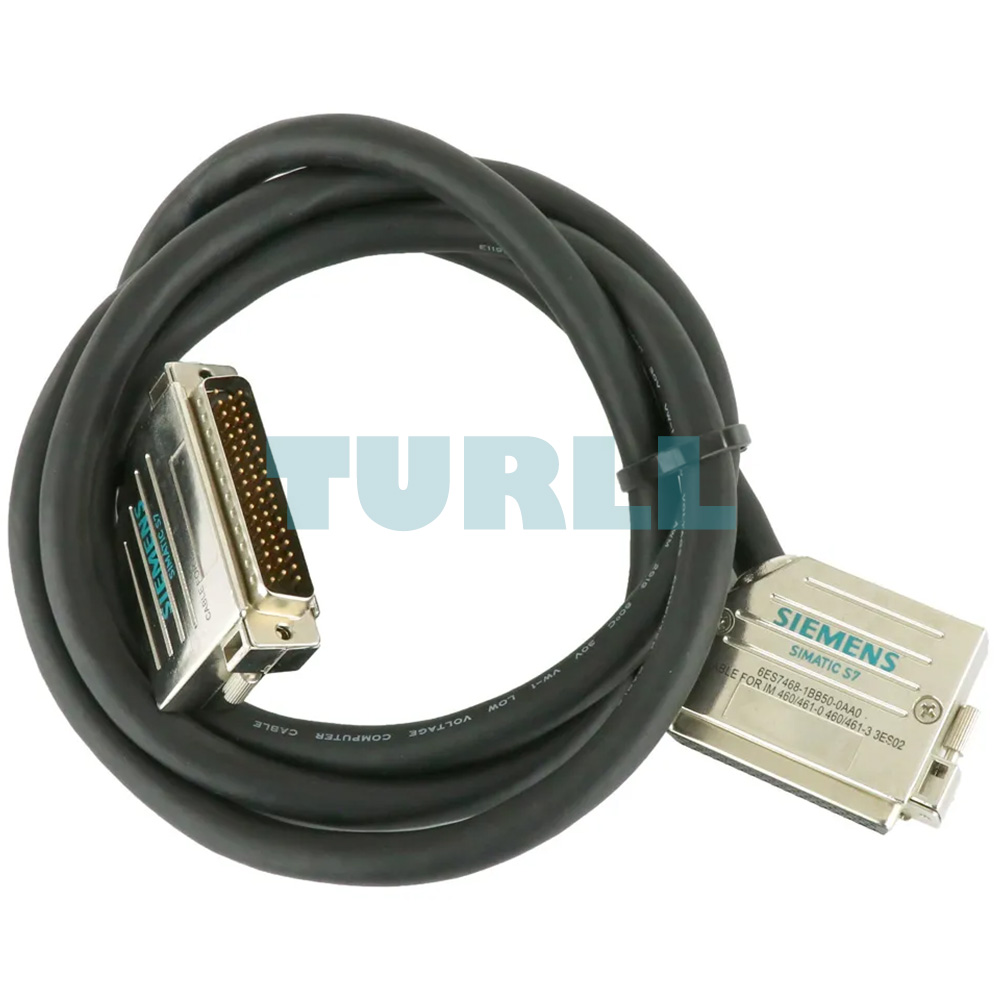

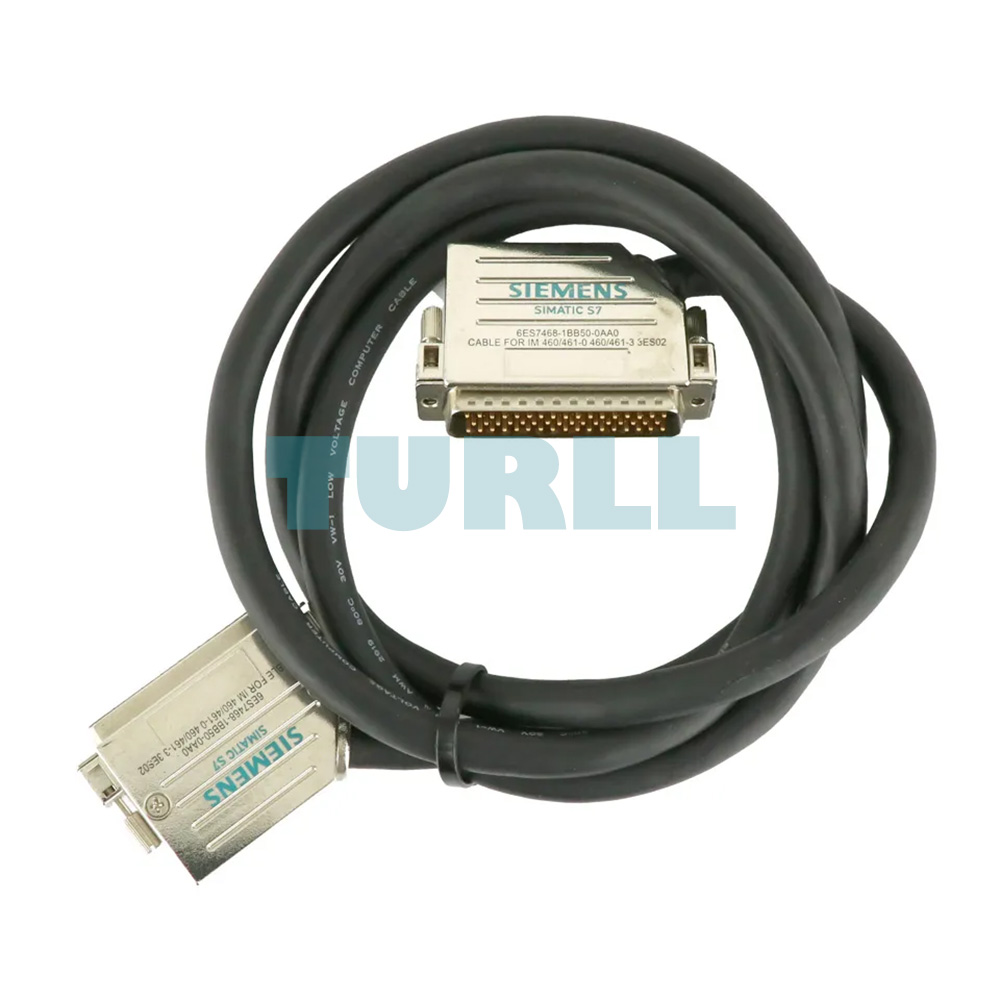

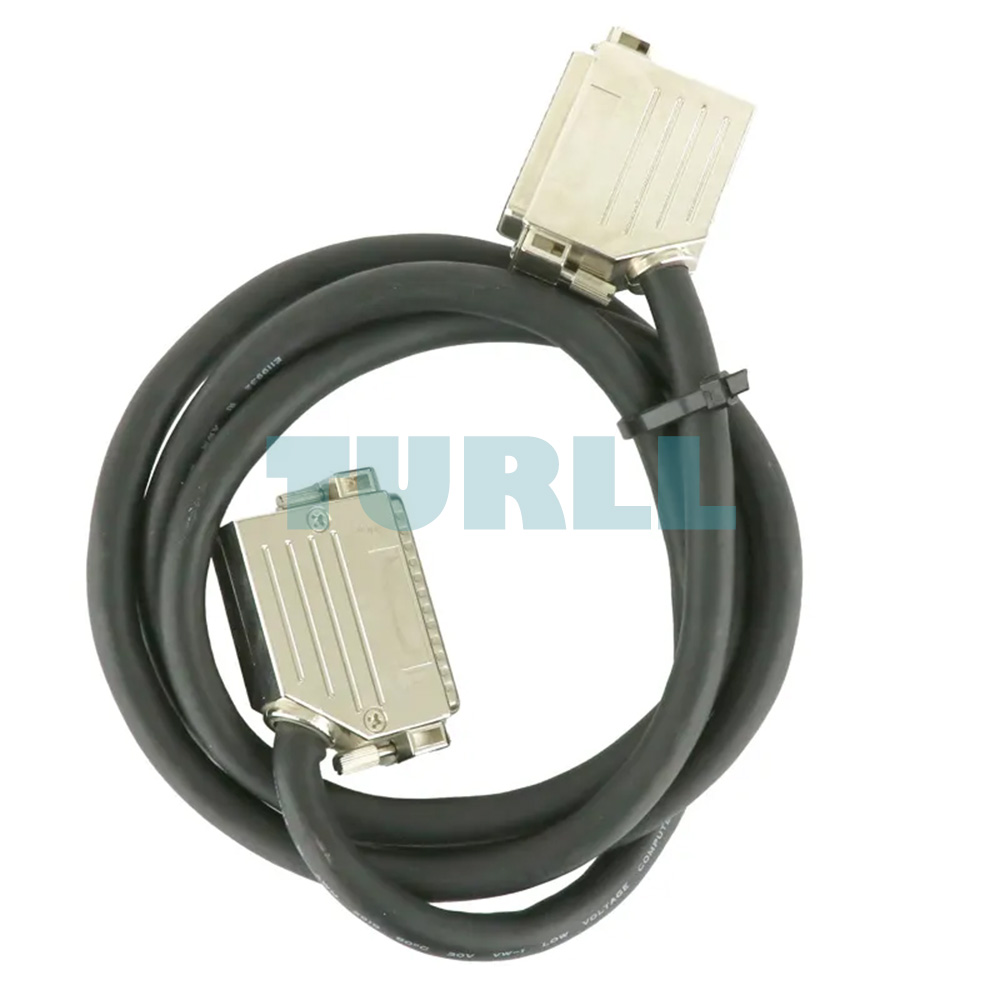

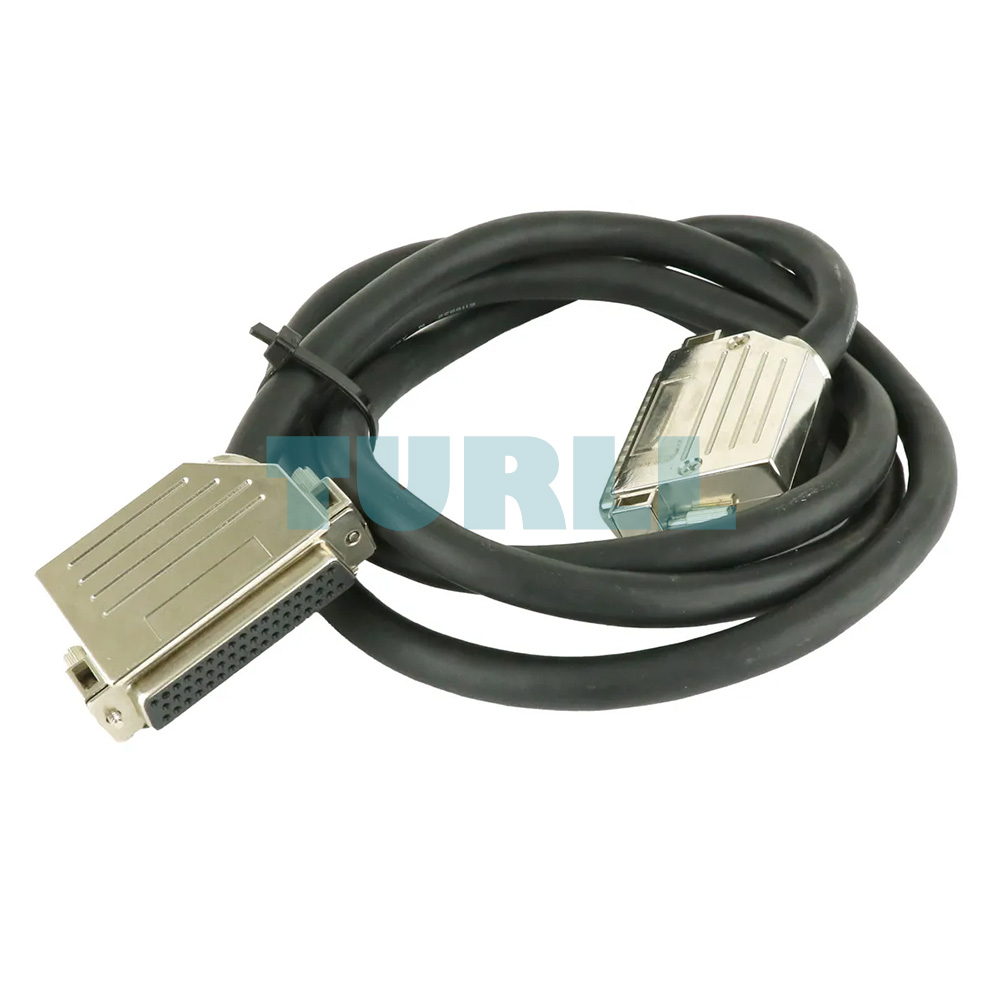

6ES7468-1DB00-0AA0 SIEMENS Exclusive SIMATIC S7-400 IM C-Bus Cable 100m Original Brand New

6ES7468-1DB00-0AA0 SIEMENS Exclusive SIMATIC S7-400 IM C-Bus Cable 100m Original Brand New

The 6ES7468-1DB00-0AA0 from SIEMENS is a high-quality SIMATIC S7-400 IM C-bus cable designed specifically for extended system configurations. With a length of 100 meters, this original brand new cable ensures reliable communication between interface modules, supporting distributed expansion over distances up to 102 meters. It plays a critical role in enabling seamless signal transfer across multiple expansion units via the P and K Bus systems.

This cable is pluggable in the expansion units and is engineered for exclusive use with the IM 460-3 modules, ensuring compatibility and performance. As part of the robust SIMATIC S7-400 series, it is ideal for demanding industrial environments requiring extended and distributed control systems.

Overview

This receive interface cable allows distributed expansion of the S7-400 system up to 102 meters. Key capabilities include:

• Receives data via the P and K Bus architecture
• Fully pluggable in S7-400 expansion racks
• Designed exclusively for use with IM 460-3 modules

Design

The IM 461-3 interface module works with this cable and fits the following expansion racks:

• UR1
• UR2
• ER1
• ER2

Features of the module that complement the cable include:

• Two LEDs for fault indication
• One input interface for upstream connection
• One output interface for downstream connection with termination plug if last in line
• Coding switch to define rack number
• Battery socket for external battery during rack power supply replacement

Download

Data Sheet (PDF)

Product Code: 6ES7468-1DB00-0AA0
