6ES7516-2PN00-0AB0 Siemens SIMATIC DP CPU 1516PRO-2 PN Original Brand New
$6,839.27
6ES7516-2PN00-0AB0

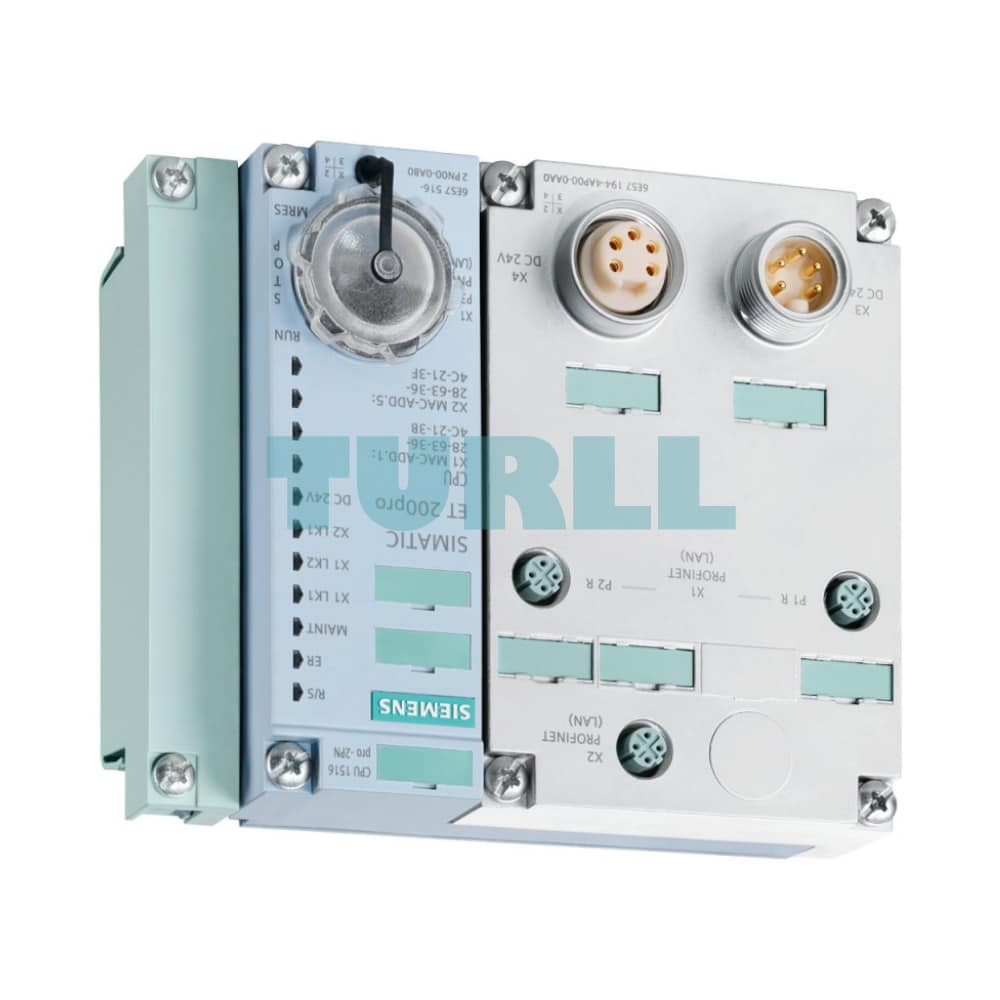

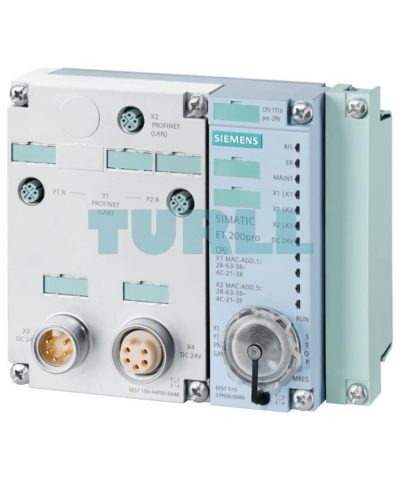

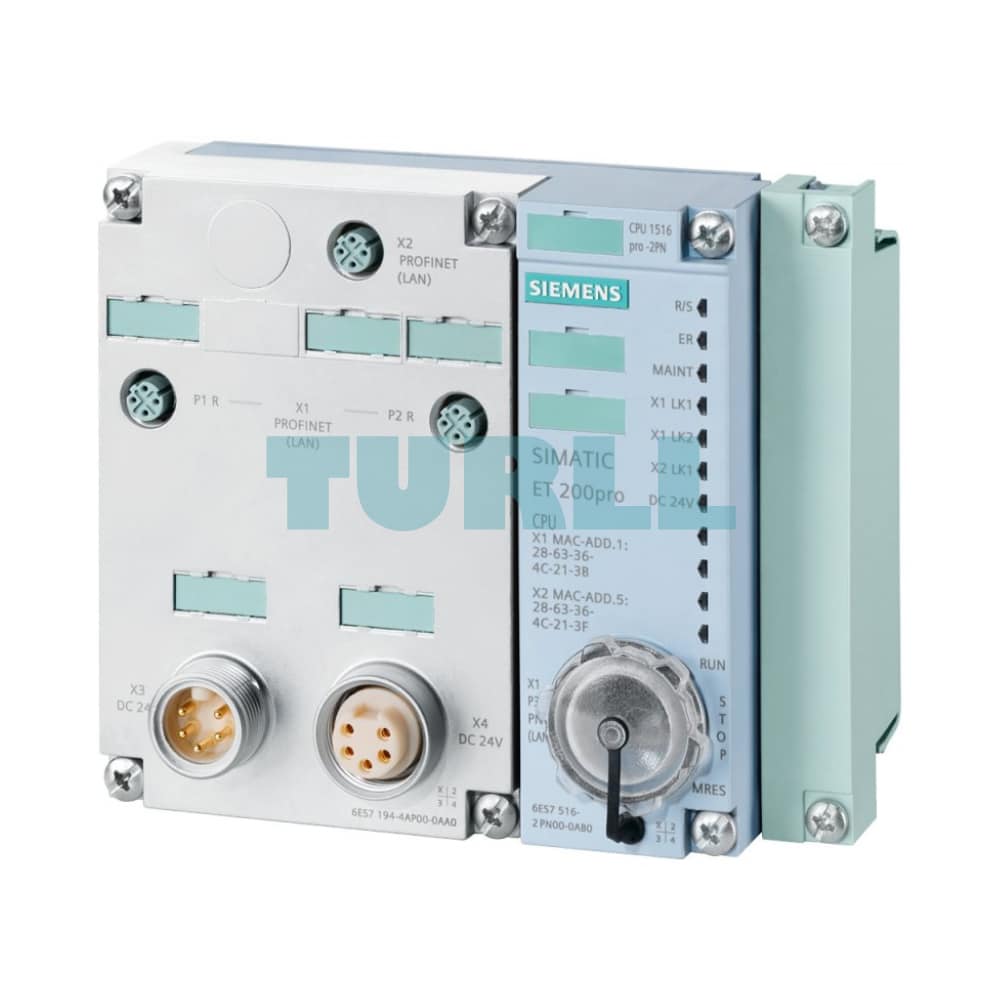

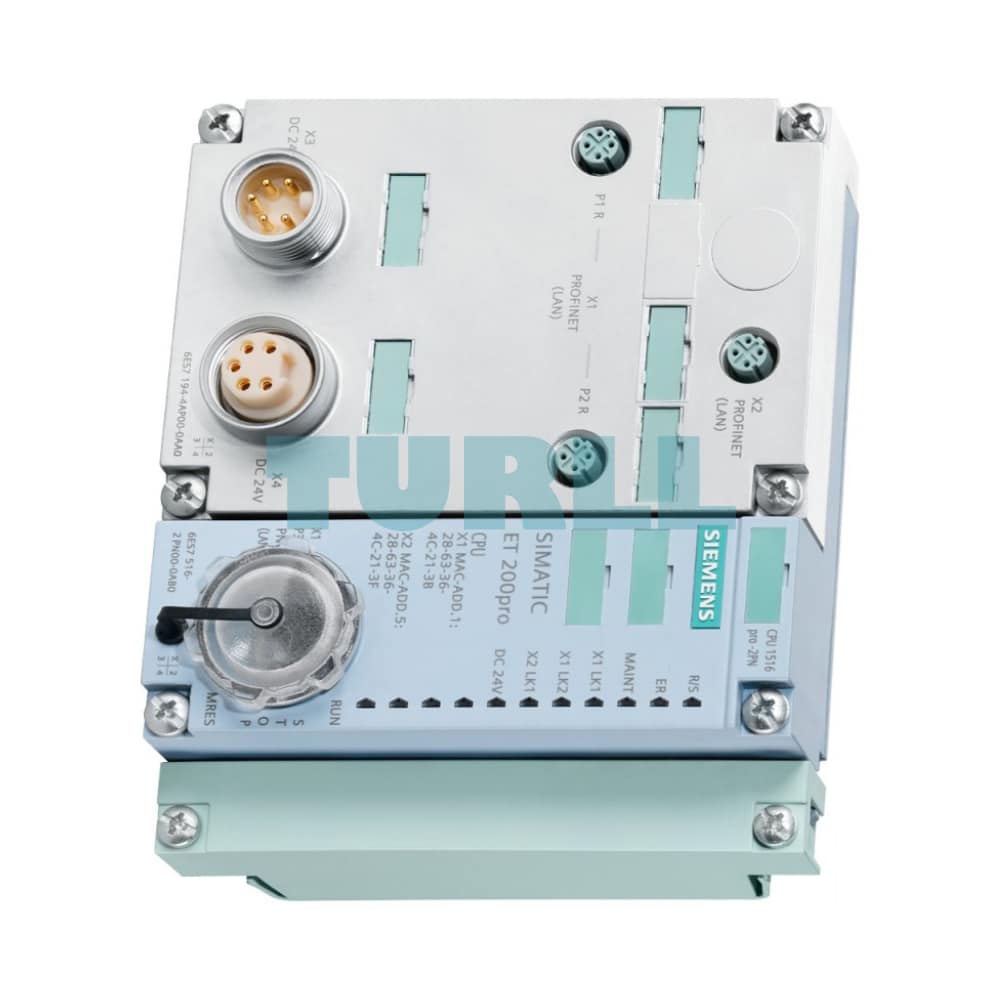

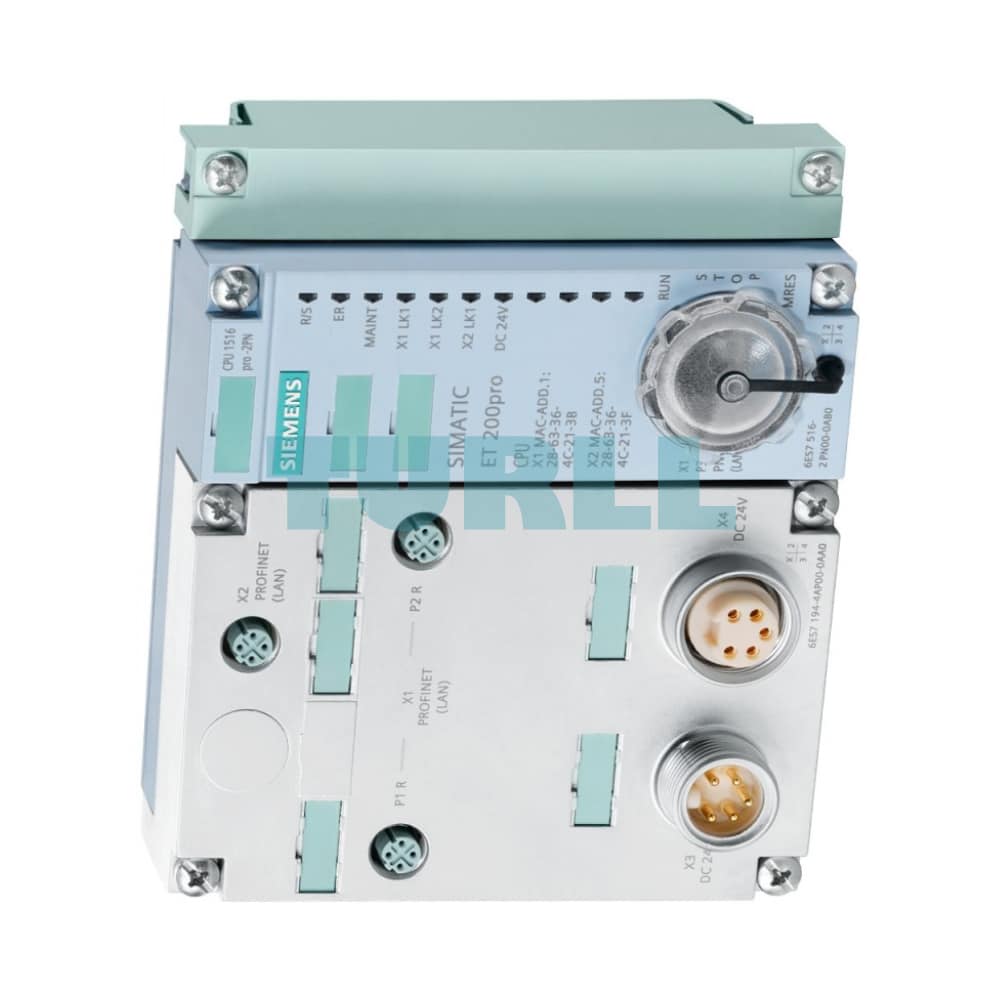

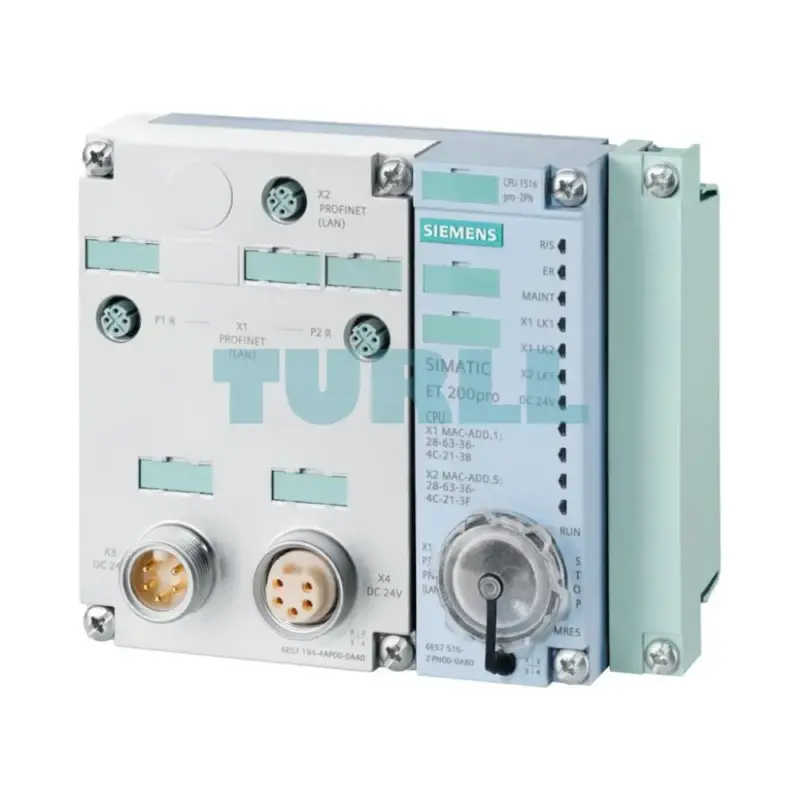

Siemens SIMATIC DP, CPU 1516PRO-2 PN for ET 200pro, Central processing unit with Work memory 1 MB for program and 5 MB for data, 1st interface: PROFINET IRT with 3-port switch, 2nd interface: PROFINET RT, 10 ns bit performance, degree of protection: IP65/67, SIMATIC Memory Card required, Connection module required
[ez-toc]
Overview
- CPU 1516pro-2 PN for SIMATIC ET 200pro based on S7-1500 CPU 1516-3 PN/DP
- For applications with high requirements on the program scope and processing speed, for distributed setup via PROFINET IO
- PROFINET IO controller for operating distributed I/O on PROFINET
- PROFINET I-Device for connecting the CPU as an intelligent PROFINET device with a SIMATIC or non-Siemens PROFINET IO controller
- PROFINET shared I-Device for 4 controllers
- PROFINET IO RT/IRT interface with integrated 3-port switch
- Additional PROFINET IO RT interface with separate IP address
- Isochronous mode on PROFINET
- Integrated Motion Control functionalities for controlling speed-controlled and positioning axes, support for external encoders, output cams/cam tracks and probes
- OPC UA Server and Client (Data Access) as runtime option for the easy connection of SIMATIC ET 200pro to non-Siemens devices/systems
- Integrated web server with the option of creating user-defined web pages
Note
SIMATIC Memory Card required for operation of the CPU
Application
The CPU 1516pro-2 PN is the CPU with a large program and data memory for demanding tasks in applications that also contain distributed automation structures alongside central I/O and require protection level IP65/67.
It can be used as a PROFINET IO Controller or as distributed intelligence (PROFINET I-Device). The integrated PROFINET IO IRT interface is designed as a 3-port switch so that a linear topology can be set up in the system.
The additional integrated PROFINET IO RT interface with separate IP address can be used, for example, for network separation to operate additional PROFINET IO devices.
In addition, the CPU offers comprehensive control functionalities as well as the ability to connect drives via standardized PLCopen blocks.
The ET 200pro system with the CPU 1516pro-2 PN can be used for controlling autonomous technological functional units, e.g.:
- Conveyor systems, switches
- Lifting stations
- Positioning tasks
- Workstations in the powertrain segment of the automotive industry
The CPU’s potential applications are therefore extended manufacturing cells with preprocessing, where stand-alone operation is also an option. Cabinet-free installations are possible due to the high IP67 degree of protection.
Design
The ET 200pro CPU 1516pro-2 PN consists of two parts:
- CPU 1516pro-2 PN (6ES7516-2Pxxx-0AB0) and
- CM CPU 2PN M12 / 7/8″ connection module (6ES7194-4AP00-0AA0)
Both parts must be ordered separately.
The CPU 1516pro-2 PN features:
- A powerful processor:
The CPU achieves command execution times as low as 10 or 6 ns per binary instruction - Extensive work memory:
1 or 2 MB for program, 5 or 7.5 MB for data - SIMATIC Memory Cards as load memory;
permitting additional functions such as firmware update, datalog and archives - Flexible expansion capability:
single-tier configuration with max. 16 modules (I/O, motor starter, frequency converter). Station width up to 1 m - IO controller functionality for connecting distributed I/O and I-Device functionality for connecting the CPU to higher-level IO controllers via PROFINET interfaces:
- PROFINET IO RT/IRT interface with 3 ports (2 x M12, 1 x RJ45)
- PROFINET IO RT interface with 1 port M12
- Integrated communication functions:
- Programming device/OP communication
- PROFINET IO
- Open IE communication (TCP, ISO-on-TCP and UDP)
- OPC UA Server / Client (Data Access)
- Web server
- S7 communication
- S7 routing
- Diagnostics displays for errors (Er), operation (R/S), maintenance (MAINT), power supply (24 V DC) and one link LED per port
Scope of supply:
CPU 1516pro-2 PN including termination module; CM connection module CPU 2PN M12 / 7/8″ must be ordered separately.
Function
- Performance
- High-speed command processing
- Powerful network connection:
CPU is equipped with a PROFINET IO IRT (3-port switch) as the standard interface
- Integrated technology
- Connection of analog and PROFIdrive-capable drives via standardized blocks (PLCopen)
- Support of speed-controlled and positioning axes as well as external encoders, precise position gearing between axes
- Trace functions for all CPU tags, both for diagnostics in real time as well as for sporadic error detection
- Comprehensive control functionalities, e.g. easily configurable blocks for automatic optimization of the control parameters for optimum control quality
- Isochronous mode
- Synchronous coupling of distributed signal acquisition, signal transmission, and program execution to the PROFINET cycle with constant bus cycle time
- Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted into the CPU.
- 4-level authorization concept:
Communication to the HMI devices can also be restricted - Manipulation protection:
The controller recognizes changed or unauthorized transmissions of the engineering data
- Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the TIA Portal, HMI devices and Web server, even for messages from the drives, and is updated even if the CPU is in STOP mode
- Support of SIMATIC ProDiag S7-1500
- ProDiag is a concept for the easy creation of machine and plant diagnostics. It increases availability and supports fault analysis and elimination on-site
- SIMATIC Memory Card (required for operation of the CPU)
- Used as a plug-in load memory or for updating the firmware
- Also for storing additional documents or csv files (for recipes and archives)
- Creation of data blocks for storage/reading of data via SFCs of the user program
- Datalog (archives) and recipes
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
easy access to plant-relevant operating data using Office tools or via a Web server - Easy access to machine configuration data by means of a Web browser or SD card reader (two-way data exchange from and to the controller)
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
- Programming
- Programming with STEP 7 Professional, V14 and higher
6ES7516-2PN00-0AB0
Siemens SIMATIC DP, CPU 1516PRO-2 PN for ET 200pro, Central processing unit with Work memory 1 MB for program and 5 MB for data, 1st interface: PROFINET IRT with 3-port switch, 2nd interface: PROFINET RT, 10 ns bit performance, degree of protection: IP65/67, SIMATIC Memory Card required, Connection module required
Visit 6ES7516-2PN00-0AB0
For more our products visit turll.com
| Weight | 0.678 kg |
|---|---|
| Dimensions | 141.00 × 166.00 × 78.00 mm |
