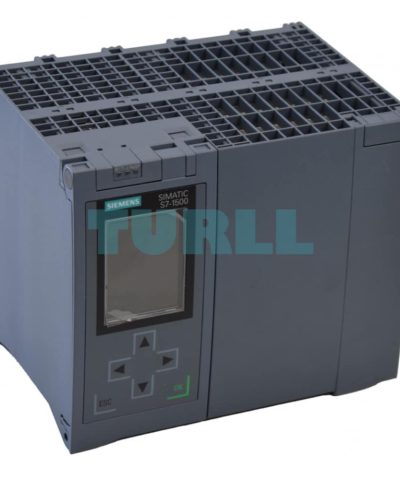

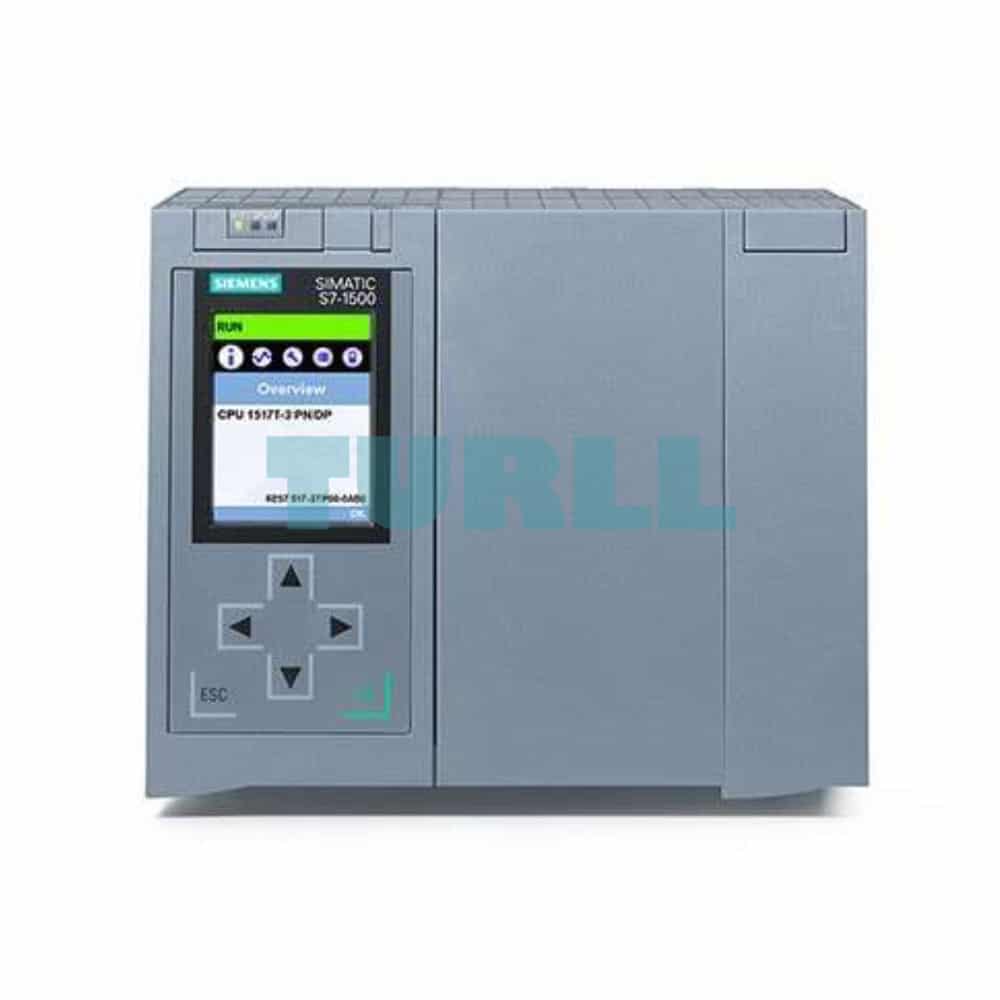

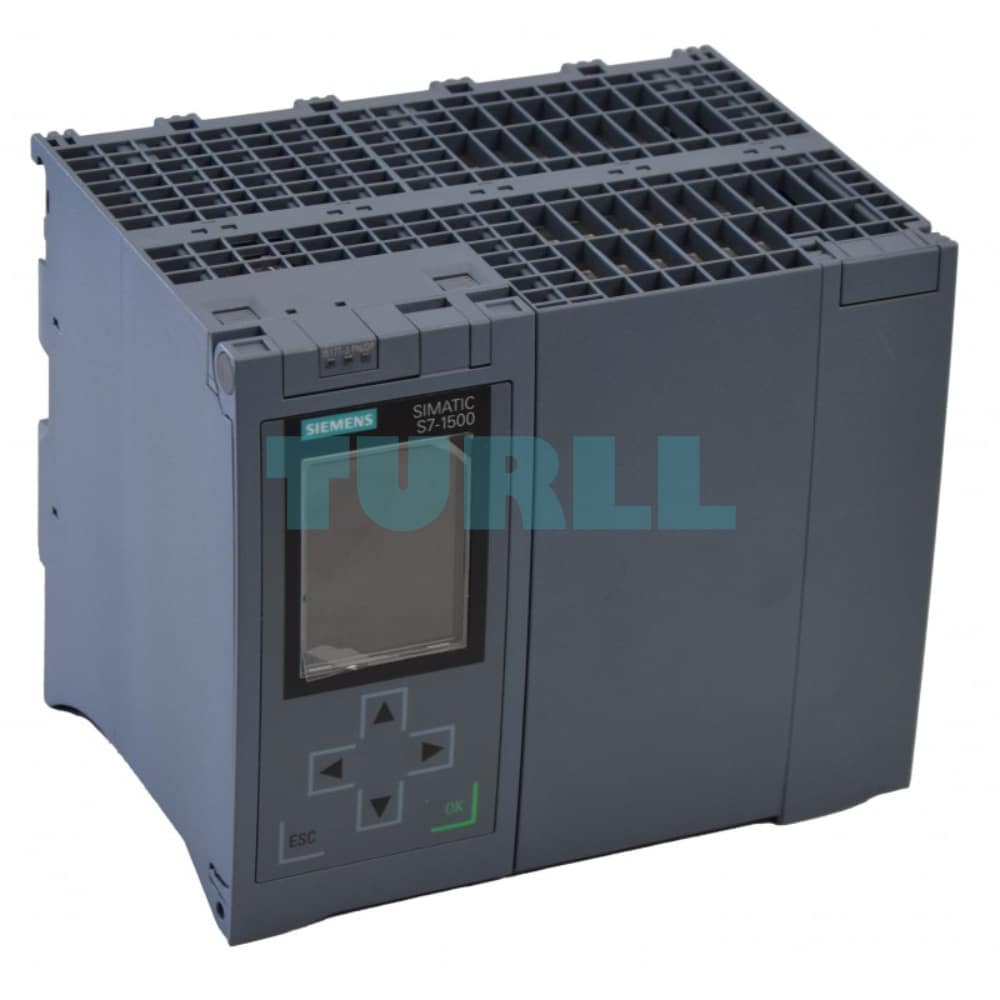

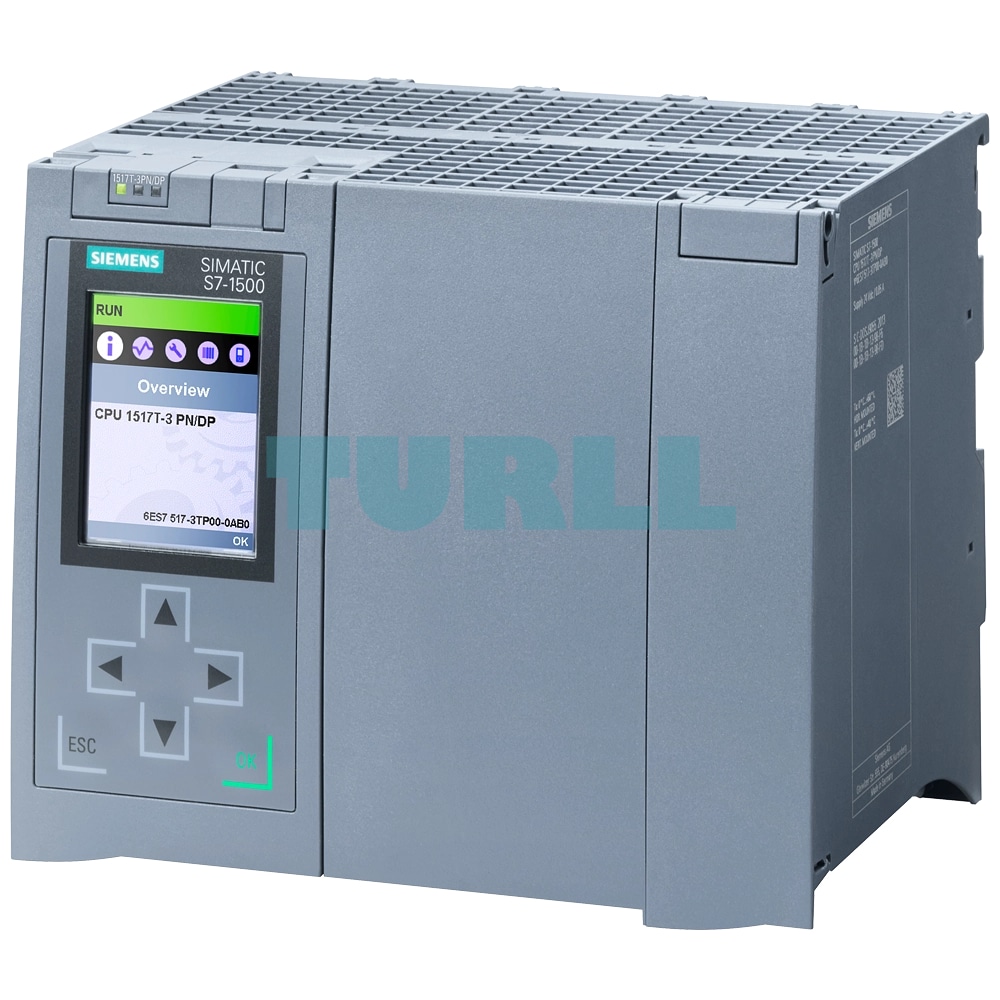

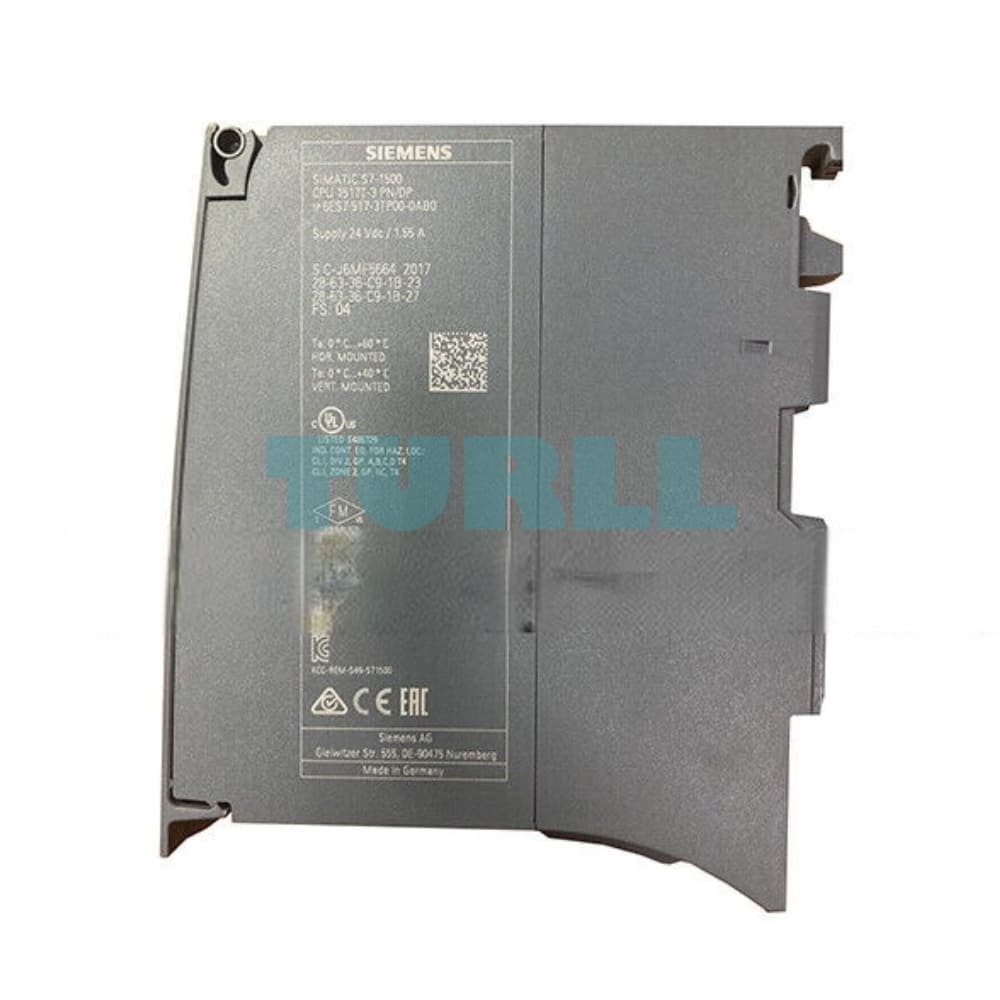

6ES7517-3TP00-0AB0 Siemens SIMATIC S7-1500T CPU 1517T-3 PN/DP Original Brand New
$8,642.70
6ES7517-3TP00-0AB0
Siemens SIMATIC S7-1500T, CPU 1517T-3 PN/DP, Central processing unit with work memory 3 MB for program and 8 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface, Ethernet, 3rd interface, PROFIBUS, 2 ns bit performance, SIMATIC Memory Card required
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
[ez-toc]
Overview
- The CPU with a very large program and data memory in the S7-1500 Controller product range for applications with high requirements regarding program scope and networking.
- High processing speed for binary and floating-point arithmetic
- For cross-industry automation tasks in series machine, special machine and plant construction
- Used as central controller in production lines with central and distributed I/O
- PROFINET IO IRT interface with 2-port switch
- PROFINET IO controller for operating distributed I/O on PROFINET.
- PROFINET I-Device for connecting the CPU as an intelligent PROFINET device under a SIMATIC or third-party PROFINET IO Controller.
- Additional PROFINET interface with separate IP address for network separation, for connecting further PROFINET IO RT devices, or for high-speed communication as an I-Device
- PROFIBUS DP master interface
- OPC UA Server and Client as runtime option for the easy connection of SIMATIC S7-1500 to third-party devices/systems with the functions:
- OPC UA Data Access
- OPC UA Security
- OPC UA Methods Call
- Support of OPC UA Companion specifications.
- Central and distributed isochronous mode on PROFIBUS and PROFINET
- Integrated Motion Control functionalities for controlling speed-controlled, positioning and synchronized axes (gearing and camming), support for external encoders, output cams/cam tracks and probes.
Technology object for controlling kinematics with up to 4 interpolating axes, e.g. Cartesian portal, delta picker, roller picker, articulated arm, cylindrical robot, tripod picker and SCARA.
User-defined kinematics are also supported. - SIMATIC Motion Interpreter – Technology objects for programming and controlling axes and kinematics
- Cross-PLC synchronous operation for synchronization of multiple SIMATIC S7-1500T Controllers
- Integrated web server for diagnostics with the option of creating user-defined web pages
Note
SIMATIC Memory Card required for operation of the CPU.
Application
The CPU 1517T-3 PN/DP features a very large program and data memory for demanding tasks in applications that also contain distributed automation structures alongside central I/O.
It can be used as a PROFINET IO Controller or as distributed intelligence (PROFINET I-Device). The integrated PROFINET IO IRT interface is designed as a 2-port switch, enabling a linear topology to be set up in the system.
The additional integrated PROFINET interface with separate IP address can be used for network separation, connecting further PROFINET IO RT devices, or high-speed communication as an I-Device, for example.
Distributed I/O can be connected via PROFIBUS via the integrated PROFIBUS interface.
In addition, the CPU offers comprehensive control functionalities as well as the ability to connect drives via standardized PLCopen blocks.
Furthermore, multiple SIMATIC S7-1500T Controllers can be synchronized with one another through cross-PLC synchronous operation.
Design
The CPU 1517T-3 PN/DP features:
- A powerful processor:
The CPU achieves command execution times as low as 2 ns per binary instruction - A large work memory:
3 MB for program, 8 MB for data - SIMATIC Memory Cards as load memory;
permit additional functions such as datalog and archives - Flexible expansion capability:
single-tier configuration with max. 32 modules (CPU + 31 modules) - Display with functions for:
- Displaying overview information such as IP address of the integrated interface, station name, plant designation, location identifier, etc.
- Display and acknowledgment of diagnostic and user messages
- Display of module information
- Showing display settings
- Display of a user-definable logo
- Setting IP addresses
- Setting the date and time
- Selecting the operating mode
- Resetting the CPU to factory settings
- Backup and restoring of the project
- Disabling/enabling the display
- Enabling protection levels
- PROFINET IO IRT interface and second PROFINET IO RT interface for connecting distributed I/O via PROFINET
- Network separation between the PROFINET interfaces
- PROFIBUS DP interface for connecting distributed I/O via PROFIBUS
Function
- Performance
- Faster command processing, depending on the CPU type, language extensions and new data types
- Even shorter response times of the CPUs due to considerably faster backplane bus
- High-performance network connection:
Each CPU is equipped with PROFINET IO IRT (2-port switch) as standard interface. In addition, the CPU 1517T-3 PN/DP features a PROFINET interface, e.g. for network separation, for connecting further PROFINET IO RT devices, or for high-speed communication as an I-device.
- Integrated technology
- Control of PROFIdrive-capable drives and drives with analog setpoint interfaces via standardized Motion Control instructions (PLCopen)
- The SIMATIC S7-1500 technology CPUs offer the following Motion Control functions:
Speed-controlled axes, positioning axes, synchronized axes, external encoders, output cams, cam track, probes, extended synchronous operation functions (synchronization with or without specification of the synchronous position, setpoint or actual value linkage, shifting of the master value at the following axis, camming), cyclic cam, max. 4 encoder or measuring systems as actual position for position control.
Cyclic specification of the motion vector from the application (MotionIn interface).
Technology object for controlling kinematics with up to 4 interpolating axes, e.g. Cartesian portal, delta picker, roller picker, articulated arm, cylindrical robot, tripod picker and SCARA.
Support for user-defined kinematics. - SIMATIC Motion Interpreter – Technology objects for programming and controlling axes and kinematics
- Cross-PLC synchronous operation for synchronization of multiple SIMATIC S7-1500T Controllers
- Trace functions for all CPU tags, both for diagnostics in real time as well as for sporadic error detection; can also be called via the web server of the CPU
- Extensive control functionalities, e.g. easily configurable blocks for automatic optimization of the control parameters for optimum control quality
- Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted in the CPU.
- 4-level authorization concept:
Communication to HMI devices can also be restricted - Manipulation protection:
The controller recognizes changed or unauthorized transmissions of the engineering data
- Design and handling
- Display of overview information:
E.g. Station name, plant designation, location designation, etc., diagnostics information, module information, display settings - Possible operations on the display:
Set addresses of the CPU or connected Ethernet communications processors, set date and time, select operating mode of CPU, reset CPU to factory settings, disable/enable display, activate protection levels, acknowledge messages, back up and restore projects
- Display of overview information:
- Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the display, TIA Portal, HMI devices and web server, even for messages from the drives, and updated even if the CPU is in STOP mode
- Integrated in the firmware of the CPU, no special configuration is required
- SIMATIC Memory Card (required for operation of the CPU)
- Used as plug-in load memory or for updating the firmware
- For storing additional documents or csv files (for recipes and archives)
- Storage of data blocks and storage/reading of data via SFCs of the user program
- Data log (archives) and recipes
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
easy access to plant-relevant operating data using Office tools and via web server - Easy access to configuration data of the machine by means of a web browser or SD card reader (two-way data exchange from and to the controller)
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
- Programming
- Programming with STEP 7 Professional, as of V14
- S7-1200 basic programs can be transferred to S7-1500 by copy and paste
6ES7517-3TP00-0AB0
Siemens SIMATIC S7-1500T, CPU 1517T-3 PN/DP, Central processing unit with work memory 3 MB for program and 8 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface, Ethernet, 3rd interface, PROFIBUS, 2 ns bit performance, SIMATIC Memory Card required
Visit 6ES7517-3TP00-0AB0
For more our products visit turll.com
| Weight | 2.113 kg |
|---|---|
| Dimensions | 158.00 × 159.00 × 84.00 mm |
