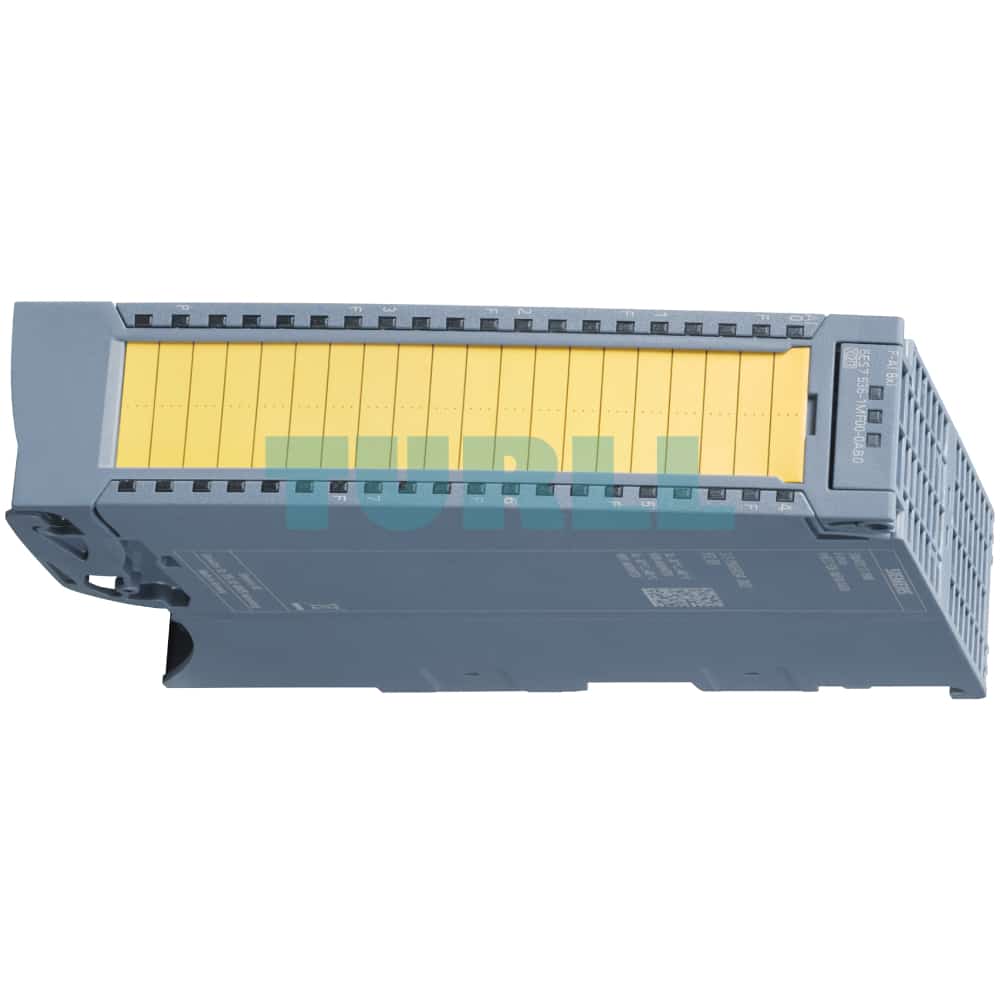

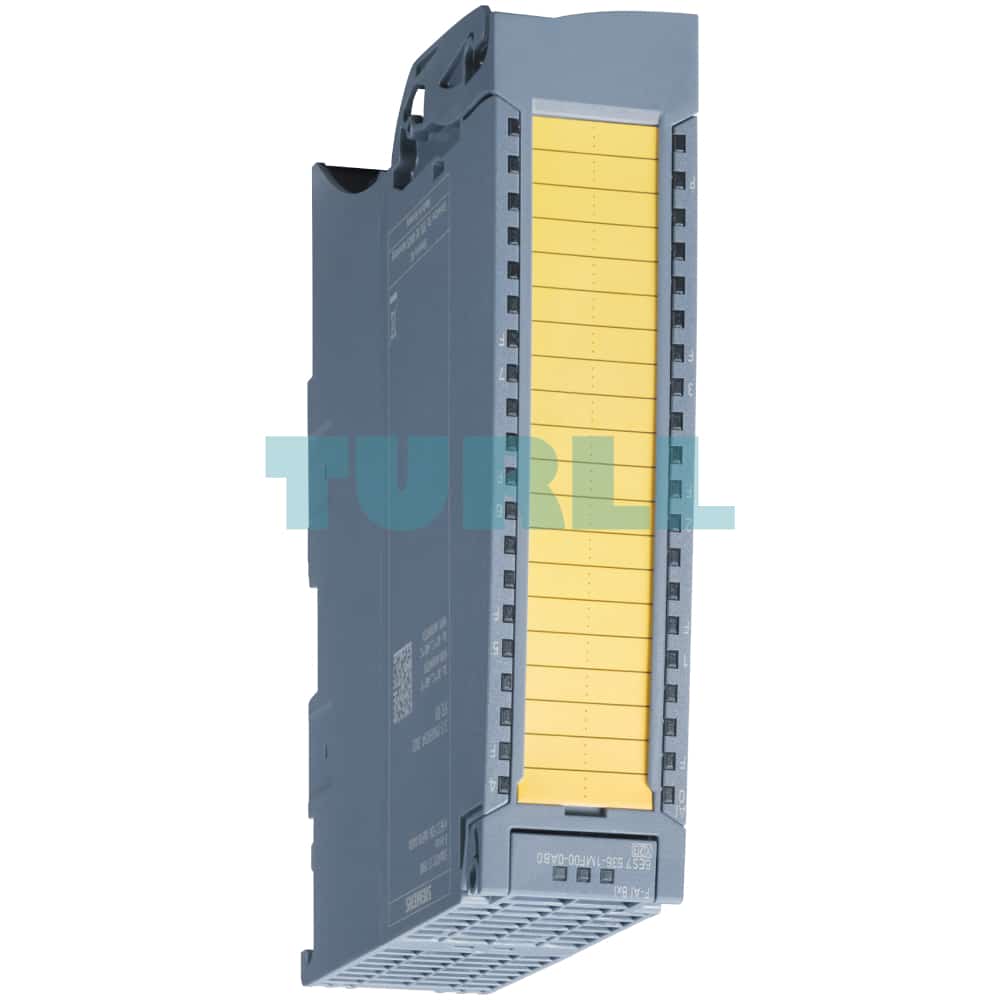

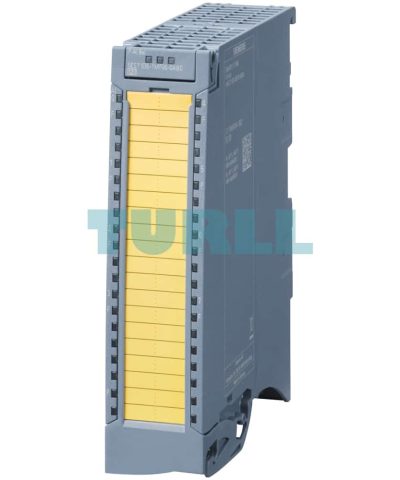

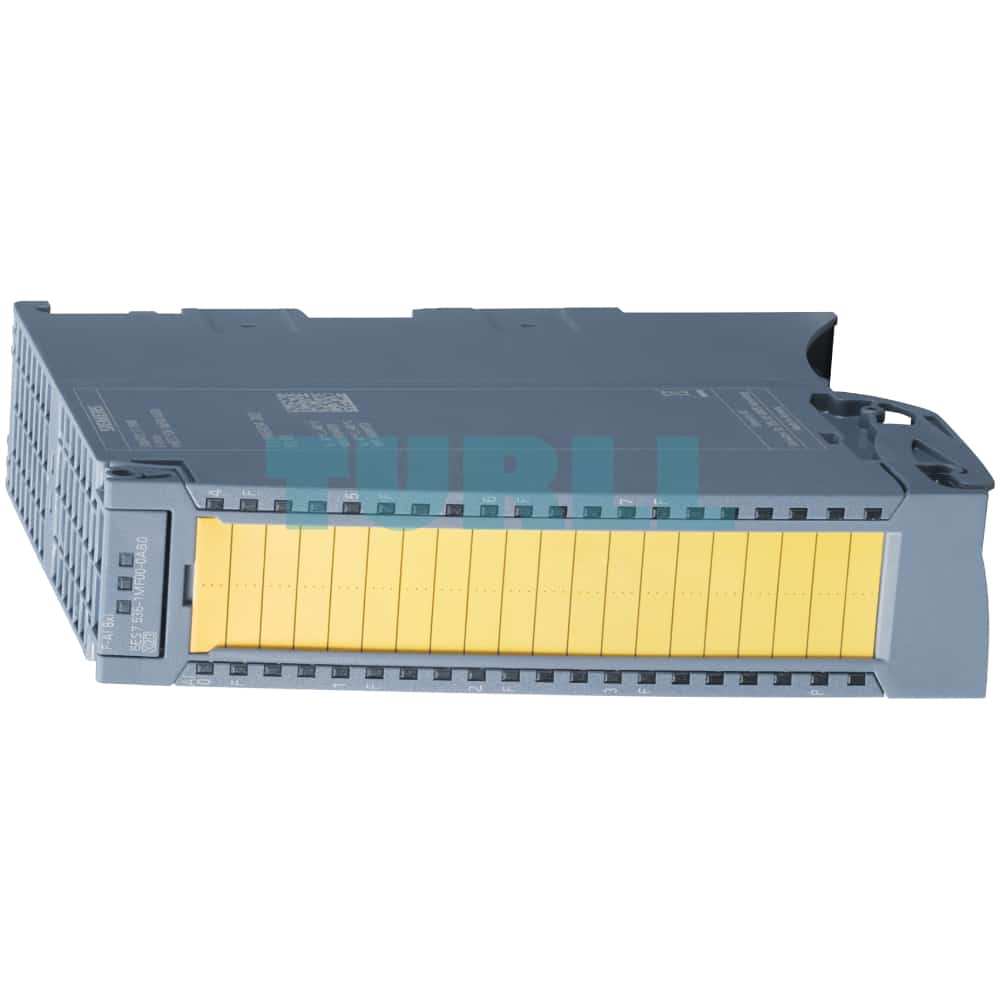

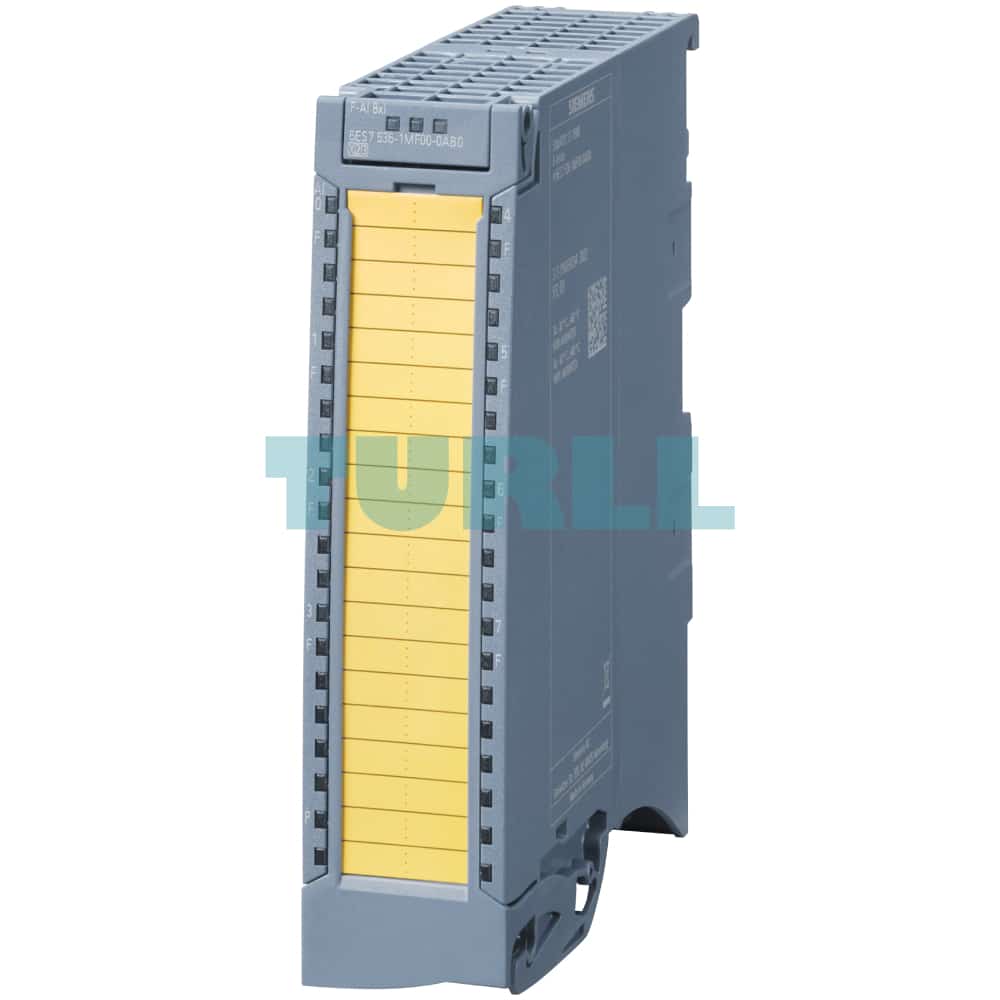

6ES7536-1MF00-0AB0 Siemens SIMATIC S7-1500 F-Analog Input Module Original Brand New

Analog fail-safe input module:
F-AI 8xI 0(4)..20 mA

Important features:

• 8-channel analog fail-safe input module for ET 200MP/S7-1500
• Max. achievable safety classes: SIL3 (acc. to IEC 61508) and PLe (acc. to ISO 13849-1)
• Measurement type current, can be set for each channel:
  • 0 - 20 mA
  • 4 - 20 mA
• Interference frequency suppression: 50/60 Hz
• 8 analog inputs can be used as:
  • 8 channels - 1 of 1 (SIL3/Cat.3/PLd) or
  • Up to 4 channels - 1 of 2 (SIL3/Cat.4/PLe)
• Galvanic isolation:
  • To the backplane bus
  • Analog inputs in 2 groups of 4 channels
  • Between channels and power supply
• Resolution 16-bit including sign
• External encoder supply possible
• Internal short-circuit-proof encoder supply per channel
• Channel-wide and module-wide passivation
• Module width 35 mm
• LED display for error, operation, supply voltage and status
• Clear module labeling
  • Plain text identification of the module type
  • Complete Article No.
  • 2D matrix code (order and serial number)
  • Connection diagram
  • Hardware and firmware version
• Optional labeling accessories
  • Labeling sheets, yellow
  • The module supports PROFIsafe in both PROFIBUS and PROFINET configurations.
  • Can be used with all fail-safe SIMATIC S7-1500 F-CPUs in the central configuration, as well as ET 200MP distributed I/O with all other SIMATIC S7 F-CPUs.
