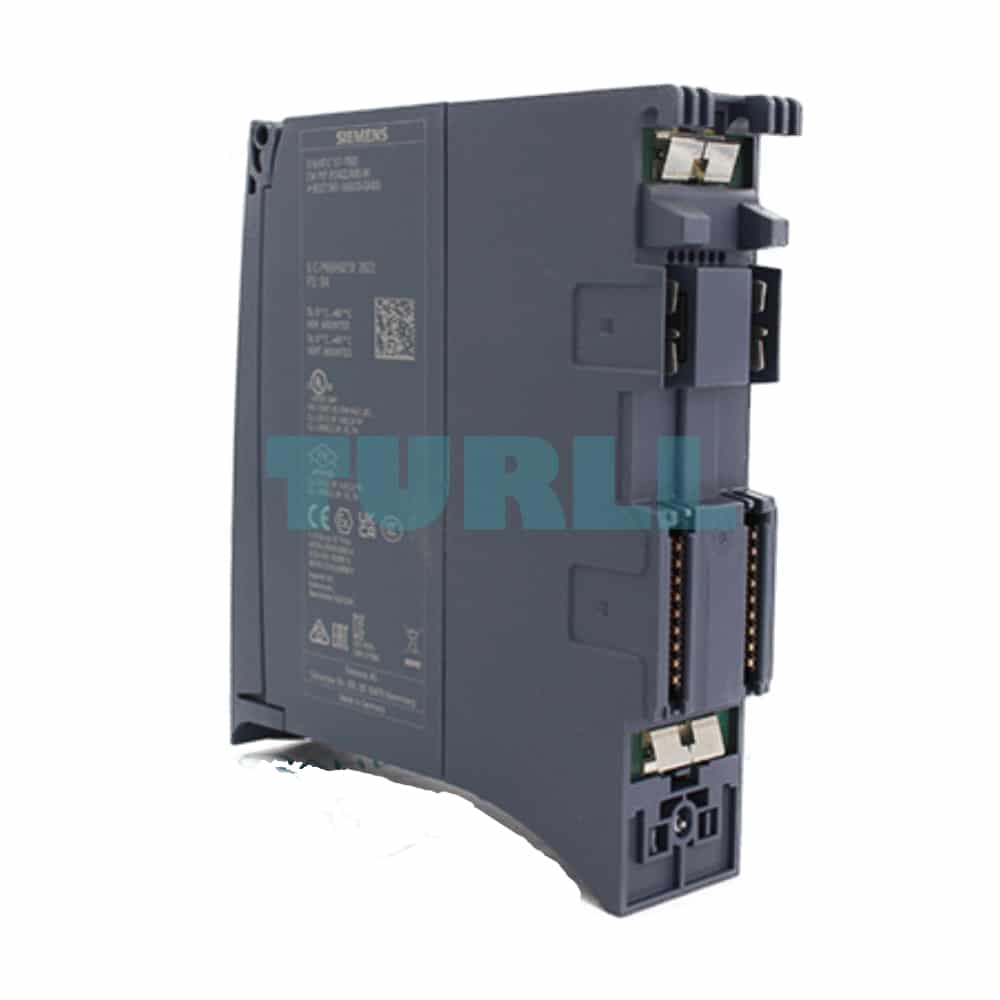

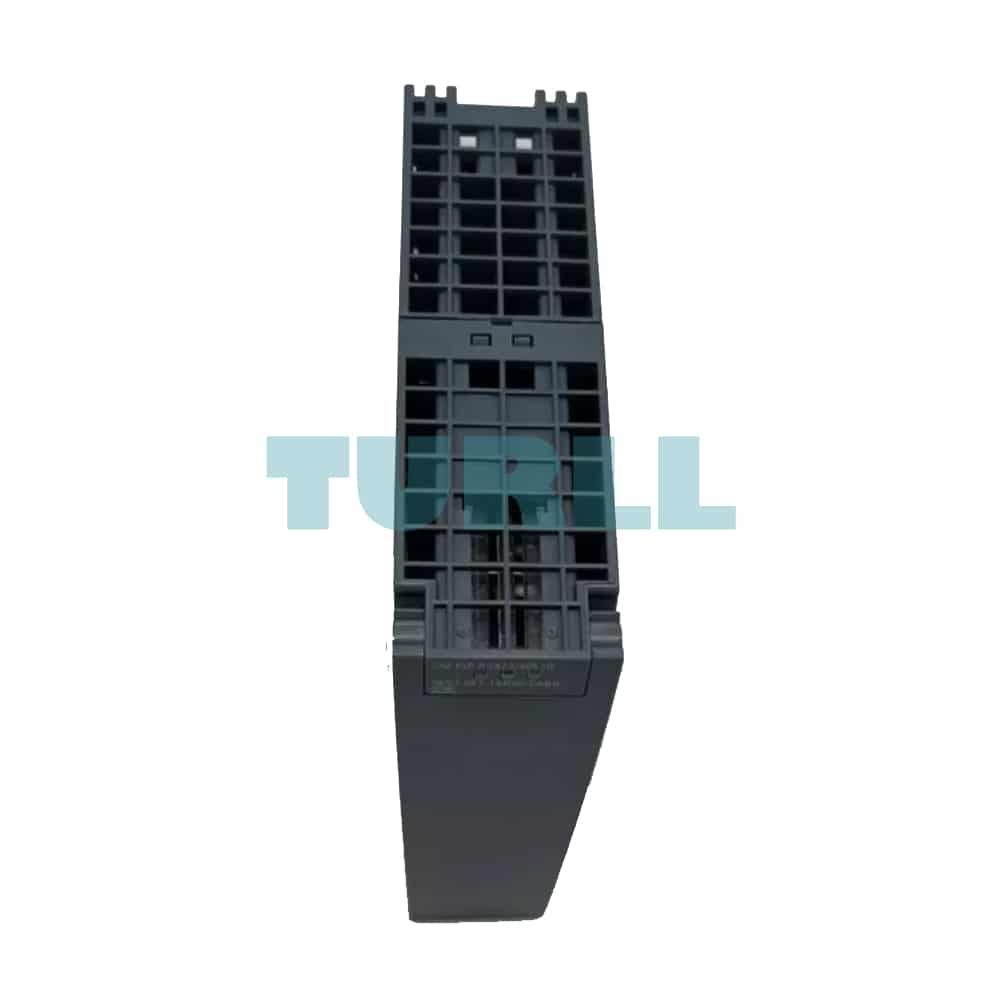

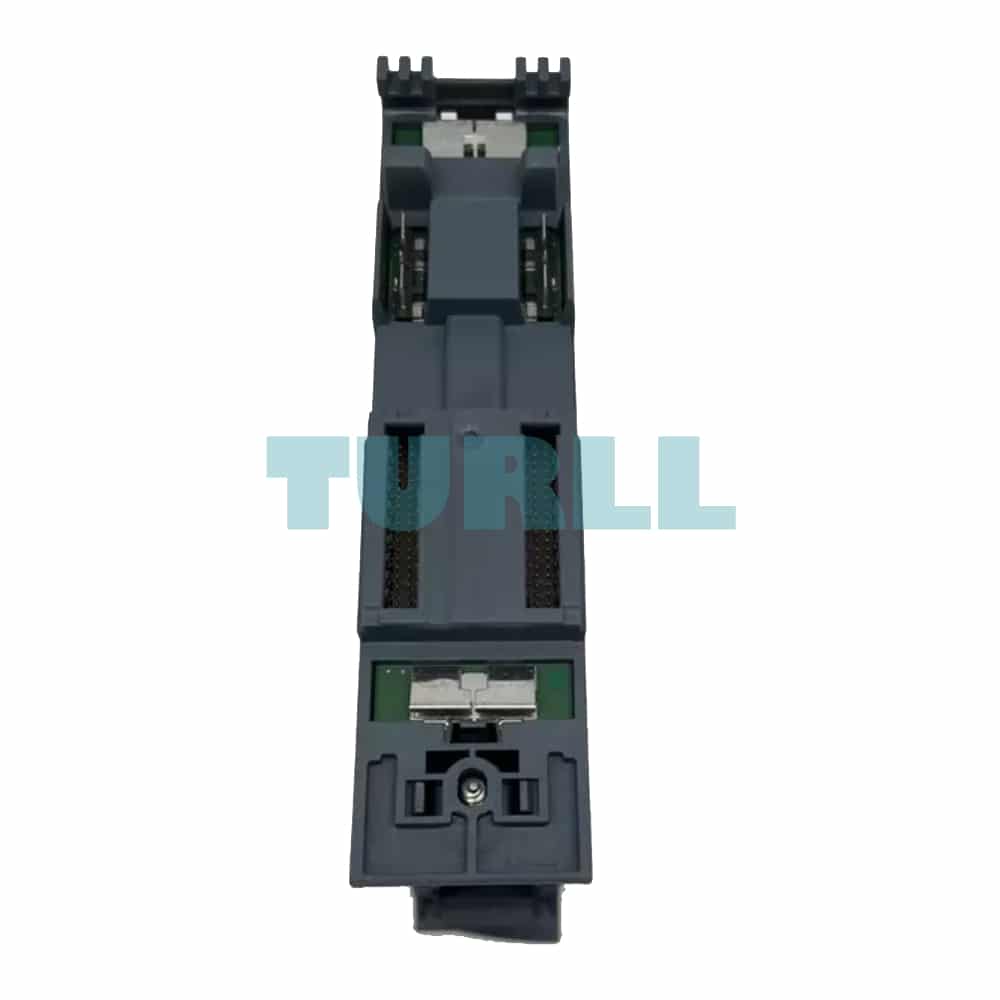

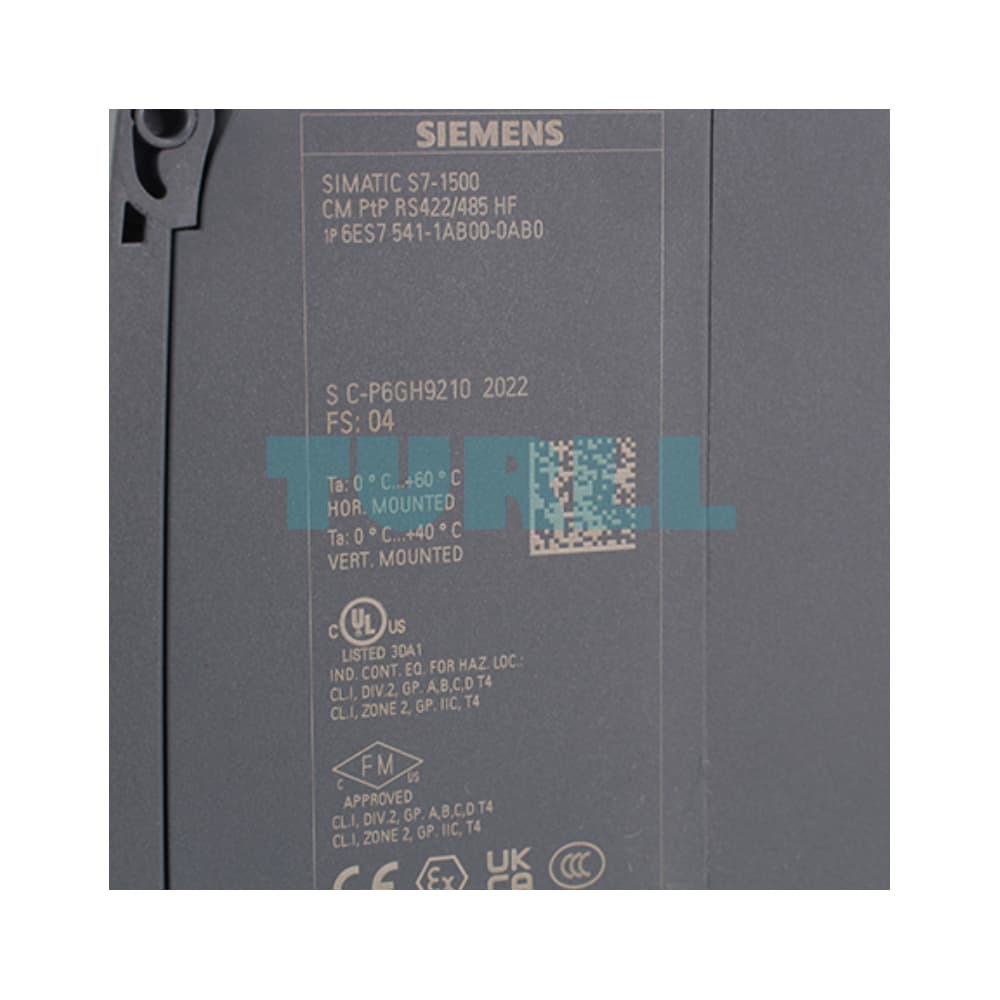

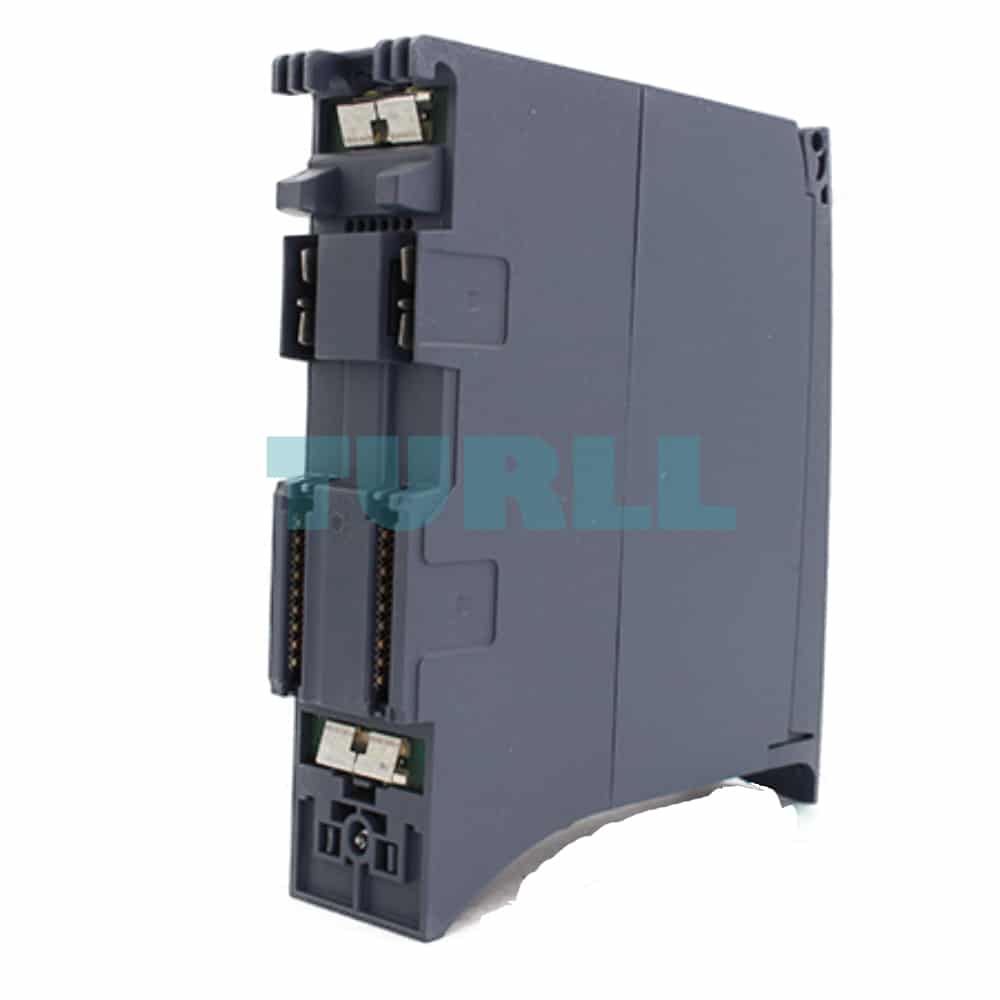

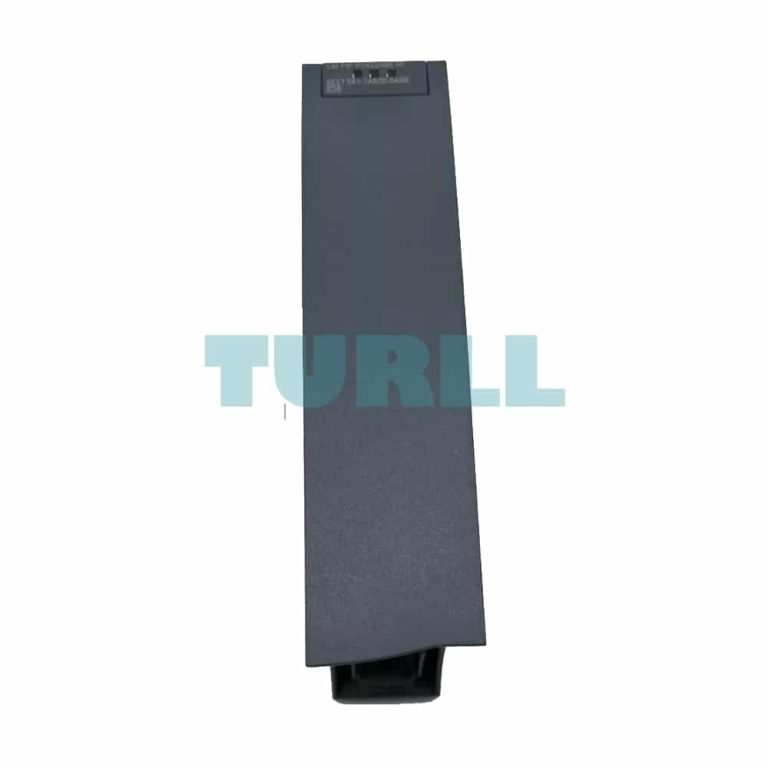

Siemens SIMATIC S7-1500, CM PTP RS422/485 HF Communication module for Serial connection RS422 and RS485, Freeport, 3964 (R), USS, MODBUS RTU Master, Slave, 115200 Kbit/s, 15-Pin D-sub socket

$564.53
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

Overview

  • Modules for serial communication connections, scaled according to interface types, protocols, and performance
  • 4 versions with different physical transmission characteristics:
    • RS 232C, max. 19.2 Kbps
    • RS 232C, max. 115.2 Kbps
    • RS 422/RS 485, max. 19.2 Kbps
    • RS 422/RS 485, max. 115.2 Kbps
  • Protocols supported
    • Freeport: User-parameterizable telegram format for universal communication
    • 3964(R) for improved transmission reliability
    • Modbus RTU Master
    • Modbus RTU Slave
    • USS, implemented through instructions

Application

Communication modules enable the connection with an external communication partner to exchange data. Comprehensive parameterization options make it possible to adapt the control flexibly to the communication partner.
Modbus RTU master creates a Modbus RTU network for up to 30 Modbus slaves.

The following communication modules are available:

  • CM PtP RS232 BA;
    communication module with RS232 interface for the protocols Freeport, 3964(R) and USS; 9-pin sub D connector, max. 19.2 Kbit/s, 1 KB frame length, 2 KB receive buffer
  • CM PtP RS232 HF;
    communication module with RS232 interface for the protocols Freeport, 3964(R), USS and Modbus RTU; 9-pin sub D connector, max. 115.2 Kbit/s, 4 KB frame length, 8 KB receive buffer
  • CM PtP RS422/485 BA;
    communication module with RS422 and RS485 interface for the protocols Freeport, 3964(R) and USS; 15-pin sub D socket, max. 19.2 Kbit/s, 1 KB frame length, 2 KB receive buffer
  • CM PtP RS422/485 HF;
    communication module with RS422 and RS485 interface for the protocols Freeport, 3964(R), USS and Modbus RTU; 15-pin sub D socket, max. 115.2 Kbit/s, 4 KB frame length, 8 KB receive buffer

Design

  • Mounting on the S7-1500 mounting rail using one single screw
  • Unique sub D connector, cannot be interchanged
  • Front flap with expandable cable compartment

Included in the scope of delivery:

  • One U connector
  • Front door

Function

  • Uniform display and diagnostics concept:
    • Module status display for ERROR (red LED) and RUN (green LED)
    • Communication display for sending and receiving
  • Protocols supported:
    • Freeport: User-parameterizable frame format for universal communication
    • 3964(R) for improved transmission reliability
    • Modbus RTU Master
    • Modbus RTU Slave
    • USS, implemented through instructions
  • Interface properties:
    • RS 232 with auxiliary signals
    • RS 422 for full-duplex connections
    • RS 485 for half-duplex and multi-point connections
    • Transmission rates from 300 to 115 200 bit/s
    • Connection via sub D connector
  • Uniform system functions of SIMATIC ET 200MP:
    • Identification and maintenance data IM0
    • Firmware update
    • Unambiguous labeling on front of module
