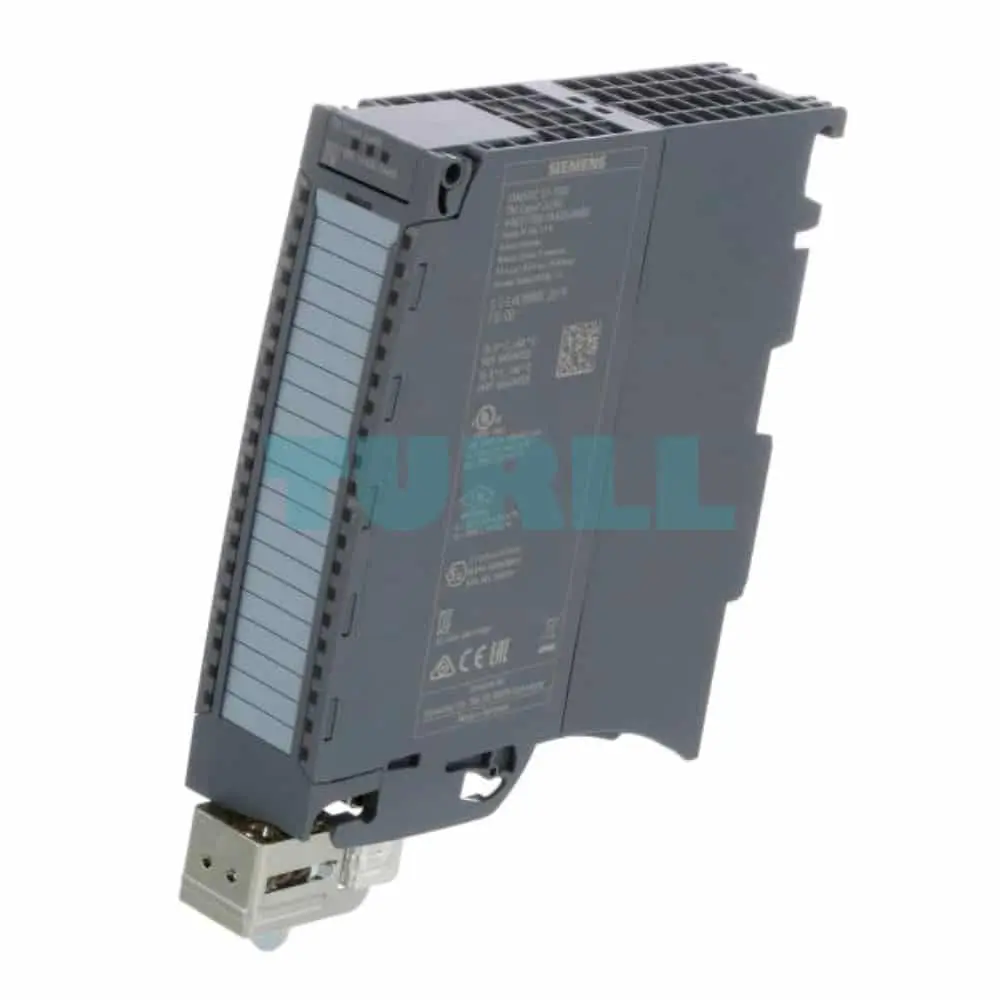

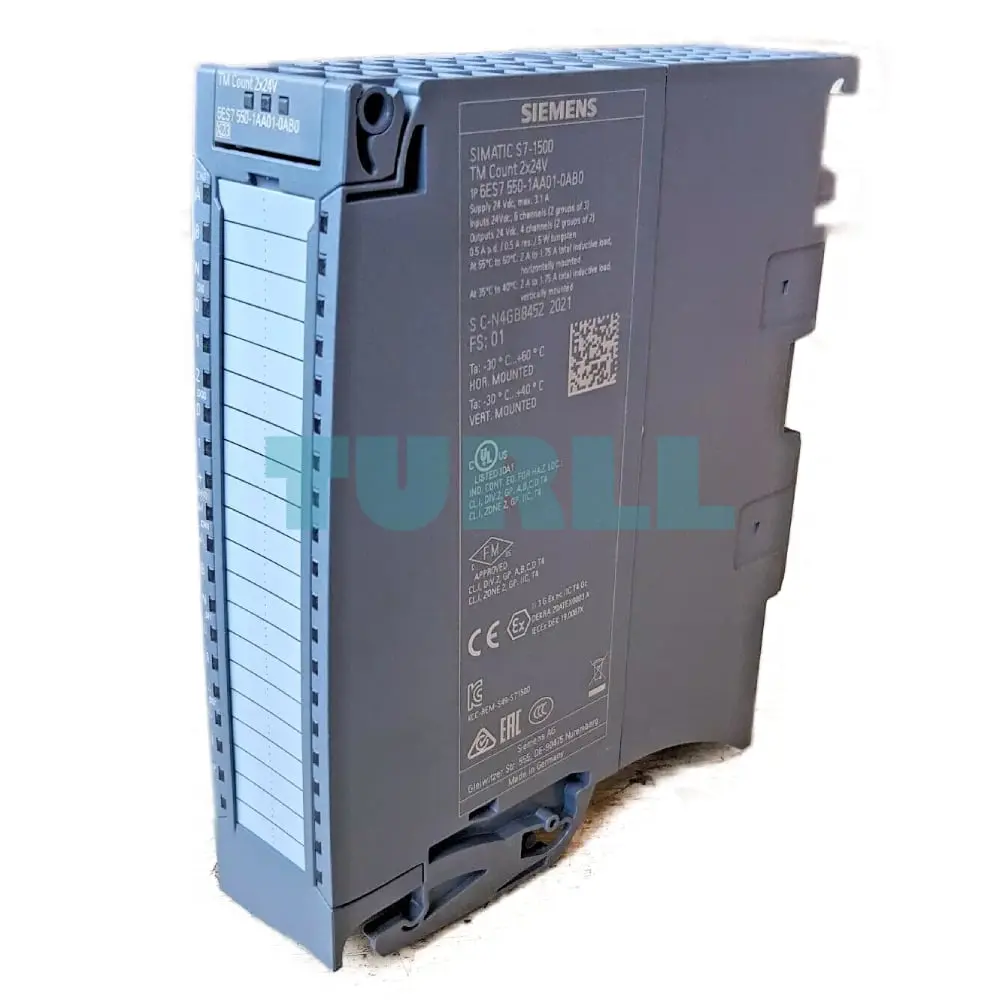

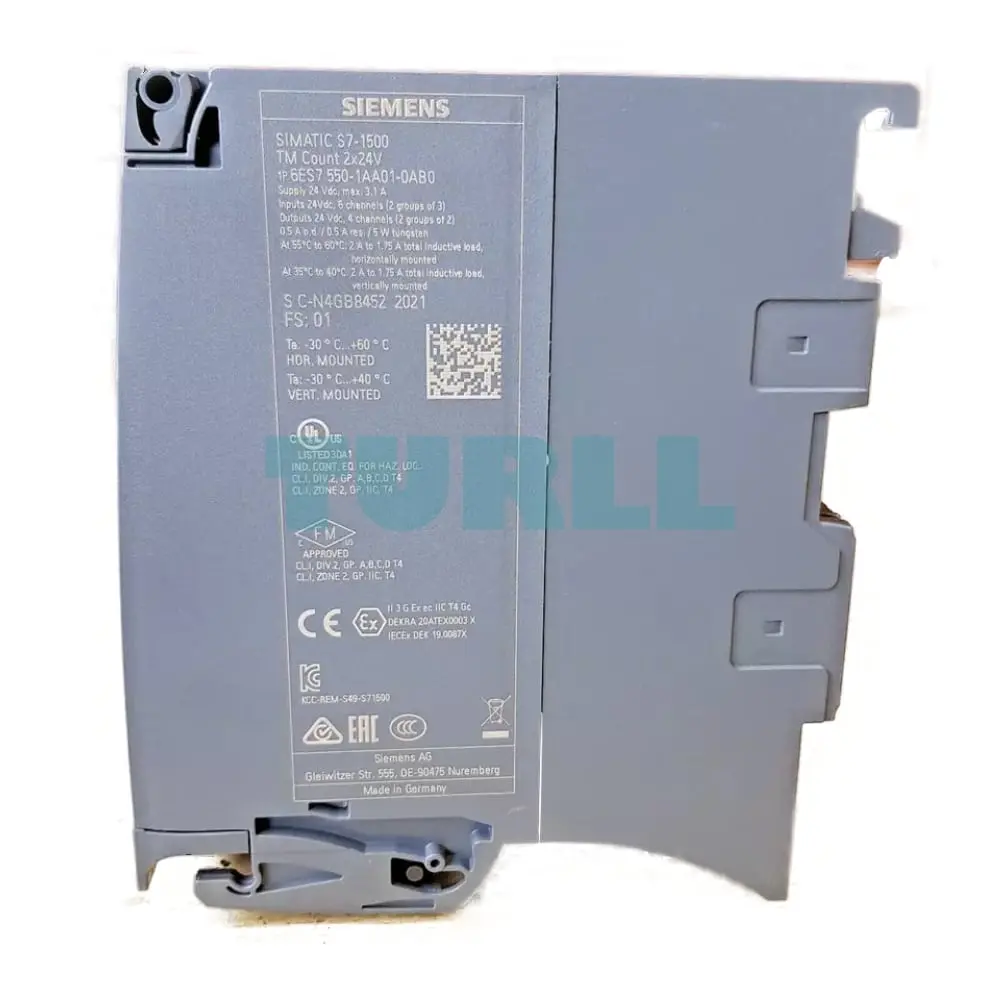

Model / SKU6ES7550-1AA01-0AB0

6ES7550-1AA01-0AB0

Siemens SIMATIC S7-1500, TM count 2x 24 V counter module, 2 channels for 24 V incremental encoder or pulse encoder, 3 DI, 2 DQ per channel

$1,152.96
Out of stockSubject to sourcing — request a quote
  • ConditionOriginal Brand New
  • Warranty12 months
Request a Quote
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

Overview

  • 2-channel high-speed counter module
  • With comprehensive parameterization options for an optimum adaptation to the task and reduction of control load
  • Speed and time period measuring
  • Storage and comparison functions
  • Connection of 24 V encoders

Application

In particular, counter modules detect quick signals with high frequencies and return the counter reading and the current speed to the PLC. The counter control ensures a precise counter result and rapid response in the system via digital input and output signals. Comprehensive parameterization options provide optimum adaptation to the task at hand and reduce control load.

  • TM Count 2x24V:
    Fast counter module, 2 channels; counting function up to 200 kHz; hardware and software gate; connection of 24 V encoders; 3 digital inputs (in addition to the counter inputs) and 2 digital outputs per channel; measurement of frequency, speed and time period; storage and comparison functions; 24 V encoder supply; isochronous mode

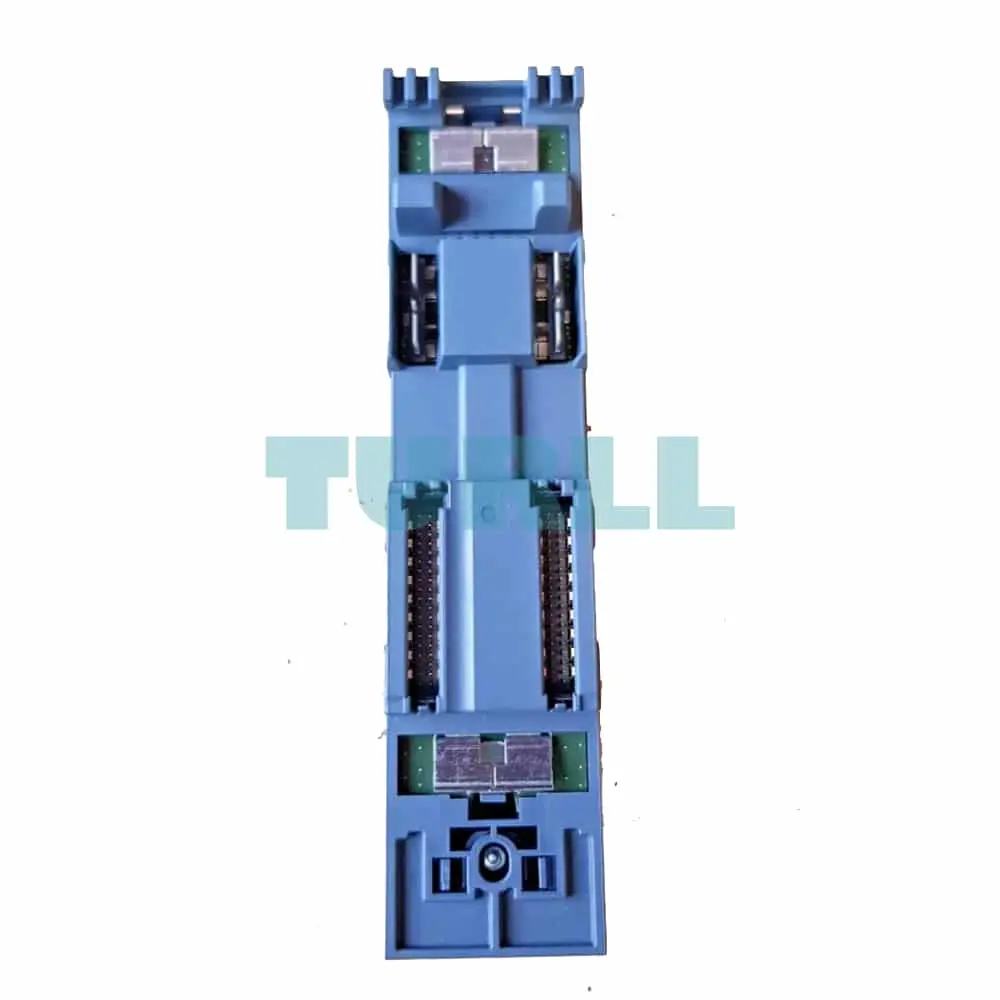

Design

  • Mounting on the S7-1500 DIN rail using one single screw
  • Standardized 40-pole front connector with screw-type or push-in system
  • Connectable core cross-sections: 0.25 mm2 to 1.5 mm2 (AWG24 to 16)
  • Prewiring position of the front connector
  • Front flap with expandable cable compartment, even if fully wired
  • Integrated shielding concept

Included in the scope of delivery:

  • One labeling strip for manual labeling
  • One U connector
  • Printed front door
  • Infeed element, shield clamp, and shield terminal

Function

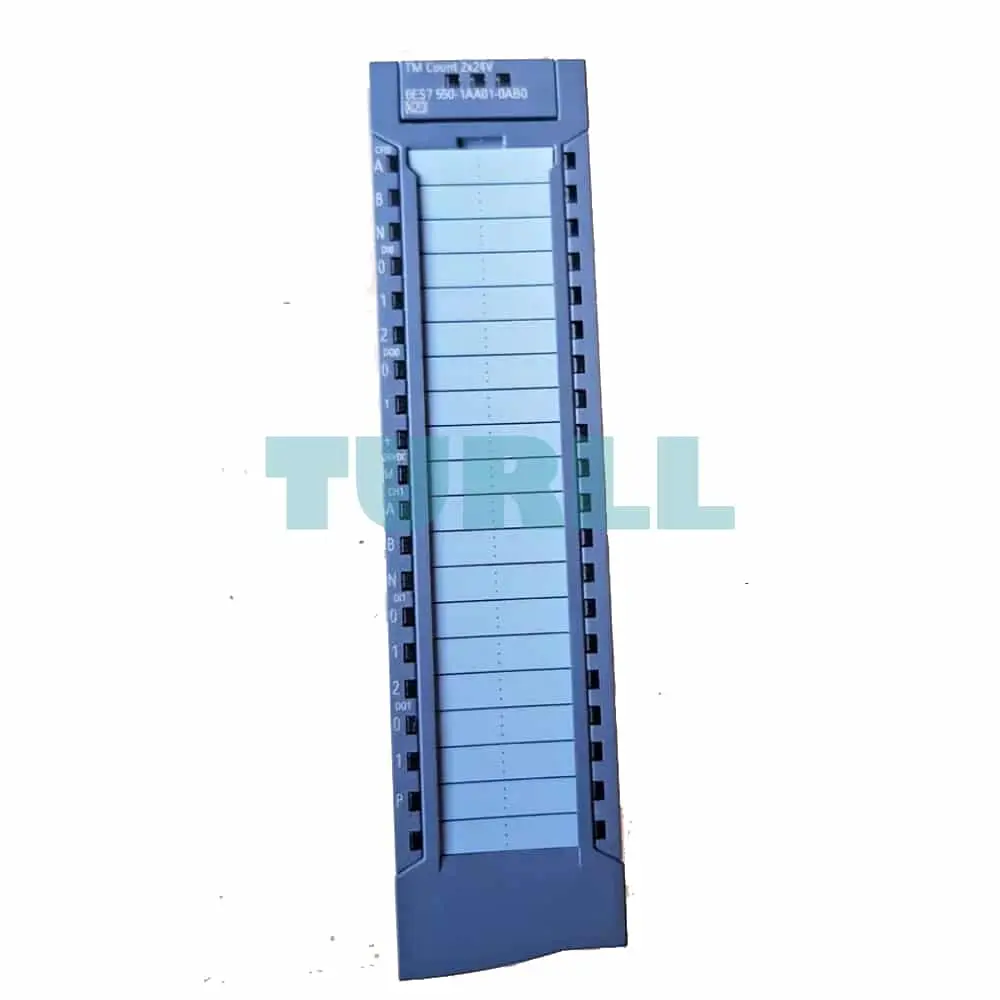

  • Uniform display and diagnostics concept:
    • Module status display for ERROR (red LED) and RUN (green LED)
    • Channel status display for signal state log. "0" and log. "1" (green LED) or diagnostics display (red LED)
    • Display for monitoring the 24 V DC supply voltage (green LED)
  • Supported functions:
    • High-speed counting up and counting down
    • Counting range adjustable up to +/- 31 bits
    • Integrated digital inputs and outputs for high-speed response
    • Measuring of the current signal frequency
    • Position detection with incremental encoder
    • 2 comparators per channel for controlling the digital outputs
    • Saving or setting of the count with digital input
    • Hardware interrupts, parameterizable
    • Isochronous mode
    • Fast Mode with reduced function for particularly short cycle times
    • User-friendly configuration through instructions and technology objects
  • Uniform system functions of SIMATIC S7-1500 and ET 200MP:
    • Identification and maintenance data
    • Firmware update
    • Unambiguous labeling on front of module
    • Uniform front connector

6ES7550-1AA01-0AB0

Siemens SIMATIC S7-1500, TM count 2x 24 V counter module, 2 channels for 24 V incremental encoder or pulse encoder, 3 DI, 2 DQ per channel

Visit 6ES7550-1AA01-0AB0

For more our products visit turll.com

Specifications

SKU / Model6ES7550-1AA01-0AB0
Weight0.357 kg
Dimensions161.00 × 194.00 × 47.00 mm
