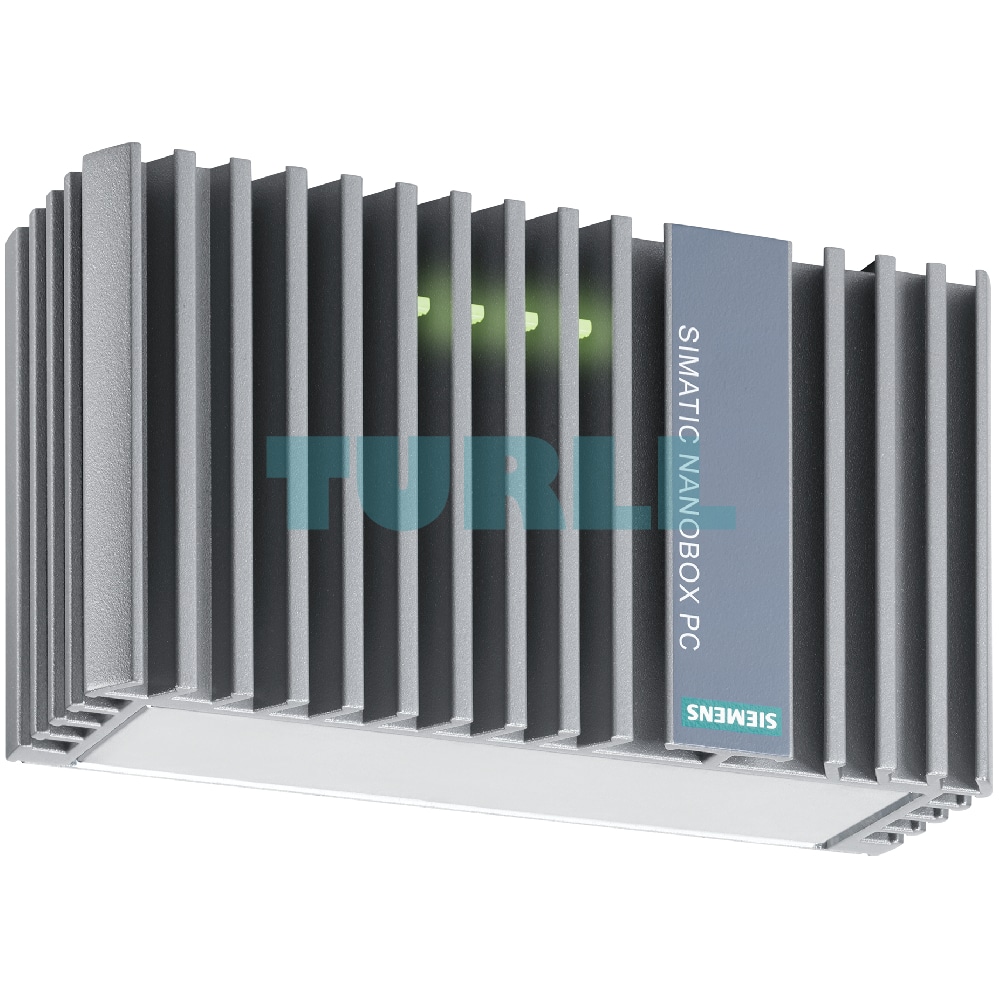

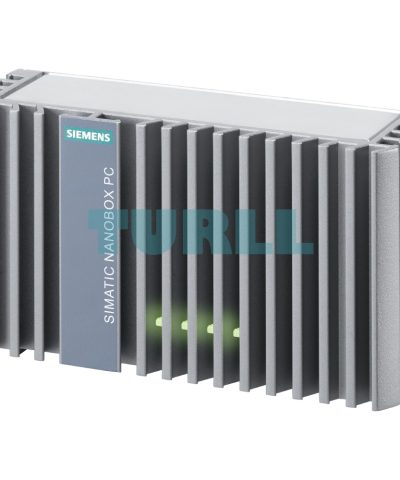

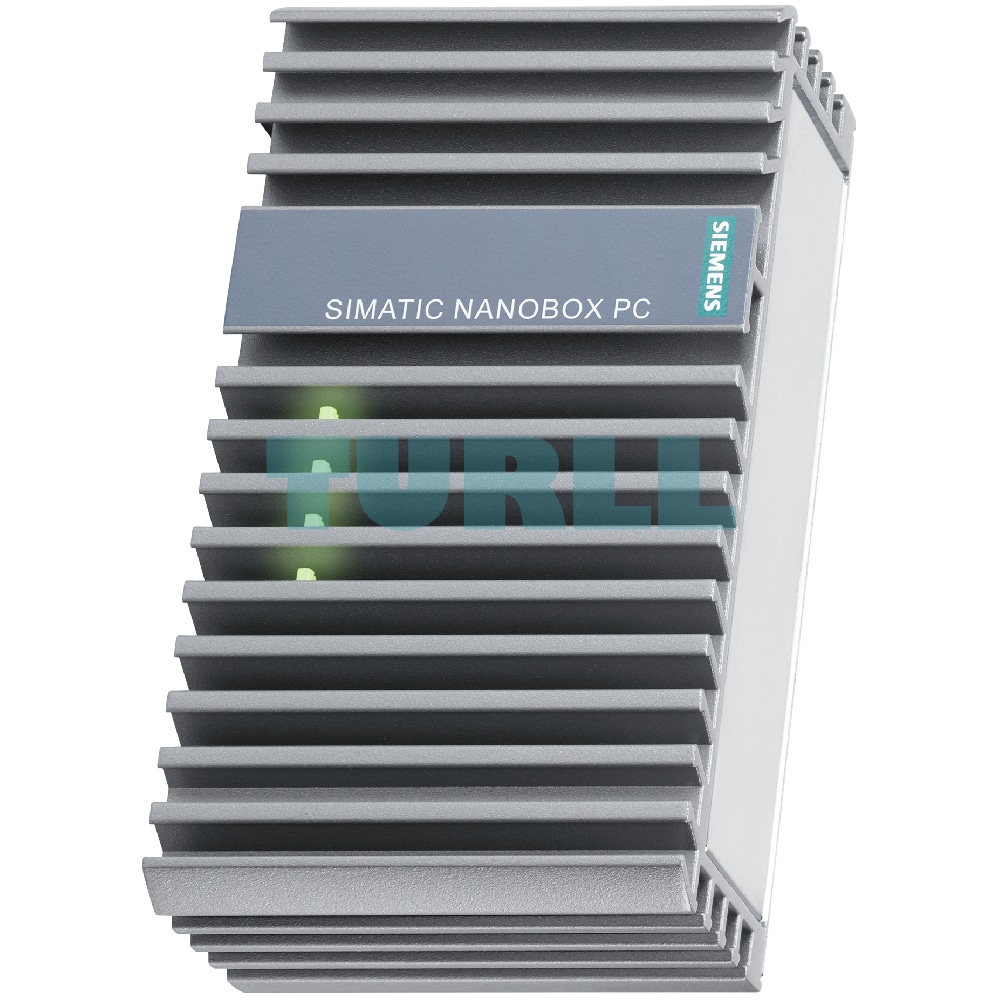

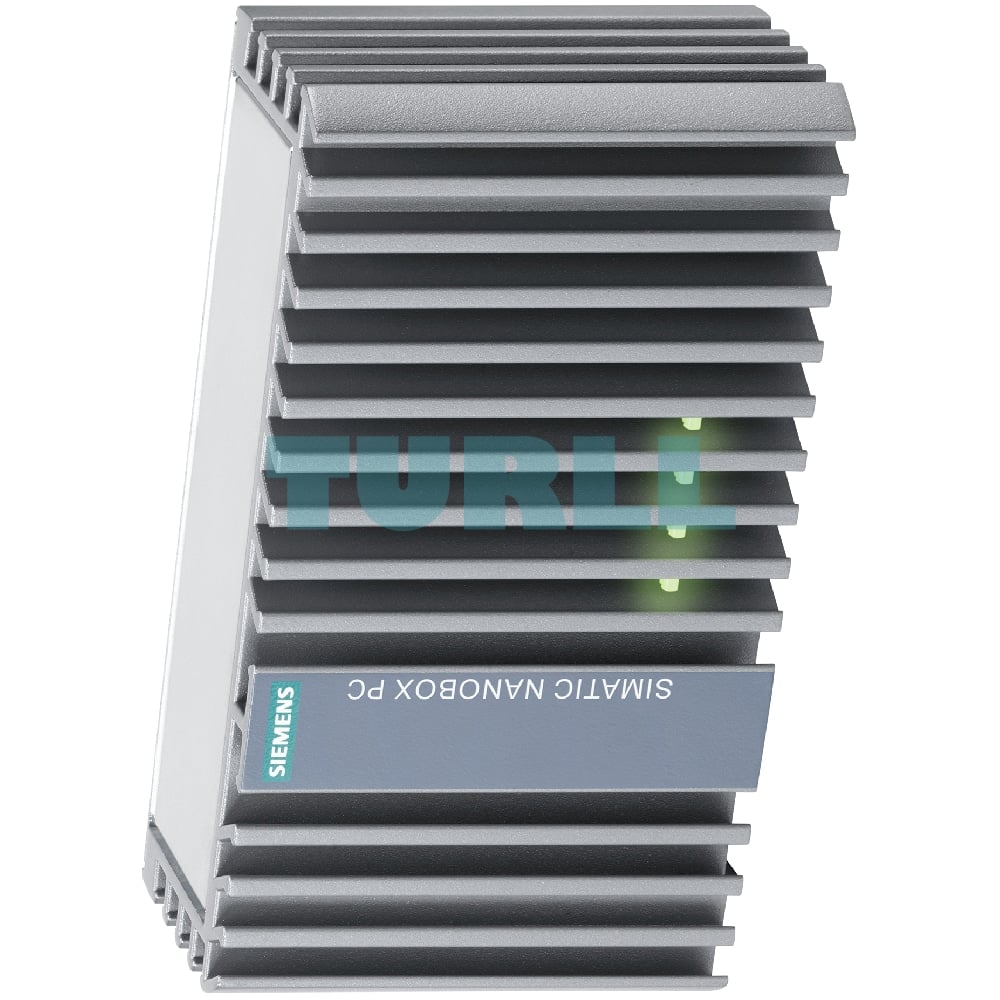

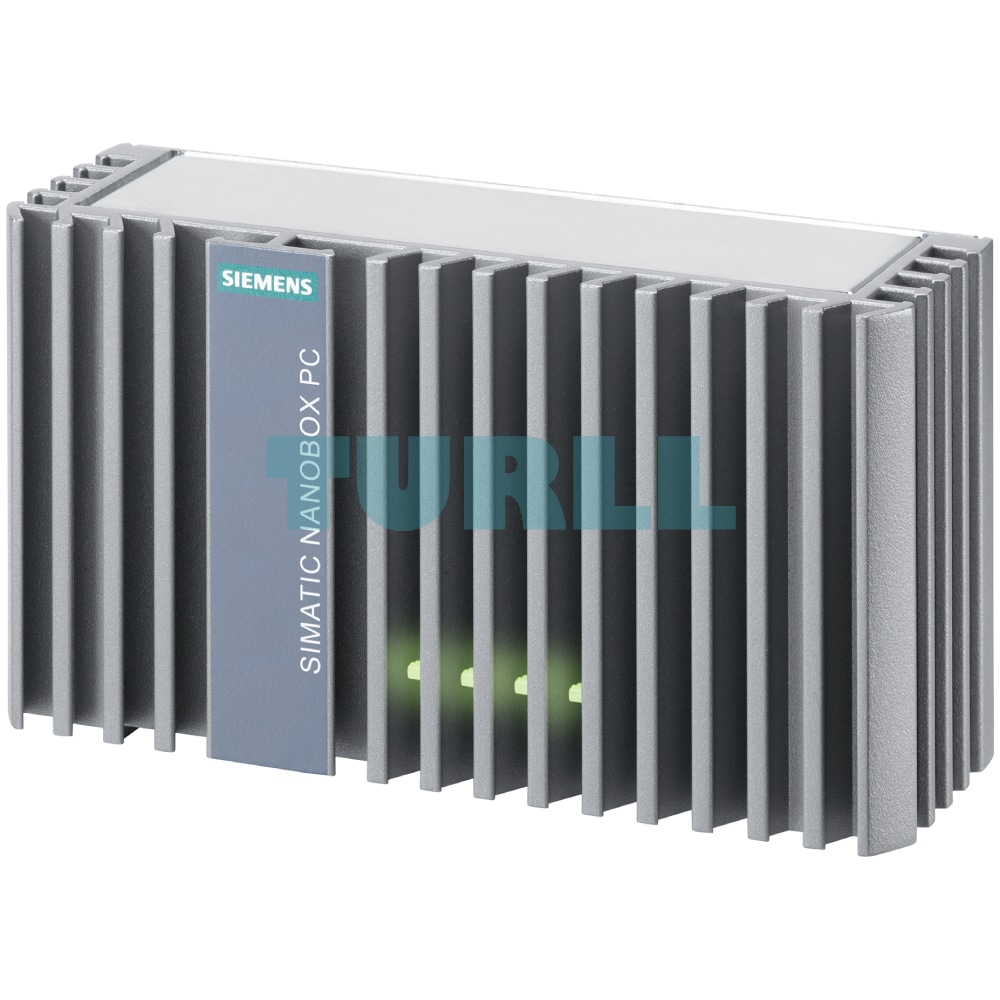

6ES7647-8BA53-0AA1 Siemens SIMATIC IPC227E Original Brand New
$1,920.99
6ES7647-8BA53-0AA1
Siemens SIMATIC IPC227E (Nanobox PC); 1x display port; 2x 10/100/1000 Mbit/s Ethernet RJ45; 1 x USB3.0, 3 x USB2.0; CFast slot; 24 V DC industrial power supply Celeron N2807 (2C/2T) 4 GB with NVRAM Box: PCIE without COM without operating system without mass storage, with CFast slot without SIMATIC software DIN rail mounting
[ez-toc]
Overview
SIMATIC IPC227E (Nanobox PC): The Box PC with optimized performance in compact design – maintenance-free and rugged
The SIMATIC IPC227E Nanobox PC is an extremely compact and flexible embedded industrial PC.
Thanks to its closed, dust-protected all-metal enclosure, the IPC227E offers maximum industrial functionality for flexible use under harsh conditions – while remaining maintenance-free.
Modern interfaces and the option for expansion via a PCIe slot mean this Box PC can be easily integrated into the automation system. In the version with pre-installed Industrial Edge Runtime, it also supports modern Edge architectures. In the version with pre-installed Industrial Edge Runtime, it also supports modern Edge architectures. The latest Intel Dual-Core and Quad-Core processors ensure excellent performance here in an ultra-compact design.
Benefits
Low space requirements and installation flexibility
- Maximum compactness with approx. 1 liter enclosure volume or more with integrated industrial power supply for minimum space requirements in the control cabinet
- Excellent flexibility thanks to three installation variants and interfaces on one side suitable for any installation situation
High degree of ruggedness for maintenance-free continuous operation
- Maximum industrial functionality thanks to closed enclosure for optimum dust protection and high electromagnetic compatibility
- Backup of important system data thanks to non-volatile retentive memory (NVRAM, optional)
- Designed for continuous operation at ambient temperatures up to 60 °C and high vibration/shock requirements
- Maintenance-free operation – without fans (operation without battery possible)
Optimized for use as gateway and for control and visualization tasks
- High-performance and energy-saving dual-core and quad-core Intel Celeron processors
- Diverse interfaces and configuration options (USB 3.0, 2 x Gbit Ethernet, RS232/RS485/RS422, SSD/CFast/HDD)
- Optimized for headless operation with LEDs for efficient self-diagnostics
High level of investment security for reducing engineering costs
- Long-term availability: Service & support period up to 11 years
- Ideal platform for SIMATIC Software Controller and/or WinCC RT Advanced / WinCC Unified PC RT
- Simple integration into automation solutions with the TIA Portal and on-board PROFINET interfaces
Extended temperature range
The SIMATIC IPC227E Nanobox PC is also available for extended temperature ranges from -20 °C to +60 °C.
The following options for this are available and must always be selected together when configuring the device:
- Celeron E3845 ET (4C/4T) / TPM
- 4 GB RAM ET / NVRAM
- 60 GB SSD ET
Application
The Nanobox PC has a diverse range of applications:
- Control, visualization and communication tasks in areas like mechanical engineering, transportation systems or power transmission
- Acquisition, further processing and visualization of data
- Machine-level applications that additionally require C/C++ programs
- Applications such as shipbuilding, building automation, and storage & logistics
- For Industrial Edge applications for simple, scalable and reliable use of software for data processing (with pre-installed Industrial Edge Runtime):
- Collection, analysis, saving and forwarding of production data
- Installation and scaling of software using container technology
- Central management of devices and software on location or in the cloud
- Full data control from the shop floor to the cloud
Design
Basic design
- All-metal enclosure, resistant to vibrations and shocks, also with high electromagnetic compatibility
- Isolated power supply:
- 24 V DC (19.2 to 28.8 V)
- Graphics connection DisplayPort
- Resolution: Up to 2 560 x 1 600 pixels
- Interfaces (accessible from one side):
- 2 x LAN 10/100/1000 Mbps Ethernet interface (RJ45)
- 1 x USB V3.0, 3 x USB V2.0
- Fieldbus
- PROFINET Realtime via Standard Ethernet interface
Design variants
- Processor/main memory configuration:
- Intel Celeron N2807, 1.58 GHz, Dual Core
- Intel Celeron N2930, 1.83 GHz, Quad Core
- Respectively without/with trusted platform module TPM V2.0
- Main memory configuration
- 2 GB, 4 GB or 8 GB RAM
- Retentive memory
- 512 KB retentive memory (NVRAM), of which 128 KB can be written within the buffer time (optional)
- Serial interface expansion as device variants:
- Without MPI interface
- 2 COM interfaces (RS232 / RS485 / RS422; switchable in the BIOS)
- Hardware expansion as device versions:
- 1 x PCIe slot x1 (optional)
- Drives:
- CFast drive (replaceable, accessible): 8 GB, 16 GB or 128 GB or
- 256 Eco GB solid-state drive, 2.5″ or
- 240 GB solid-state drive, 2.5″ or
- 480 GB solid-state drive, 2.5″ or
- 320 GB hard disk, 2.5″
- Preinstalled operating systems/software:
- Windows Embedded Standard 7 E/P, 32-bit or 64-bit
- Windows 7 Ultimate, multi-language, 32-bit or 64-bit
- Windows 10 IoT Enterprise 2016 LTSB
- Windows 10 IoT Enterprise 2019 LTSC
- Windows 10 IoT Enterprise 2021 LTSC
- Versions with SIMATIC/SINUMERIK Edge
- SIMATIC Industrial OS V2 (Debian-based)
SIMATIC IPC227E (bottom side)
Integrated diagnostics DiagBase
- Integrated, parameterizable monitoring functions (program execution/watchdog, internal enclosure temperature, mass storage)
6ES7647-8BA53-0AA1
Siemens SIMATIC IPC227E (Nanobox PC); 1x display port; 2x 10/100/1000 Mbit/s Ethernet RJ45; 1 x USB3.0, 3 x USB2.0; CFast slot; 24 V DC industrial power supply Celeron N2807 (2C/2T) 4 GB with NVRAM Box: PCIE without COM without operating system without mass storage, with CFast slot without SIMATIC software DIN rail mounting
Visit 6ES7647-8BA53-0AA1
For more our products visit turll.com
| Weight | 2.1 kg |
|---|---|
| Dimensions | 1 × 1 × 1 mm |
