6ES7648-2CF10-1AA0 Siemens SIMATIC CP1625 Original Brand New

Model / SKU6ES7648-2CF10-1AA0

6ES7648-2CF10-1AA0

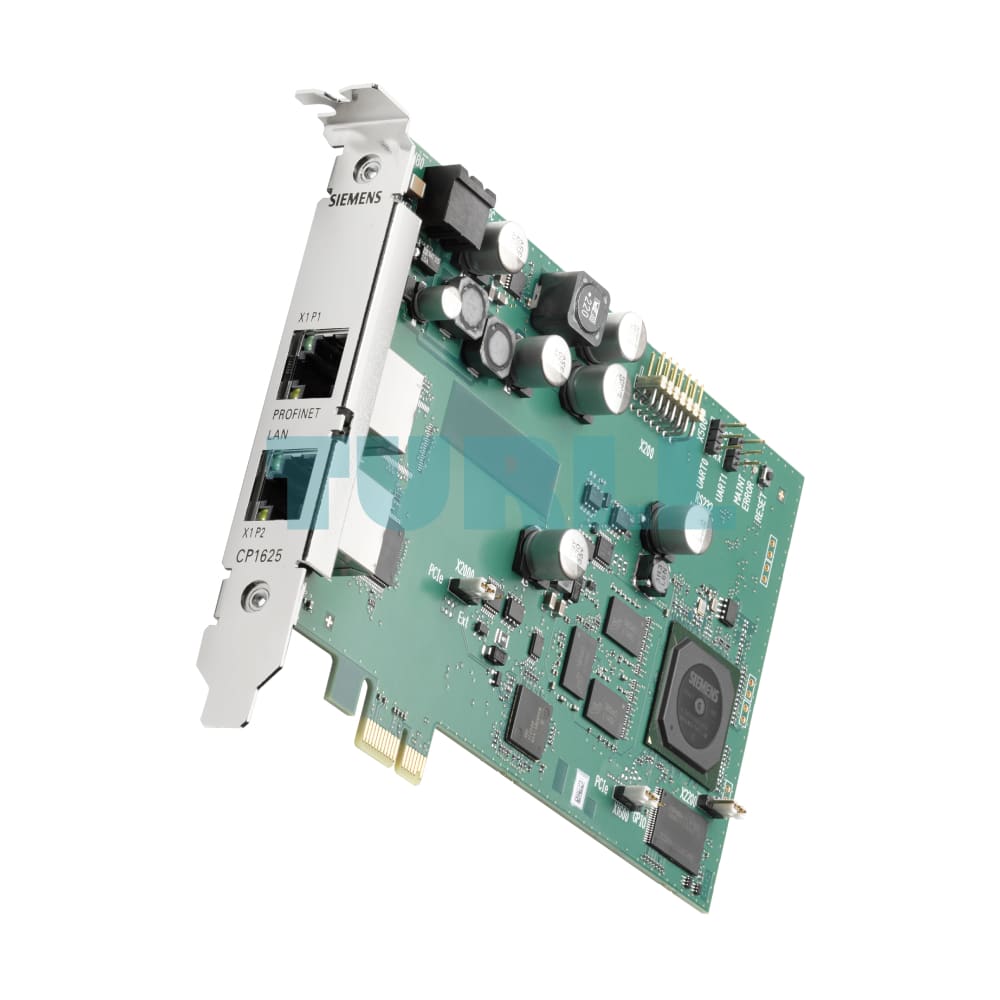

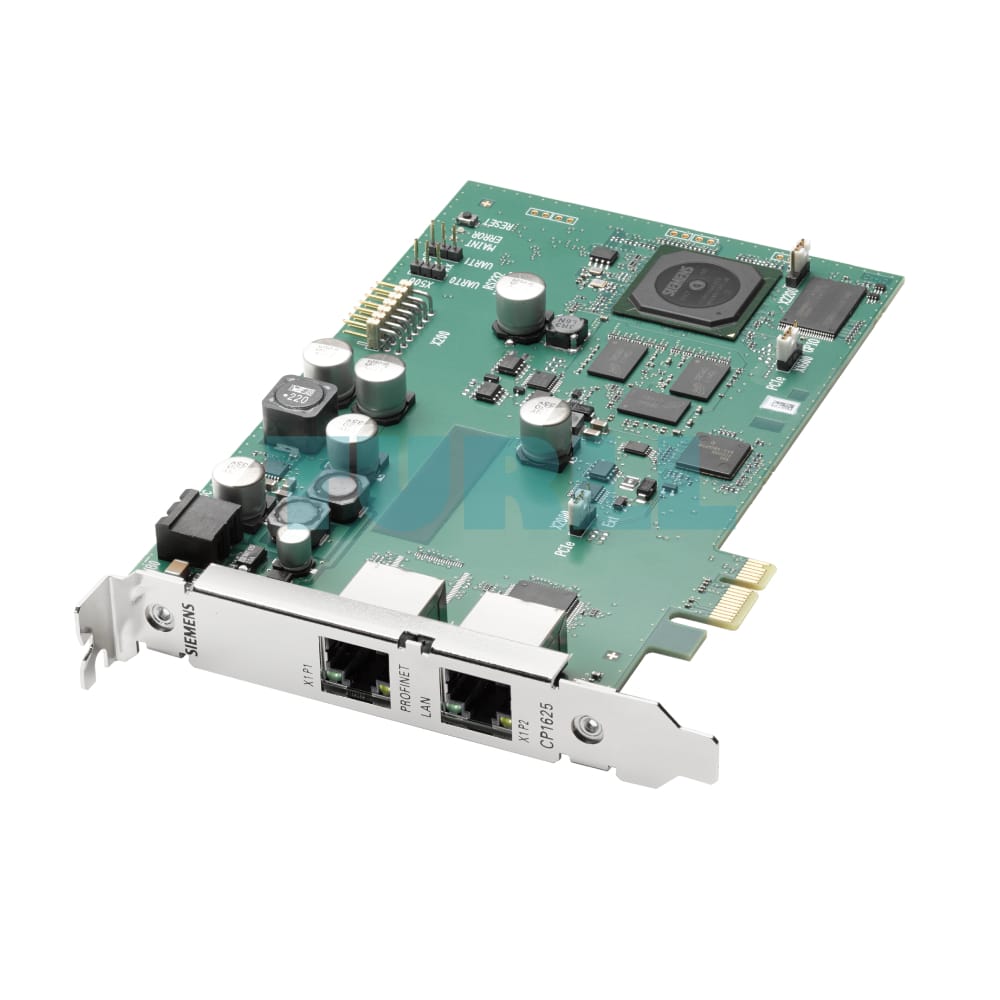

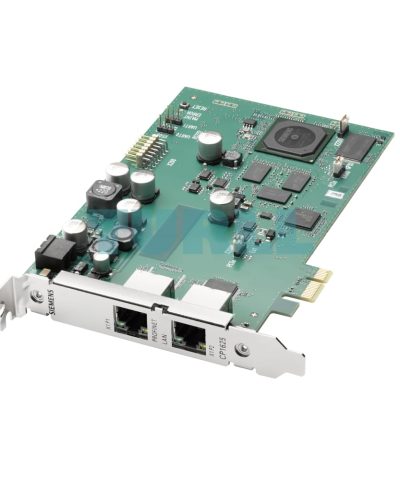

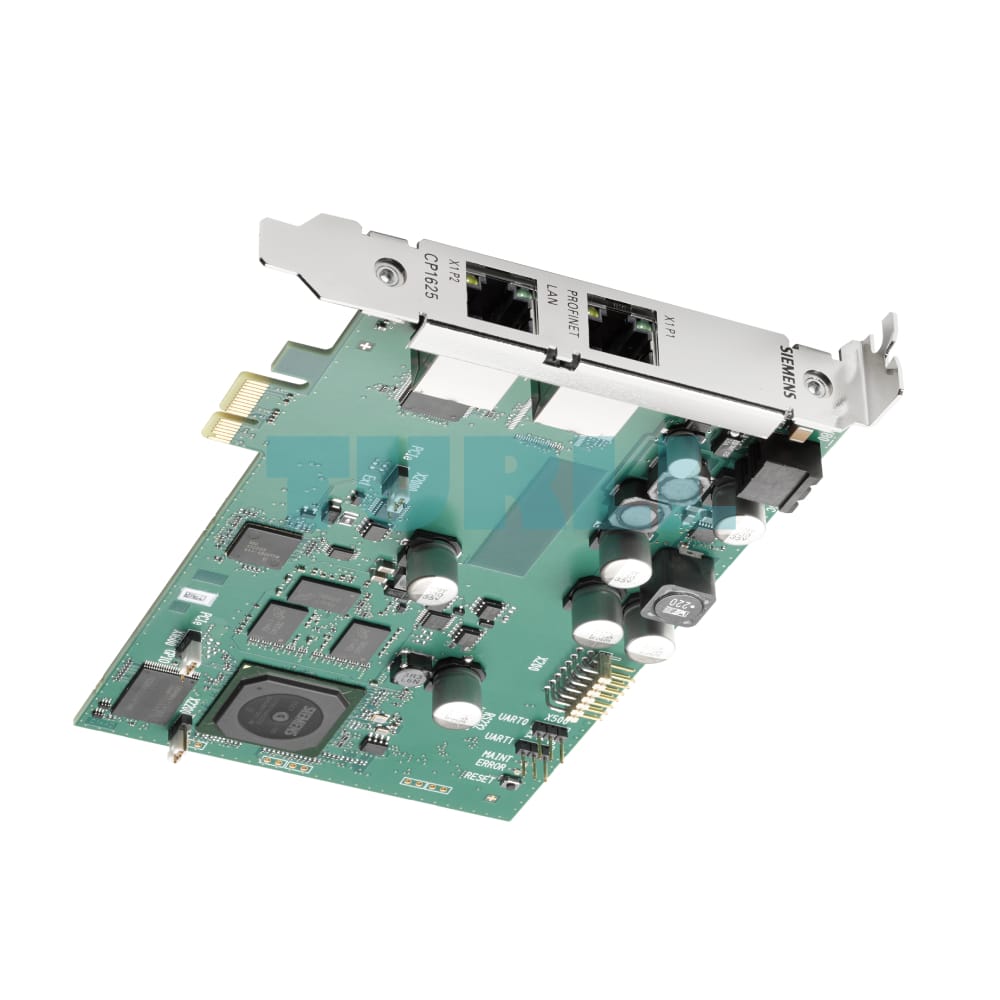

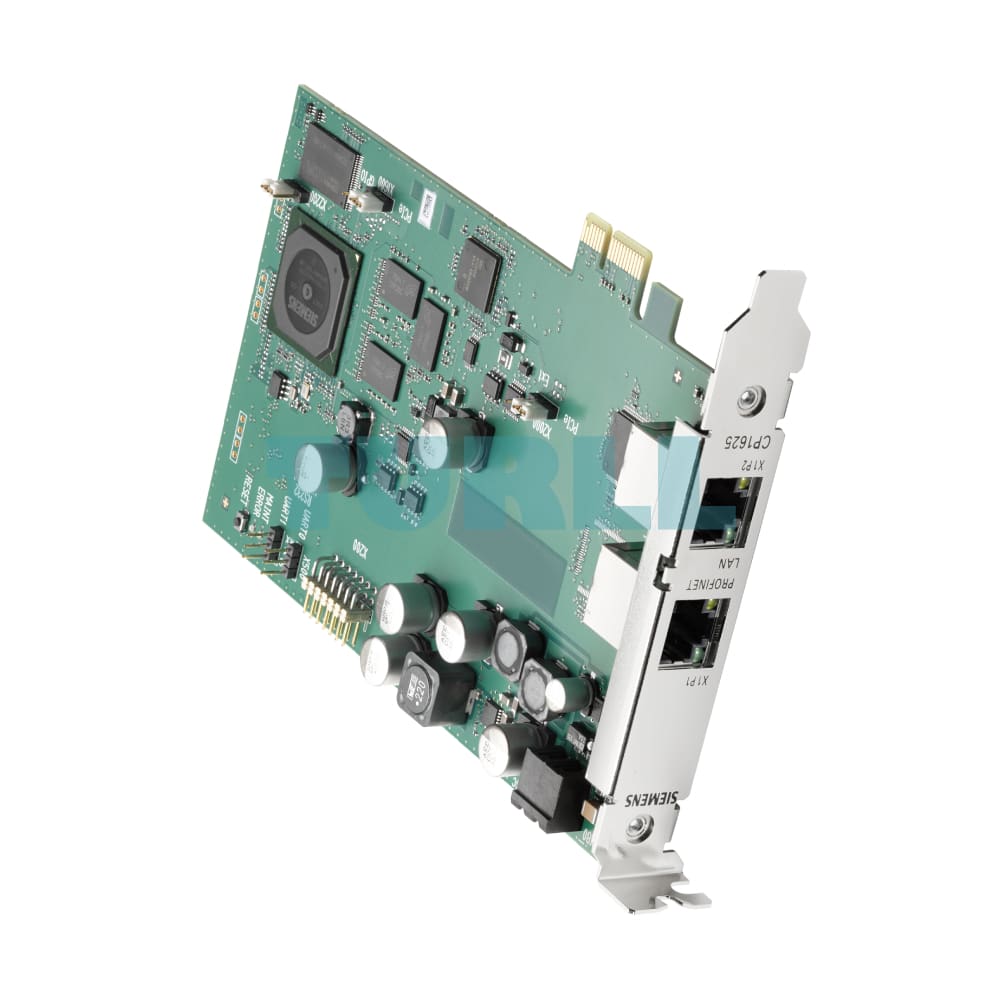

Siemens SIMATIC CP1625, PCIe card for PROFINET IRT for Softwarecontroller CPU1500S

$960.30
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

Overview

CP 1625

CP 1625 is a PCIe module for connecting IPCs to Industrial Ethernet and for PROFINET IRT with CPU1500S Software Controller.

Requirement:

  • TIA Portal ≥ V15
  • S7-1500 Software Controller CPU 1507S (F) ≥ V2.5 is installed on the IPC

Benefits

  • Optimized for PROFINET IRT
  • With Ethernet real-time ASIC SOC-1
  • Two RJ45 sockets for connecting terminal devices or additional network components
  • Front LEDs on the RJ45 sockets for efficient self-diagnostics of connections and data exchange (Link and activity LED)
  • Integrated 2-port real-time switch
  • Automatic hardware detection is supported

Application

CP 1625 makes it possible to connect SIMATIC IPCs equipped with a PCI Express slot to PROFINET IRT.

The CP 1625 provides high-performance support for control tasks on the PC in association with the software controller CPU 1507 (F).

With IRT (isochronous real-time), the CP is ideally suited to time-critical applications down to the range of strictly isochronous closed-loop control in the motion control sector.

The integrated 2-port switch supports low-cost system solutions and the configuration of different topologies.

Design

  • Industrial Ethernet
    • Ethernet real-time ASICs
    • 2 Ethernet interfaces each with 2 x RJ45 ports (2 integrated 2-port real-time switches for 100 Mbps Ethernet)
    • Autosensing/autocrossover/autonegotiation
  • PCI Express interface:
    • PCI Express X1 V1.0a Plug & Play
    • Installation through PCI-Express standard mechanisms (plug & play)
  • Ambient conditions
    • Operating temperature from 0 °C to +45 °C
  • Power supply:
    • Operating voltage: 3.3 V via PCI-Express
  • Size:
    • Short PCIe format

Function

The CP 1625 can be operated as a PROFINET IO controller that stores the process image (input and output data) in the memory area on the CP.

  • Real time
    • Support of real-time properties of PROFINET for IRT. The real-time properties of the CP 1625 ensure extremely short cycle times with highly accurate clock-pulse rates.
  • Switching:
    • According to the industry requirements, the 2-port real-time switch additionally permits the configuration of line topologies with spur lines and makes external switch components unnecessary.

6ES7648-2CF10-1AA0

Siemens SIMATIC CP1625, PCIe card for PROFINET IRT for Softwarecontroller CPU1500S

Visit 6ES7648-2CF10-1AA0

For more our products visit turll.com

Specifications

SKU / Model6ES7648-2CF10-1AA0
Weight0.265 kg
Dimensions146.00 × 201.00 × 55.00 mm
