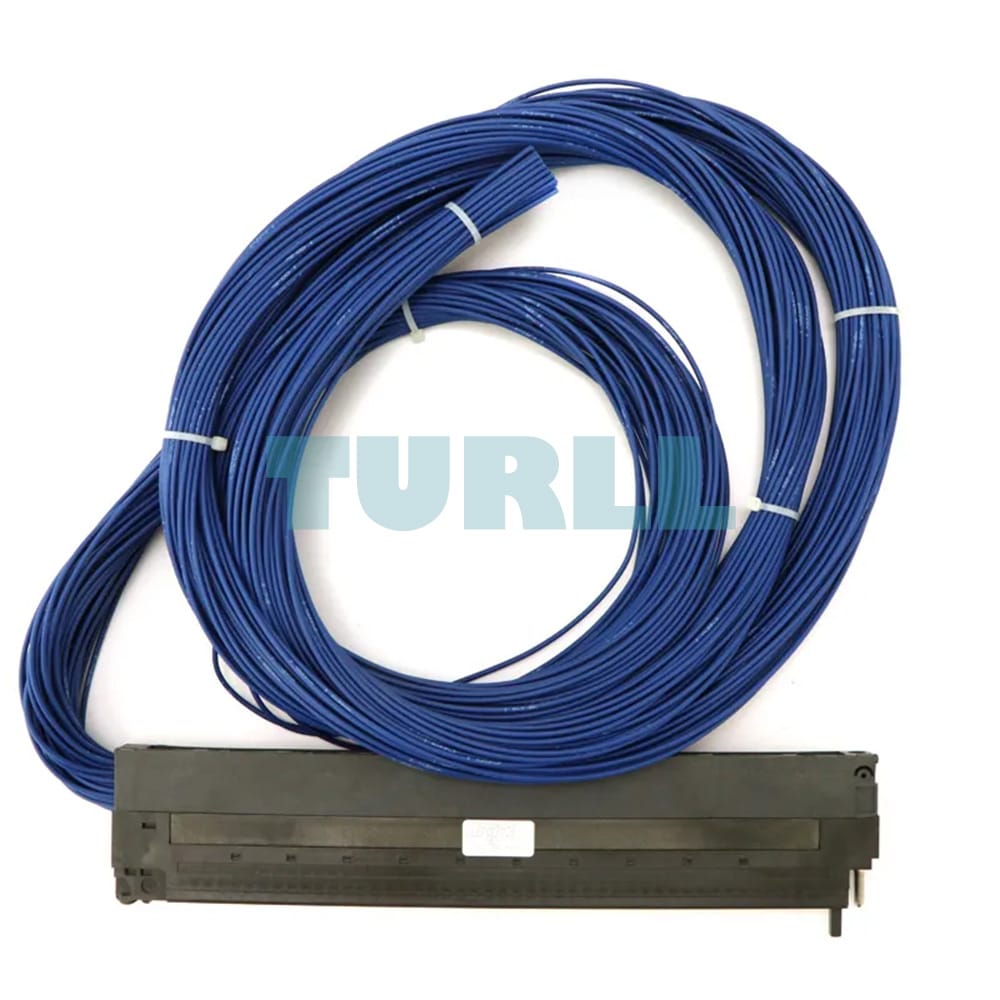

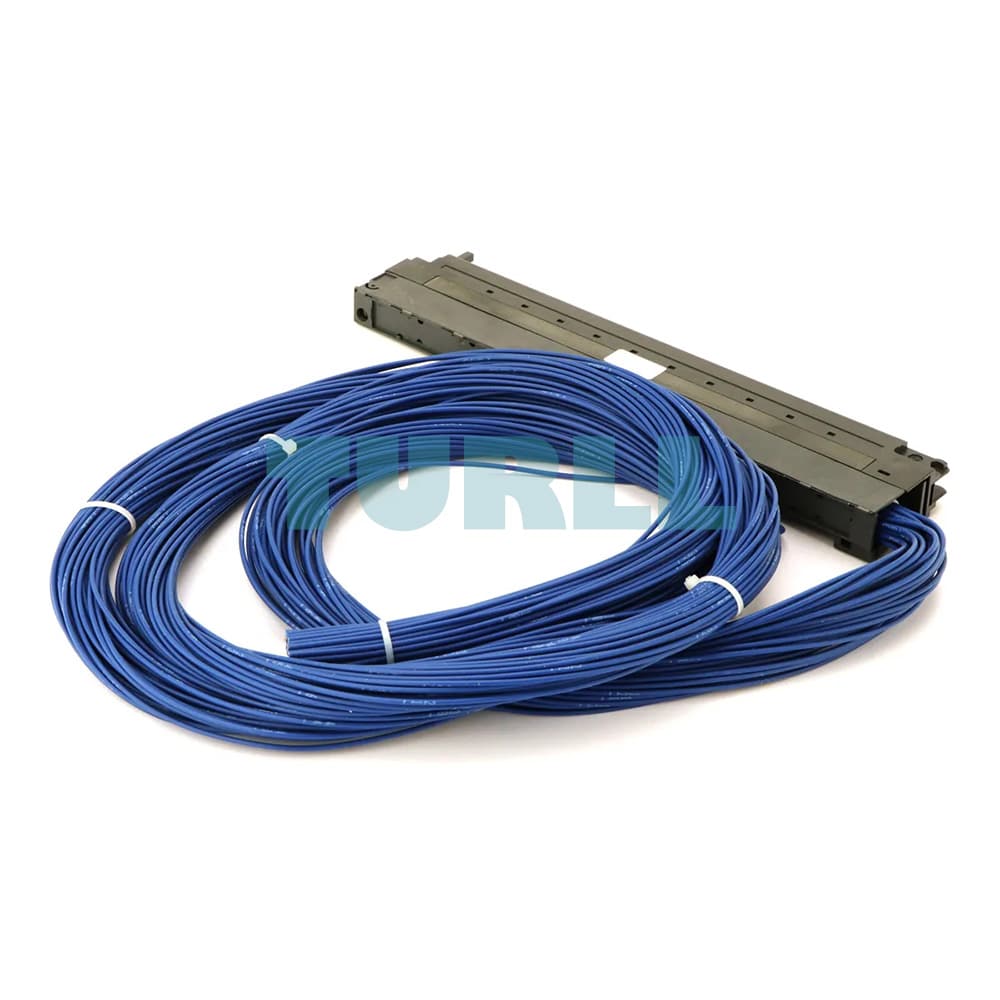

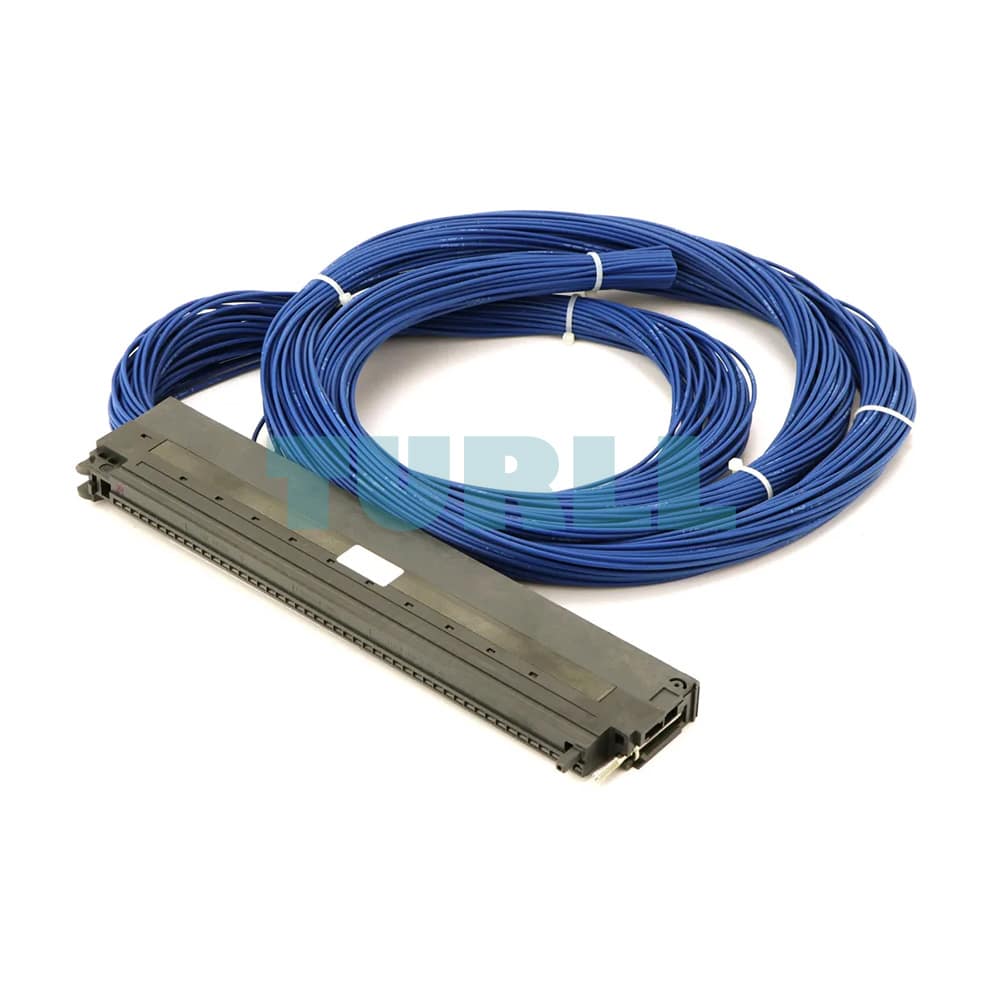

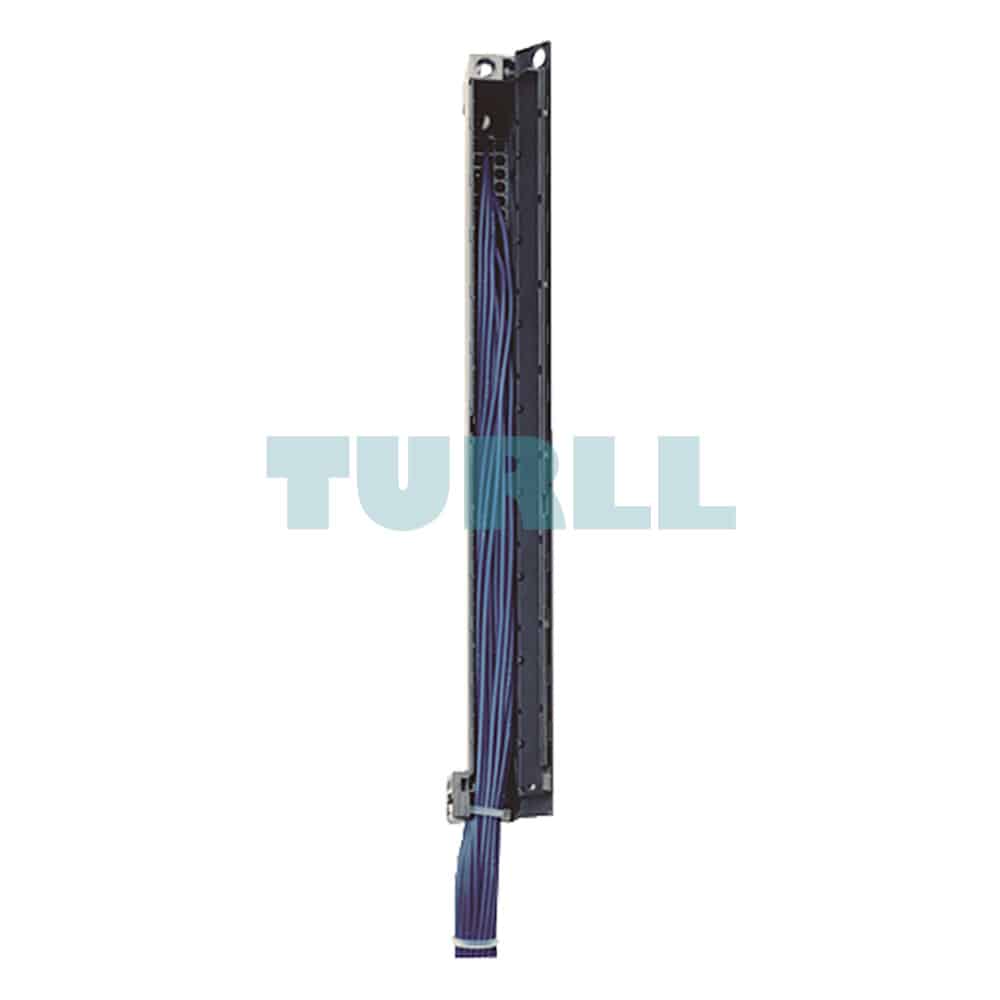

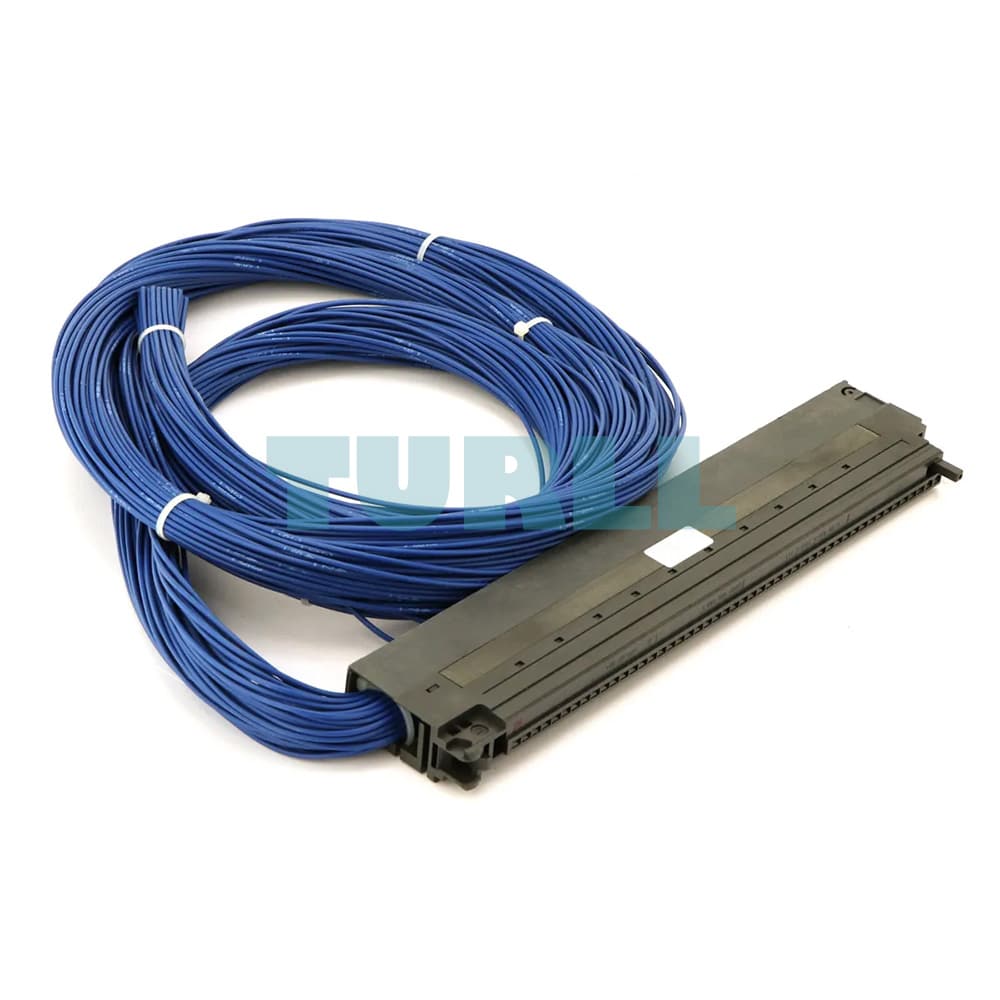

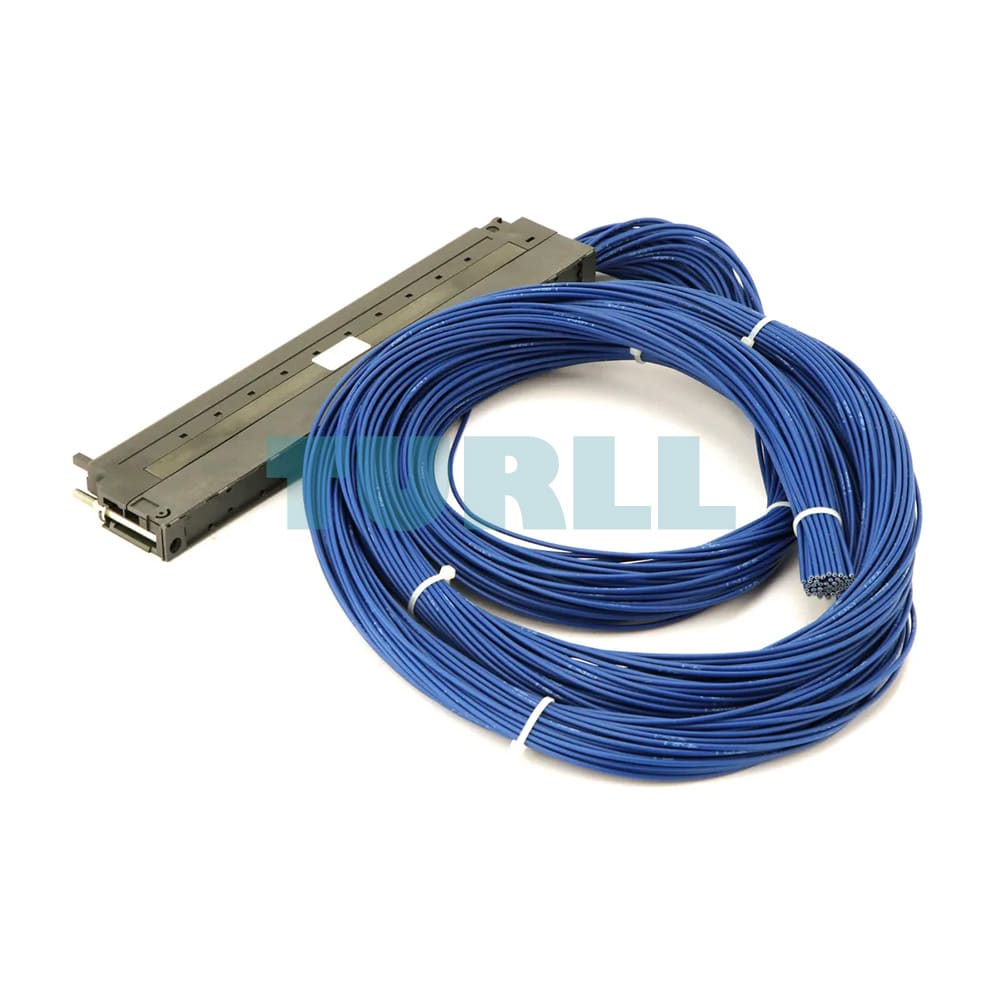

This front connector is tailored for SIMATIC S7-400 MS, MSP, and MR units, featuring a 48-pole strip interface. It is equipped with 46 pre-assembled H05V-K single cores with a 0.5 mm² cross-section. Designed in a crimp terminal version, it ensures stable and vibration-resistant connections. Supplied in a packaging unit of 5, it supports efficient deployment across multiple installations.
• 48-pole strip connector for SIMATIC S7-400 MS/MSP/MR units
• 46 single cores for precise signal routing
• Crimp terminal version for secure and vibration-proof connections
• Pre-assembled and installation-ready
• Supplied as a set of 5 units for scalable applications
• Compatible with: SIMATIC S7-400 (connector 6ES7492-1CL00-0AA0)
• Number of poles: 48
• Number of cores: 46 single cores
• Core cross section: 0.5 mm²
• Cable type: H05V-K
• Connector type: Crimp terminal version
• Cable length: 2.5 meters
• Packaging unit: 5 pre-assembled connectors
Visit 6ES7922-4BC50-5AE0
For more products visit Turll.com
| SKU / Model | 6ES7922-4BC50-5AE0 |
|---|---|
| Weight | 5.9 kg |
| Dimensions | 254 × 260 × 400 mm |
