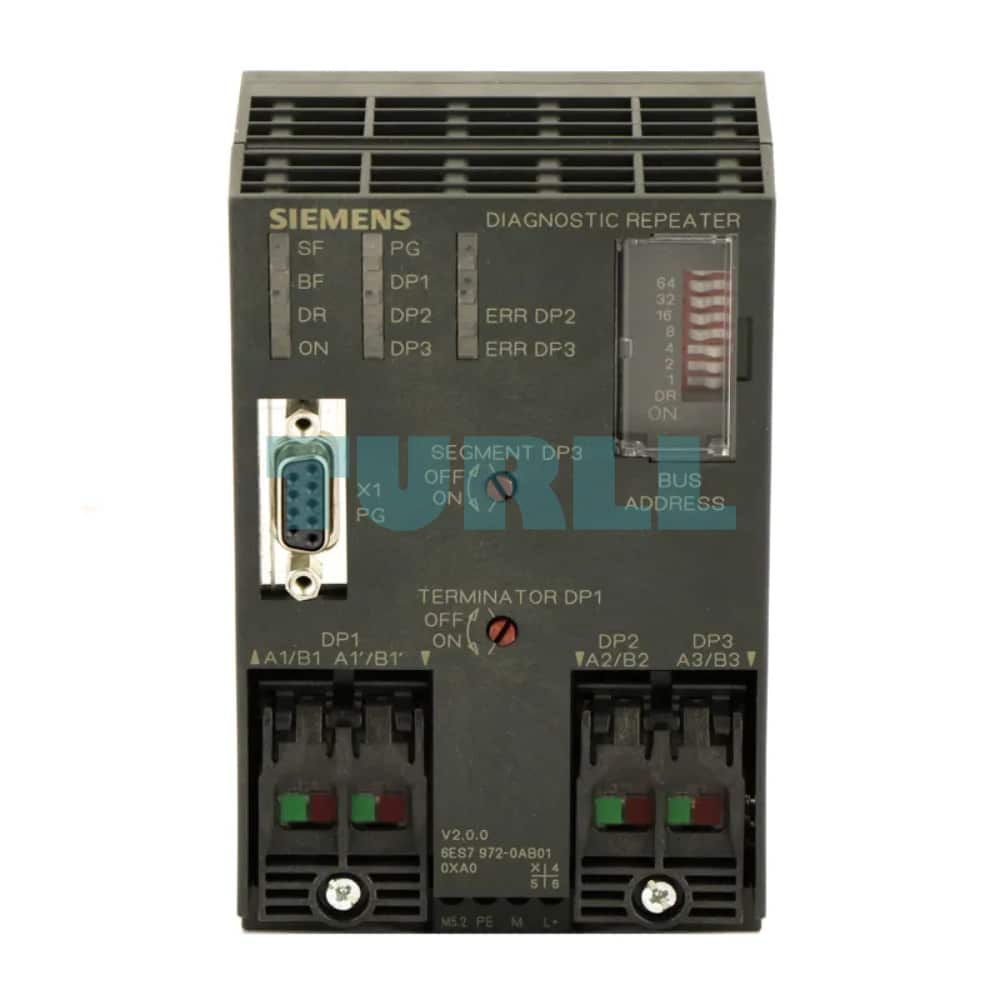

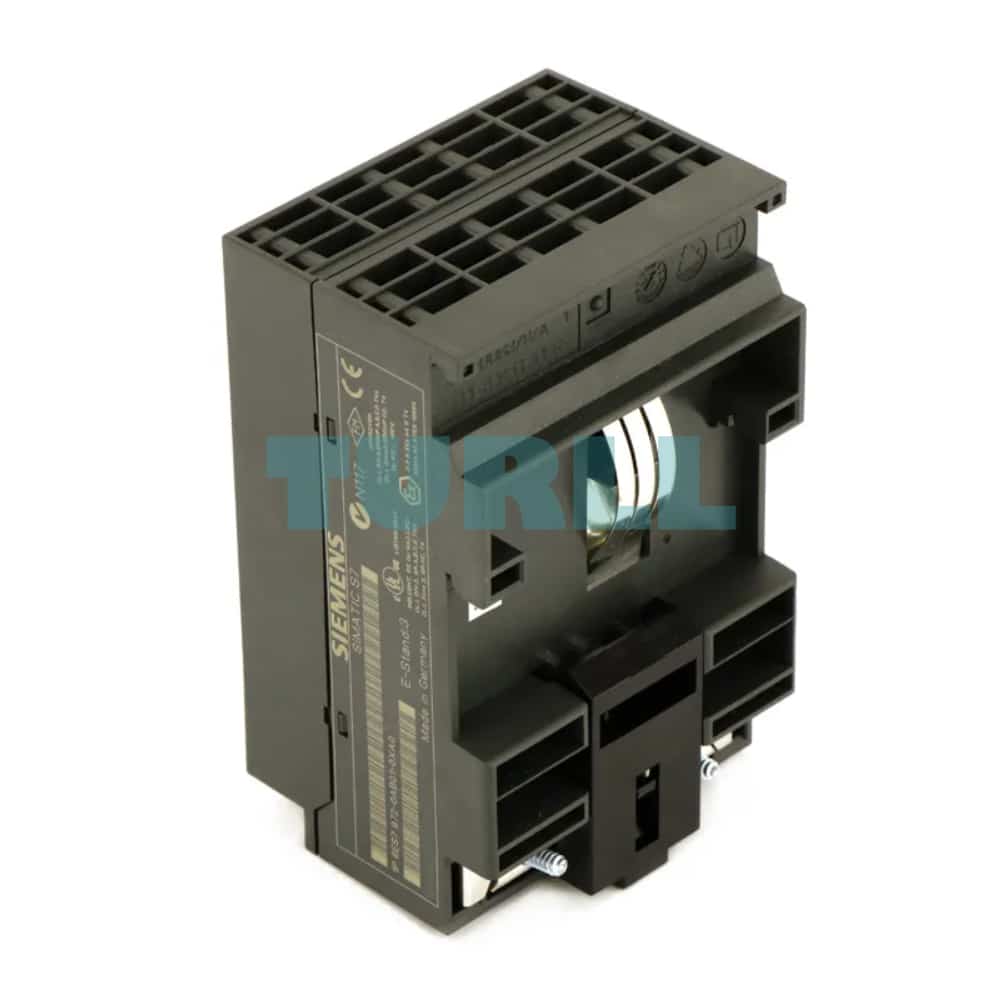

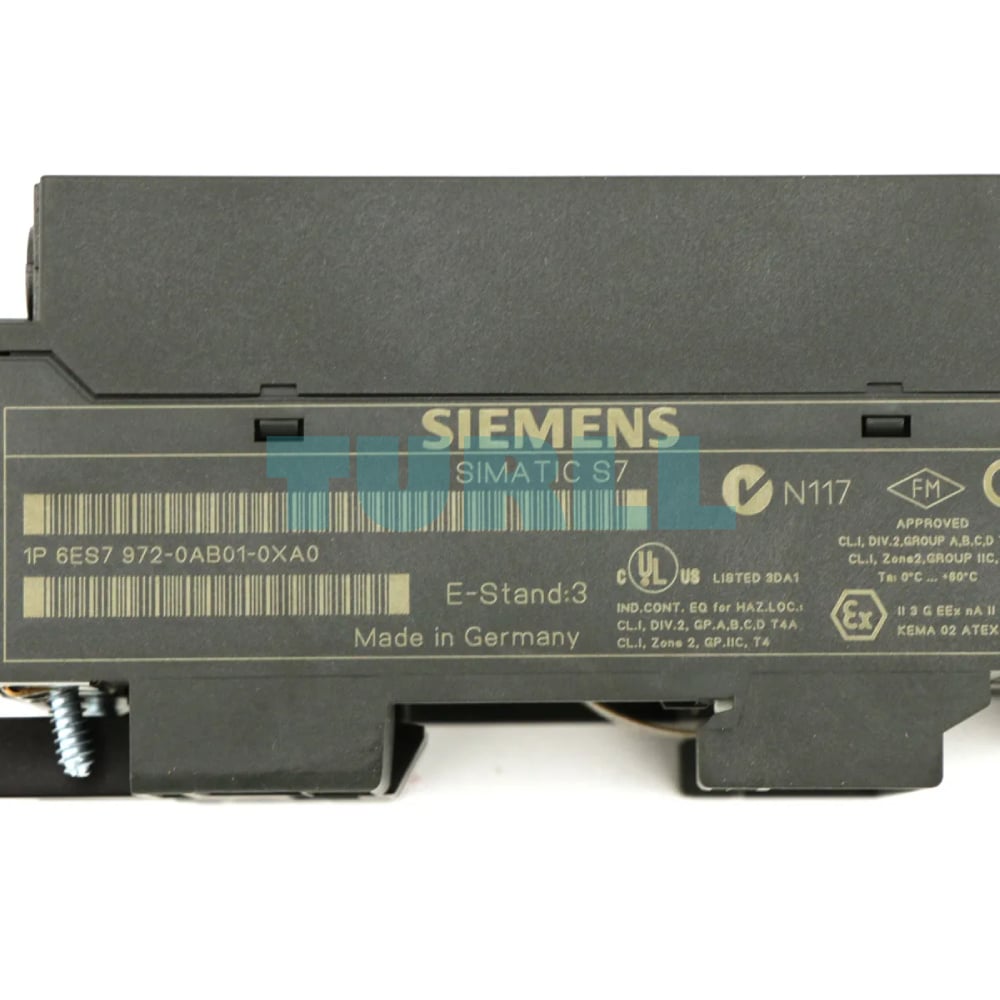

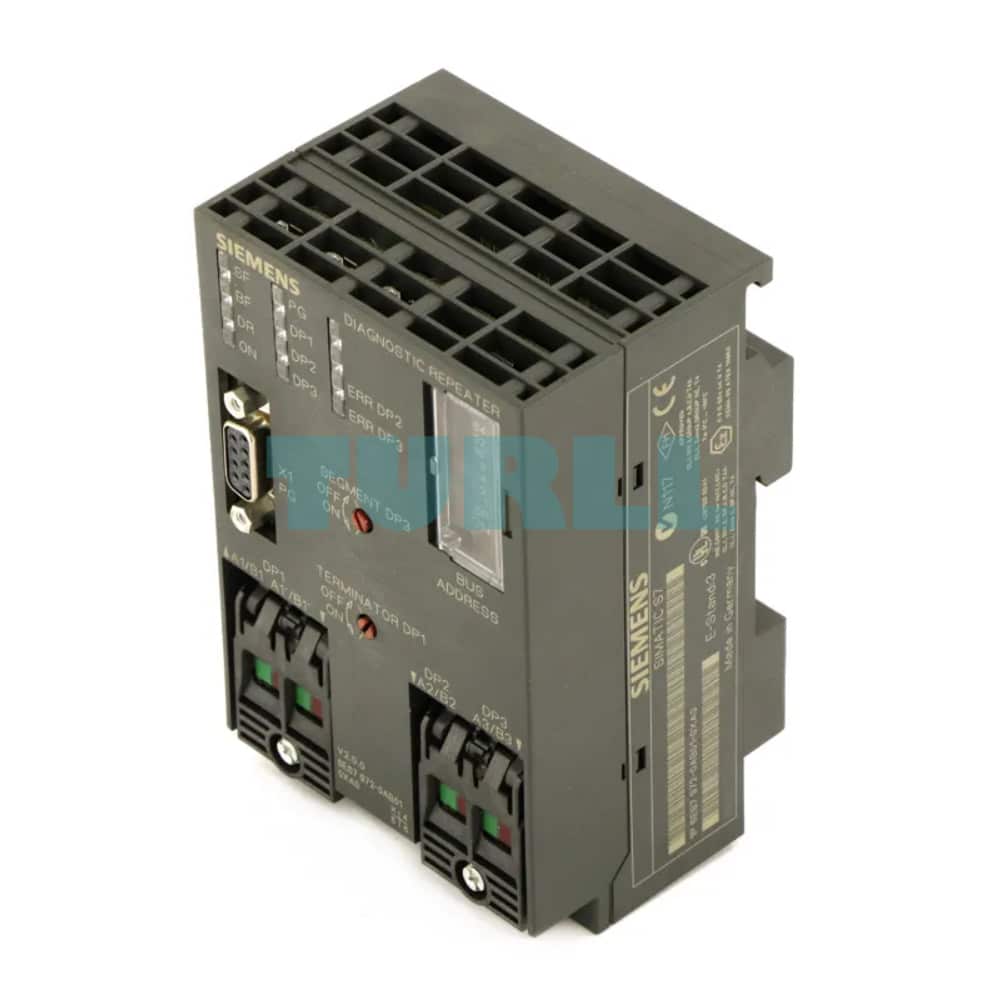

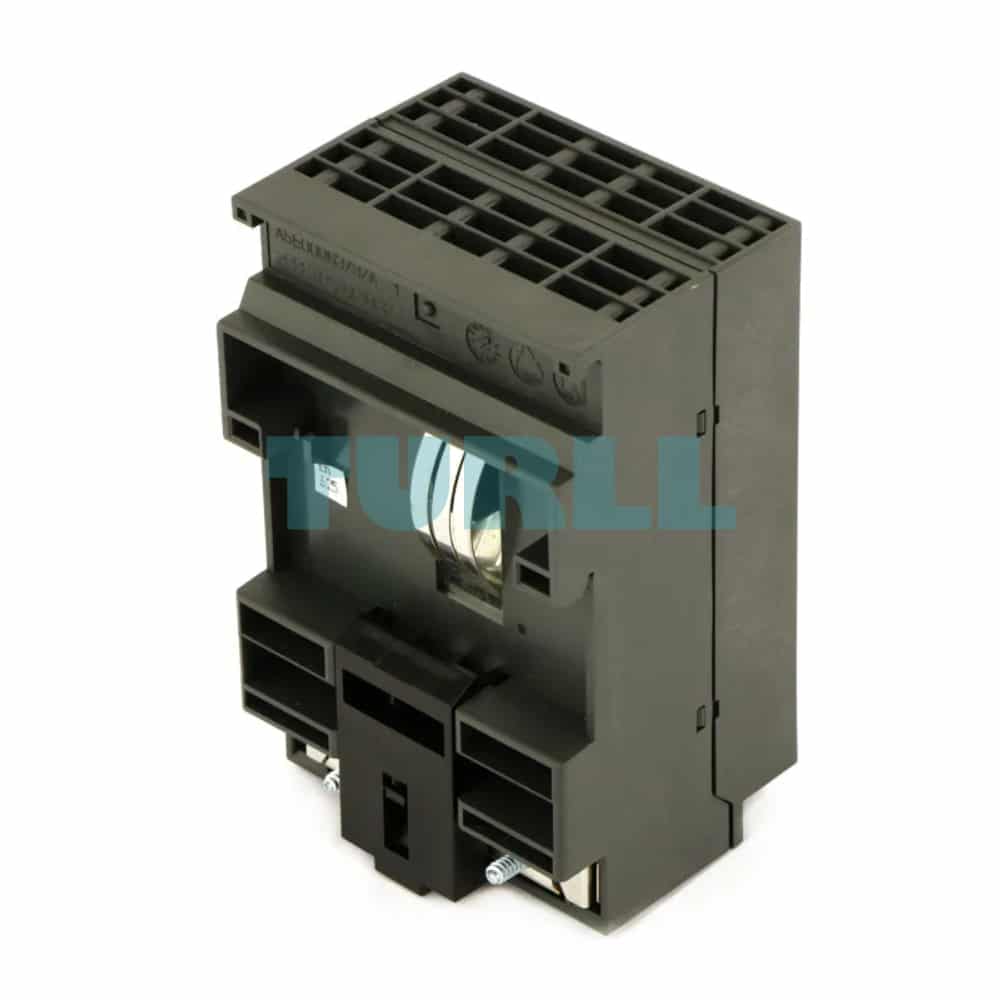

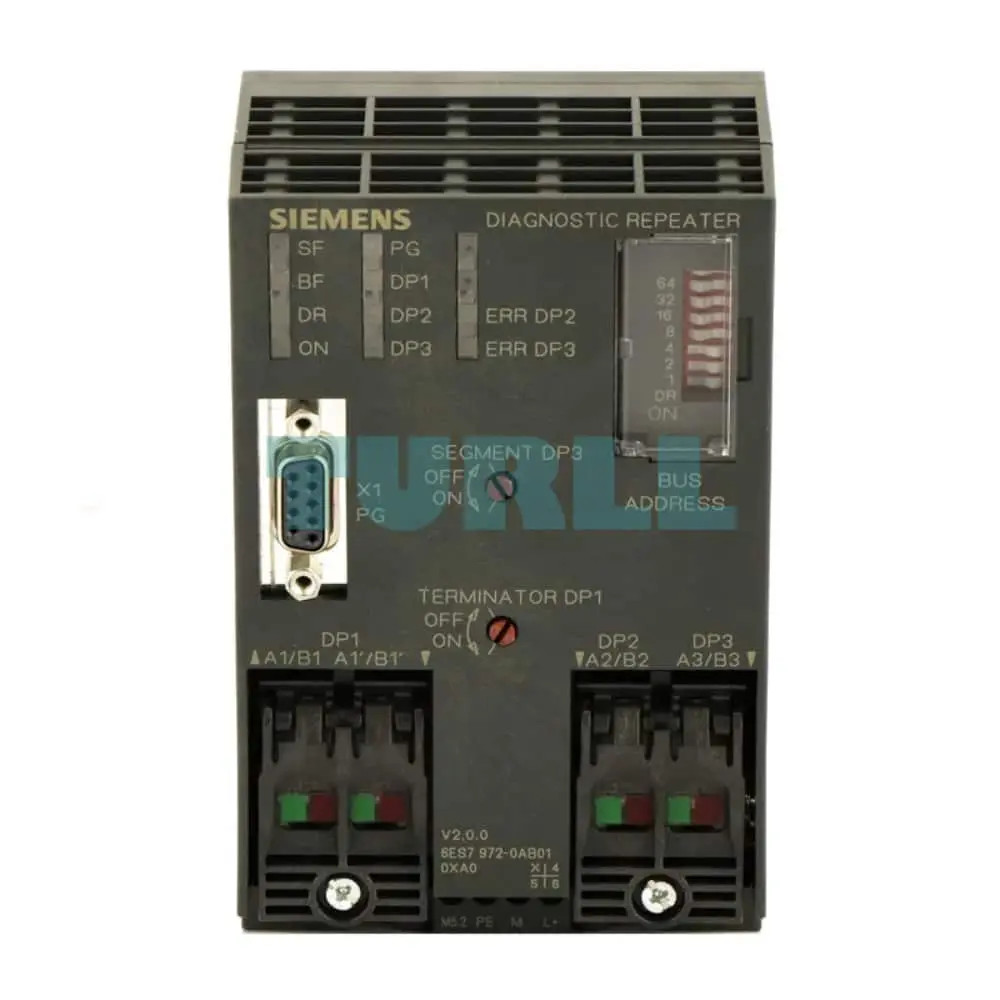

6ES7972-0AB01-0XA0 SIEMENS Exclusive Diagnostic Repeater Original Brand New

6ES7972-0AB01-0XA0 SIEMENS Exclusive Diagnostic Repeater Original Brand New

The 6ES7972-0AB01-0XA0 Siemens diagnostic repeater is an advanced solution designed for PROFIBUS DP networks, providing both signal amplification and comprehensive online diagnostics. This high-performance device functions as a DP standard slave (DP-V1) and supports transmission rates up to 12 Mbit/s, ensuring reliable and efficient communication in industrial automation systems.

Engineered for precision and reliability, this Siemens diagnostic repeater enables real-time monitoring of PROFIBUS cable conditions. It can automatically detect faults and identify their exact location, significantly reducing troubleshooting time and improving system uptime. With its IP20 protection rating, it is ideal for installation in control cabinets and protected industrial environments.

Overview

The Siemens diagnostic repeater combines standard repeater functionality with advanced diagnostic capabilities, making it an essential component for maintaining network performance and reliability.

• RS485 repeater with integrated online line diagnostics for PROFIBUS DP
• Functions as a PROFIBUS DP standard slave (DP-V1)
• Automatic detection of fault type and precise fault location
• Supports transmission rates from 9.6 Kbps to 12 Mbps
• FastConnect connection method using IDC technology

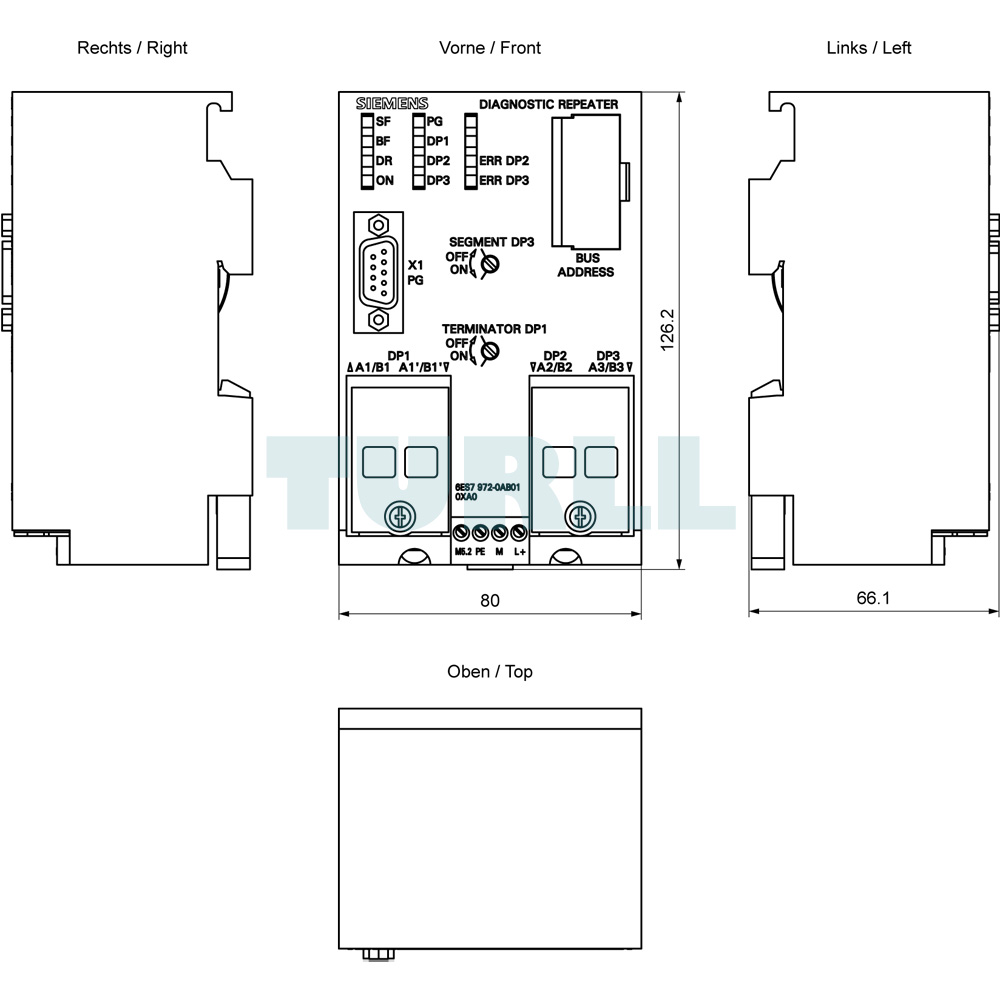

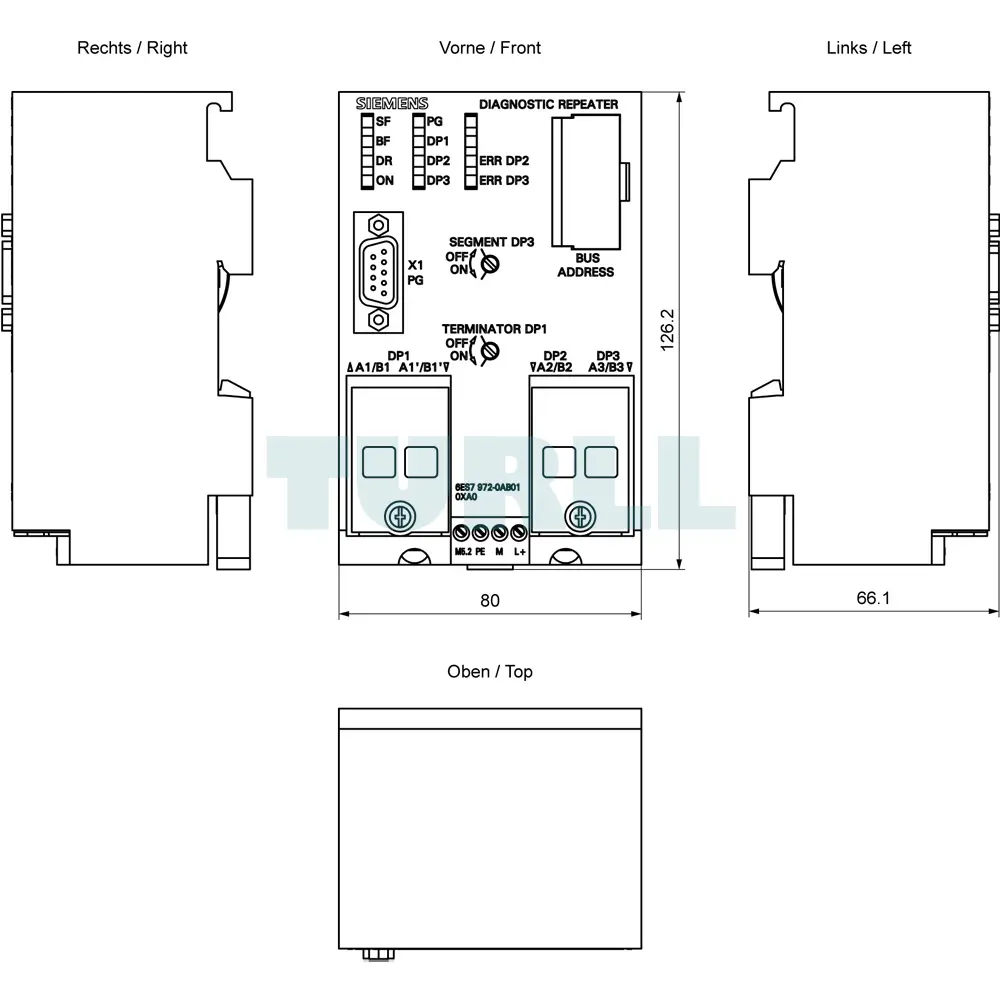

Design

The 6ES7972-0AB01-0XA0 features a compact and robust design, optimized for industrial applications. Its FastConnect connection method allows quick and secure wiring using insulation displacement connection (IDC) technology, reducing installation time and ensuring consistent connection quality.

This diagnostic repeater is designed to enhance network transparency and simplify maintenance processes. By providing detailed diagnostics and fault analysis, it helps prevent extended downtime and ensures efficient system operation. Its durable construction and advanced functionality make it a reliable choice for maintaining and optimizing PROFIBUS DP communication networks.

Download

Data sheet (PDF)

Product Code: 6ES7972-0AB01-0XA0
