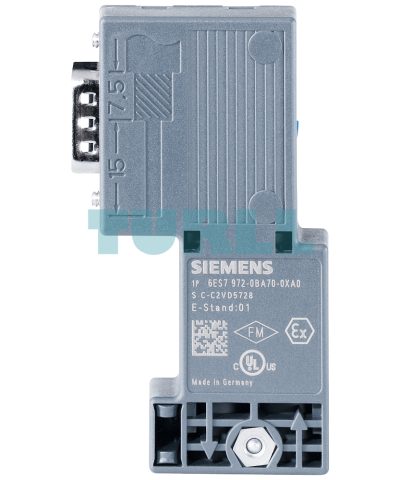

Siemens 6ES7972-0BA70-0XA0 SIMATIC DP Profibus Connector, 90° FastConnect Plug Original Brand New
$71.21
High-performance SIMATIC DP Profibus connection plug featuring a 90° cable outlet and FastConnect insulation displacement technology. Supporting speeds up to 12 Mbit/s, this compact RS485 connector ensures reliable data transmission for industrial automation without the need for a PG socket.
Availability: In stock
Overview
The Siemens 6ES7972-0BA70-0XA0 SIMATIC DP Connection Plug is a high-performance PROFIBUS DP connector designed for reliable and efficient industrial communication. It supports transmission speeds of up to 12 Mbit/s and features a 90° angled cable outlet, making it ideal for installations with limited space.
Using Siemens FastConnect insulation displacement technology, this connector allows quick, secure, and tool-efficient cable termination without stripping wires. Its compact dimensions and rugged construction make it suitable for demanding industrial automation environments.
Key Benefit
-
Rapid Installation: The FastConnect technology allows for error-free, quick assembly.
-
Space-Saving: The slim 15.8mm width and 90° outlet allow for high-density mounting on PLC modules.
-
High-Speed Reliability: Fully optimized for data transfer rates up to 12 Mbit/s.
-
Durable Housing: Built for industrial environments with a robust plastic casing.
Function & Features
-
Connection Type: RS485 Profibus.
-
Cable Outlet: 90-degree angle for optimized cable routing.
-
Termination Resistor: Integrated slide switch to engage/disengage network termination.
-
FastConnect: Insulation displacement system for easy shielded cable connection.
Specification
-
Manufacturer: Siemens
-
Product Number: 6ES7972-0BA70-0XA0
-
Series: SIMATIC DP
-
Communication Protocol: PROFIBUS DP
-
Max Data Rate: Up to 12 Mbit/s
-
Cable Outlet: 90°
-
Connection Method: Insulation Displacement (FastConnect)
-
PG Socket: Not included
-
Dimensions (WxHxD): 15.8 × 72.2 × 36.4 mm
Application
-
Industrial automation systems
-
PLC and PROFIBUS DP networks
-
Control cabinets and panels
-
Factory automation and process control
-
Siemens SIMATIC installations
Download
Visit 6ES7972-0BA70-0XA0 for more detail info
For more our products visit turll
| Weight | 0.034 kg |
|---|---|
| Dimensions | 36.4 × 15.8 × 72.2 mm |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
