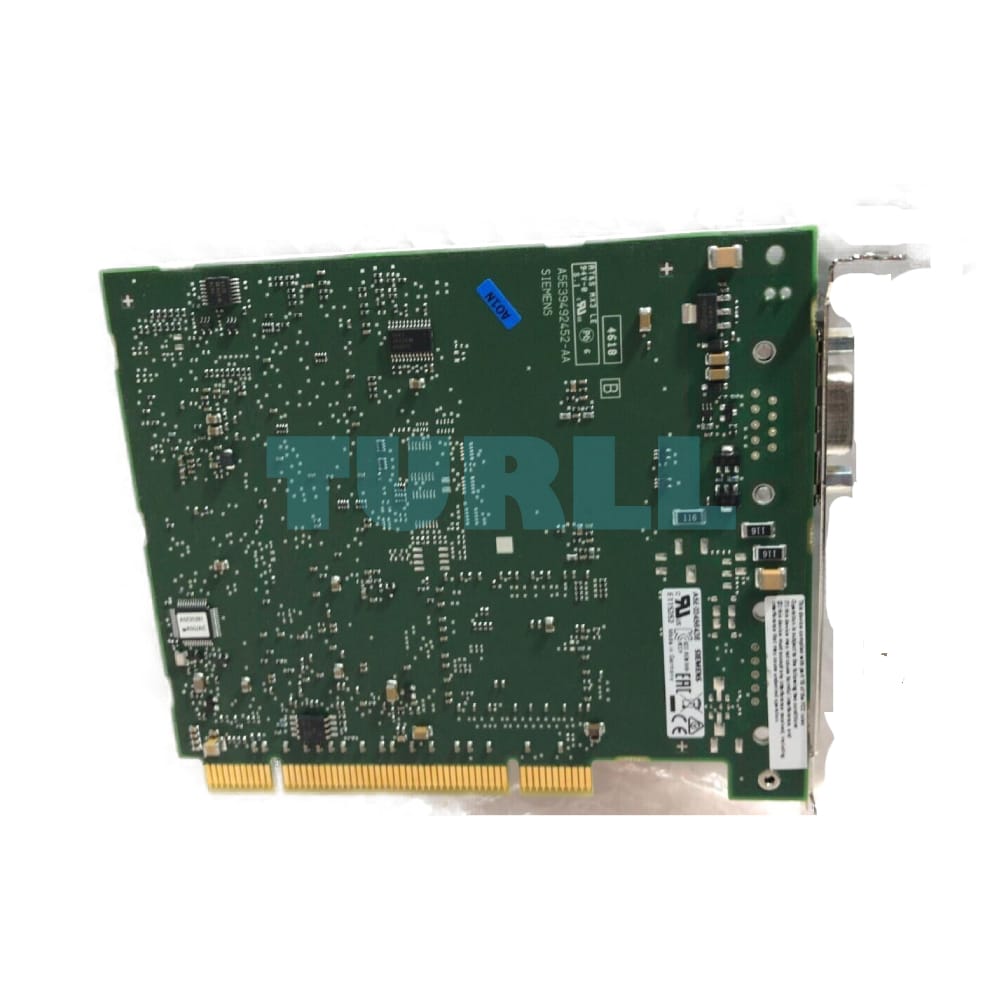

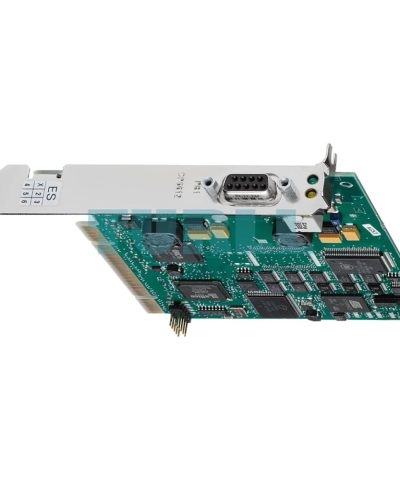

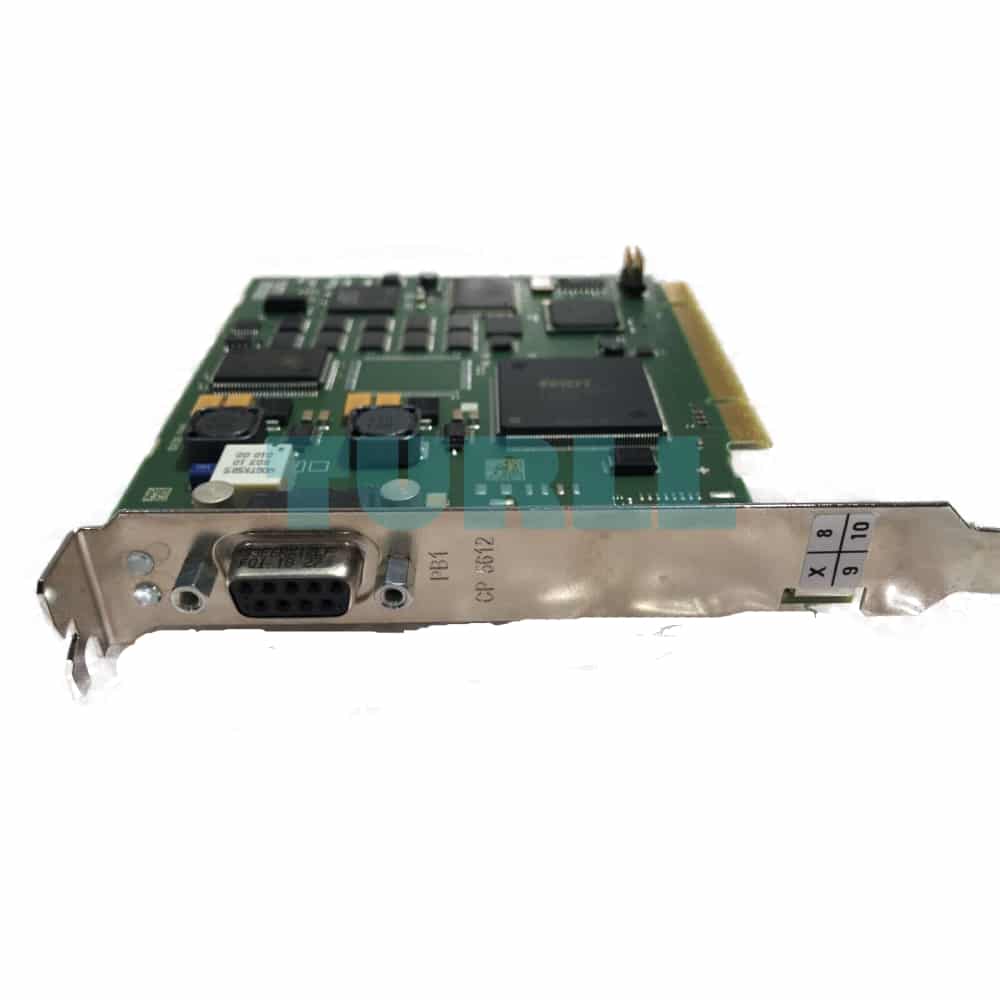

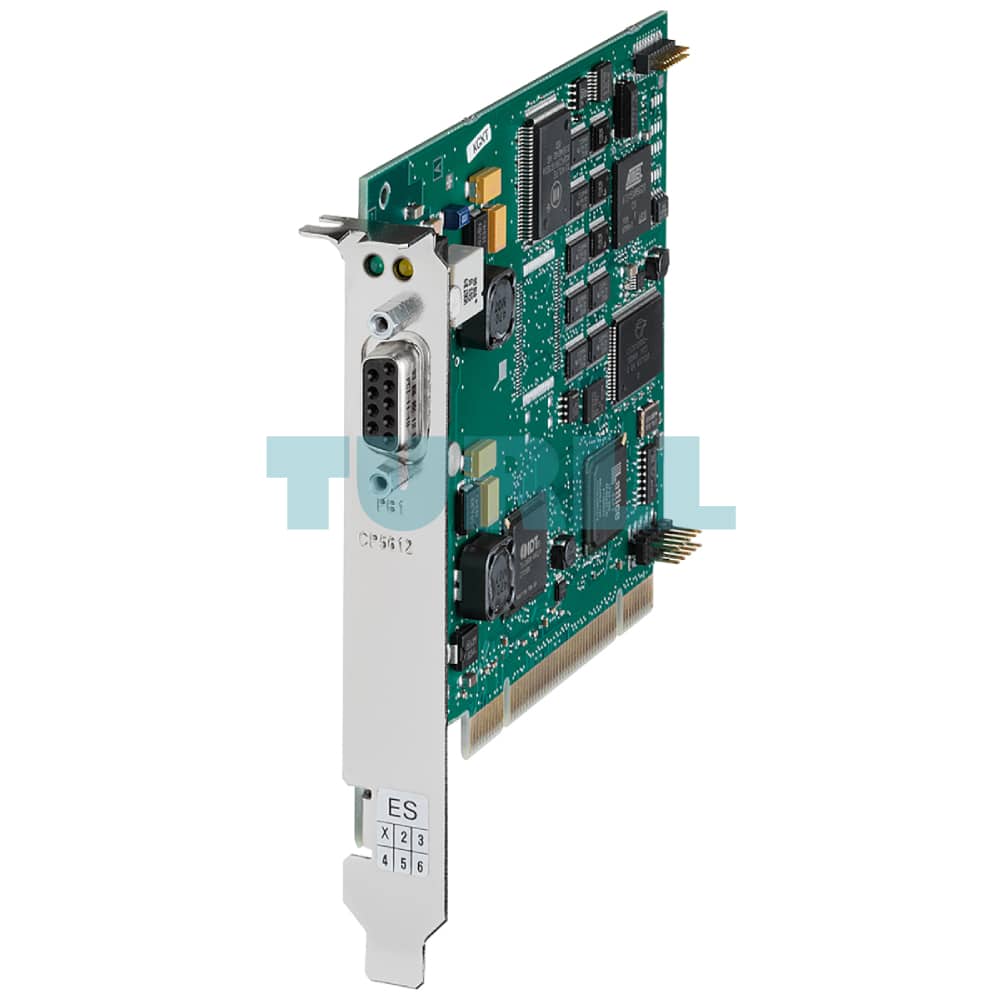

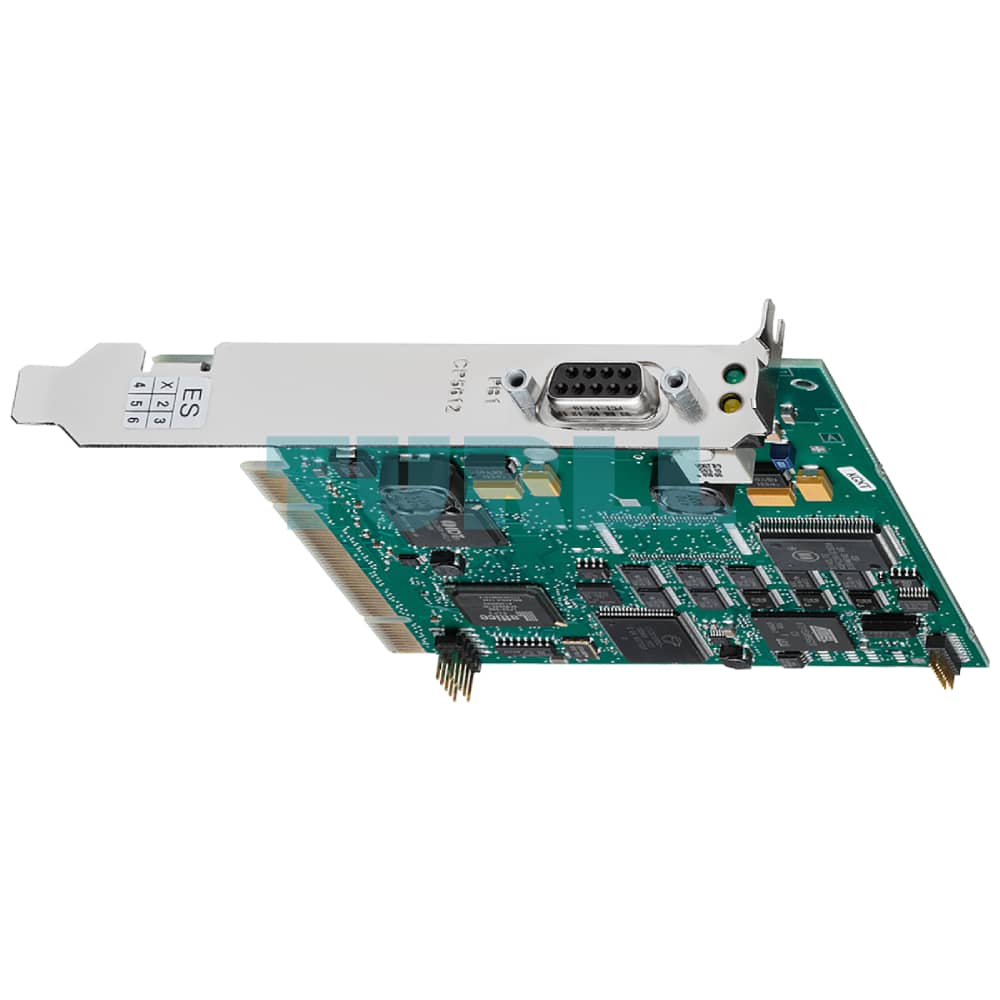

6GK1561-2AA00 Siemens Communications Processor CP 5612 Original Brand New
$829.21
6GK1561-2AA00 SiemensĀ
Communications processor CP 5612 PCI card for connection connection of a PG or PC with PCI bus to PROFIBUS or MPI usable in 32 bit and 64 bit operating systems see also entry ID 22611503.
Overview
- PCI card (universal keyed 5Ā V/3.3Ā V) for connection of PCs and SIMATIC PG/PC to PROFIBUS at up to 12Ā Mbps and to the MPI interface of SIMATIC S7
- Communications services:
- PROFIBUS DP master Class 1 incl. acyclic DP expansions with SOFTNET-PBĀ DP software package
- PROFIBUS DP master Class 2 incl. acyclic DP expansions with SOFTNET-PBĀ DP software package
- PROFIBUS DP slave with SOFTNET-PBĀ DP slave software package
- PG/OP communication with STEPĀ 7
- S7 communication with SOFTNET-PBĀ S7 software package
- Open communication (SEND/RECEIVE on basis of FDL interface) with SOFTNET-PBĀ DP or SOFTNET-PBĀ S7 software package
- Can be used with:
- STEPĀ 7, STEPĀ 7-Micro/Win, SIMATICĀ PDM (for PG/OP communication)
- SOFTNET-PBĀ S7 (for S7 communication)
- SOFTNET-PBĀ DP, SOFTNET-PBĀ DP slave (for DP)
- The appropriate OPC servers and configuration tools are included in the scope of supply of the respective communications software
Benefits
- Connection for portable PCs (e.g. for diagnostics and commissioning)
- Easy installation and startup
- Optimally coordinated with SOFTNET
- OPC as standard interface
- Uniform procedure and configuration functionality with NCMĀ PC and STEPĀ 7
- Flexible use possible in PG/PC through PCIĀ 3.3/5Ā V, 33/66Ā MHz and compatibility with 64-bit PCIĀ XĀ slot
Application
CPĀ 5612 permits the connection of programming devices (PGs) and PCs to PROFIBUS and to the multipoint interface (MPI) of the SIMATIC S7:
- for PGs/PCs with PCI slot
Design
- Short PCI card
- Operation possible in 3.3Ā V and 5Ā V PCI slots (universal keyed)
- 33 MHz or 66Ā MHz PCI clock
- Operation possible as 32-bit card in a 64-bit PCIĀ XĀ slot
- 9-pin sub-D socket for connection to PROFIBUS
Function
The CP 5612 is operated under various software packages and offers the user the opportunity of performing functions of the programming devices and PCs by means of PROFIBUS and the multipoint interface (MPI).
Only one CP can be used per PG or PC. Similarly only one protocol (PROFIBUS DP, S7 communication or FDL) can be used per CP.
The following software packages support the CP 5612:
- STEPĀ 7 from V5.5 SP3;
Drivers for the CPĀ 5612 are included with STEPĀ 7. - SOFTNET-S7 V8.2 SP1 and higher;
This package allows the S7 programming interface to be used. - SOFTNET-DP V8.2 SP1 and higher;
This enables the CPĀ 5612 to be used as PROFIBUS DP master ClassĀ 1 or ClassĀ 2. - SOFTNET-DP Slave V8.2 SP1 and higher;
For use of the CPĀ 5612 as PROFIBUS DP slave - NCM PC;
Drivers for the CPĀ 5612 are included in the scope of supply (SIMATIC NET CD V8.2 SP1 and higher). - WinCC/WinCC Flexible;
Drivers for the CPĀ 5612 are included in the scope of supply (SIMATIC NET CD V8.2 SP1 and higher).
6GK1561-2AA00 Siemens
Communications processor CP 5612 PCI card for connection connection of a PG or PC with PCI bus to PROFIBUS or MPI usable in 32 bit and 64 bit operating systems see also entry ID 22611503.
| Weight | 0.175 kg |
|---|---|
| Dimensions | 18 × 125 × 107 mm |
