6GK1561-4AA02 SIEMENS Communications Processor CP 5614 A3 PCI Card Original Brand New

6GK1561-4AA02 SIEMENS Communications Processor CP 5614 A3 PCI Card Original Brand New

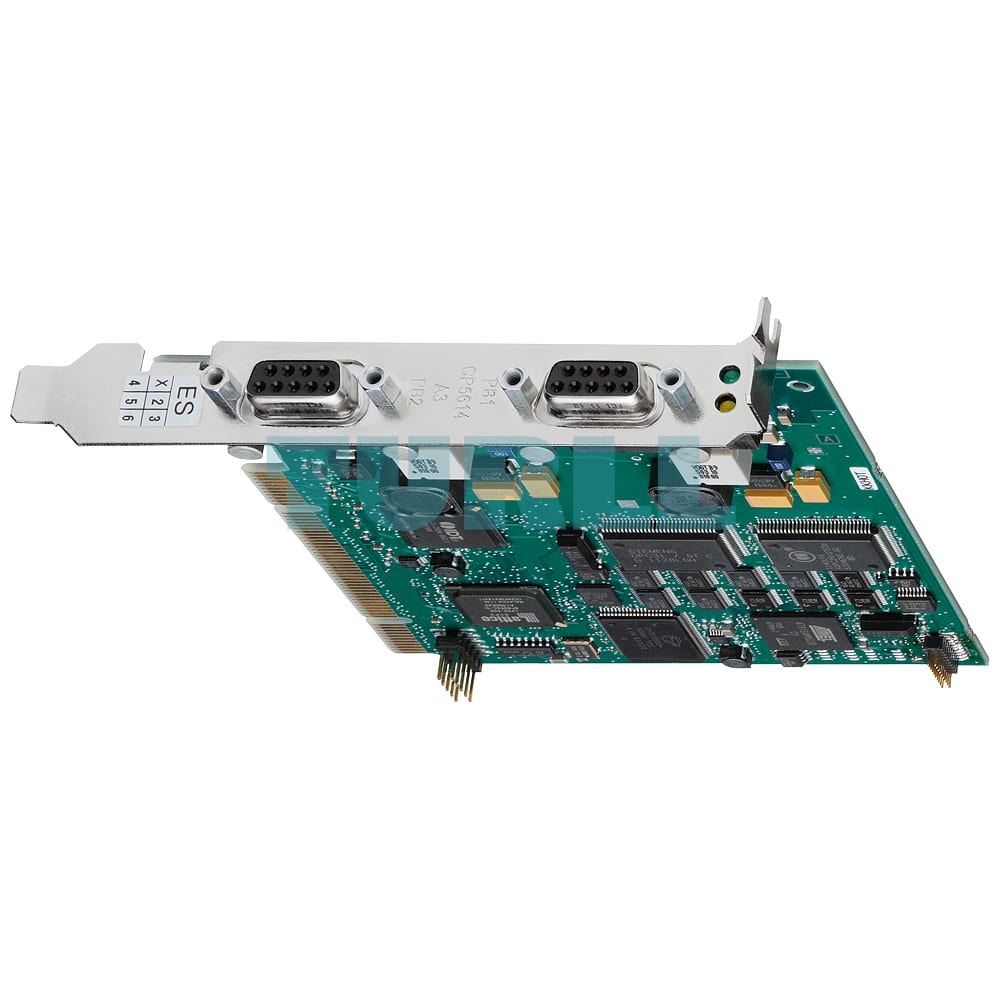

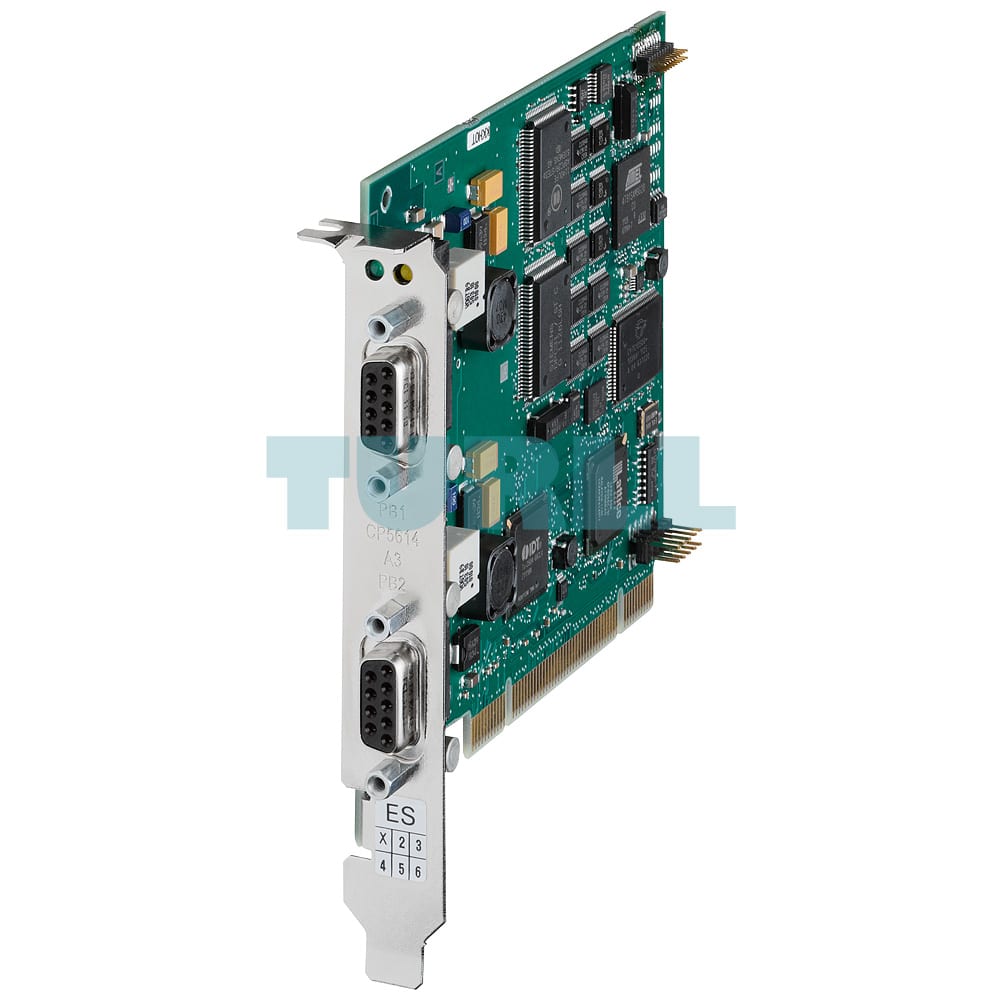

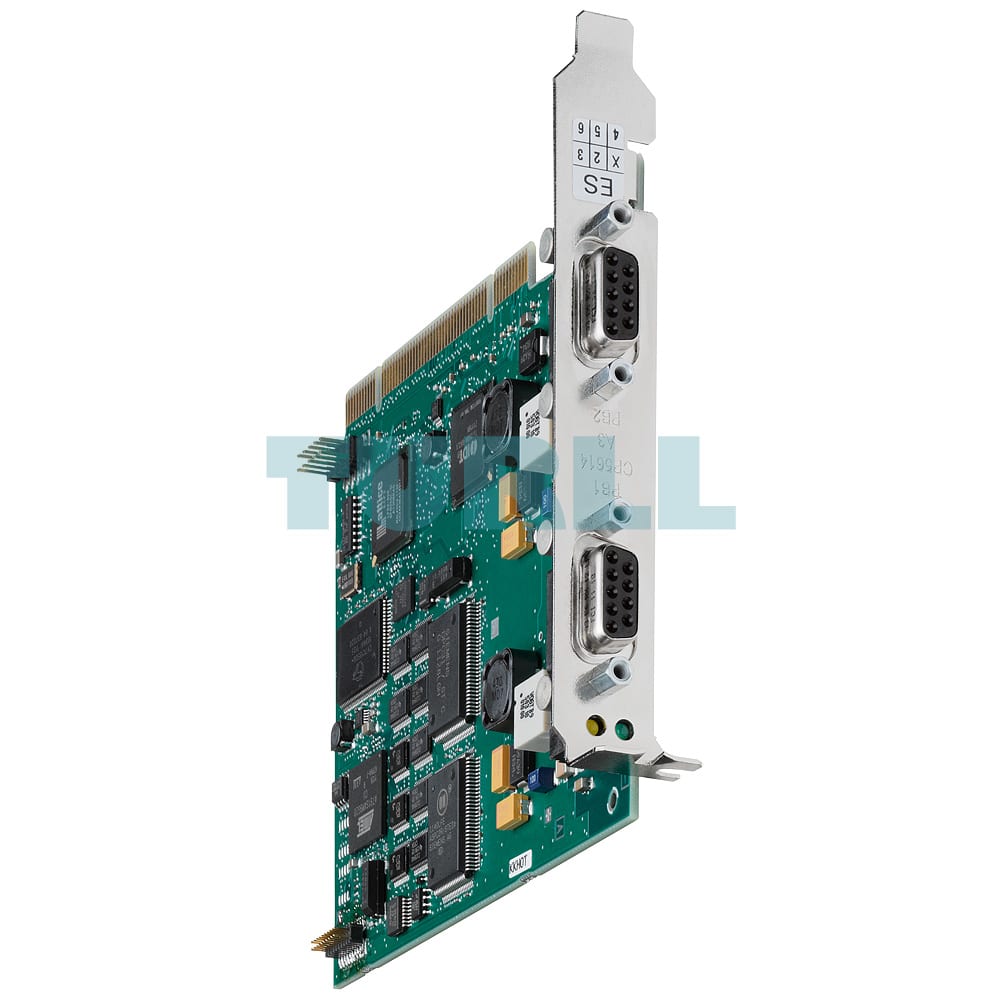

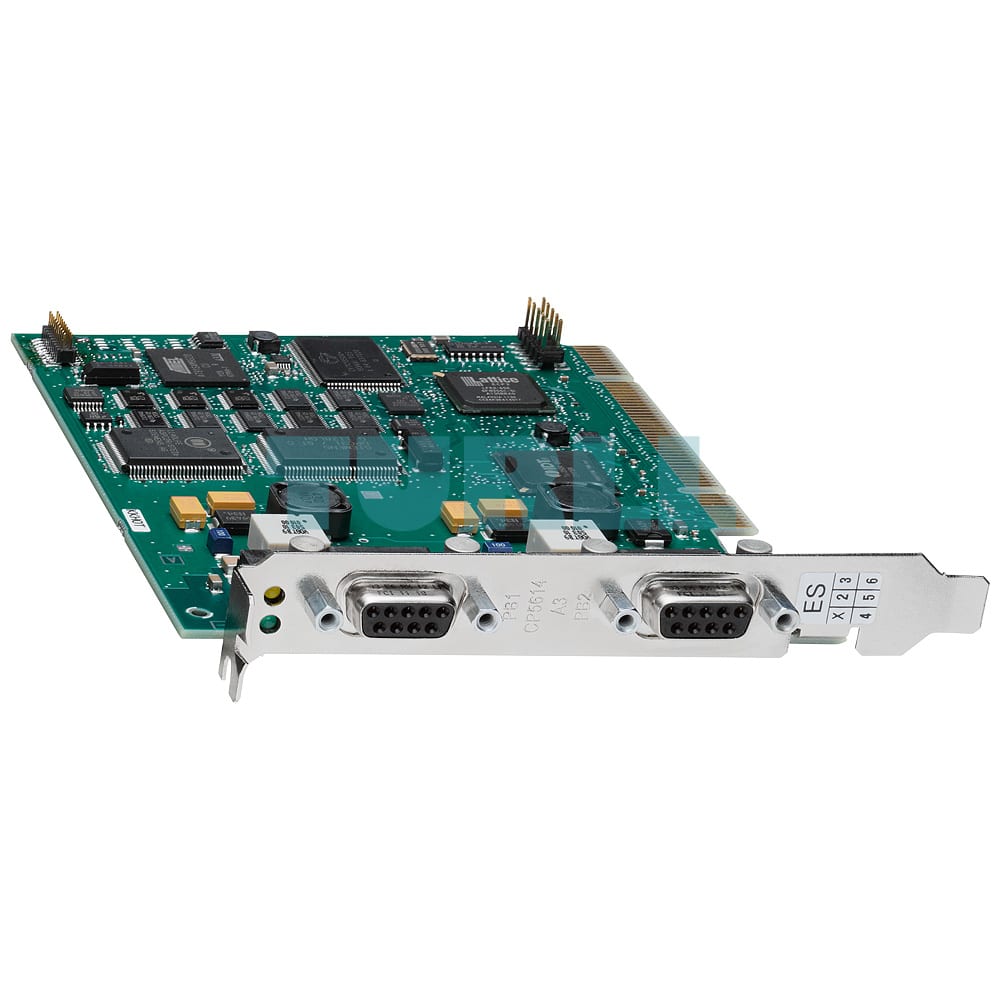

The 6GK1561-4AA02 Siemens Communications Processor CP 5614 A3 is a robust and versatile PCI card designed for reliable communication between PCs, SIMATIC PG/PCs, and PROFIBUS networks. This original Siemens hardware features a 32-bit PCI card (33/66 MHz, universal keyed for 3.3 V and 5 V), offering both master and slave interface capabilities compliant with IEC 61158/61784 standards.

With its integrated microprocessor, this PCI card offloads communication processing from the host CPU, ensuring high-speed connections up to 12 Mbps on PROFIBUS networks. The processor enables a wide range of communication services, including PROFIBUS DP master/slave, PG/OP communication compatible with STEP 5 and STEP 7, and S7 communication through the HARDNET-PB S7 package. Additionally, it supports open communication via FDL interface (SEND/RECEIVE) for greater flexibility in automation environments.

Engineered for demanding industrial applications, the module includes extensive diagnostics for installation, commissioning, and operation. Its direct dual-port RAM access ensures high data throughput, while the event and filter mechanisms effectively reduce CPU load. Designed for scalability, the CP 5614 A3 supports multiprotocol operation and parallel usage of up to four CPs simultaneously, with the capability to implement Motion Control applications due to support for constant bus cycle times.

The design incorporates a short PCI format that fits standard 3.3V or 5V PCI slots and functions as a 32-bit card in 64-bit PCI-X systems. The dual 9-pin D-sub PROFIBUS connections and diagnostic LEDs enhance ease of integration and monitoring. Flexible connection options include standard PROFIBUS electrical bus connectors and cables, or optical link modules (OLM/OBT) via PROFIBUS 830-1T cable, ensuring adaptability to various network architectures.

This product ships complete with configuration tools, DP-Base software, and manuals on DVD (languages: German and English). This package ensures quick deployment and seamless integration with SIMATIC NET software environments.
