6GK1571-1AA00 Siemens Communications Processor CP 5711 Original Brand New
$1,350.32
6GK1571-1AA00 SiemensĀ

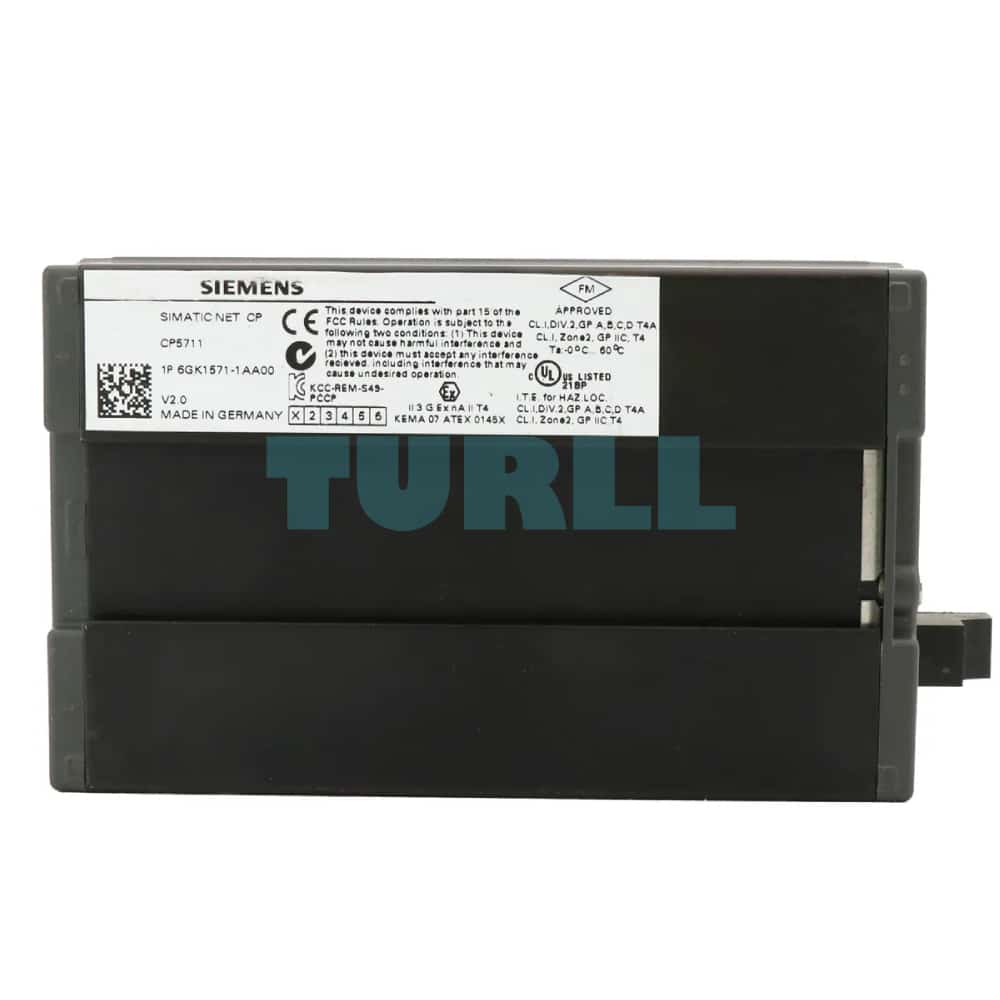

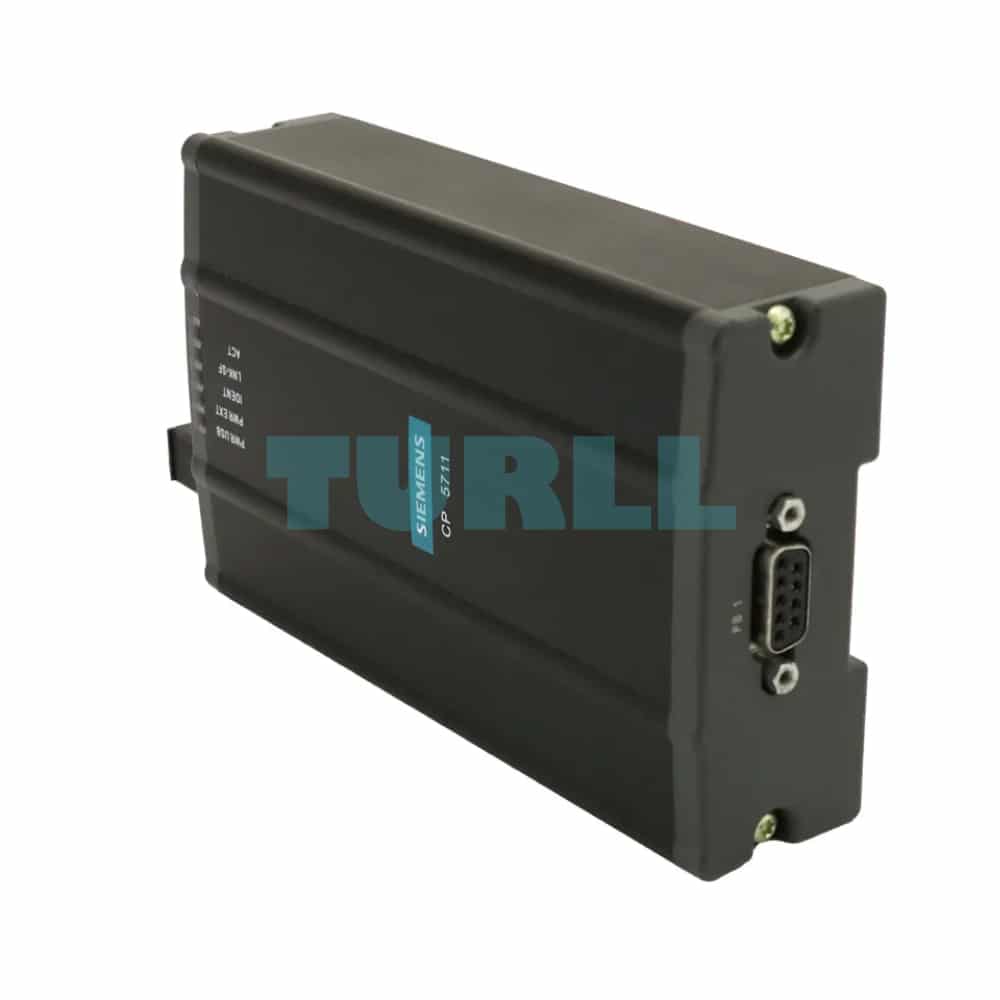

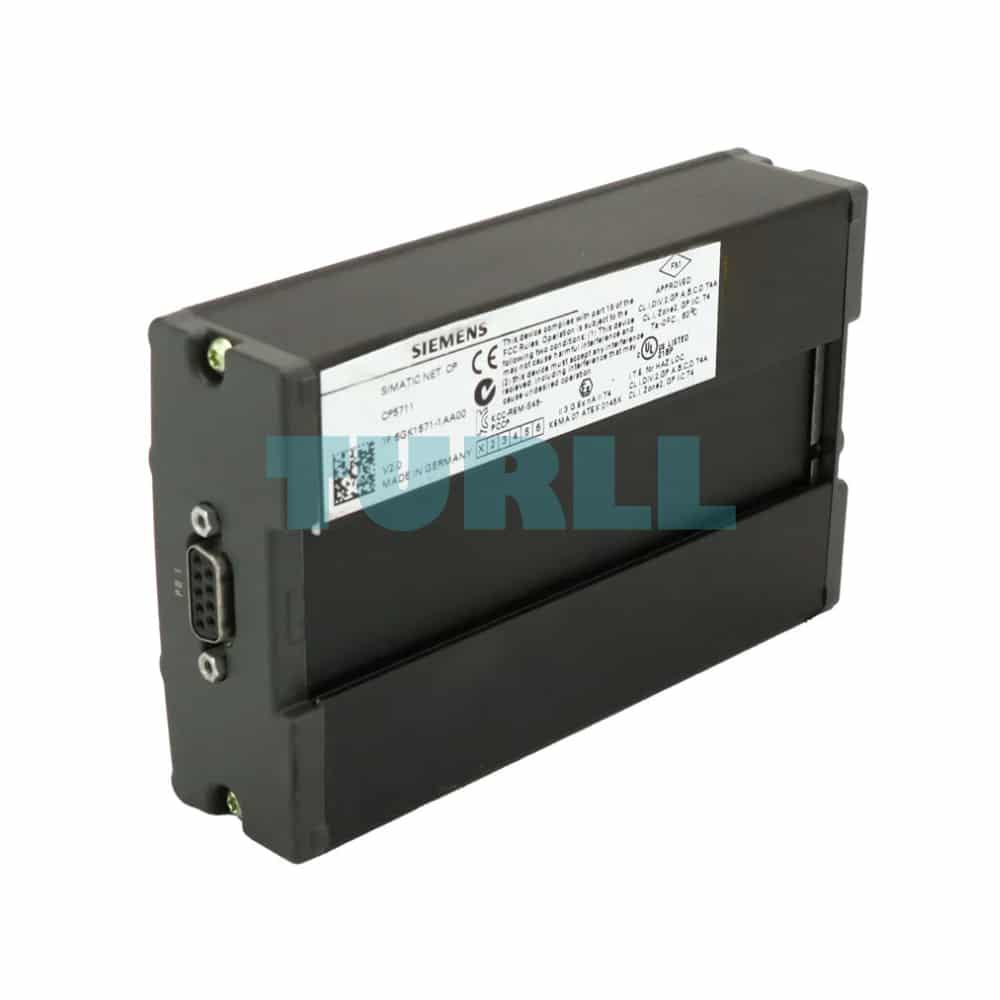

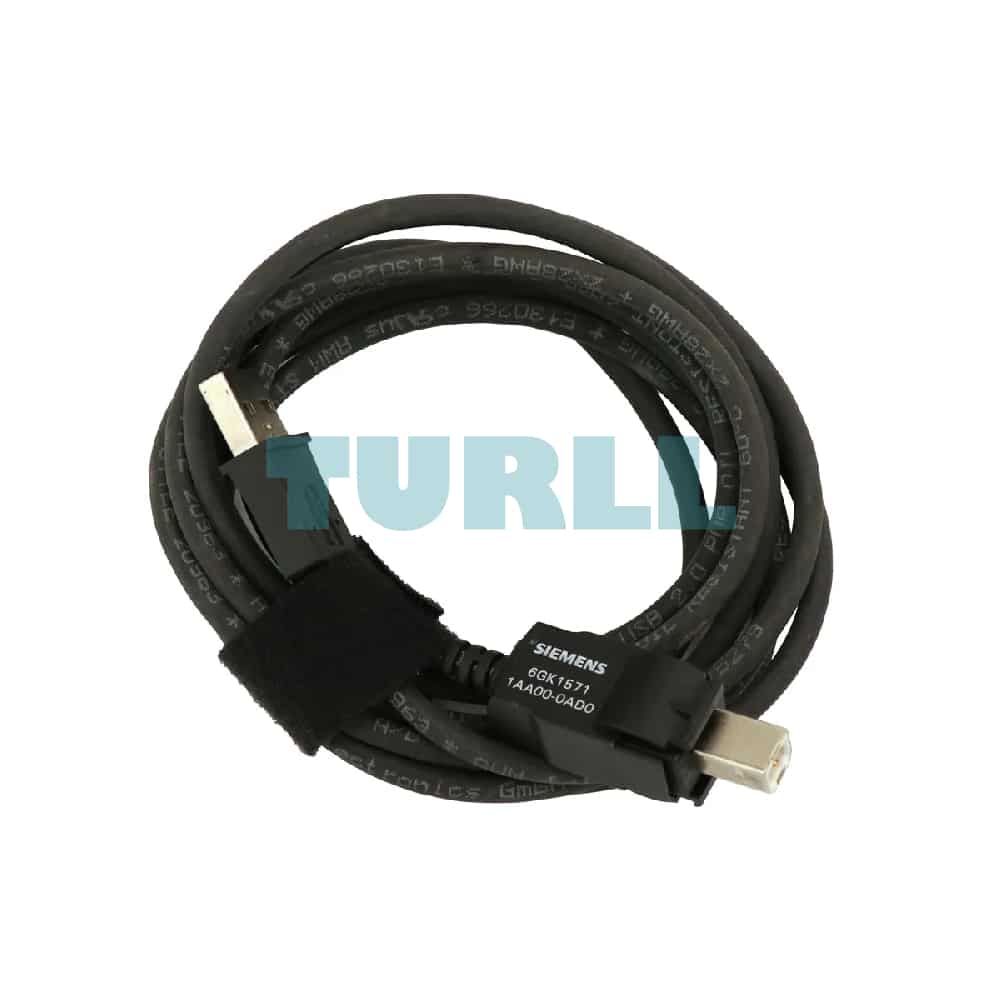

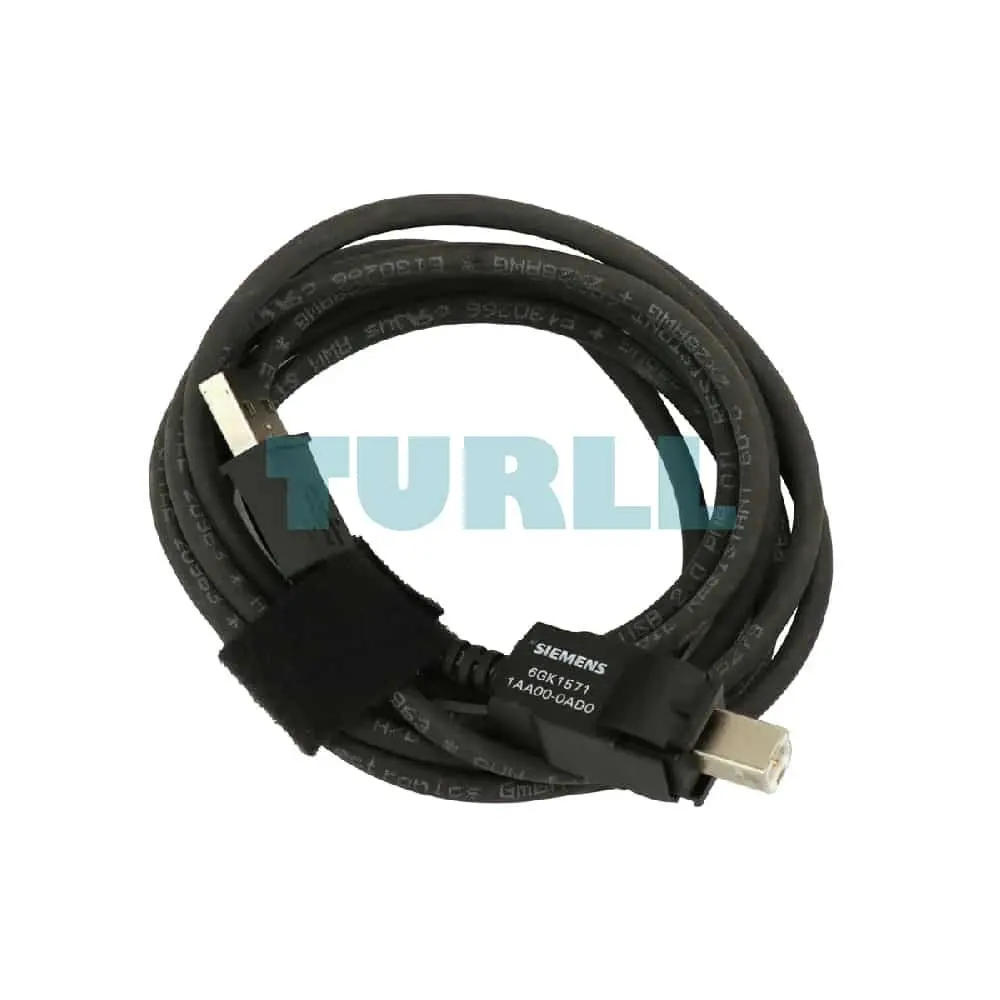

Communications processor CP 5711 USB adapter (USB V2.0) for connection of a PG or Notebook to PROFIBUS or MPI; contain 2 m USB cable.
Overview
- USB adapter for the connection of PCs and SIMATIC PG/PC to PROFIBUS DP or MPI via USB 2.0
- Operation in extended temperature range of -20Ā Ā°C to +60Ā Ā°C
- Active PROFIBUS termination to supply the PROFIBUS network as the end station of a segment
- Robust USB connection due to mechanical interlock of the USB plug to the CPĀ 5711 housing
- Communications services:
- PROFIBUS DP master Class 1 and 2 according to IECĀ 61158/61784 with SOFTNET-PB DP software package
- PROFIBUS DP slave with SOFTNET-PBĀ DP slave software package
- PG/OP communication with STEPĀ 5 or STEPĀ 7 software package
- S7 communication with SOFTNET-PBĀ S7 software package
- Open communication (SEND/RECEIVE on basis of FDL interface) with SOFTNET-PBĀ DP or SOFTNET-PBĀ S7 software package
- PROFIBUS connection with up to 12 Mbps
- Can be used with:
- STEPĀ 7, STEPĀ 7 Micro/WIN, WinCC/WinCC flexible, NCM PC, SIMATIC PDM (for PG/OP communication)
- SOFTNET-PBĀ S7 (for S7 communication)
- SOFTNET-PBĀ DP, SOFTNET-PBĀ DP slave (for DP)
- The appropriate OPC servers and configuration tools are included in the scope of delivery of the respective communications software
Benefits
- Portability and flexibility
Connection for portable PCs, e.g. for diagnostics and commissioning - Low-cost PROFIBUS controller and device solutions for embedded PCs (without PCI or PC104 bus)
- Fault-free connection to the PROFIBUS for diagnosis at all times due to permanent installation on Profibus and connection via USB in the event of maintenance and diagnosis
- Easy installation and commissioning due to plug & play technology
Application
The CPĀ 5711 enables the connection of SIMATIC PG/PC and PCs with USB interface to PROFIBUS and to the multi-point interface (MPI) of SIMATIC S7.
Design
- USB V2.0 connection
- Adapter with 9-pin sub-D socket for connection to PROFIBUS
Function
The CPĀ 5711 is a USB V2.0 adapter that can be used on either a USB V2.0 port (bandwidth 480Ā Mbit/s) or a USB V1.1 port (1.5Ā Mbit/s). It can be used with various software packages and offers users the ability to perform functions of the programming devices and PCs/OPs via PROFIBUS and the multi-point interface (MPI).
The CPĀ 5711 is powered directly via the USB interface of the PC system. Regardless of whether the USB cable is plugged in or unplugged, the active power supply of the PROFIBUS network is drawn from the external 24Ā VĀ DC power supply unit.
Optional for the use of the CPĀ 5711 in control cabinets or in the vicinity of SIMATIC S7 controllers, a mounting adapter (DIN rail) is available to attach the CP to the 35 mm DIN rail.
Only one CP per PG/PC/OP can be operated. Likewise, only one protocol (PROFIBUS DP, S7 communication, or FDL) can be used per CP.
The following software packages support the CP 5711:
- STEPĀ 7 from V5.4 SP5;
drivers for the CPĀ 5711 are included with STEPĀ 7. - SOFTNET-S7 from V7.1;
the S7 programming interface can be used with this package. - SOFTNET-DP from V7.1;
with this, the CPĀ 5711 can be used as PROFIBUS DP master Class 1 or 2. - SOFTNET-DP slave from V7.1;
for operating the CPĀ 5711 as PROFIBUS DP slave - STEPĀ 7-Micro/WIN;
drivers for the CPĀ 5711 are included with STEPĀ 7-Micro/WIN. - WinCC/WinCC flexible;
the CPĀ 5711 can be used as a hardware basis for the configuration tool for SIMATIC Operator Panels, Touch Panels, and Text Displays. - NCM PC;
under Windows XP Professional - SIMATIC PDM;
drivers for the CPĀ 5711 are included with SIMATIC PDM.
Diagnostics

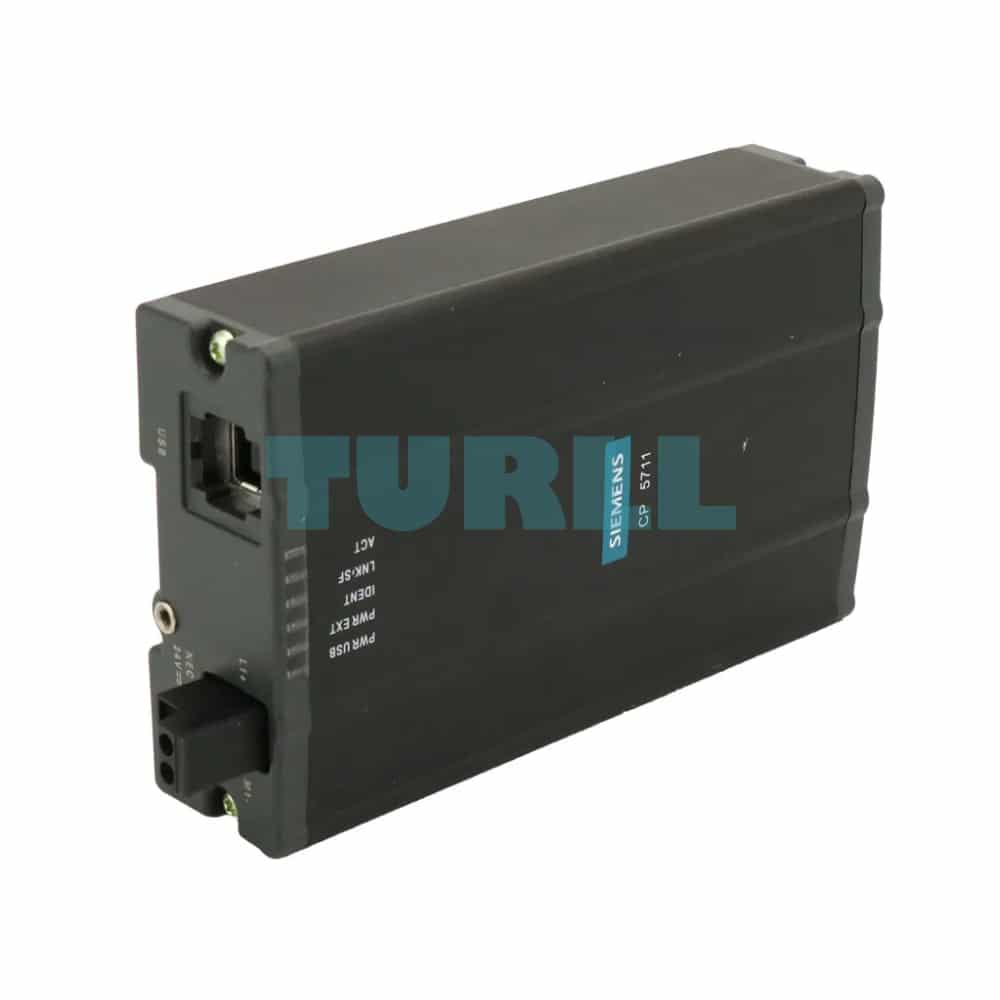

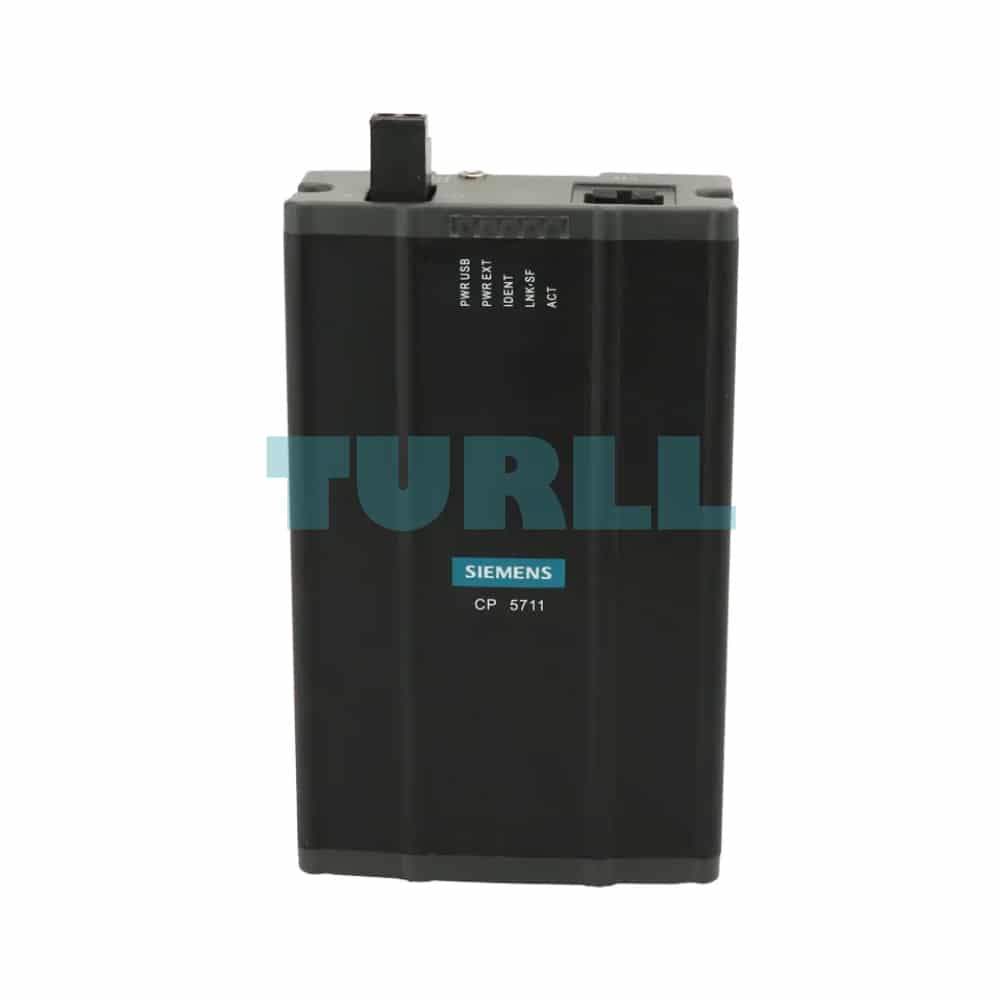

Numerous diagnostic tools are available for the CPĀ 5711. For support, the module also includes comprehensive LED diagnostics. Operating and signal states can be recognized quickly via five LEDs.
Configuration
- The S7 communication, open communication and DP protocols can be configured in STEP 7 or NCM PC.
- A configuration tool is included in the scope of delivery of the PROFIBUS SOFTNET software packages.
6GK1571-1AA00 Siemens
Communications processor CP 5711 USB adapter (USB V2.0) for connection of a PG or Notebook to PROFIBUS or MPI; contain 2 m USB cable.
| Weight | 0.449 kg |
|---|---|
| Dimensions | 85 × 35 × 137 mm |
