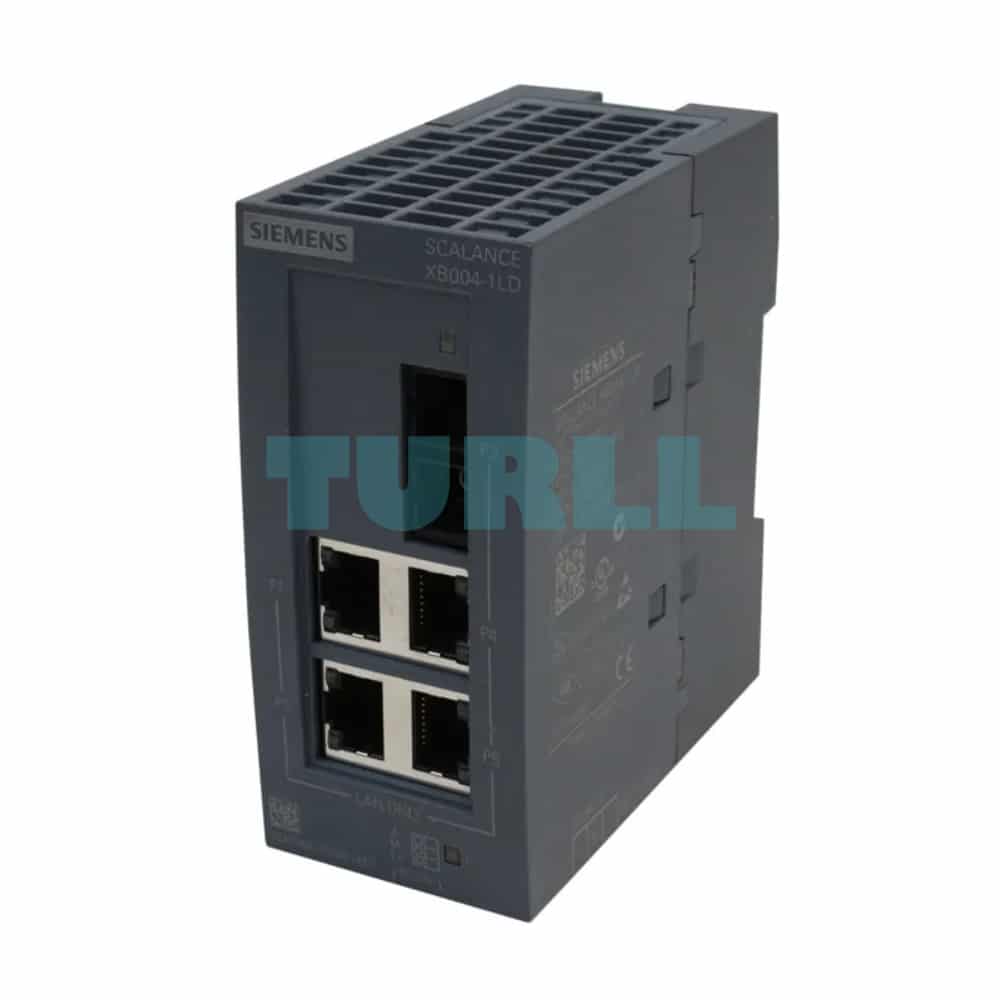

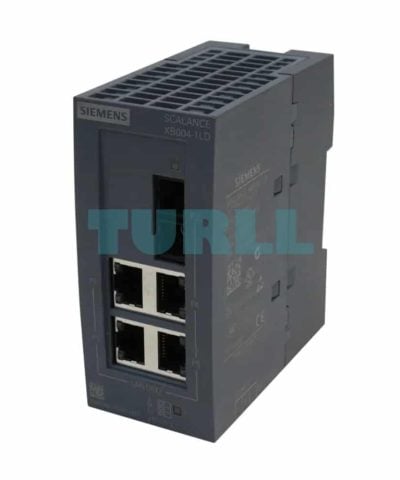

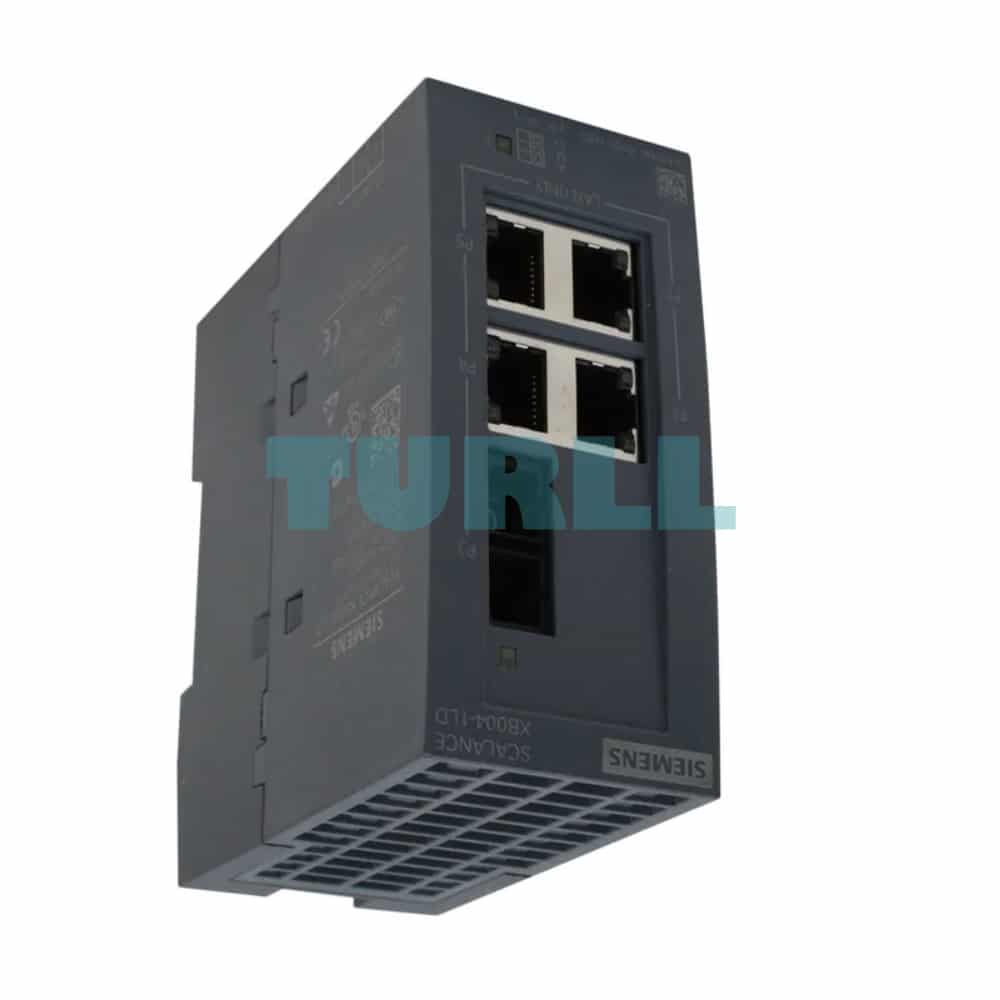

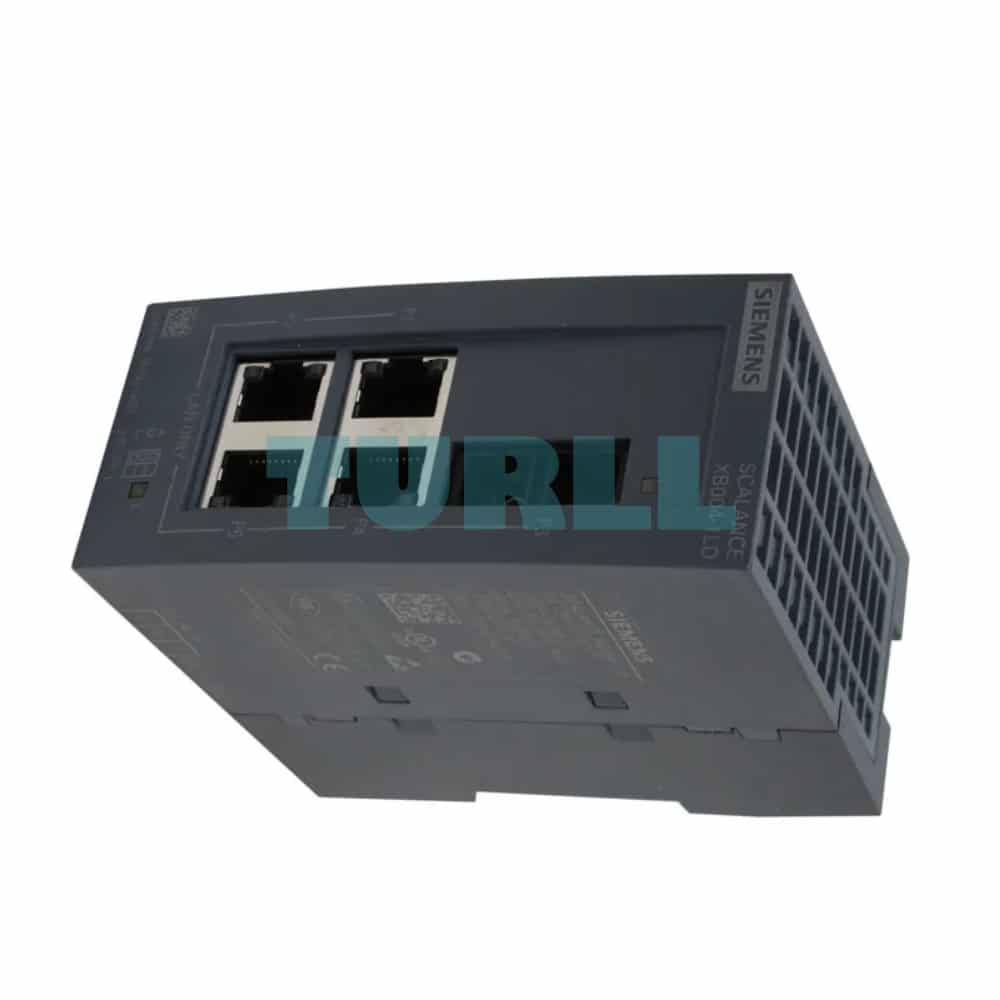

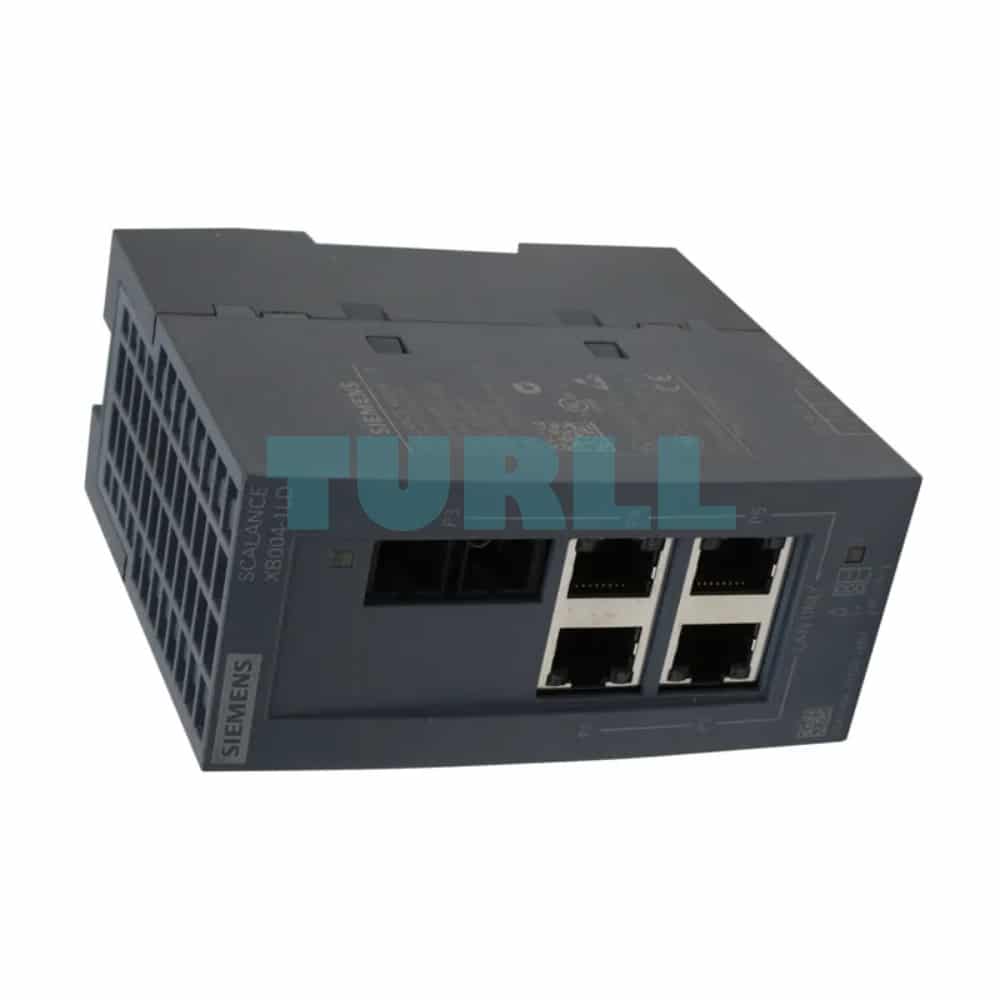

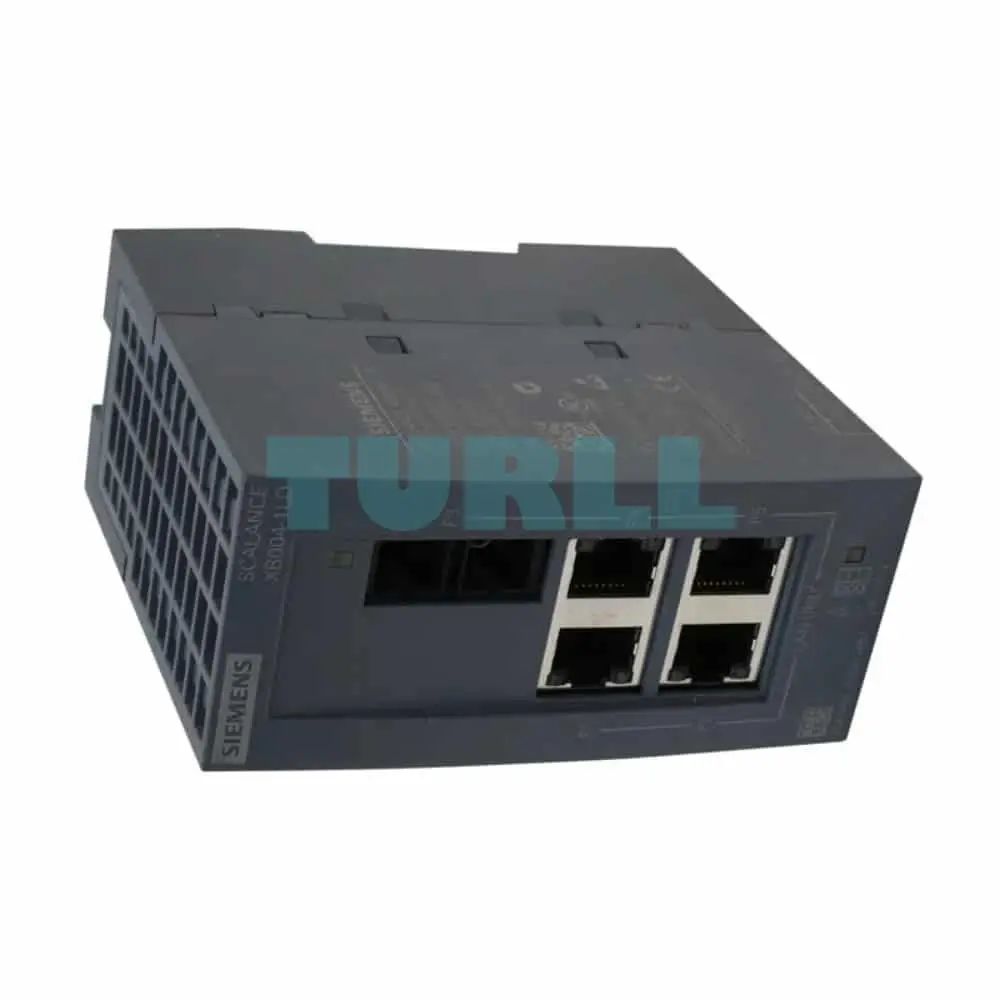

6GK5004-1BF00-1AB2 Siemens SCALANCE XB004-1LD Original Brand New
$410.53
6GK5004-1BF00-1AB2
Siemens SCALANCE XB004-1LD unmanaged Industrial Ethernet Switch for 10/100 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V AC/DC power supply, with 4x 10/100 Mbit/s twisted pair ports with RJ45 sockets; 1 x 100 Mbit/s single-mode glass fiber-optic cable port with SC socket; manual available as a download .
[ez-toc]
Overview
The unmanaged Industrial Ethernet switches of the SCALANCE XB-000 line are ideal for setting up small Industrial Ethernet networks in line and star topologies. Their enclosures are suitable for space-saving installation in control cabinets or boxes on standard DIN rails.
Product variants
- SCALANCE XB005 and SCALANCE XB008
5 or 8 x 10/100 Mbps RJ45 ports, electrical - SCALANCE XB005G and SCALANCE XB008G (Gigabit)
5 or 8 x 10/100/1000 Mbps RJ45 ports, electrical - SCALANCE XB004-1
4 x 10/100 Mbps RJ45 ports, electrical
1 x 100 Mbps SC port, optical (multimode, glass), up to 5 km - SCALANCE XB004-2
4 x 10/100 Mbps RJ45 ports, electrical
2 x 100 Mbps SC port, optical (multimode, glass), up to 5 km - SCALANCE XB004-1LD (long distance)
4 x 10/100 Mbps RJ45 ports, electrical
1 x 100 Mbps SC port, optical (single-mode, glass), up to 26 km - SCALANCE XB004-2LD (long distance)
4 x 10/100 Mbps RJ45 ports, electrical
2 x 100 Mbps SC port, optical (single-mode, glass), up to 26 km - SCALANCE XB004-1G (Gigabit)
4 x 10/100/1000 Mbps RJ45 ports, electrical
1 x 1000 Mbps SC port, optical (multimode, glass), up to 750 m - SCALANCE XB004-1LDG (long distance)
4 x 10/100/1000 Mbps RJ45 ports, electrical
1 x 1000 Mbps SC port, optical (single-mode, glass), up to 10 km
Benefits
- Implementation of simple and very economical machine networking
- Space-saving installation thanks to small, compact design
- Can be used in industrial environments
- Fast commissioning without configuration
- Easy on-site diagnostics via LEDs
- Uncomplicated use of uncrossed connecting cables possible thanks to the integrated Autocrossover function
- Low-cost connection of especially remote nodes possible
- 24 V AC versions for use in building automation
Application
The unmanaged Industrial Ethernet switches of the SCALANCE XB-000 line enable cost-effective solutions for setting up small, electrical/optical star or line topologies with switching functionality in machines or plant units.
The enclosure is designed for space-saving installation in a control cabinet on a standard rail.
Design
The SCALANCE XB-000 Industrial Ethernet switches are optimized for mounting on a DIN rail. Wall mounting is possible.
The SCALANCE XB-000 switches feature:
- A 3-pin terminal block for connecting the supply voltage (1 x 24 V DC) and functional grounding
- An LED for indicating status information (power)
- LEDs for indicating status information (link status and data exchange) per port
The following port types are available:
- 10/100 BaseTX electrical RJ45 ports or 10/100/1000 BaseTX electrical RJ45 ports:
automatic detection of data transmission rate (10 or 100 Mbps), with autosensing and autocrossing function for connecting IE TP cables up to 100 m. - 100 BaseFX, optical SC port:
for direct connection to Industrial Ethernet FO cables. Multimode FOC up to 5 km - 100 BaseFX, optical SC port:
for direct connection to Industrial Ethernet FO cables. Single-mode fiber-optic cable up to 26 km - 1000 BaseSX, optical SC port:
for direct connection to Industrial Ethernet FO cables. Multimode fiber-optic cable up to 750 m - 1000 BaseLX, optical SC port:
for direct connection to Industrial Ethernet FO cables. Single-mode fiber-optic cable up to 10 km
All connections for data cables are located at the front, and the connection for the power supply is at the bottom.
Function
- Construction of electrical Industrial Ethernet line or star topologies
- Automatic data transmission rate detection (10/100/1000 Mbps), with autosensing and autocrossover function
- Easy network configuration and network expansion;
no limitation on network expansion with cascading of the switches
Network topology and network configuration
The SCALANCE XB-000 switches are typically installed with the stations to be connected in a control cabinet or control box.
When configuring the network, it is necessary to observe the following boundary conditions:
- Length of the TP cable between two SCALANCE XB-000 switches:
- max. 100 m
- max. 10 m via patch cables with TP Cord
- max. 100 m via Industrial Ethernet FC Outlet RJ45, IE FC Standard Cable and TP Cord
- Length of the fiber-optic cables:
- max. 5 km with Industrial Ethernet FO cables
Multimode - max. 26 km with Industrial Ethernet FO cables
Single mode
- max. 5 km with Industrial Ethernet FO cables
Diagnostics
The following information is displayed by LEDs on site:
- Power
- Port status
- Data traffic
6GK5004-1BF00-1AB2
Siemens SCALANCE XB004-1LD unmanaged Industrial Ethernet Switch for 10/100 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V AC/DC power supply, with 4x 10/100 Mbit/s twisted pair ports with RJ45 sockets; 1 x 100 Mbit/s single-mode glass fiber-optic cable port with SC socket; manual available as a download .
Visit 6GK5004-1BF00-1AB2
For more our products visit turll.com
| Weight | 0.251 kg |
|---|---|
| Dimensions | 45.00 × 87.00 × 100.00 mm |
